Crimp Connector J206, Main Harness CV



Location: Approx. 210 mm from branching point of side impact sensor by left-hand B-pillar towards front left door

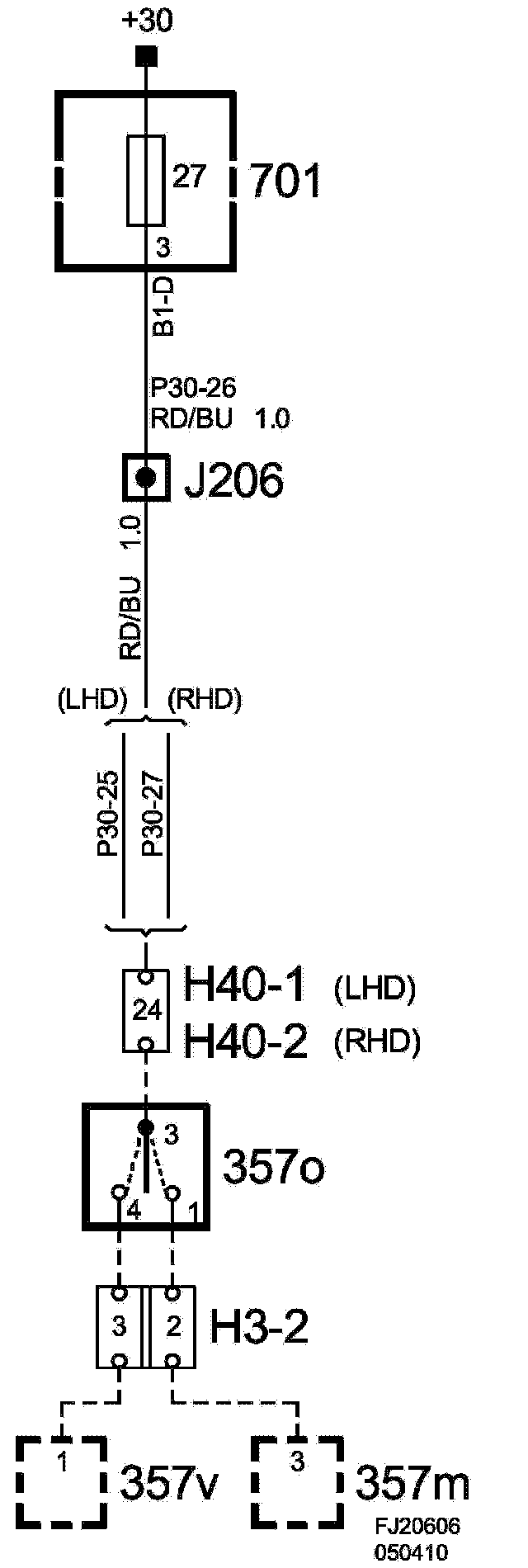

Crimp Connector J206, Main Harness CV:

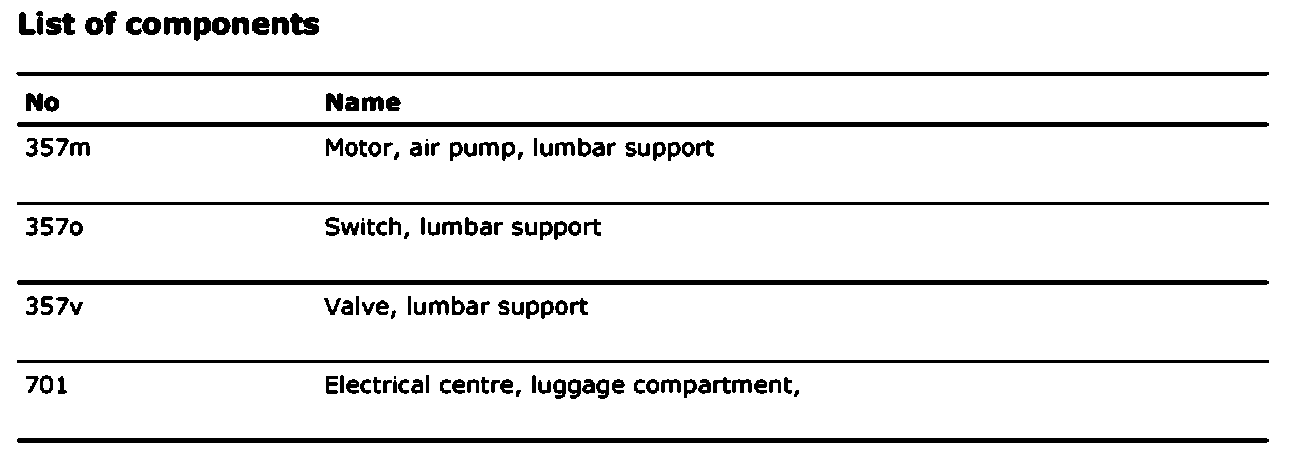

List Of Components:
