Crimp Connection J75, Dashboard Harness



Location:

LHD: Approx. 180 mm from branching of grounding point G41 towards grounding point G43

RHD: Approx. 140 mm from the light switch branching point towards the CIM

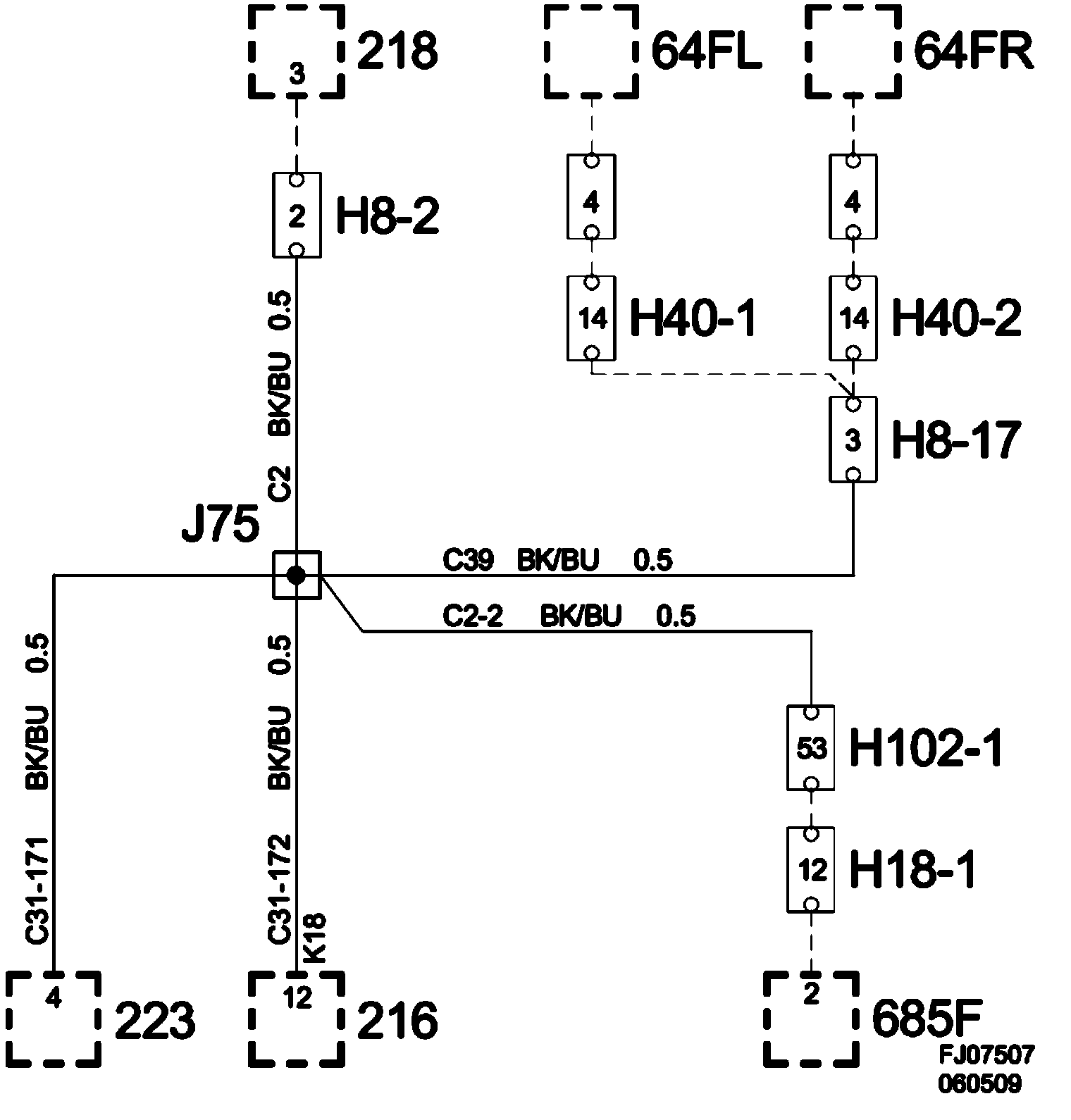

Crimp Connection J75, Dashboard Harness:

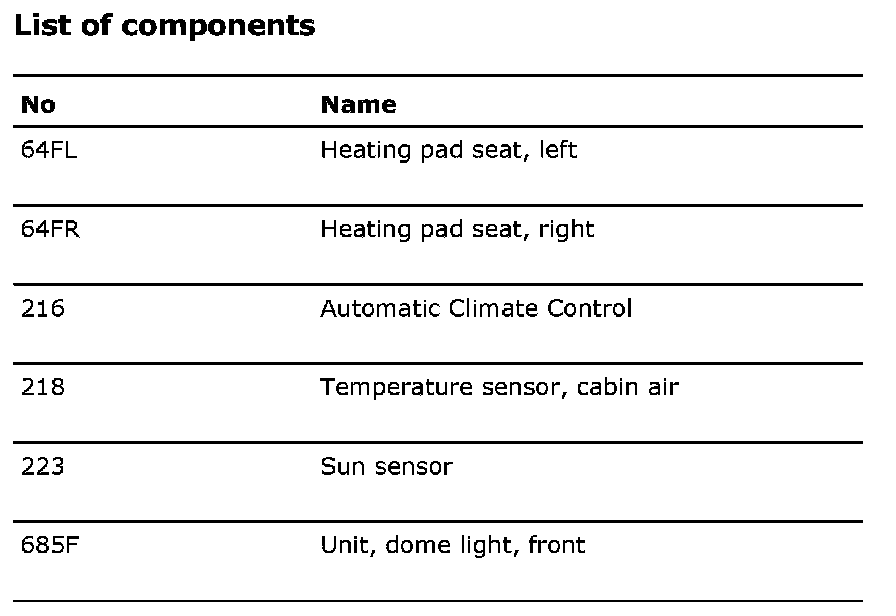

List Of Components:
