Home
>>
Saab
>>
2005
>>
9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Locations
>>
Splice Locations
>>

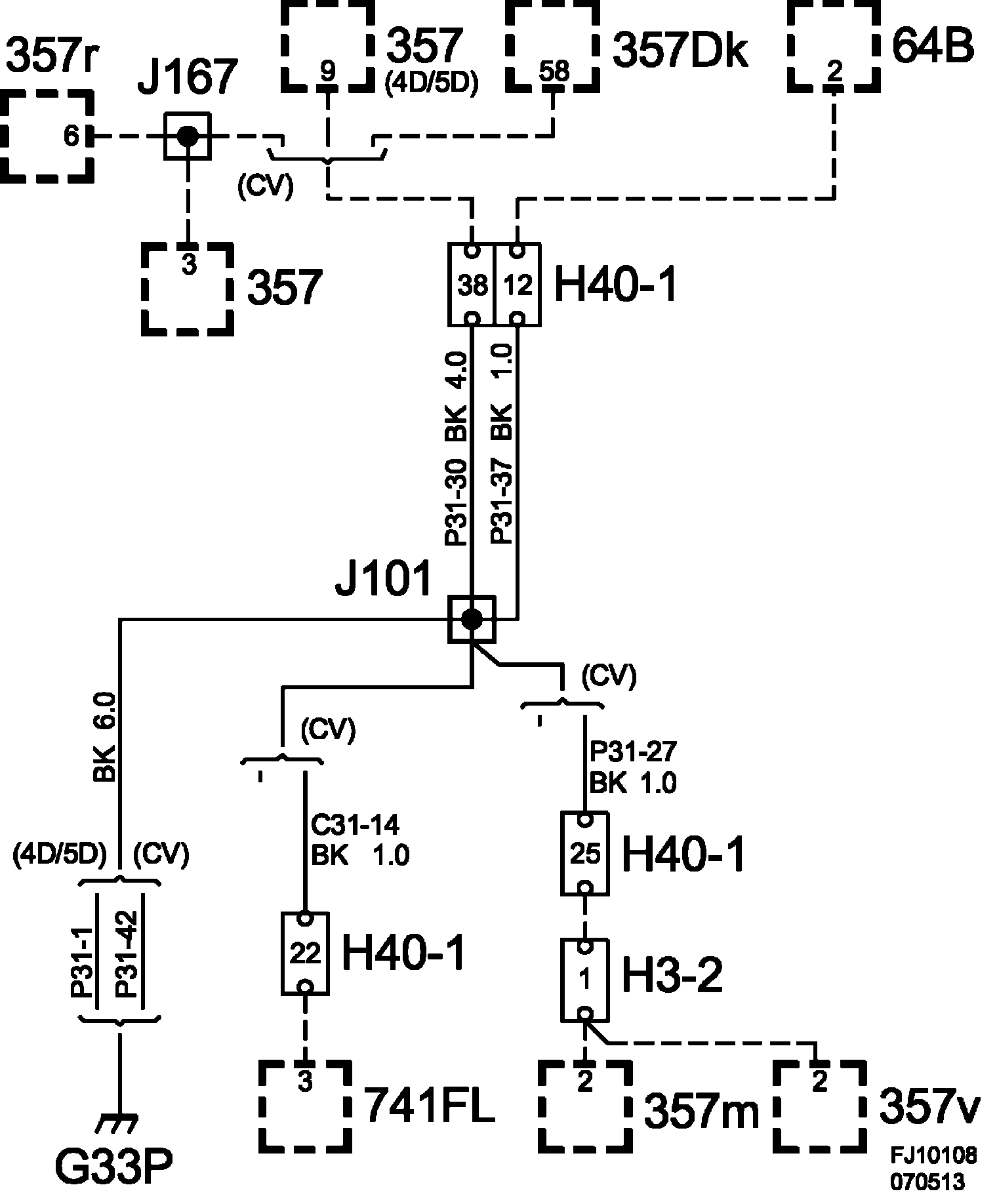

Crimp Connection J101, Main Harness
Crimp Connection J101, Main Harness
Location:
Approx. 280 mm from the left-hand seat connector
Crimp Connection J101, Main Harness:
List Of Components:
