Boot Electrical Center 701, Maxi Fuse
Boot Electrical Center 701, Maxi Fuse
Fuse 4, Boot Electrical Center 701, Maxi Fuse

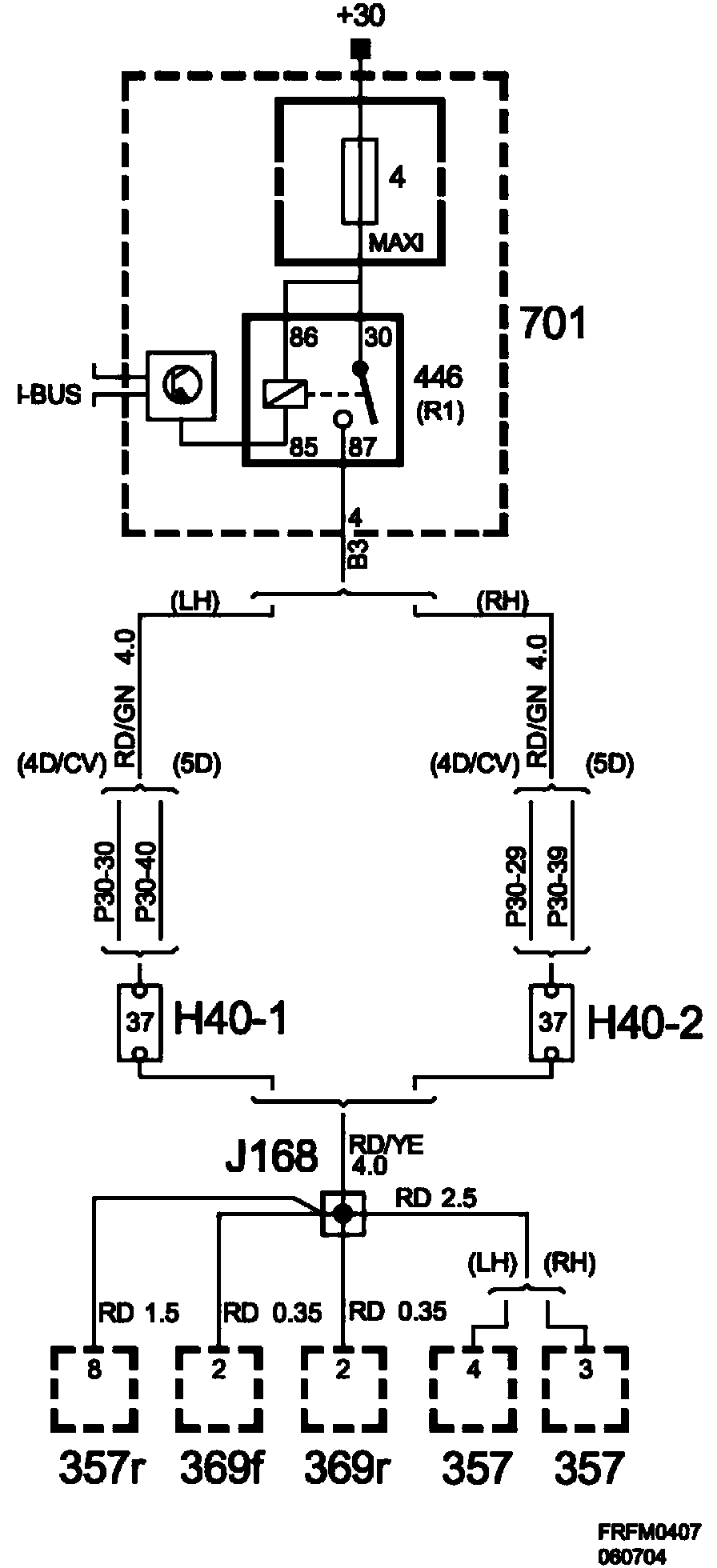

Fuse 4, Boot Electrical Centre 701, Maxi Fuse:

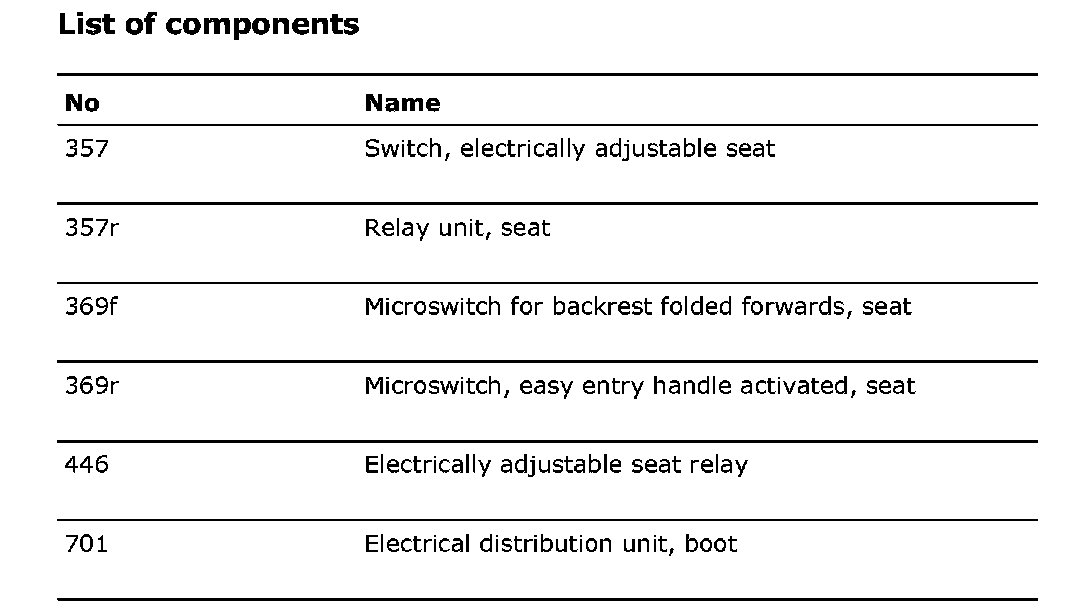

List Of Components:
