9-3 Linear (9440) L4-2.0L Turbo (2.0t)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Connector Views
>>

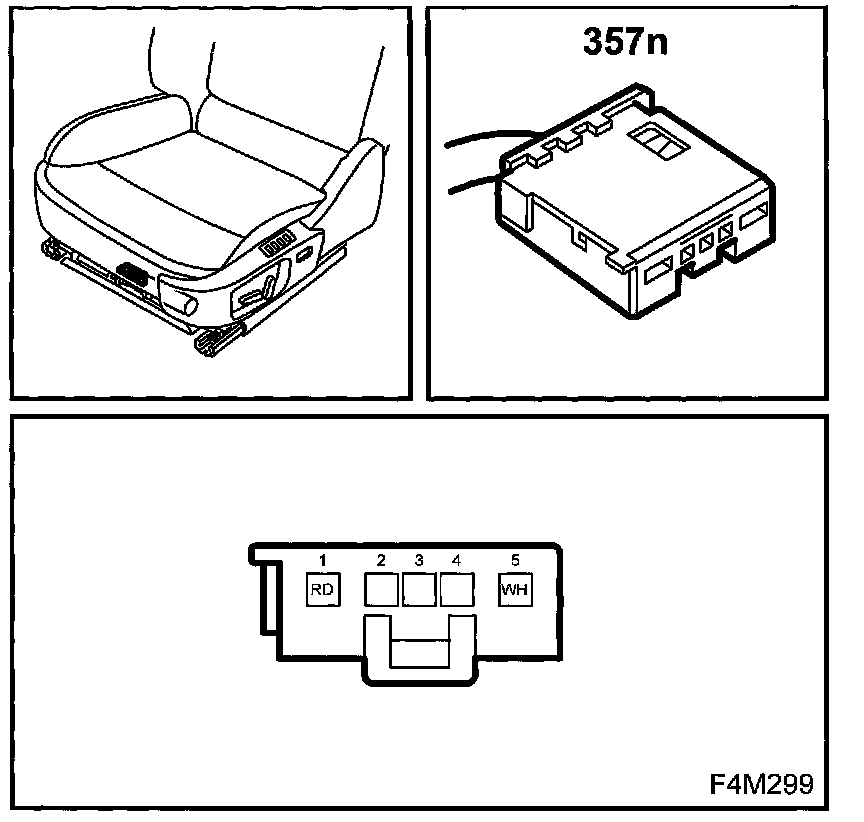

Seat Connectors In Numeric Order
>>
357n
357n
Location:
in the seat under the
seat cushion
Motor, Length Adjustment, Access, Electrically Operated Seat (357n):
