Seat Connectors In Numeric Order
>>

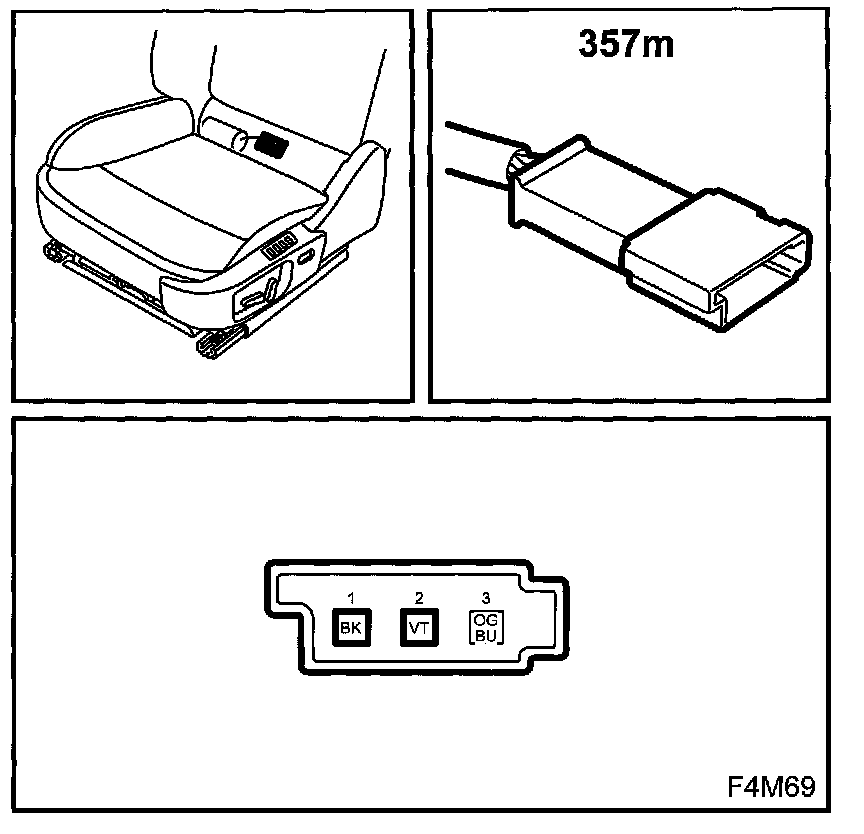

357m
357m
Location:
in lower edge of the seat backrest
Motor, Hydraulic Pump, Lumbar Support (357m):
