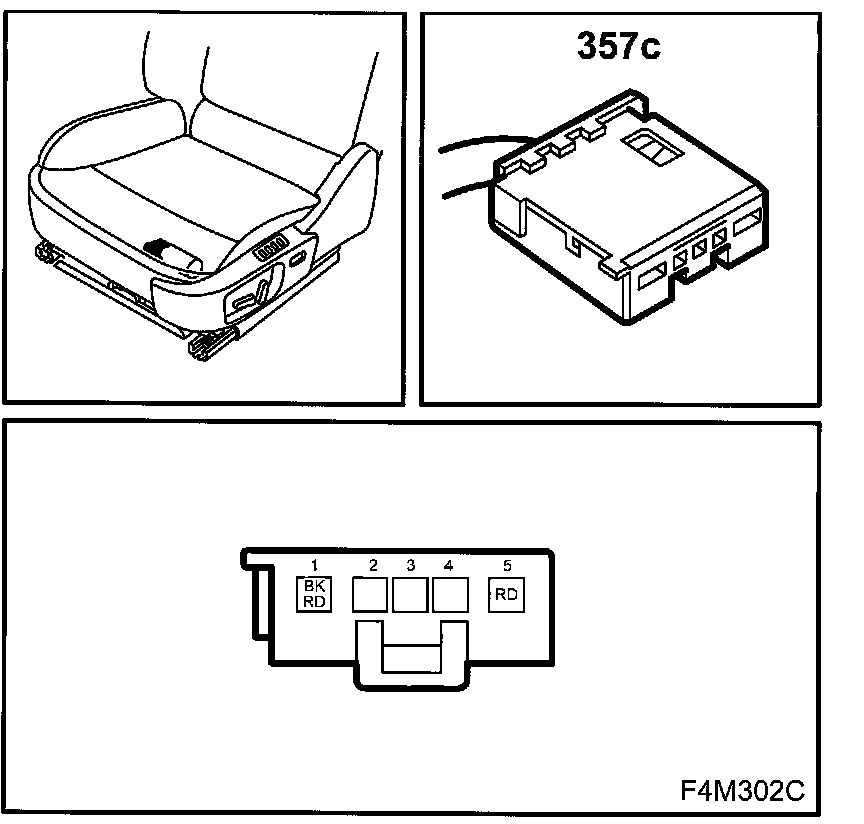

Seat Connectors In Numeric Order
>>
357c
>>
Convertible
Convertible
Location:
in the seat under the
seat cushion
CV LH
Motor, Height Adjustment, Electrically Operated Seat (357c):
CV RH
Motor, Height Adjustment, Electrically Operated Seat (357c):
