Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Connector Views >> Seat Connectors In Numeric Order >> 357Dj >> Convertible

Convertible



Location: on the outside of the seat towards the door

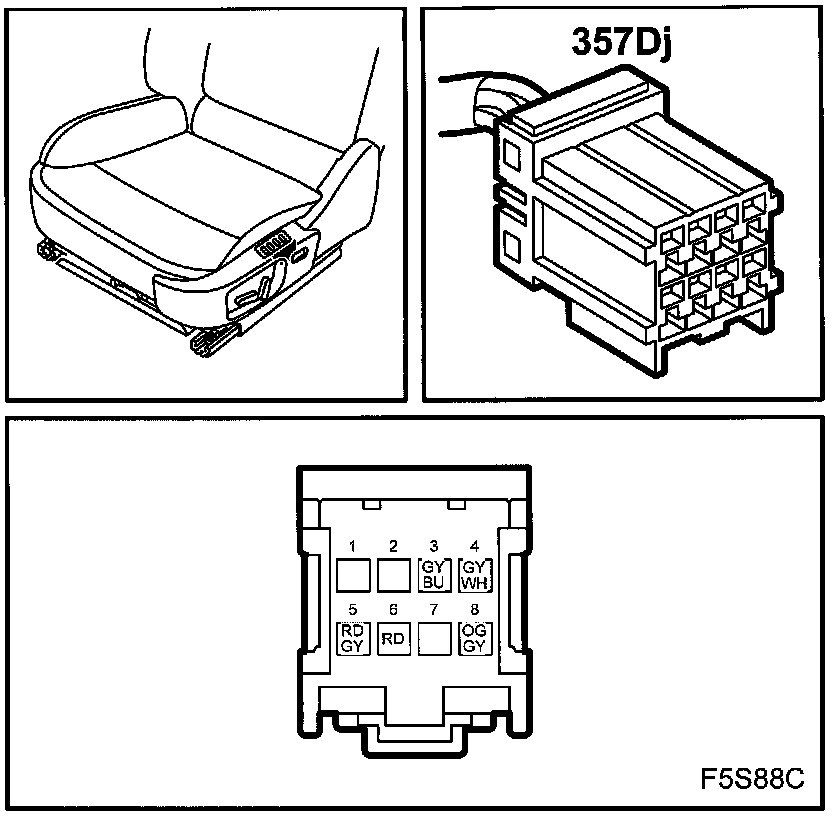

CV LH


Memory Switch, Electrically Operated Driver's Seat With Memory (357Dj):

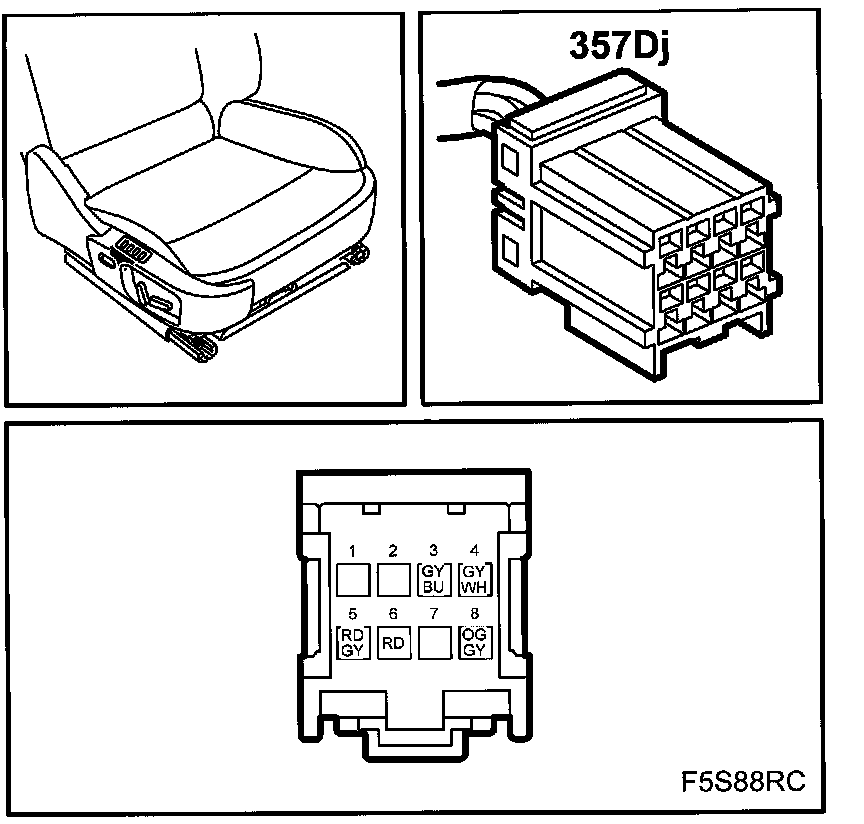

CV RH


Memory Switch, Electrically Operated Driver's Seat With Memory (357Dj):
