Rear Drainage Hose, Sunroof 5D

NOTE: Pay attention to cleanliness so that the headlining does not become dirty.

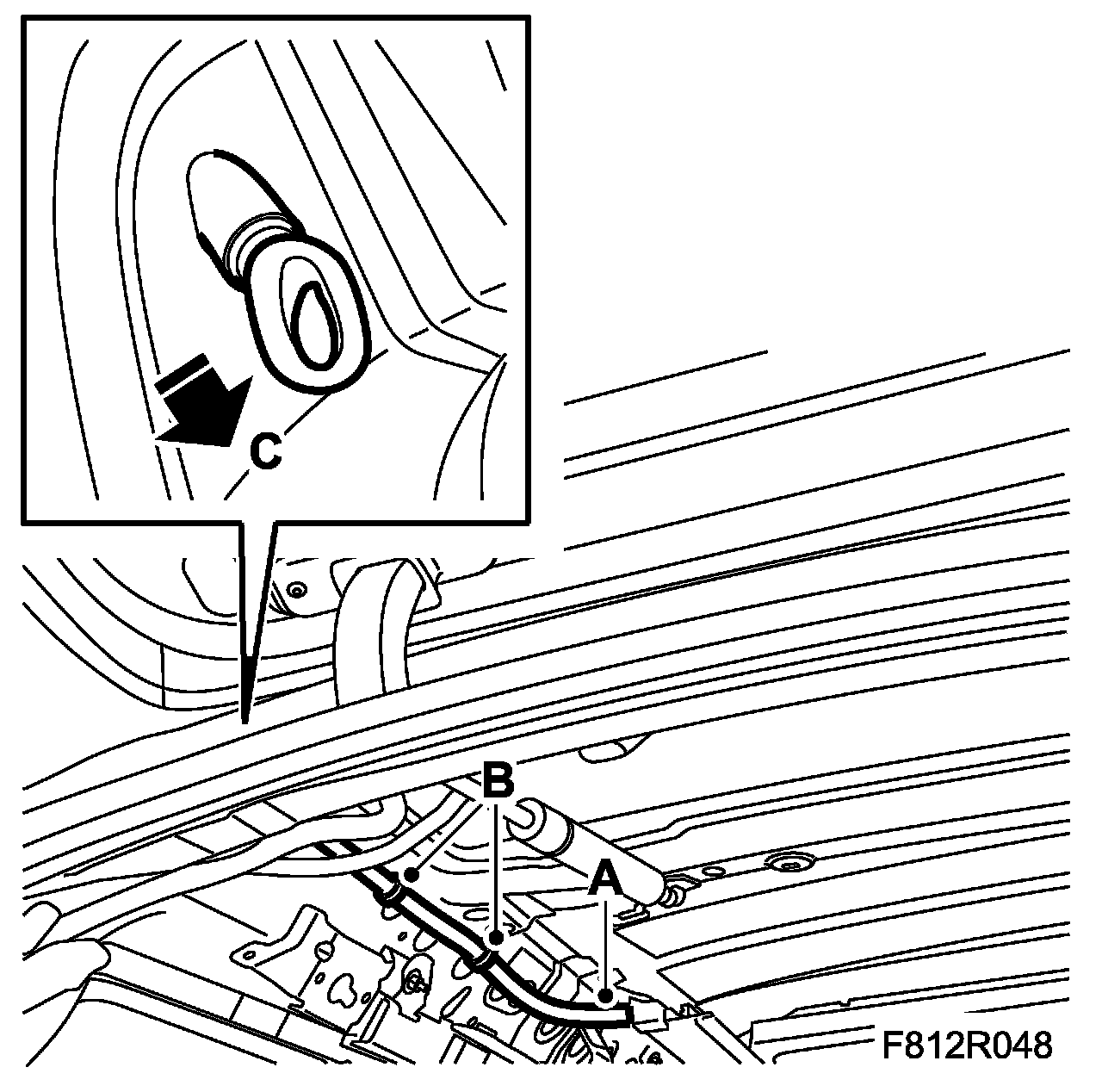

To remove
1. Remove the headlining.
2. Remove the rear drainage hose.







^ Remove the hose from the sunroof assembly (A).
^ Remove the clips, x 2 (B).
^ Remove the hose at the rear anchorage point.
^ Pull out the hose (C).

To fit

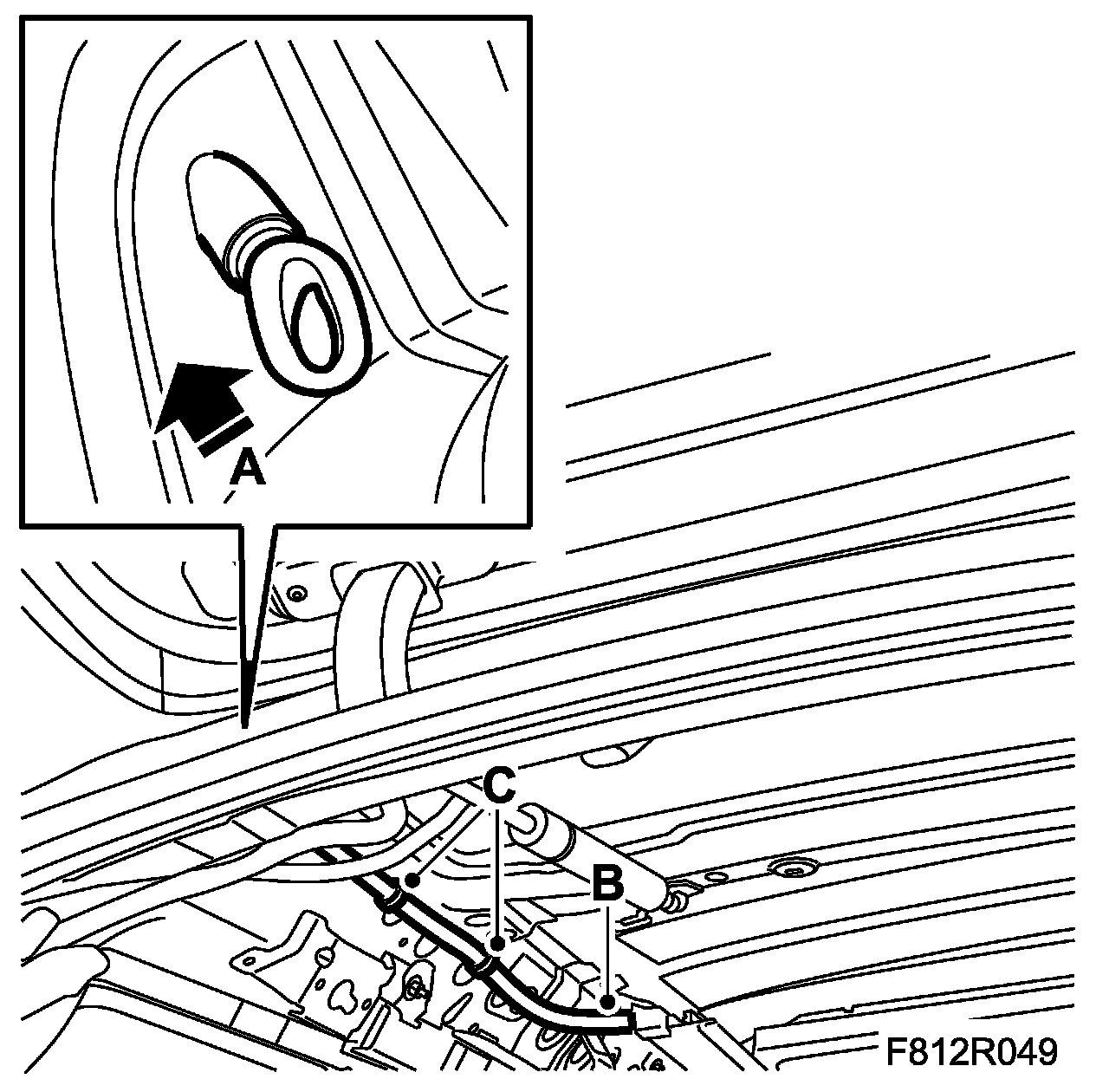

1. Fitting the rear drainage hose.







^ Route a new hose through the hole at the rear anchorage point (A).
^ Secure the hose to the rear anchorage point.
^ Secure the hose for the sunroof assembly (B).
^ Secure the clips, x 2 (C).

2. Fit the headlining.
