4D

Rear Drainage Hose, Sunroof 4D

NOTE: Pay attention to cleanliness so that the headlining does not become dirty.

To remove
1. Remove the headlining.
2. Remove the inspection cover.
^ Right-hand side:

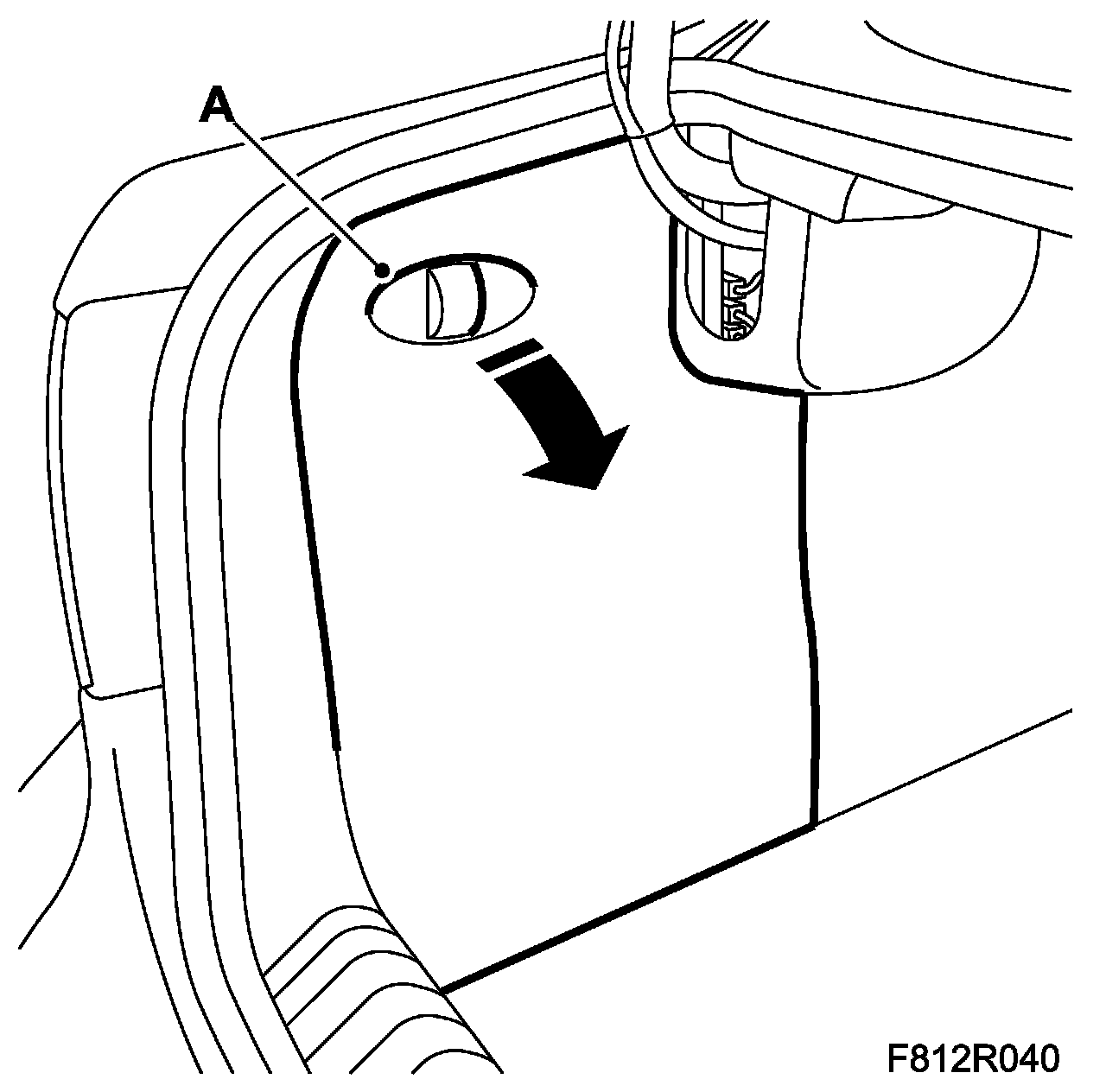

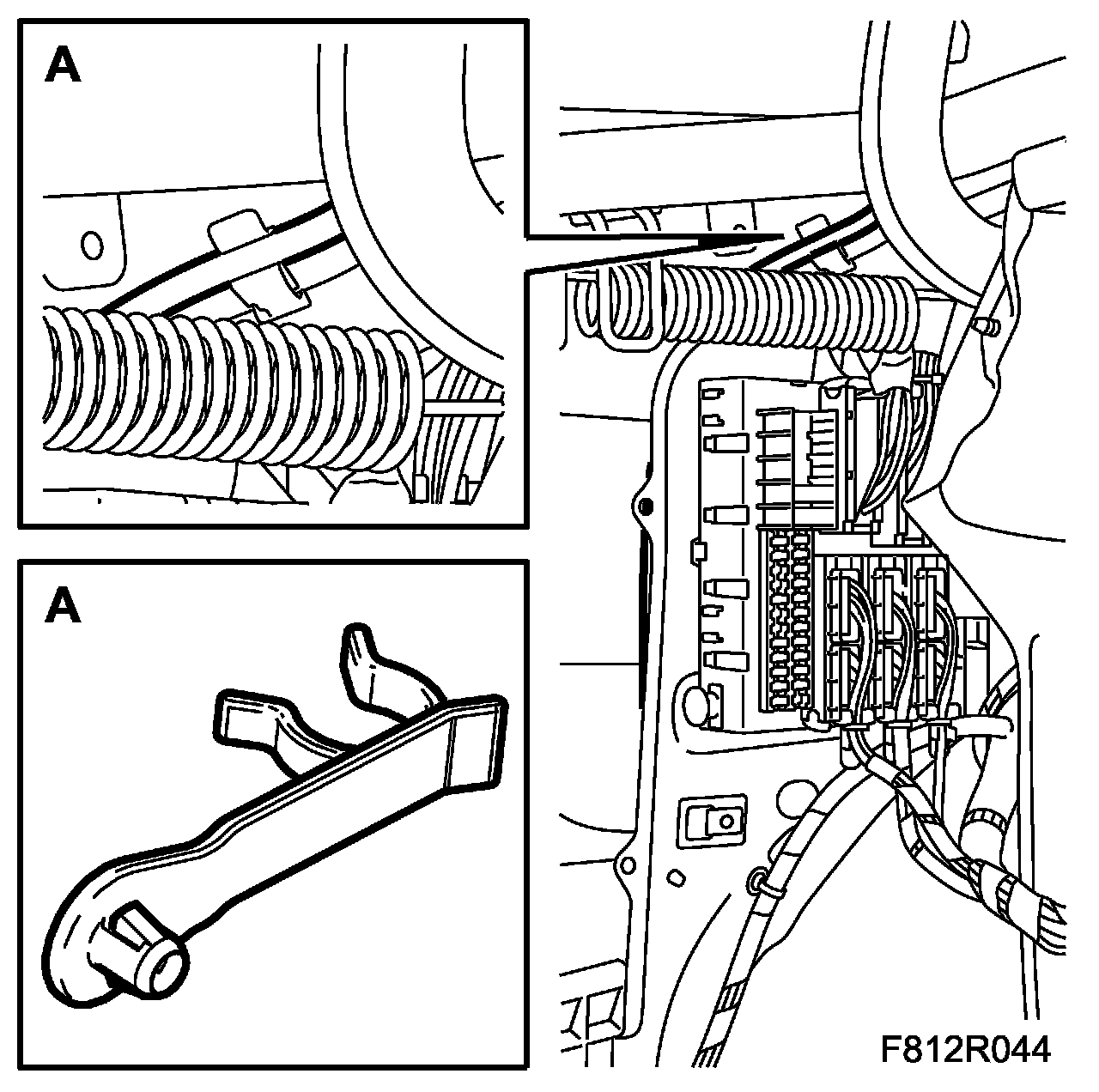

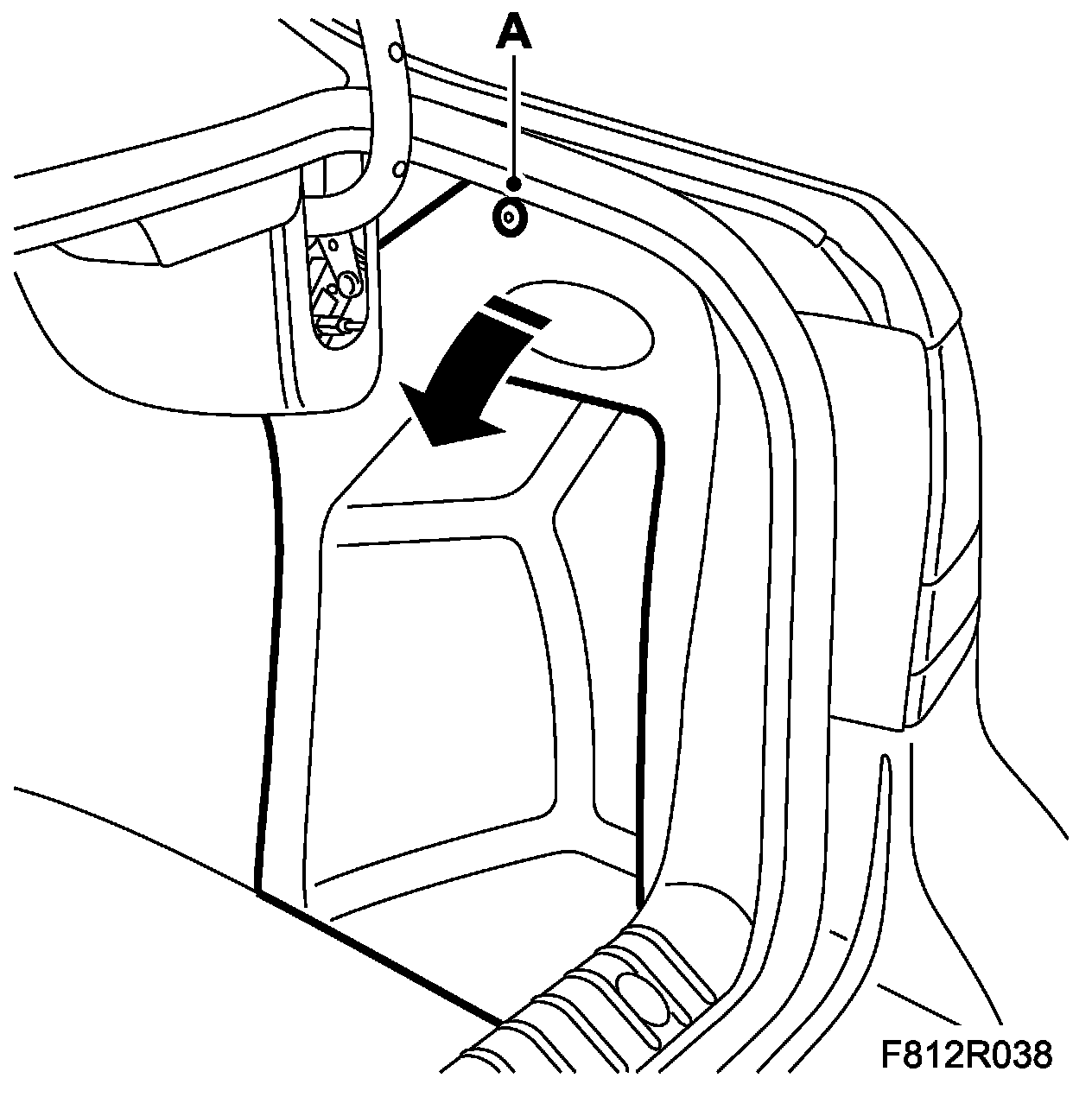

- Remove the clip (A) and fold down the inspection cover.

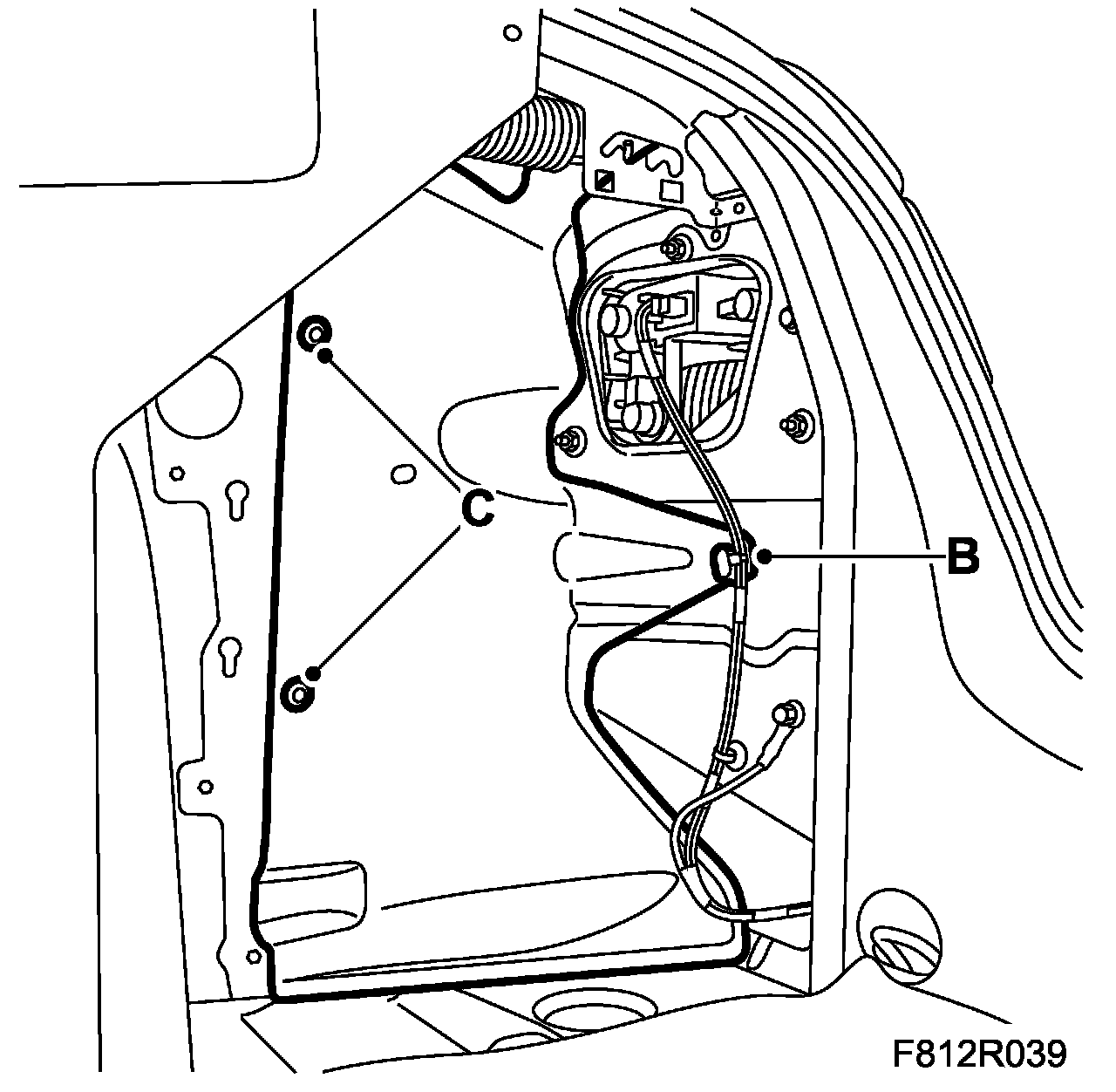

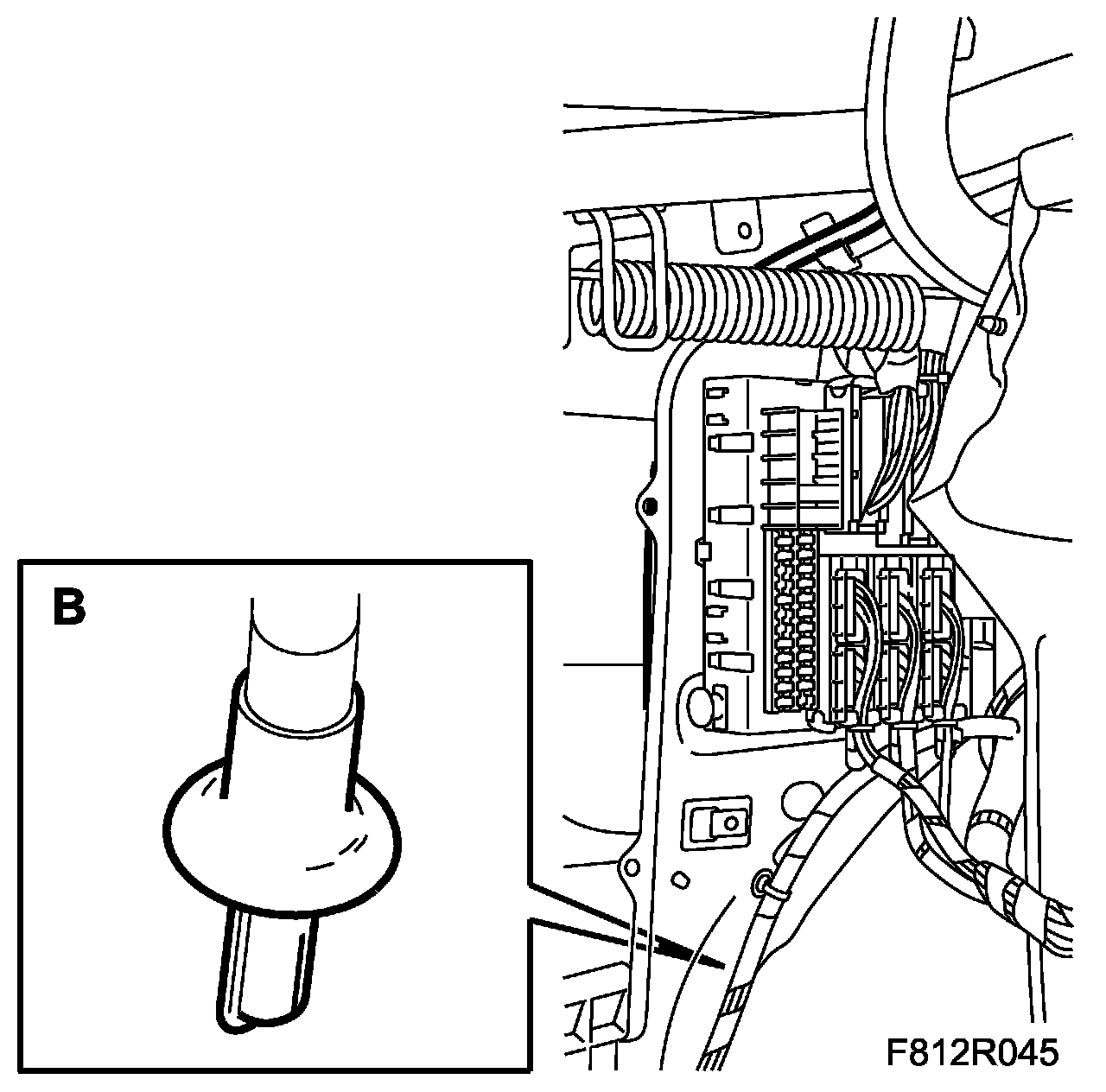

- Remove the clip (B) that holds the wiring harness to the rear lamp







- Remove the insulation, 2 clips (C).

^ Left-hand side:
- Open the inspection cover.







- Remove the amplifier unit for the radio.

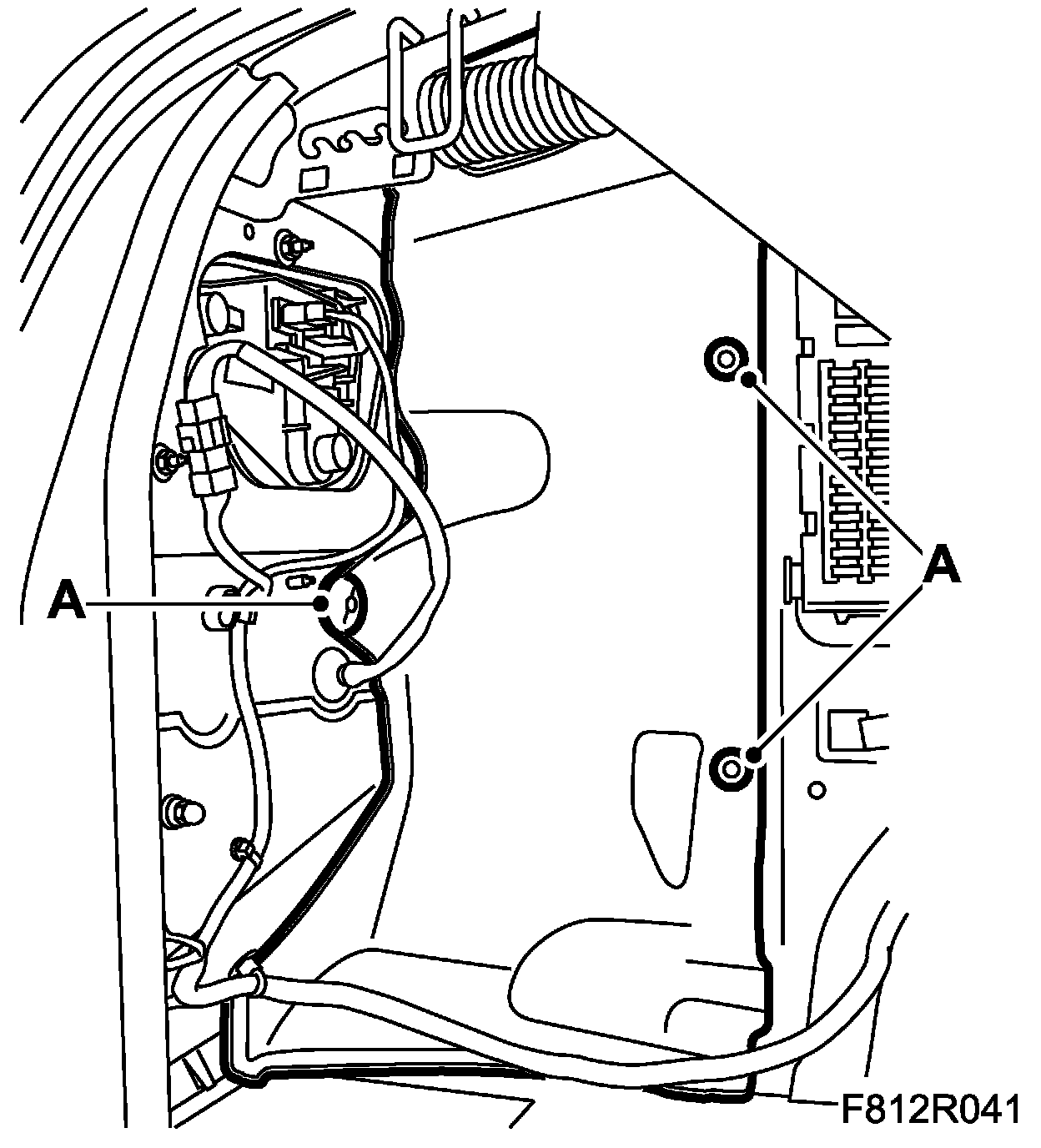

- Remove the insulation. 3 clips (A)







3. Remove the rear drainage hose.

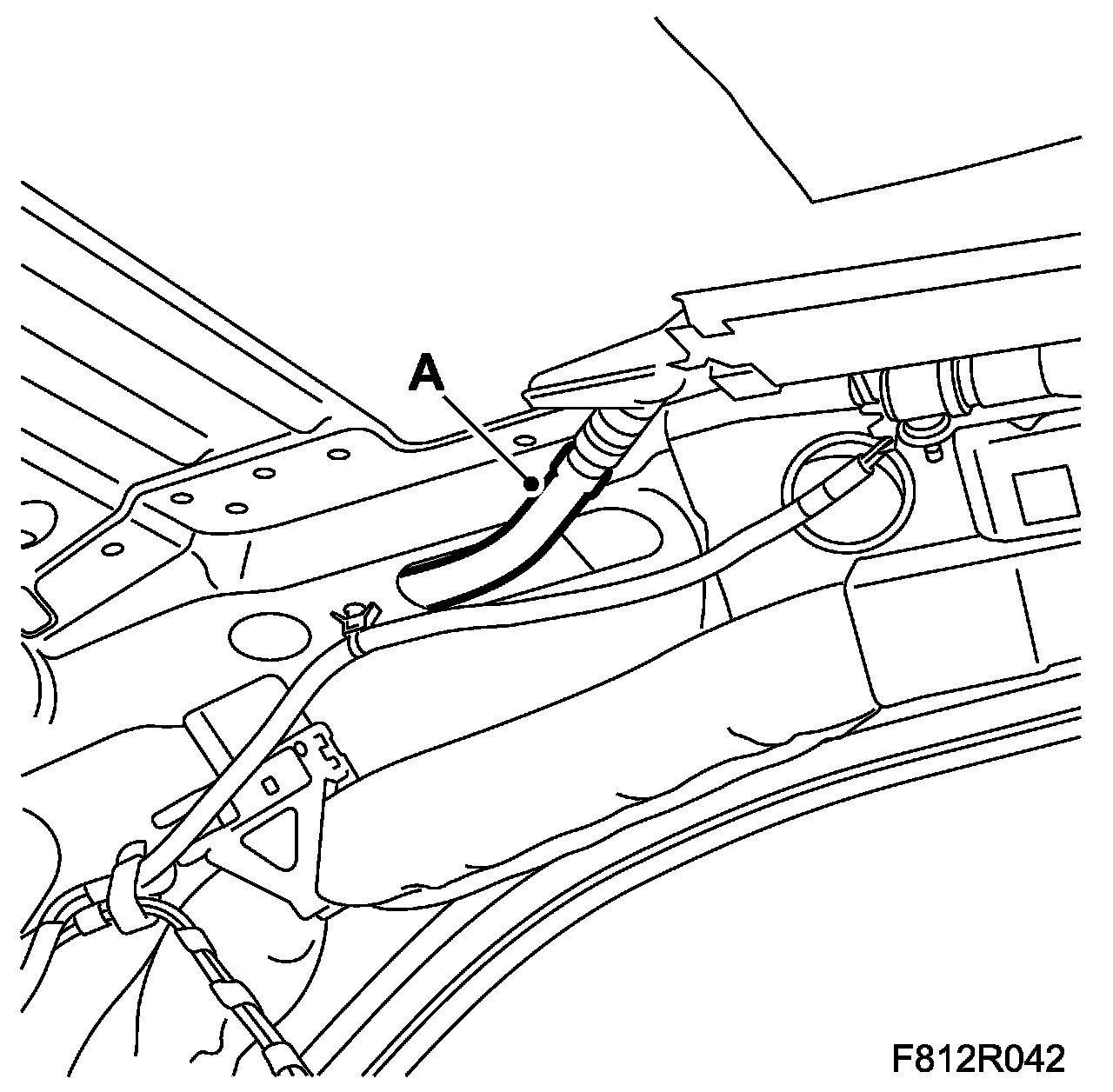

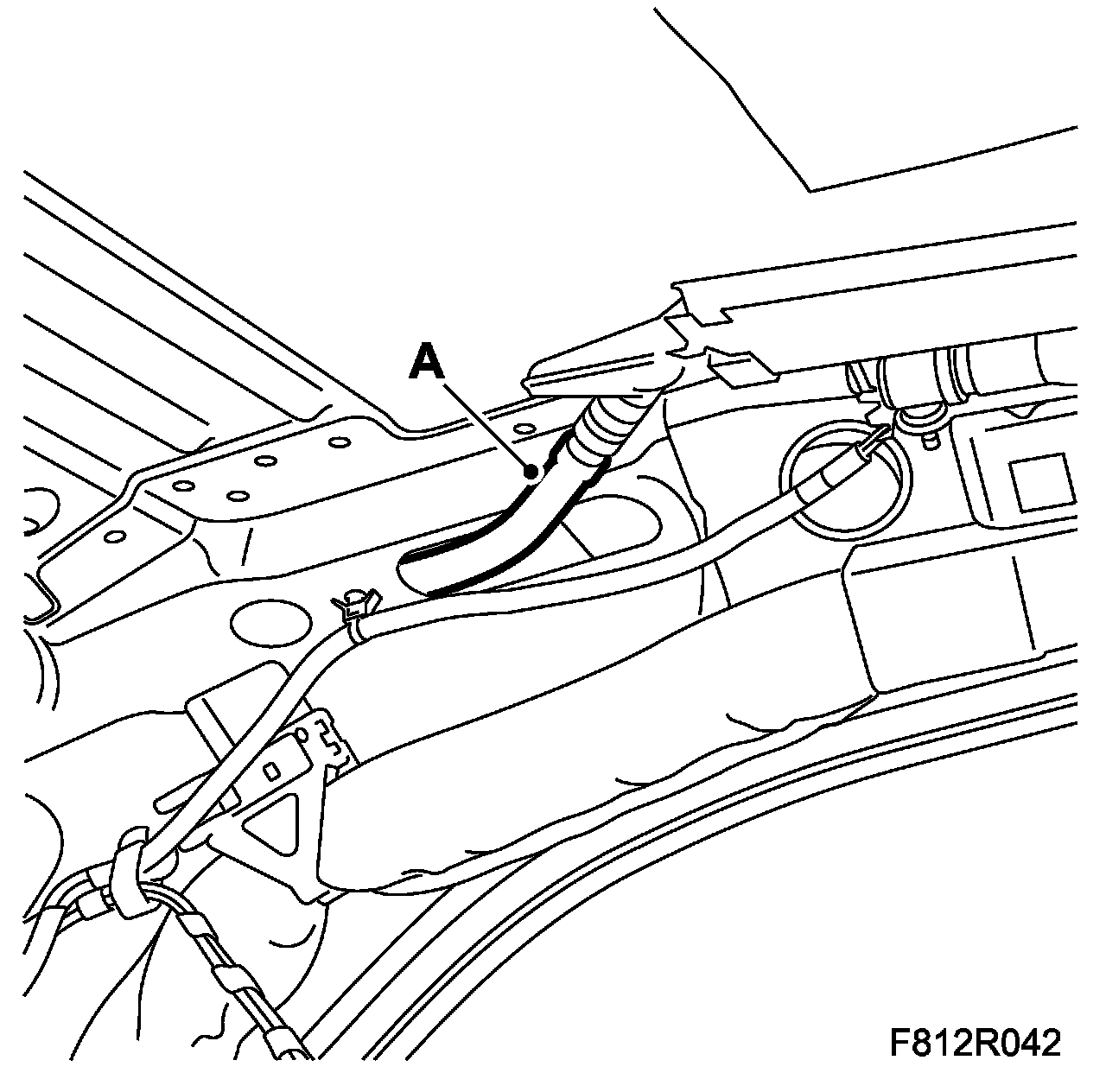

^ Remove the hose (A) from the sunroof assembly.

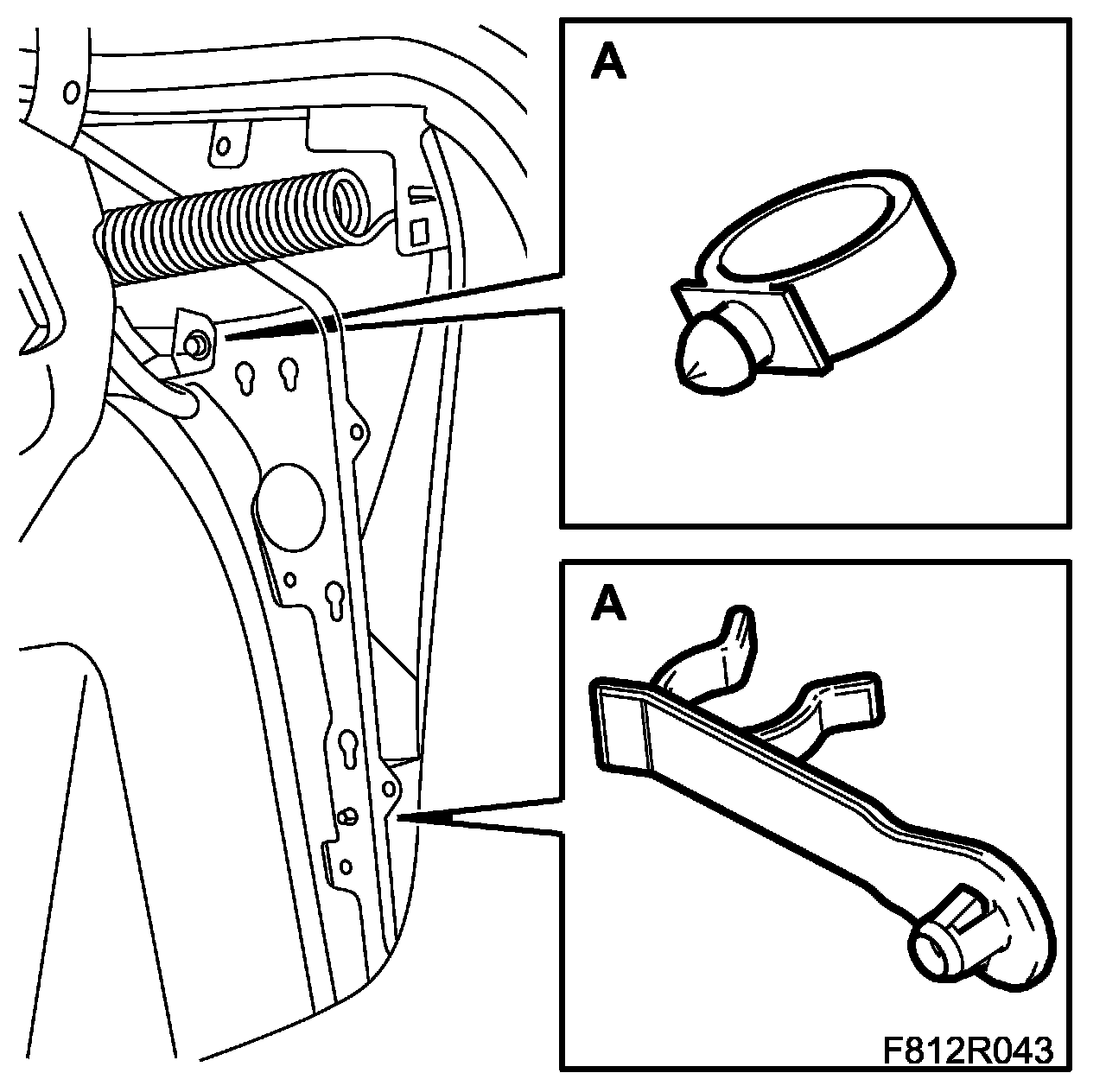

^ Remove the hose from the clips, right-hand side (A)







^ Remove the hose from the clips, left-hand side (A)

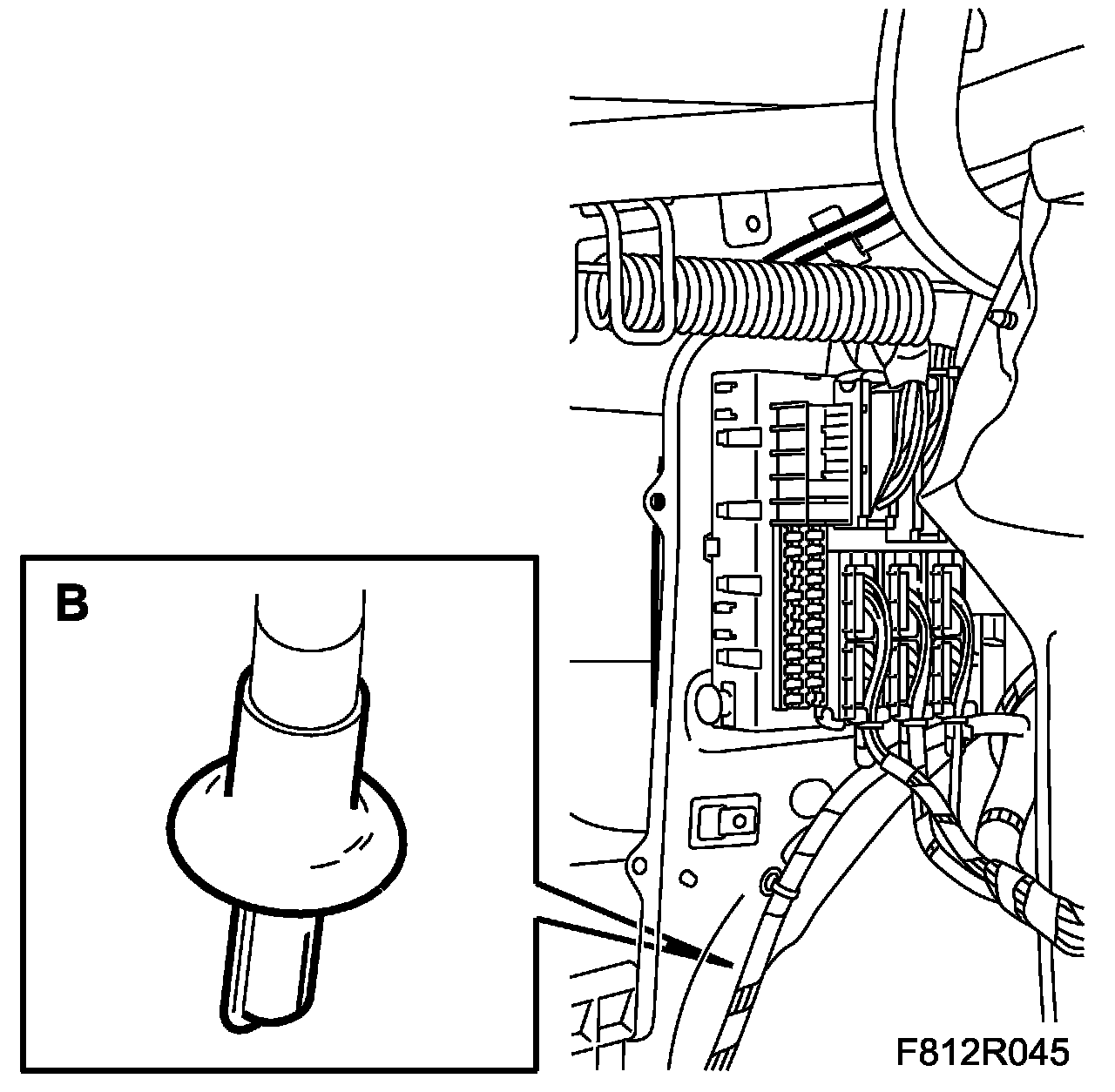

^ Remove the hose from the sound trap (B) behind the wheel housing in the luggage compartment.







^ Pull the hose out from the cabin.

To fit
1. Fitting the rear drainage hose.

^ Route a new hose through the hole down to the sound trap at the wheel housing.
^ Secure the hose to the sound trap (B) behind the wheel housing in the luggage compartment.







^ Secure the hose in the clips, right-hand side (A).







^ Secure the hose in the clips, left-hand side (A).







^ Secure the hose (A) for the sunroof assembly.







2. Fit the inspection cover.
^ Right-hand side:

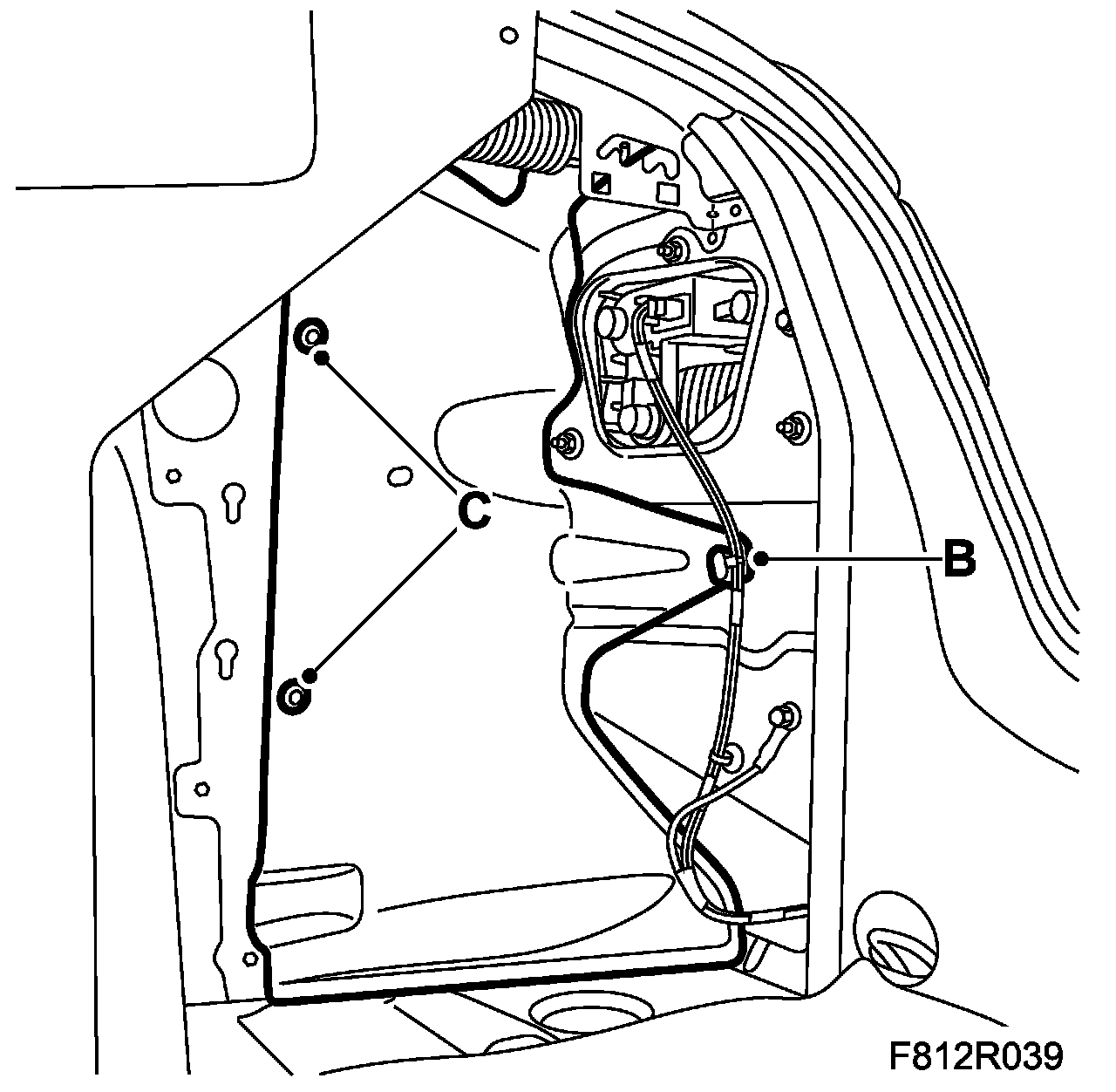

- Refit the insulation. 2 clips (A)







- Fit the clip (B) that holds the wiring harness to the rear lamp.

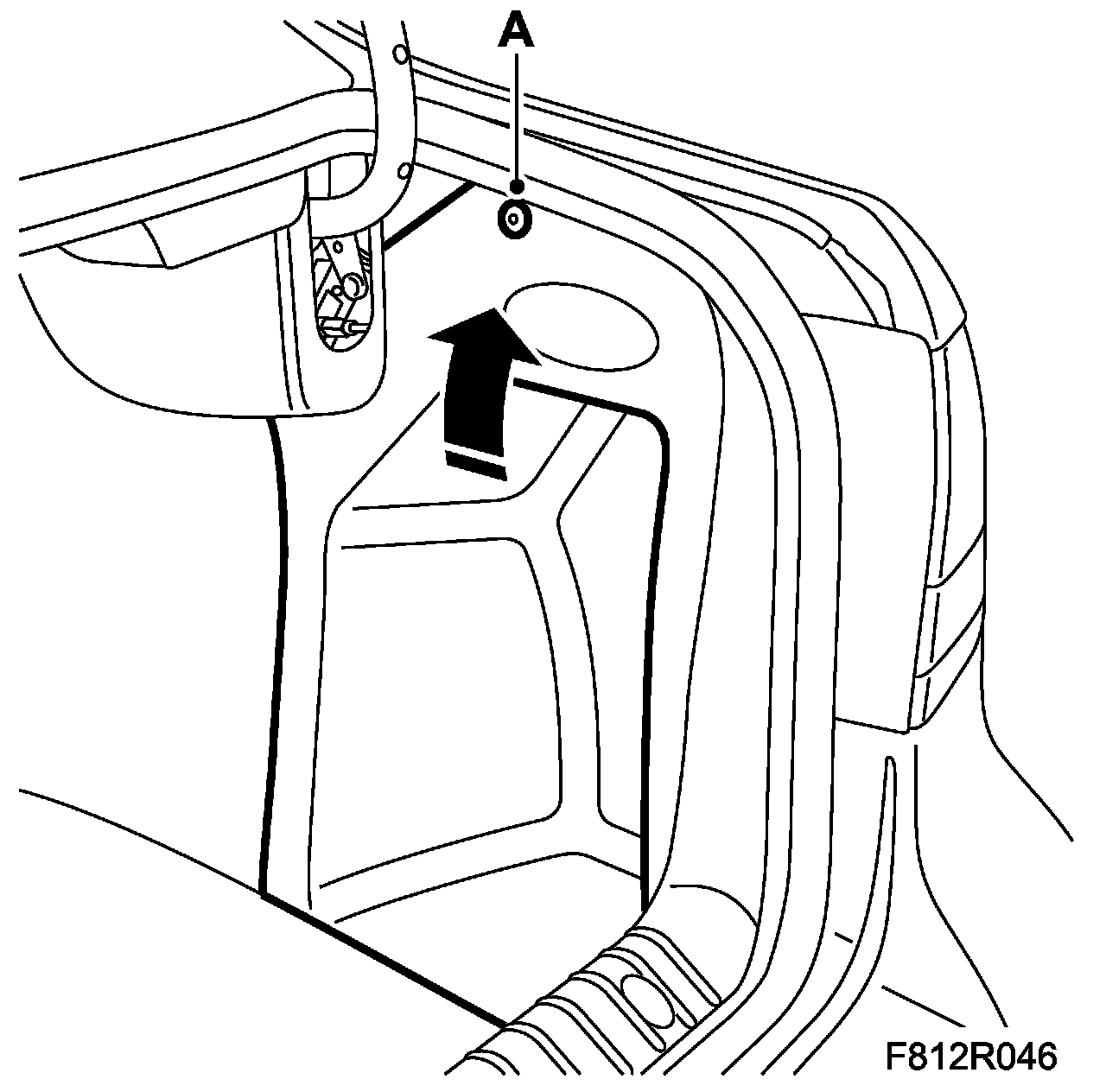

- Fold up the inspection cover and fit the clip (A).







^ Left-hand side:
- Refit the insulation. 3 clips (A).







- Fit the amplifier unit for the radio.
- Fold back the inspection cover.







- Fit the headlining.
