Convertible Top Pump: Description and Operation

Motor, Hydraulic Pump, Soft Top (646)

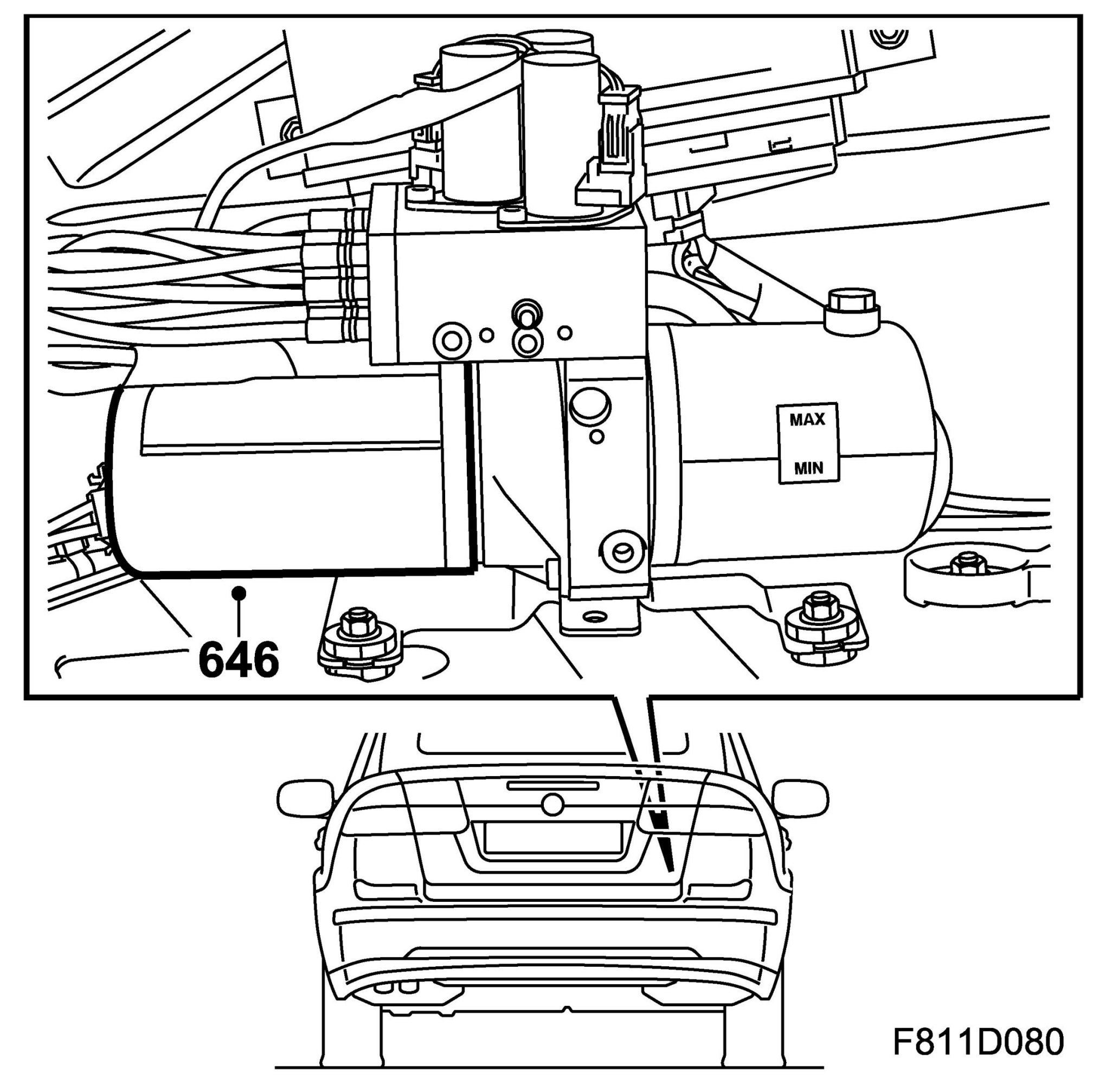

Location

Main task
The pump motor drives the hydraulic pump.

Type
DC motor.

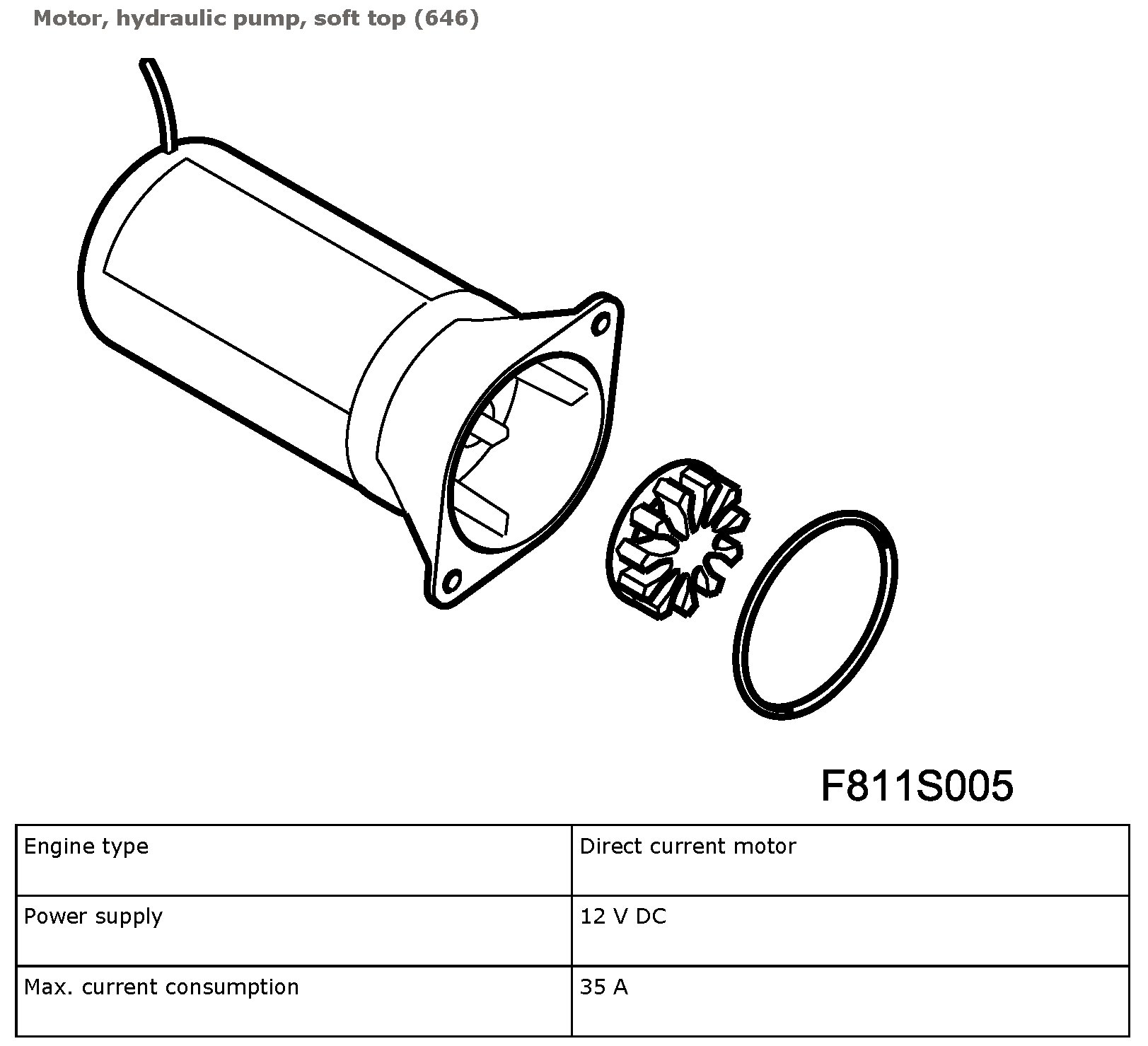

Technical data

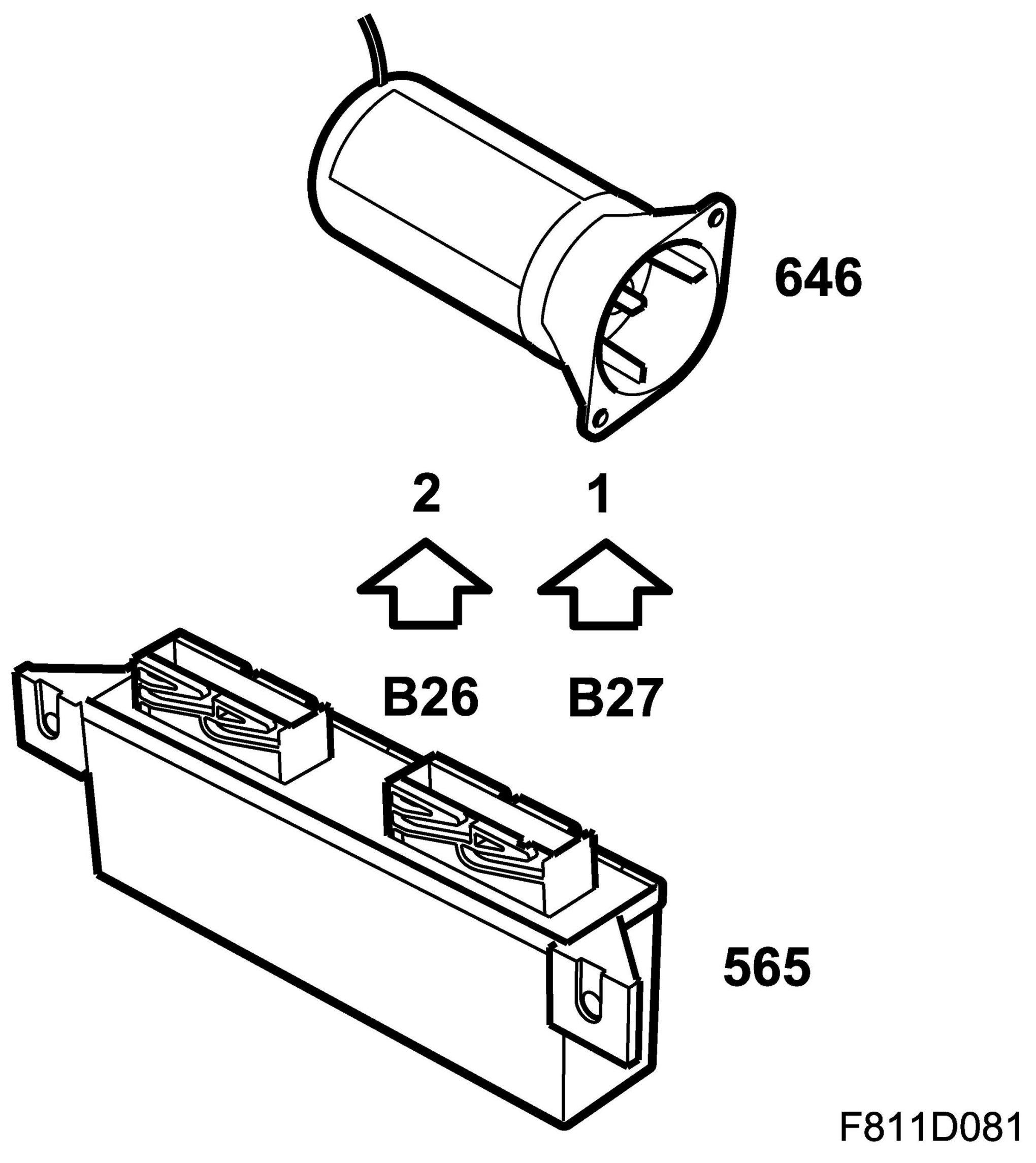

Connection

The STC control module reverses the output polarity to change the motor direction.

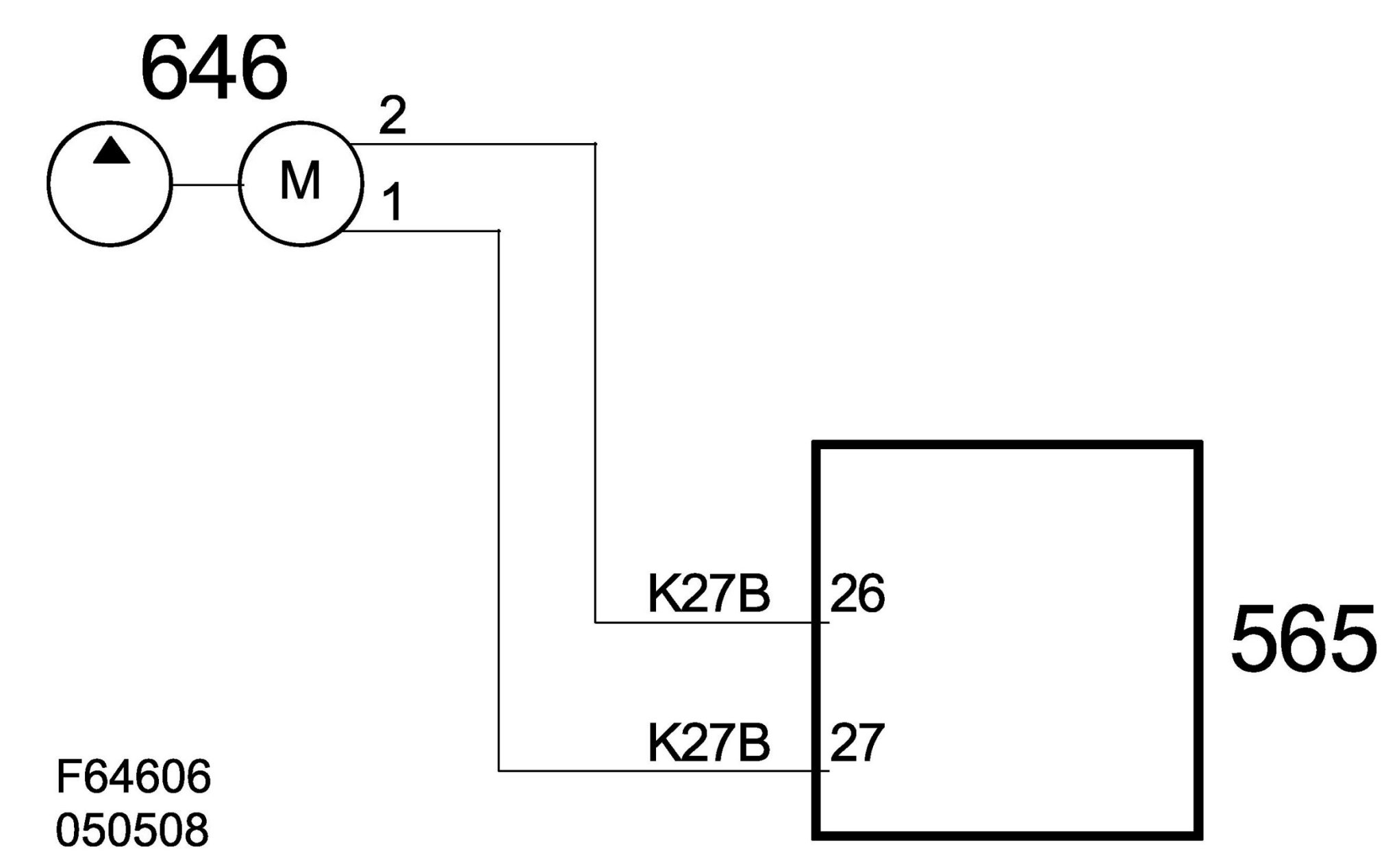

Diagram

Motor, Hydraulic Pump, Soft Top (646)
