Position Sensor, Soft Top Raised (577c)

Position Sensor, Soft Top Raised (577c)

Location







Main task
The sensor gives information to the STC control module indicating if the soft top is raised.

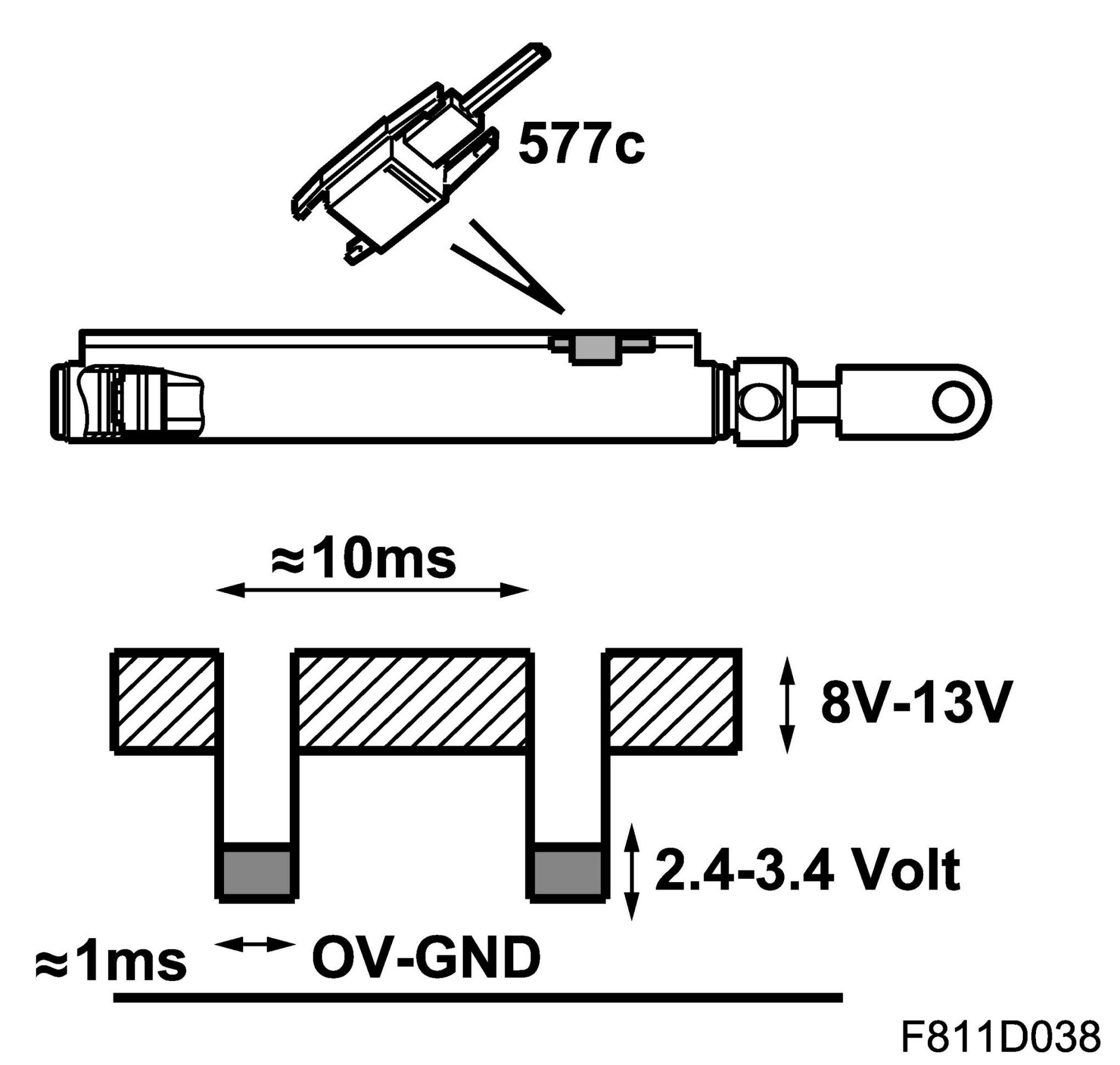

Lowered

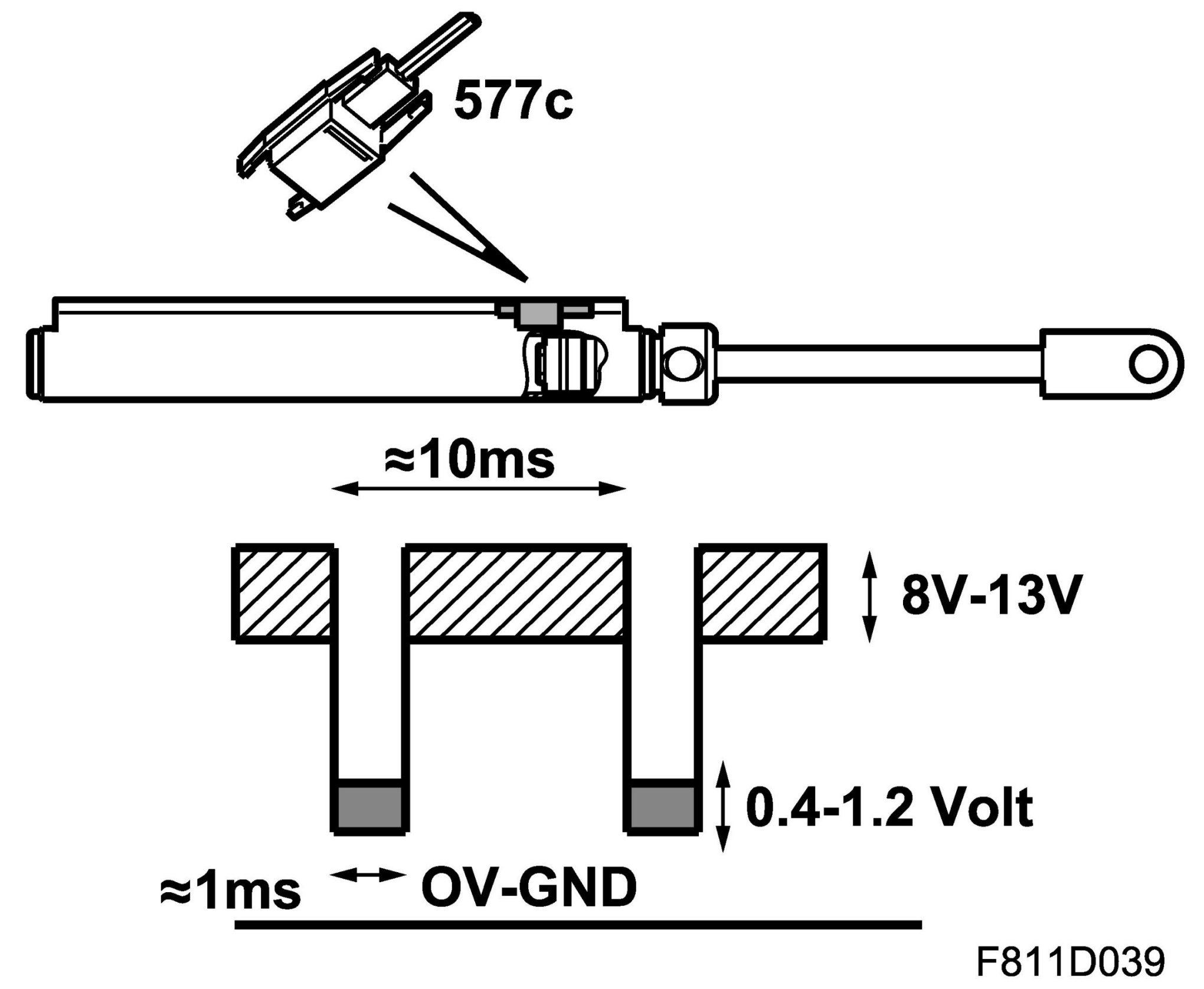

Raised

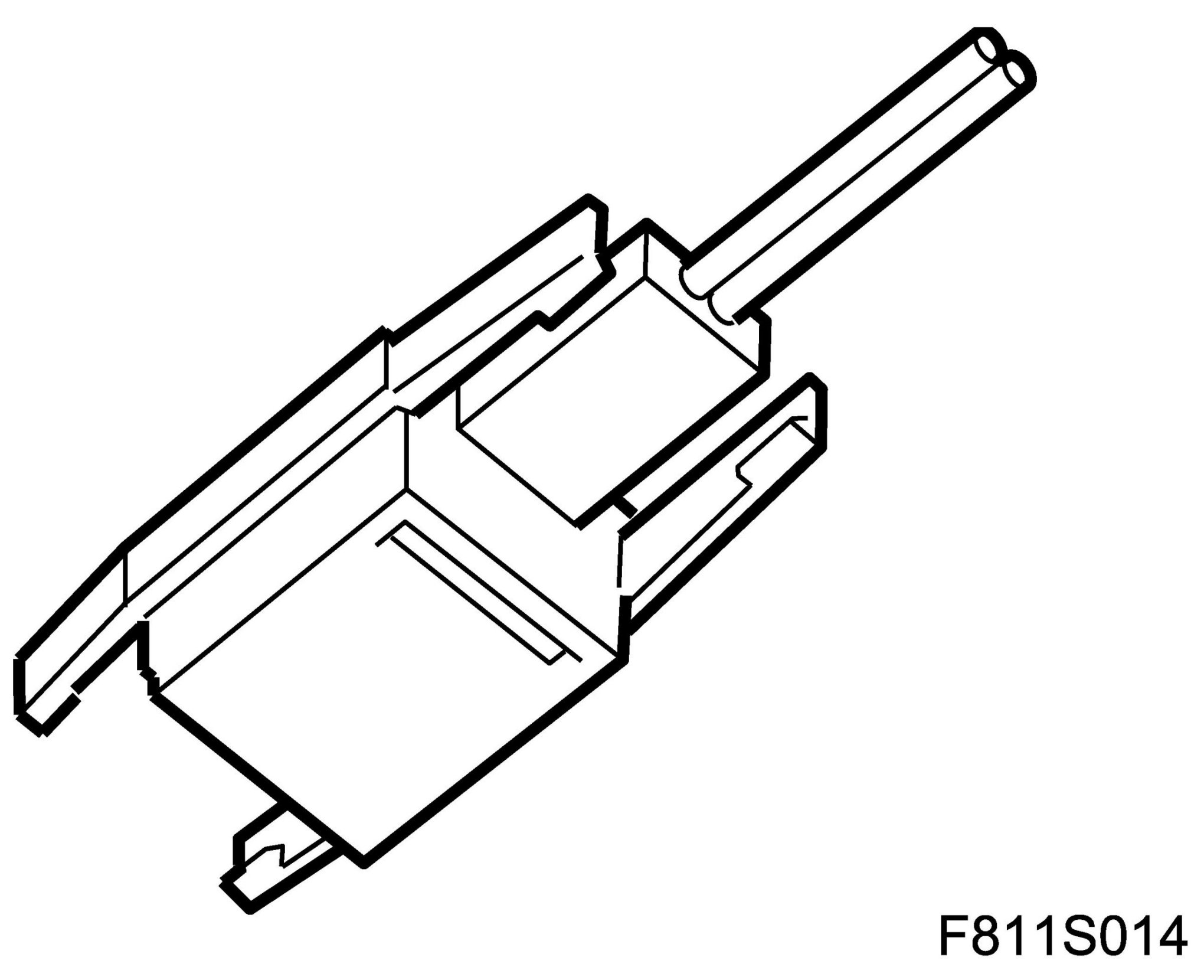

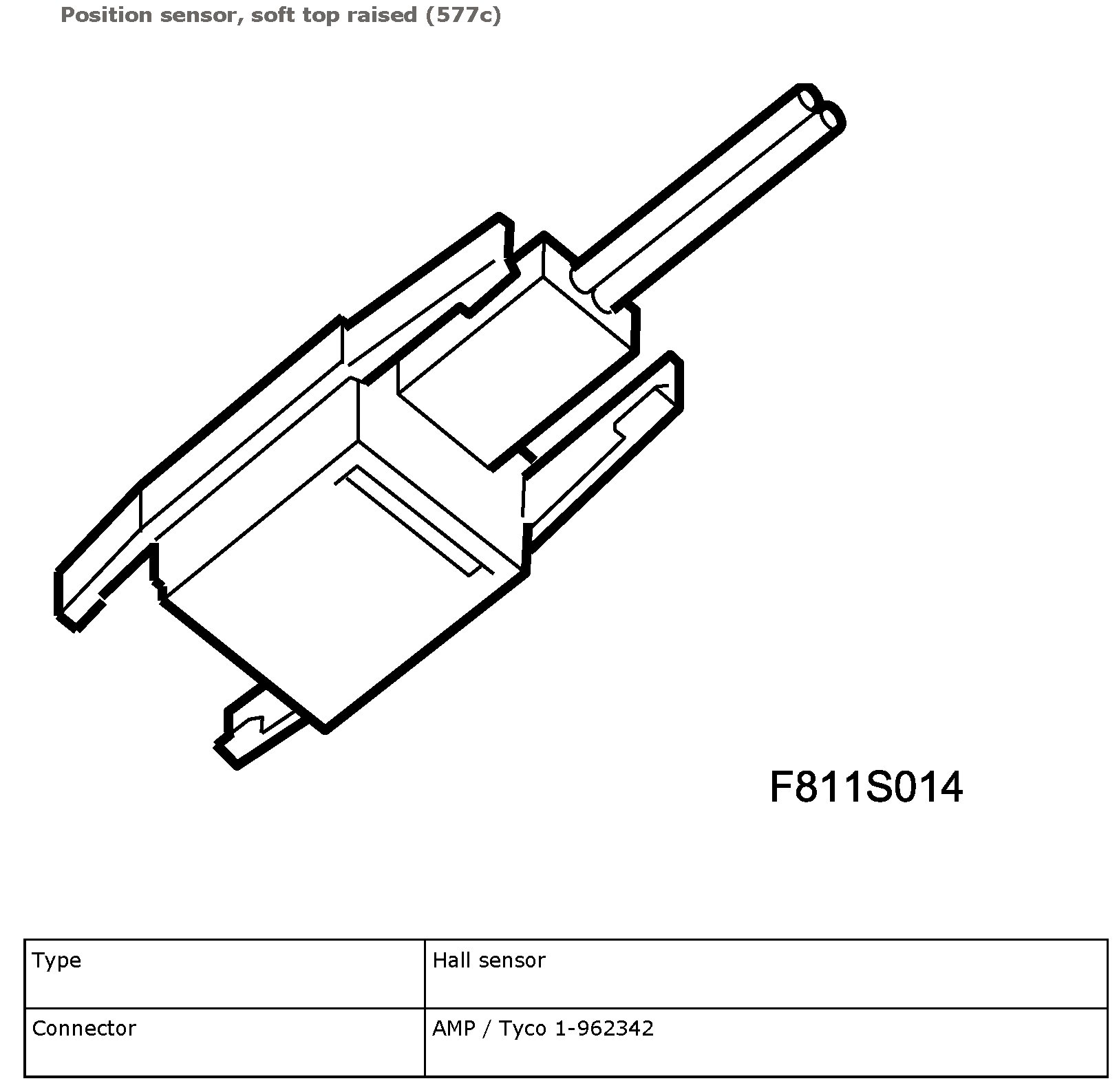

Type
Hall sensor with inbuilt magnet.

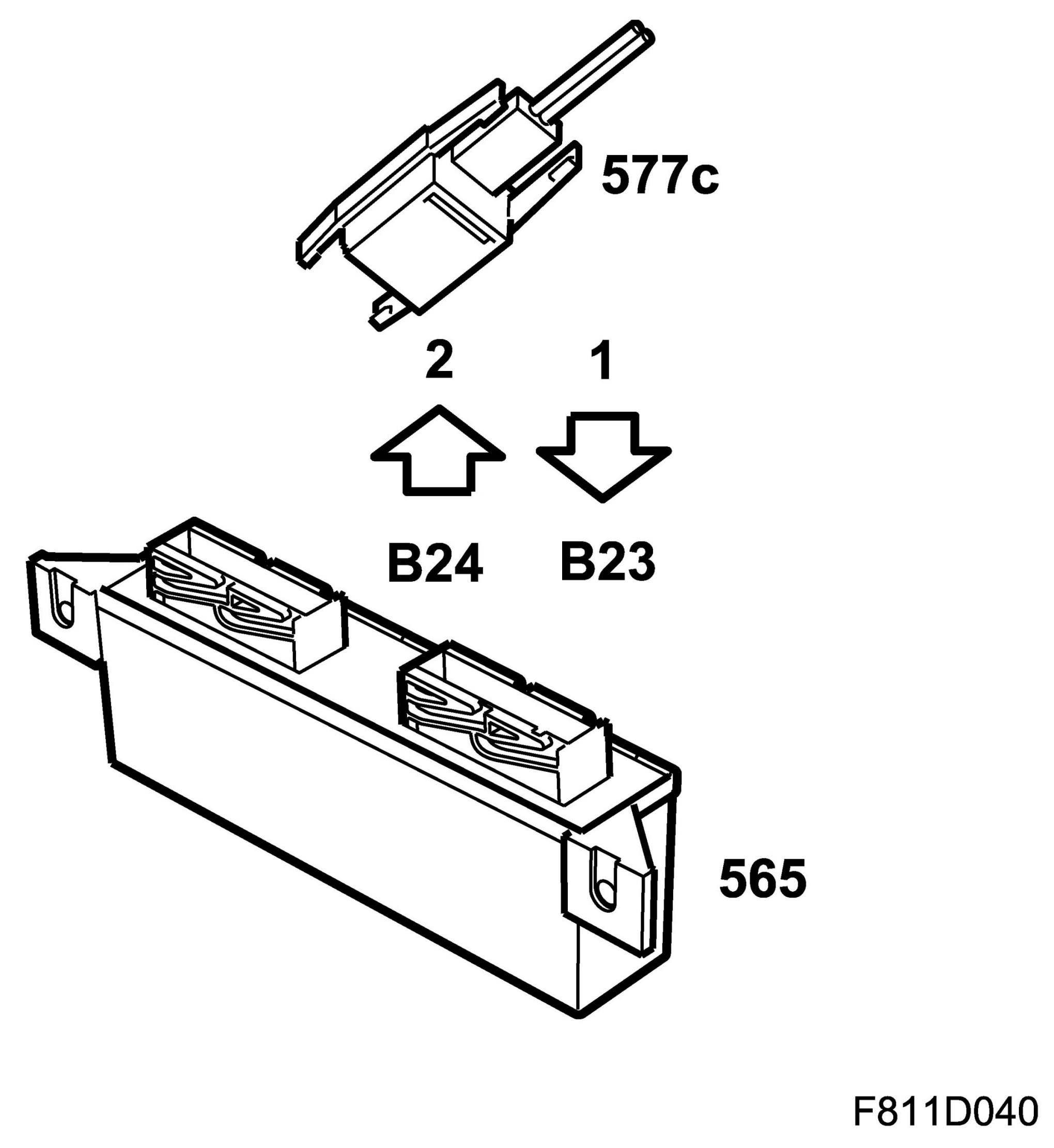

Connection

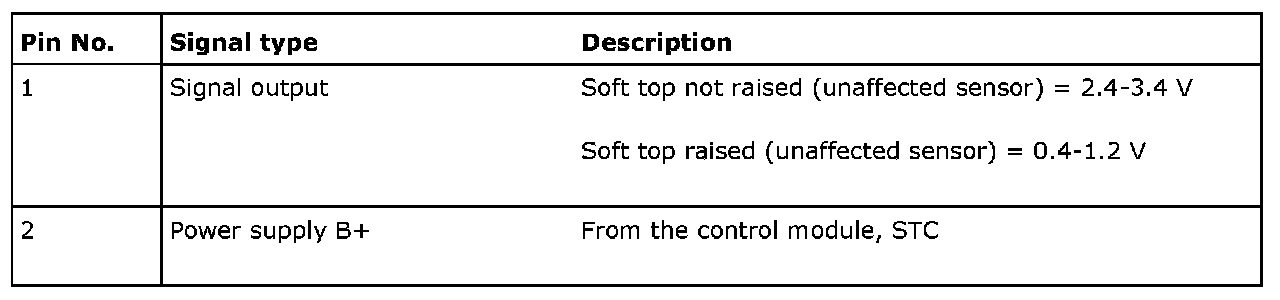

The sensor is connected to the STC control module with two leads. The sensor is energized with B+ on pin 2 and gives information to the STC control module on pin 1.

The sensor is affected by the cylinder piston. The sensor is affected when the piston is in its outermost position and the soft top is raised.

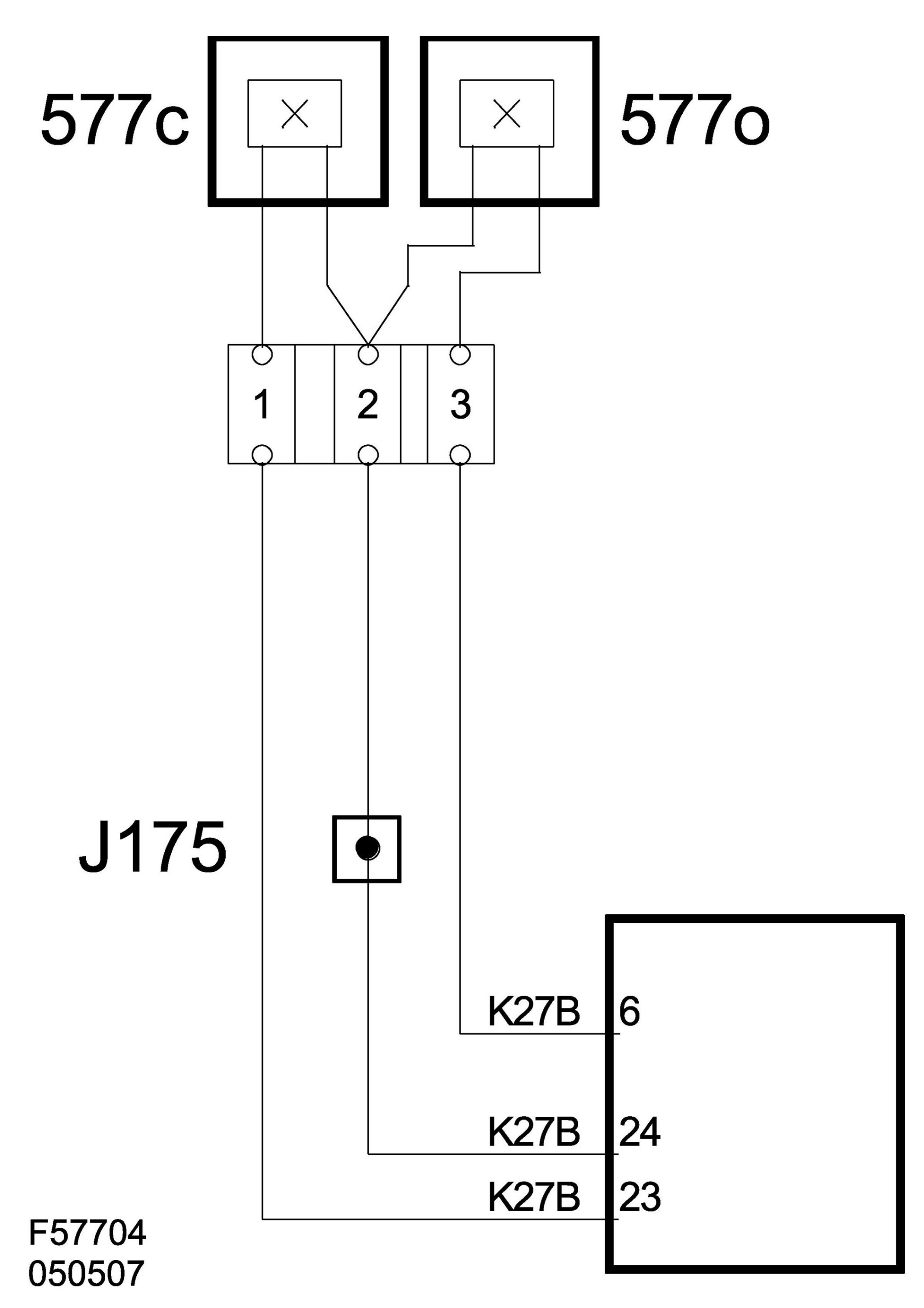

Diagram







Position Sensor, Soft Top Raised (577c)

Position Sensor, Soft Top Raised (577c):
