Position Sensor, First Bow Locked (561c)

Position Sensor, First Bow Locked (561c)

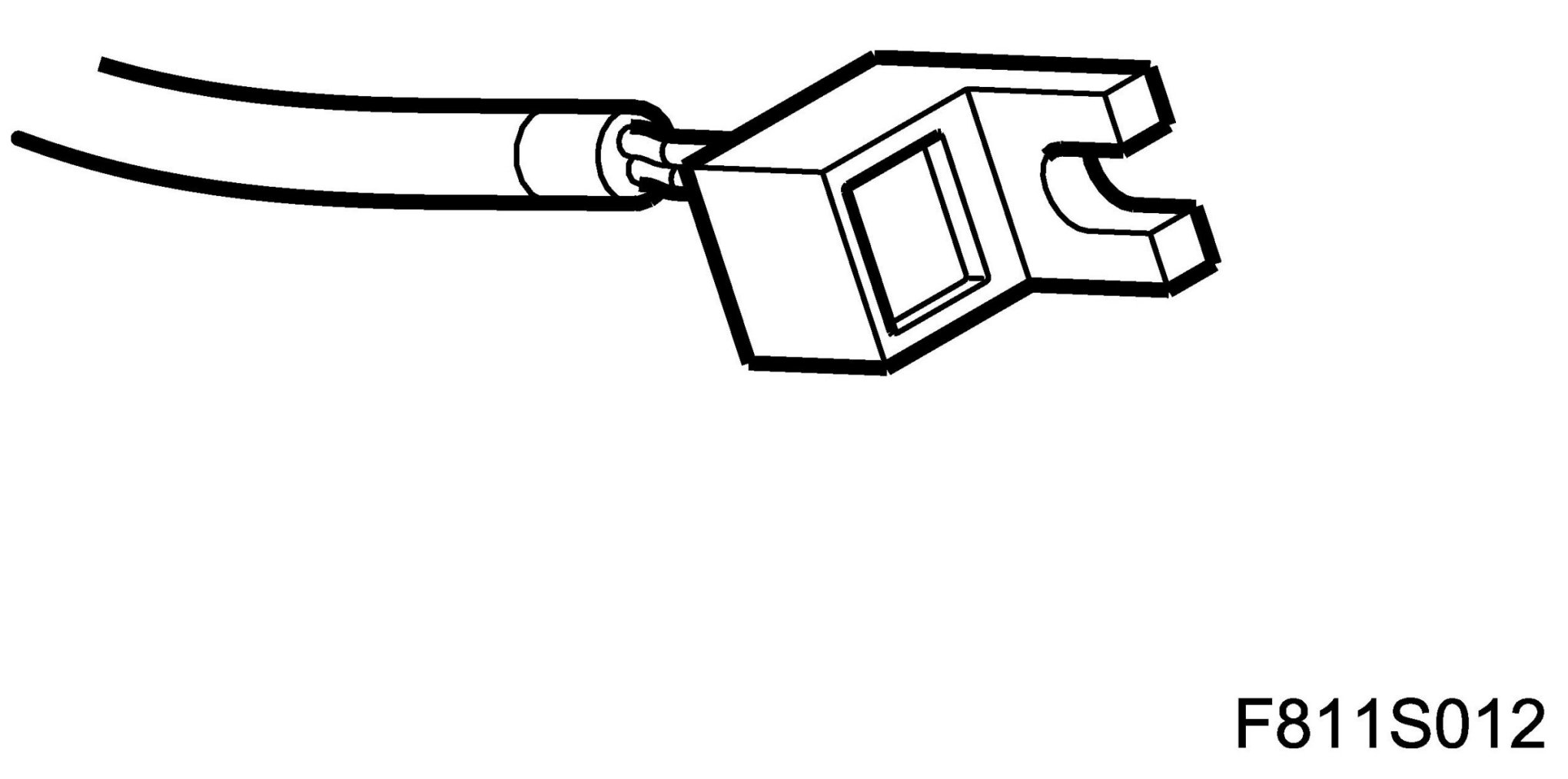

Location







Main Task
The sensor gives information to the STC control module on the state of the first bow lock, locked or unlocked.

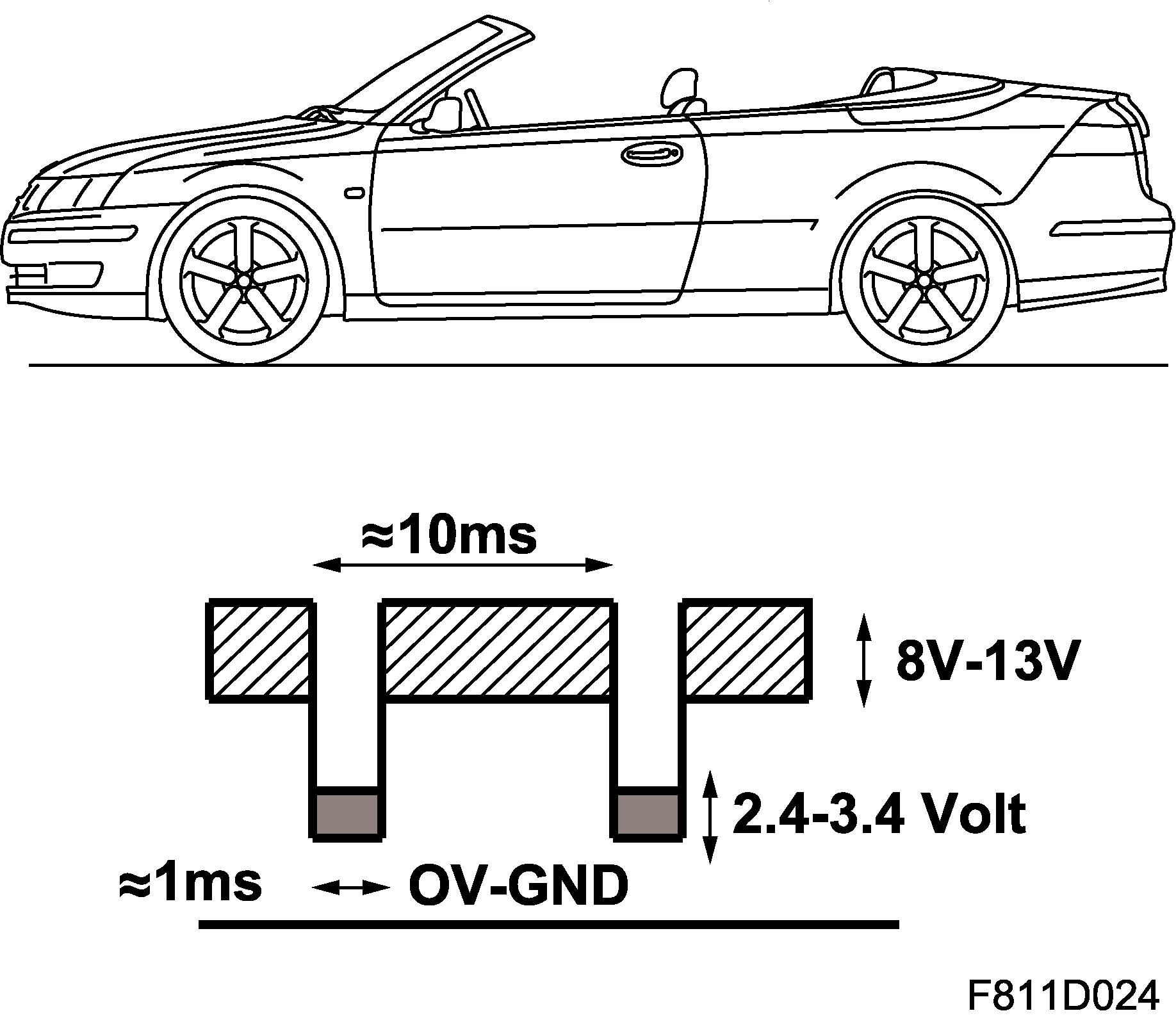

Unlocked

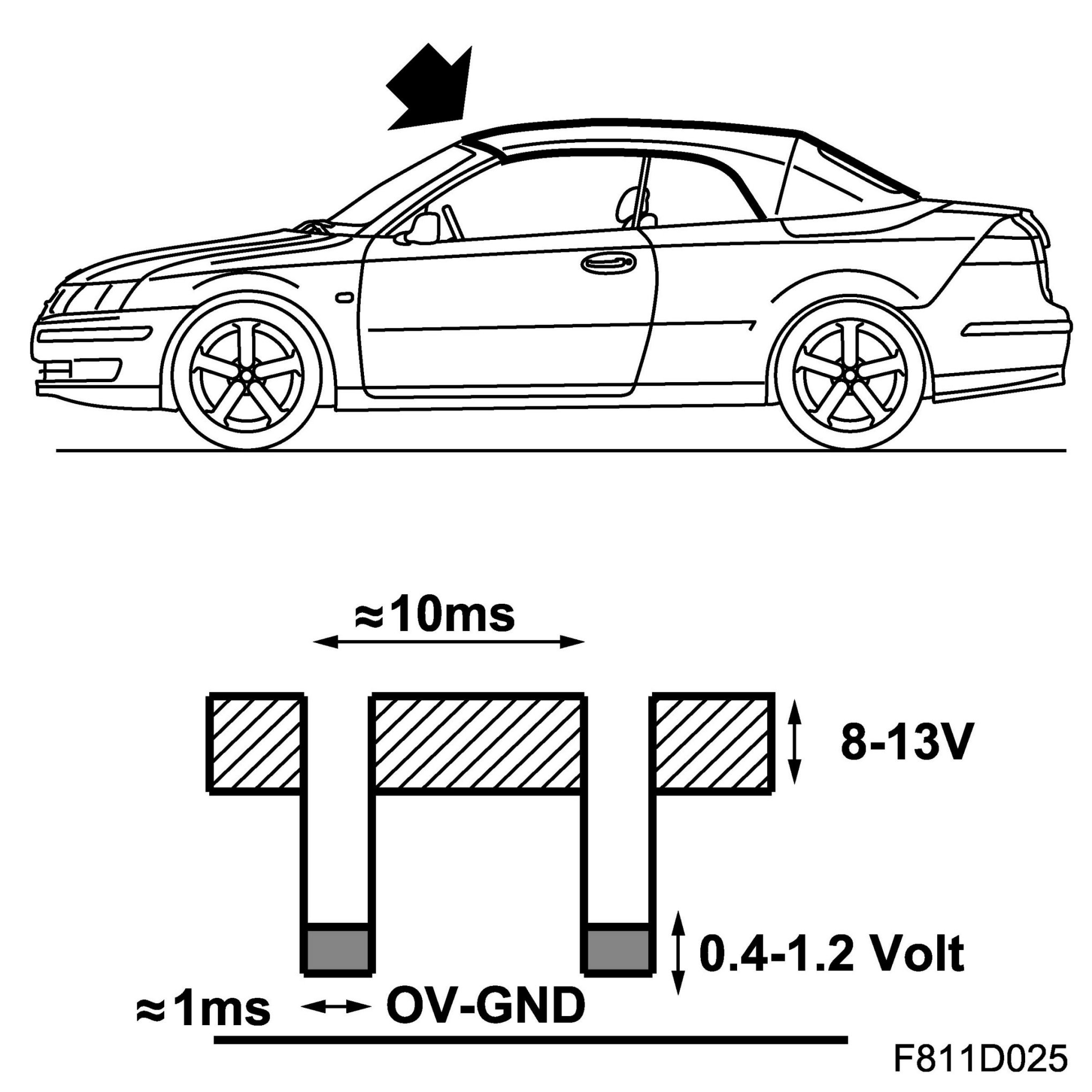

Locked

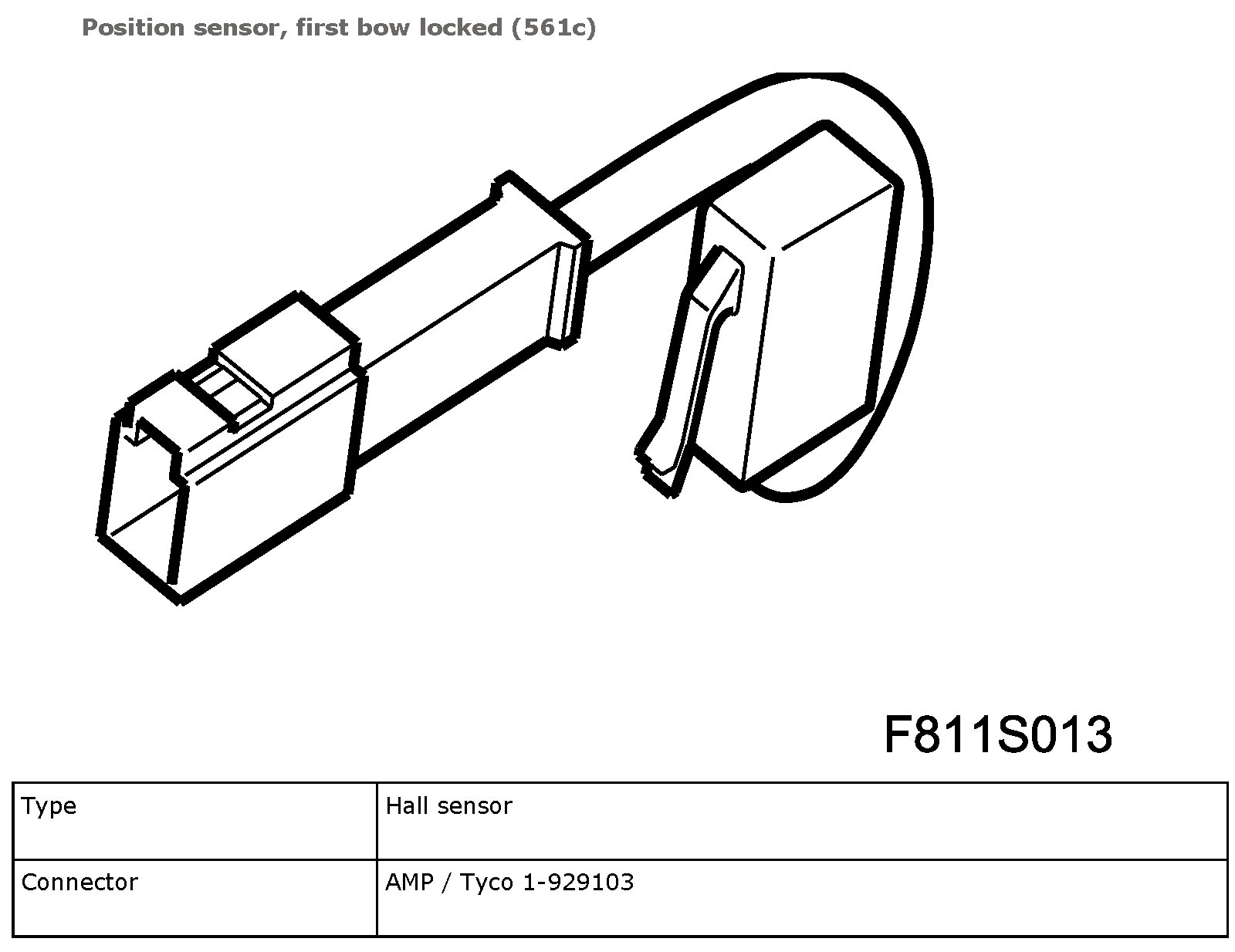

Type
Hall sensor with inbuilt magnet.

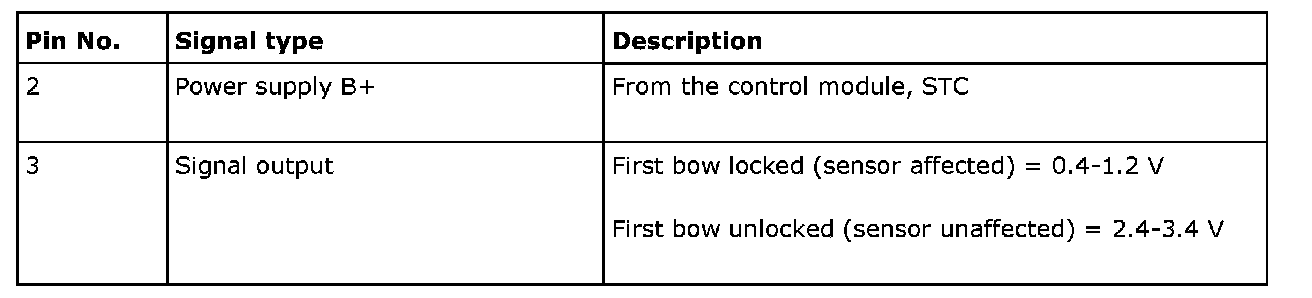

Connection

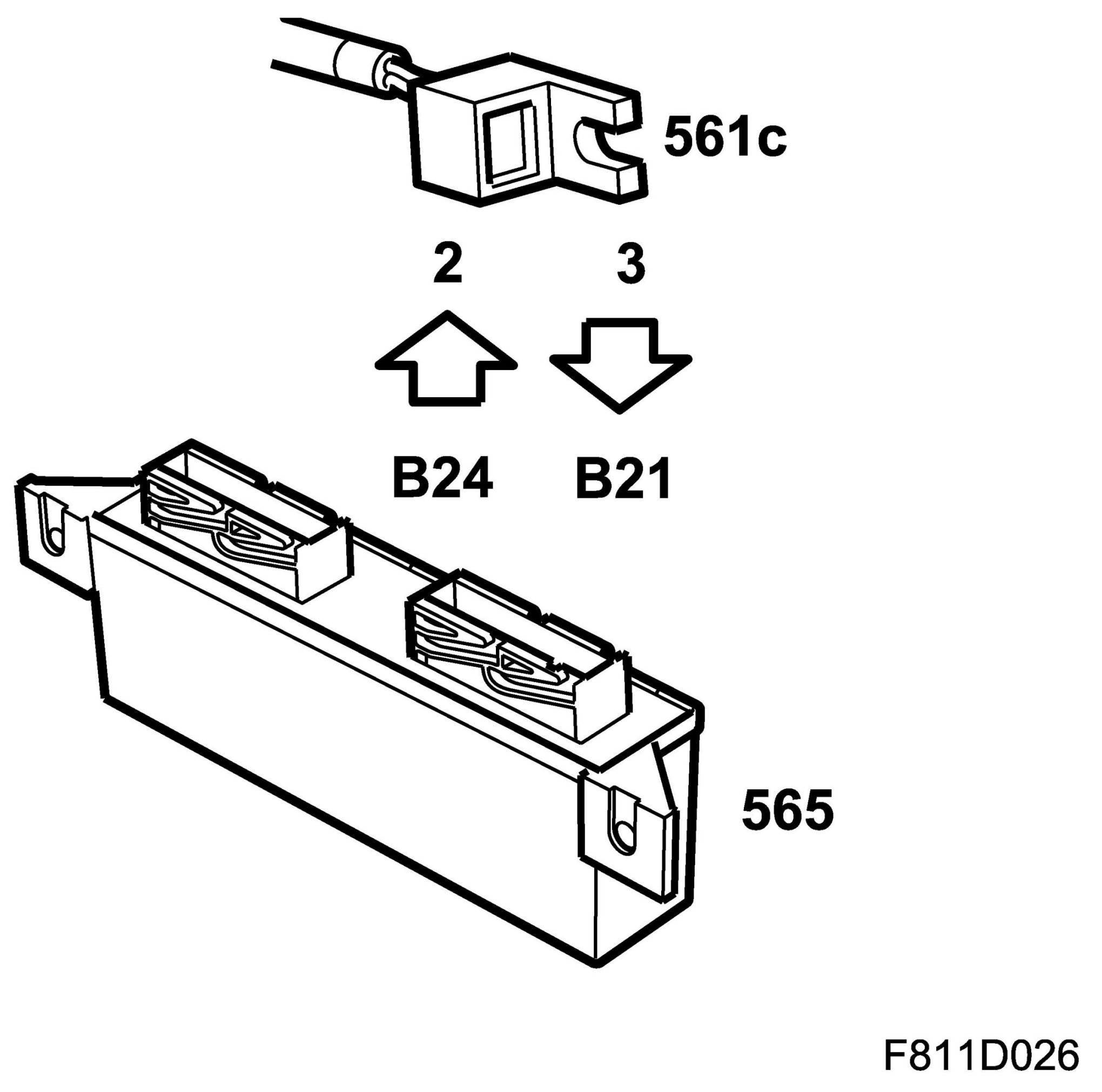

The sensor is connected to the STC control module with two leads. The sensor is energized with B+ on pin 2 and gives information to the STC control module on pin 3.

The sensor is affected by the locking mechanism for the first bow. The sensor is affected when the first bow is locked.

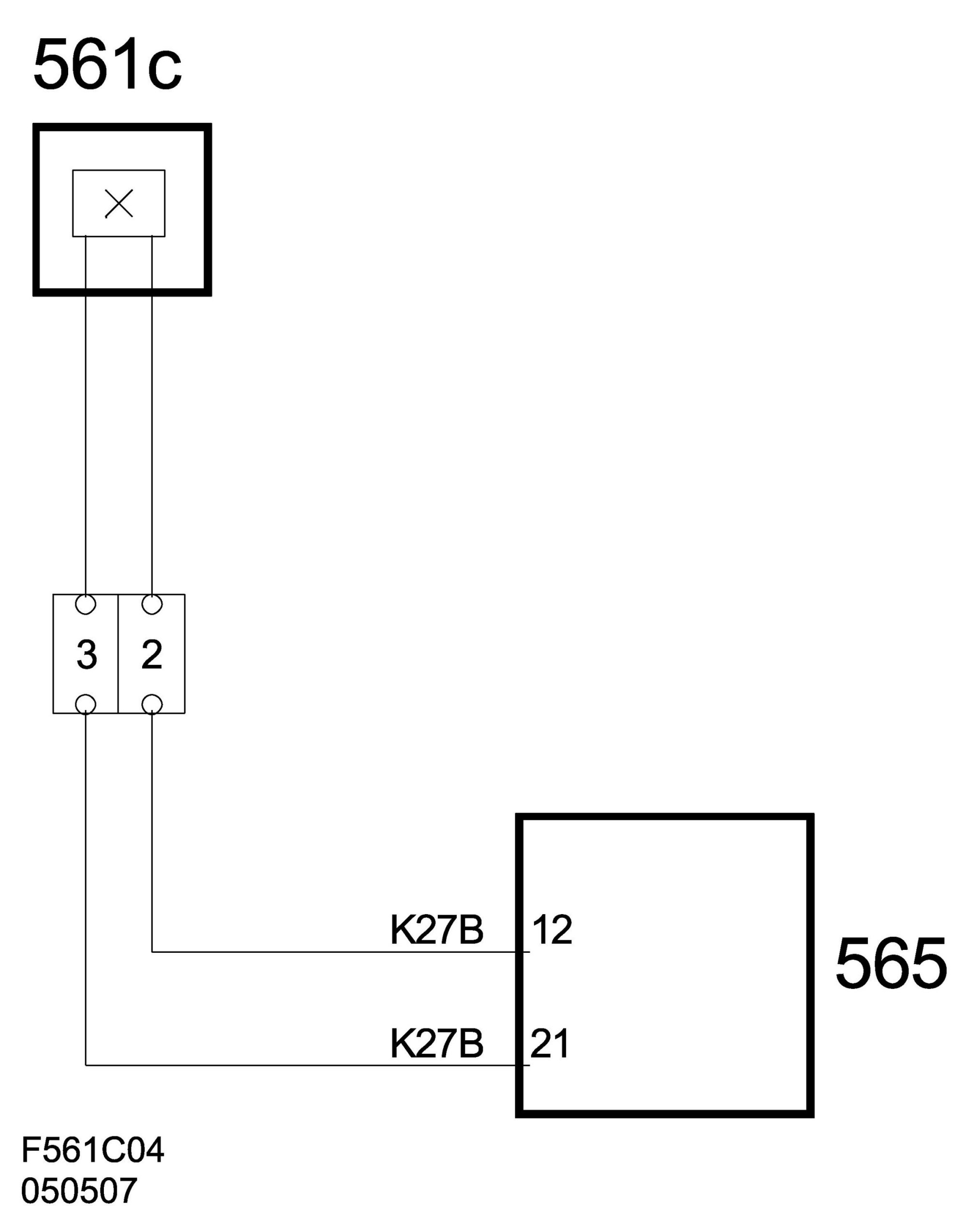

Diagram







Position sensor, first bow locked (561c)

Position Sensor, First Bow Locked (561c):
