Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Convertible Top Hydraulic Cylinder >> Specifications >> 6th Bow Hydraulic Cylinder, Left/Right

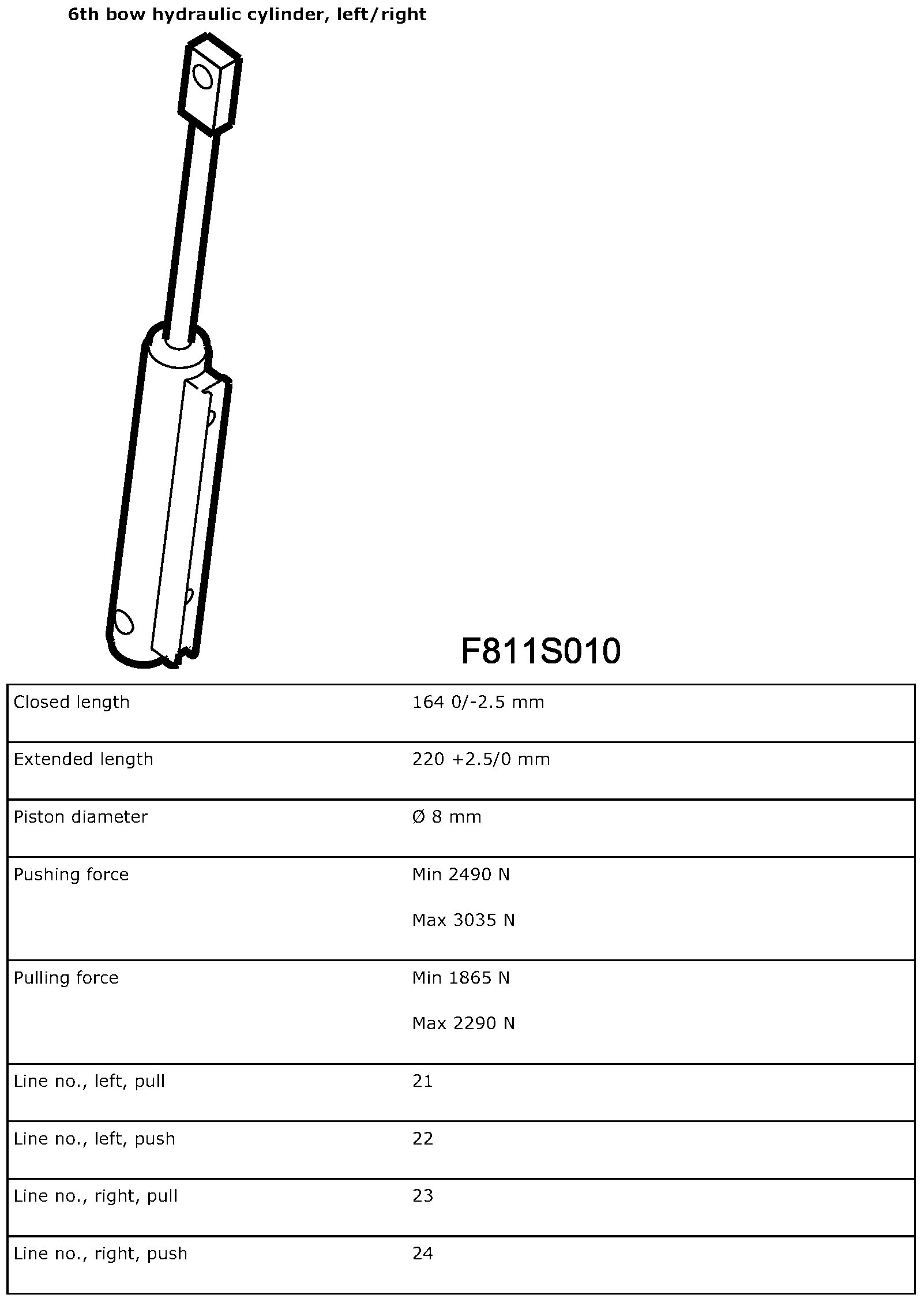

6th Bow Hydraulic Cylinder, Left/Right

6th Bow Hydraulic Cylinder, Left/Right:
