Electrically Adjustable Door Mirror, Passenger Door

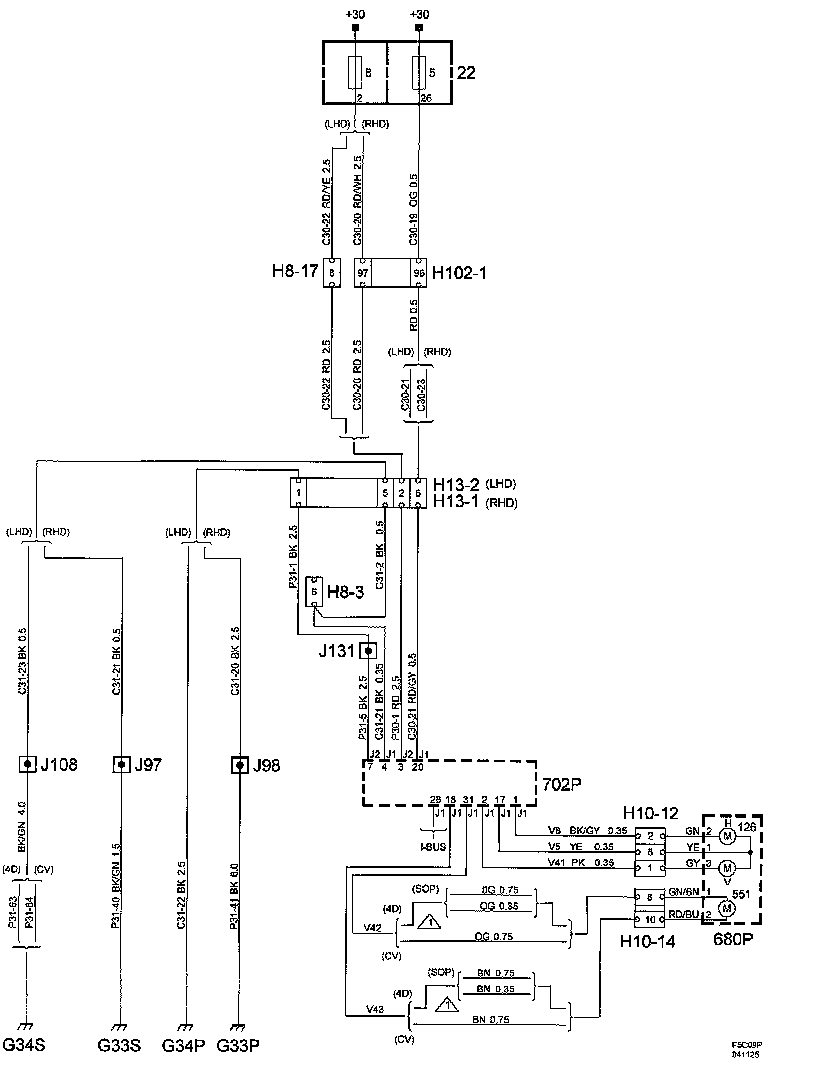

Electrically Adjustable Door Mirror, Passenger Door:

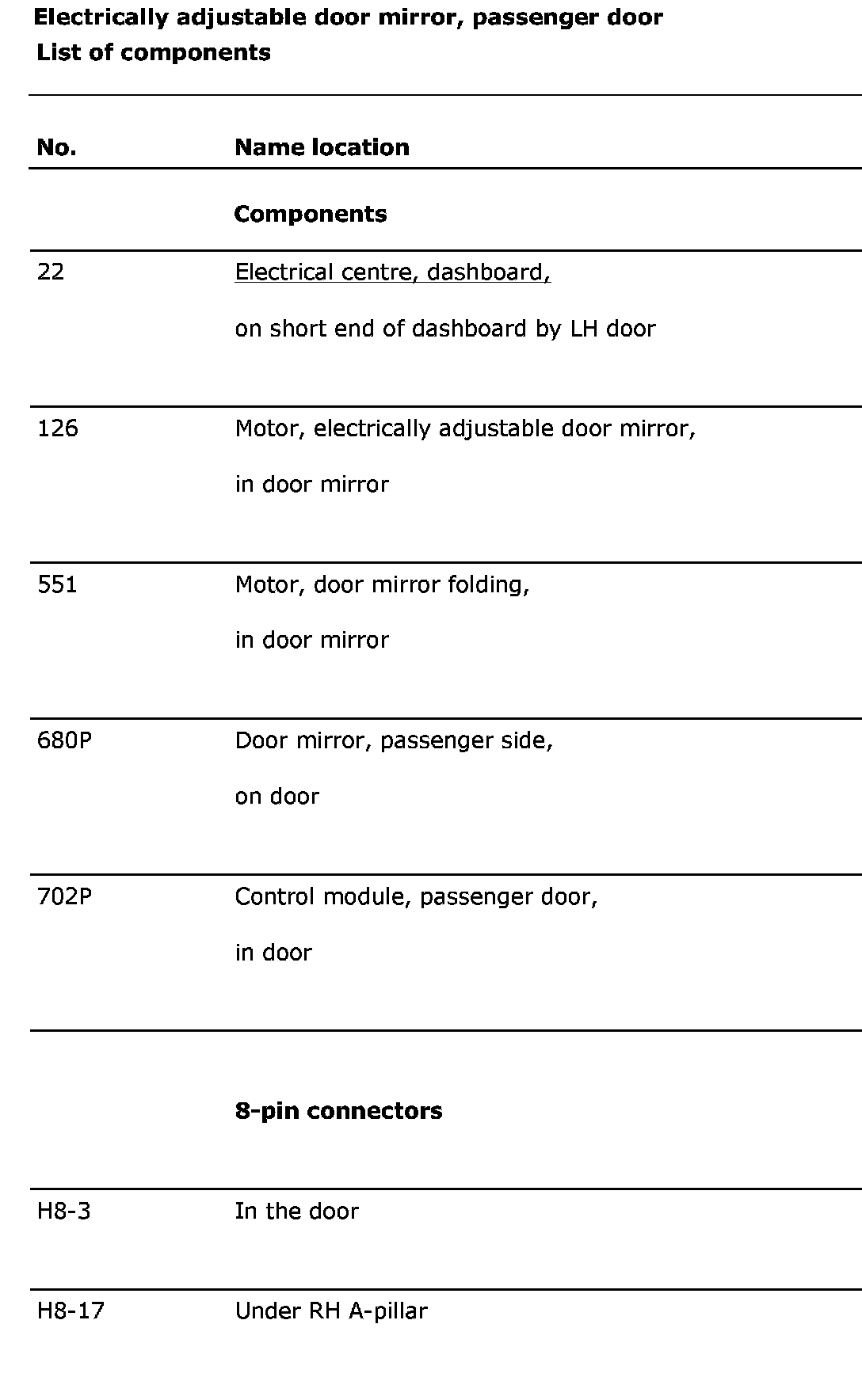

List Of Components (Part 1):

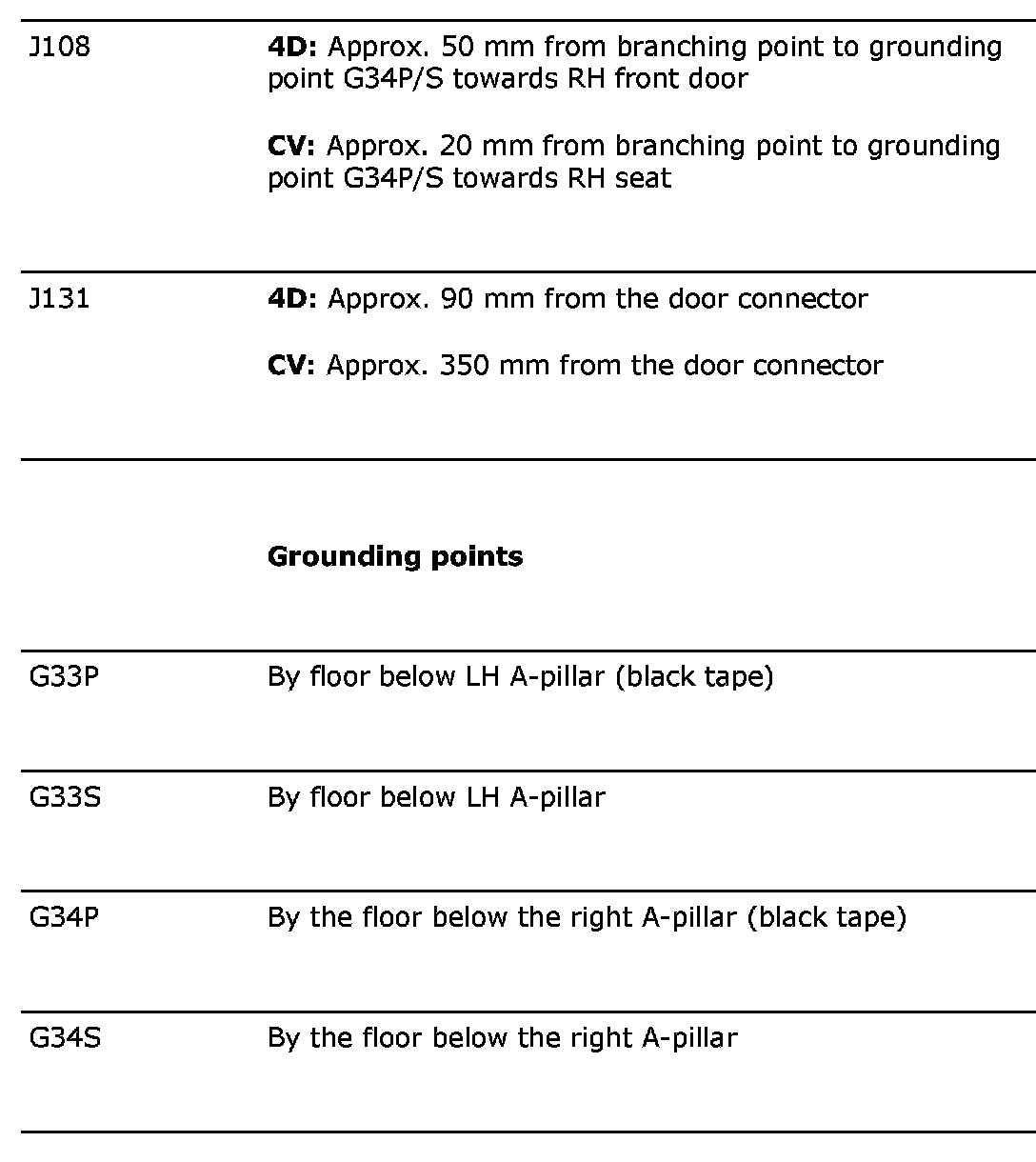

List Of Components (Part 2):

List Of Components (Part 3):

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X, and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
