Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Locations >> Central Locking System RR

Central Locking System RR

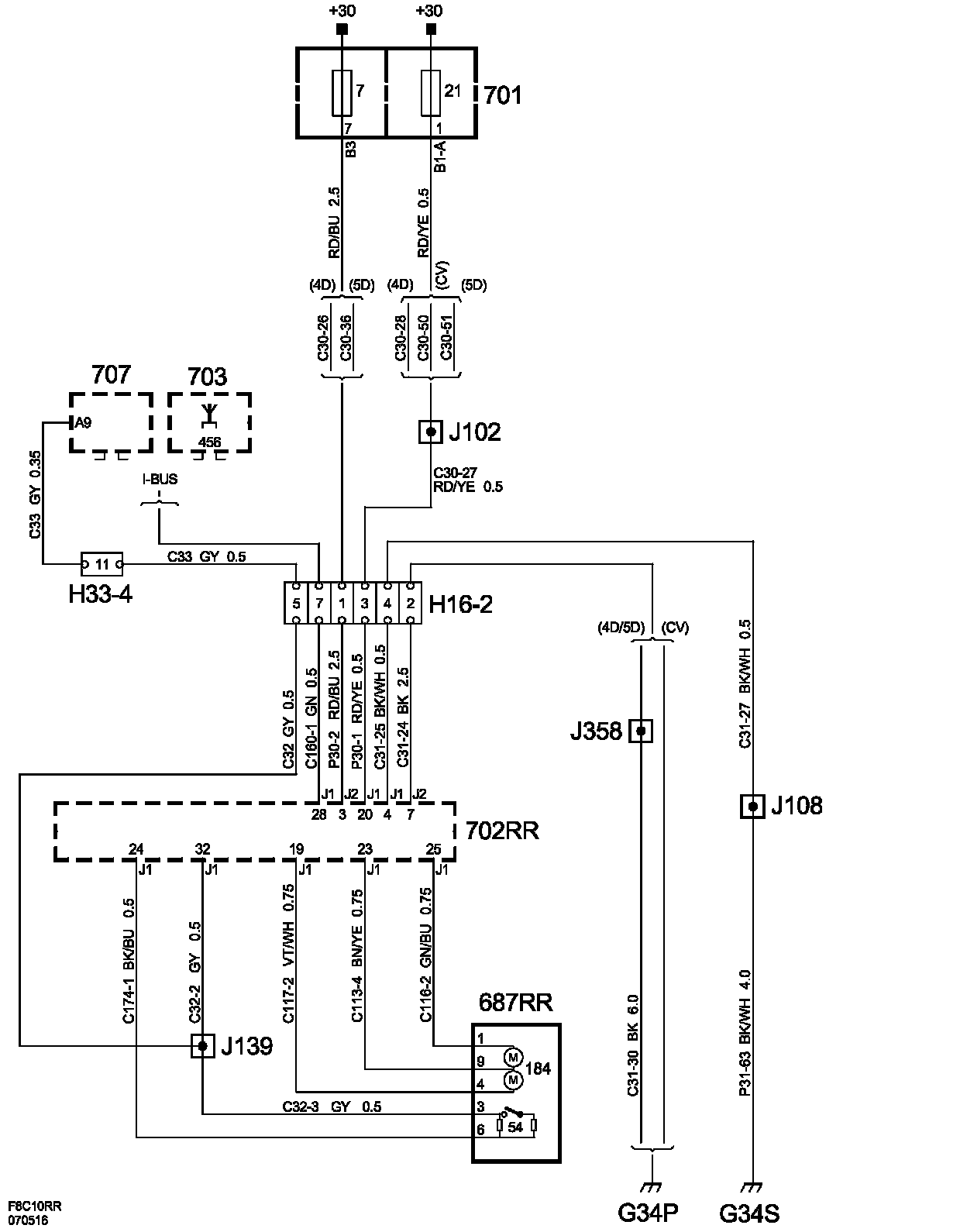

Central Locking System RR:

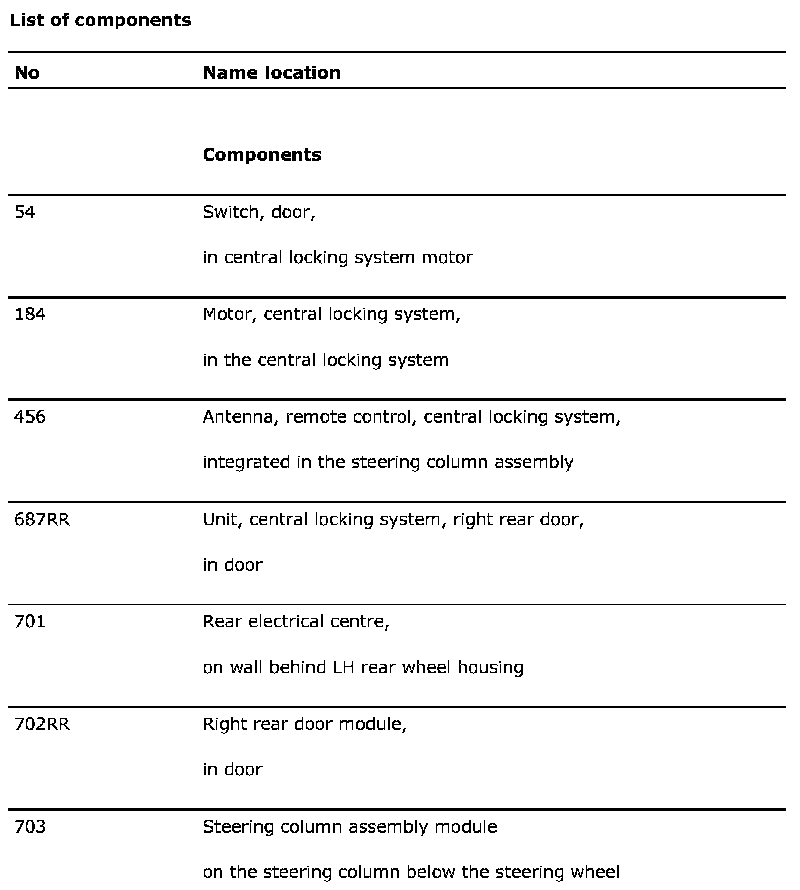

List Of Components (Part 1):

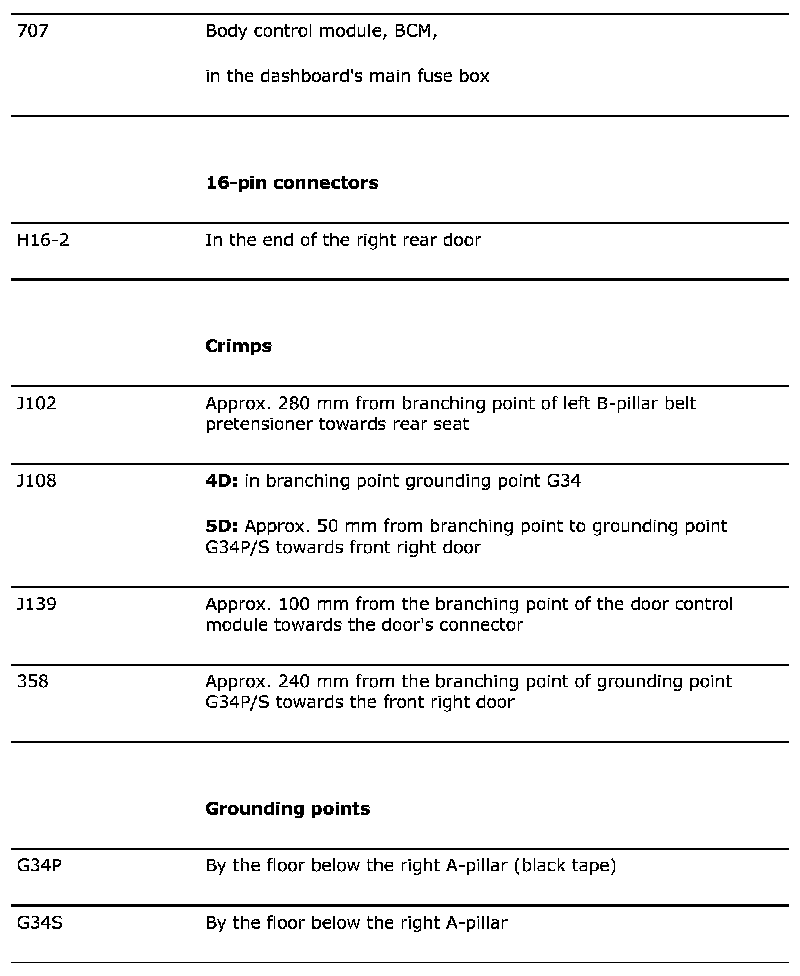

List Of Components (Part 2):
