Central Locking System RL

Central Locking System RL:

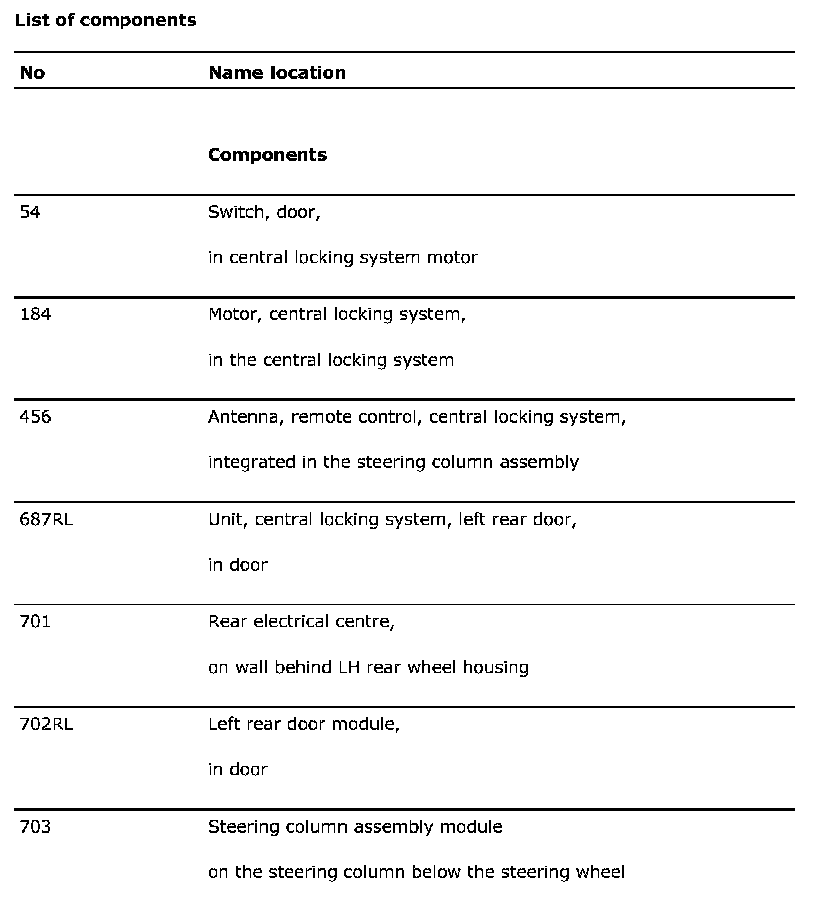

List Of Components (Part 1):

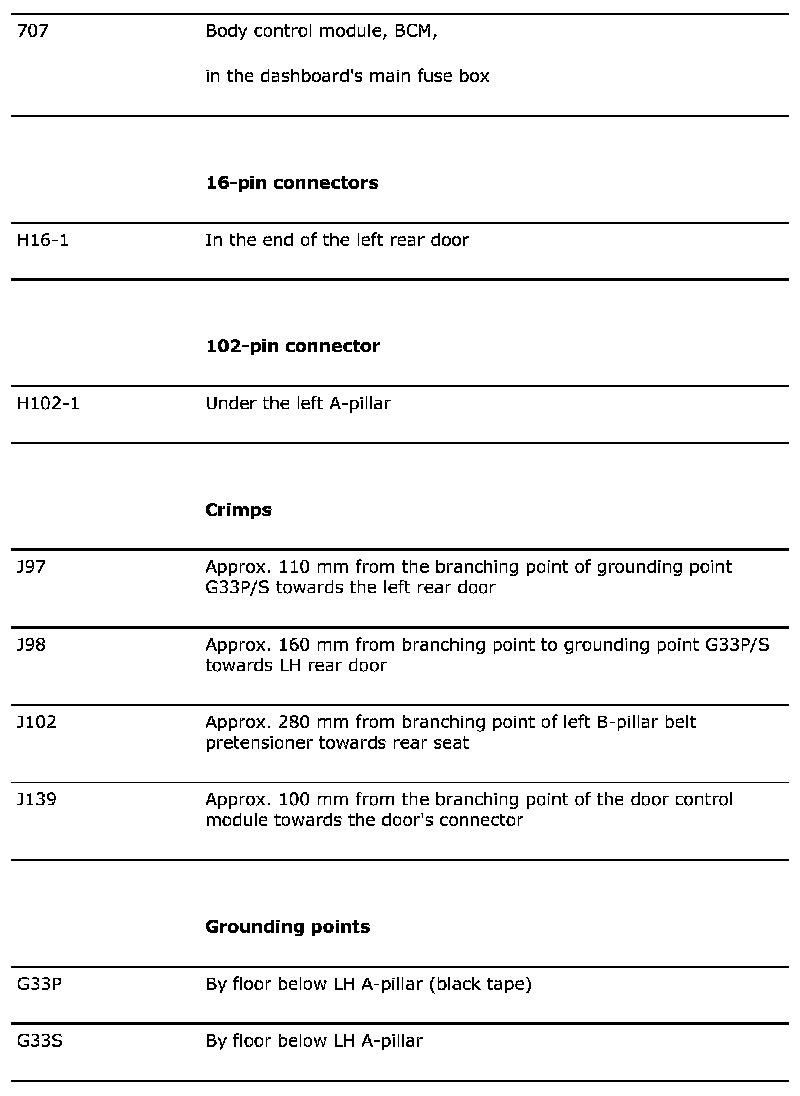

List Of Components (Part 2):
