Home >> Saab >> 2005 >> 9-3 Linear (9440) L4-2.0L Turbo (2.0t) >> Repair and Diagnosis >> Body and Frame >> Locks >> Description and Operation >> Central Locking System, Bus Information

Central Locking System, Bus Information

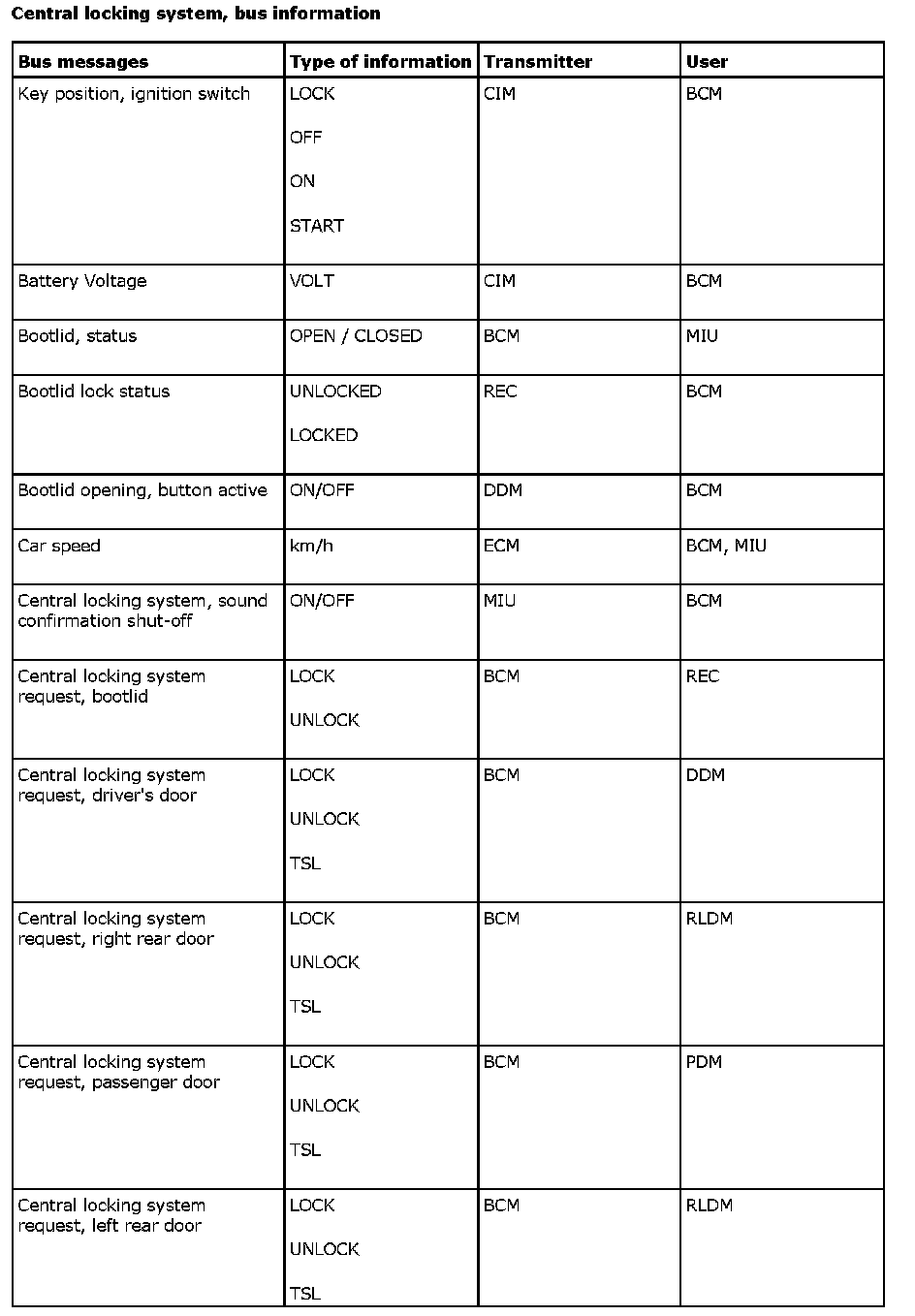

Central Locking System, Bus Information (Part 1):

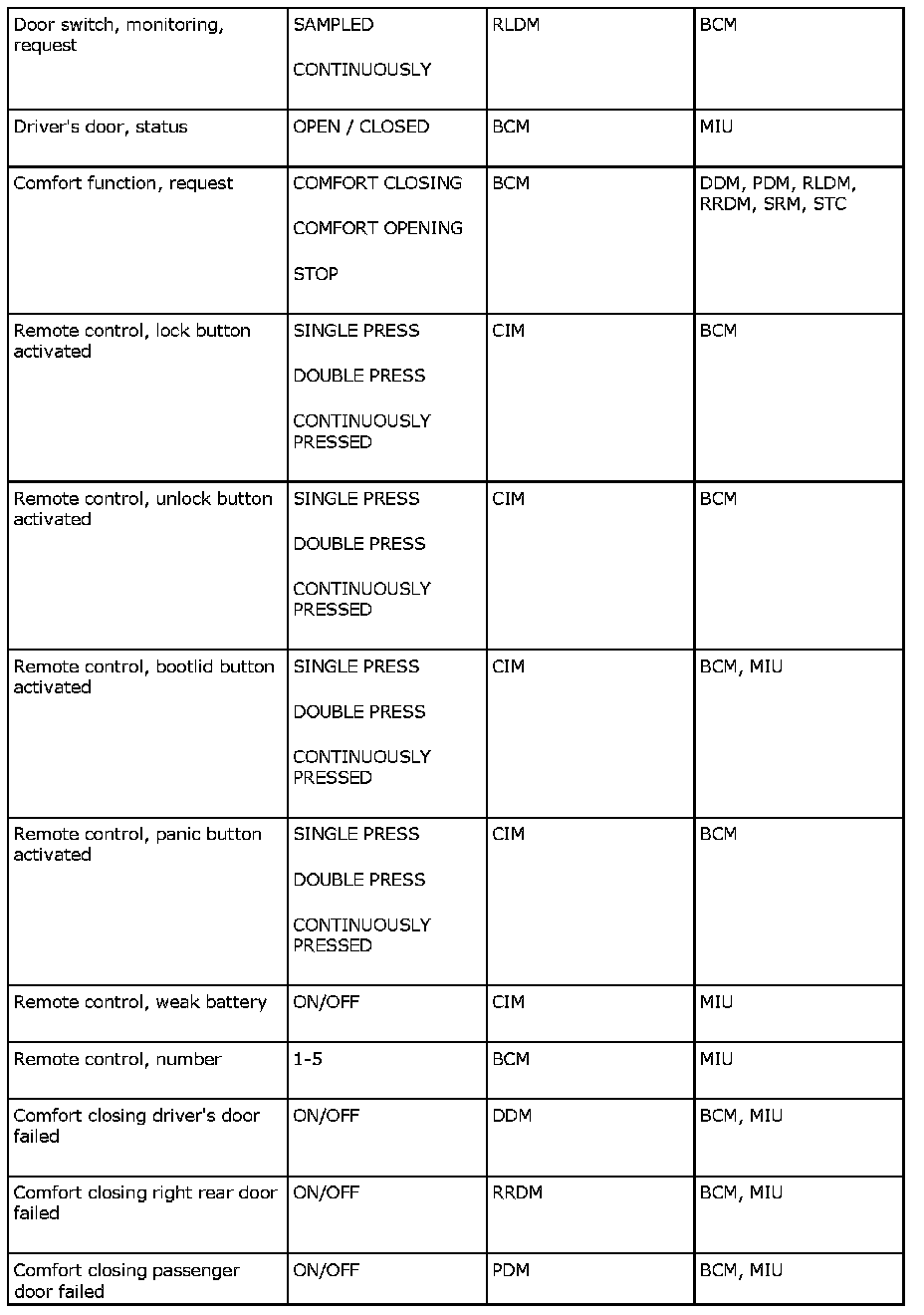

Central Locking System, Bus Information (Part 2):

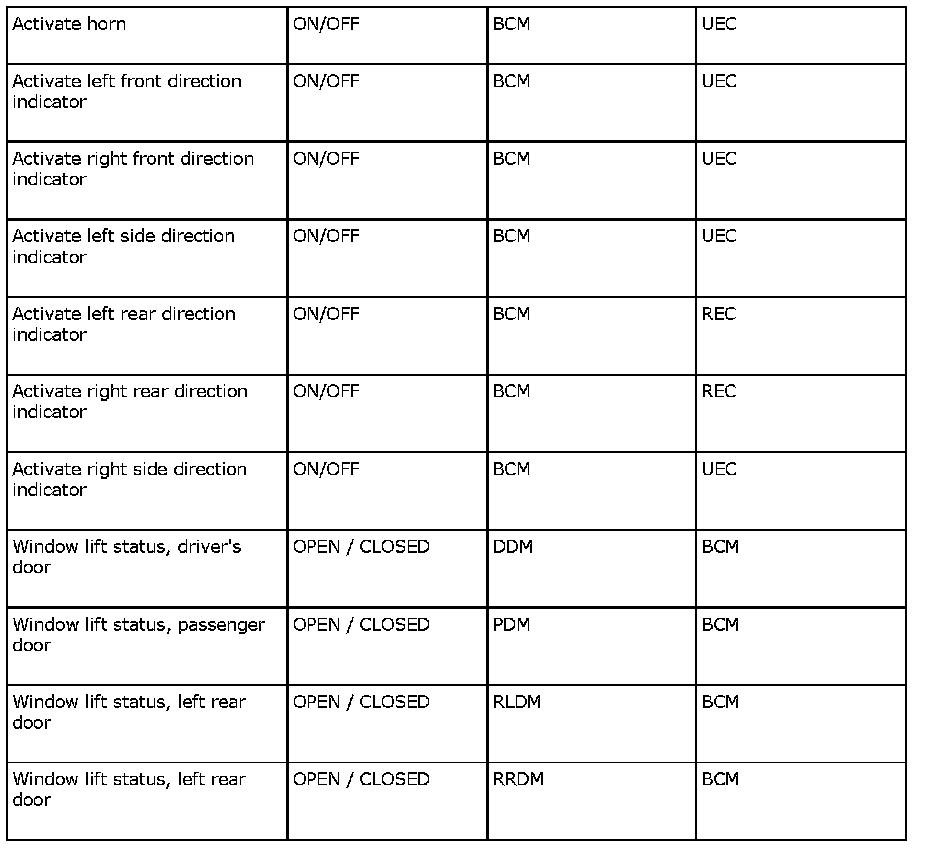

Central Locking System, Bus Information (Part 3):

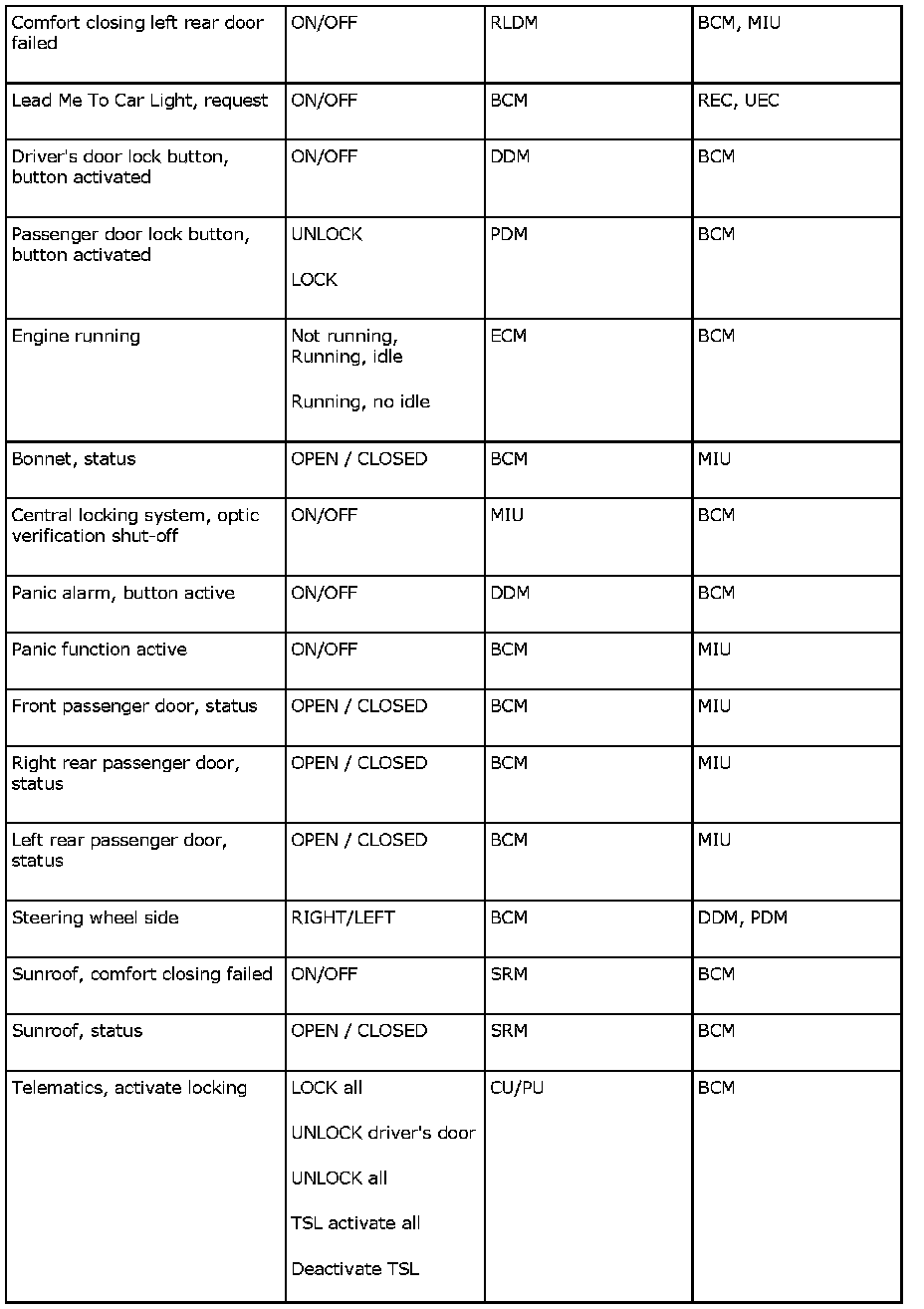

Central Locking System, Bus Information (Part 4):
