Floor Console, With UHP Connection

Floor Console, With UHP Connection

To remove

1. Remove the floor console:
^ Move the front seats to their rear position.

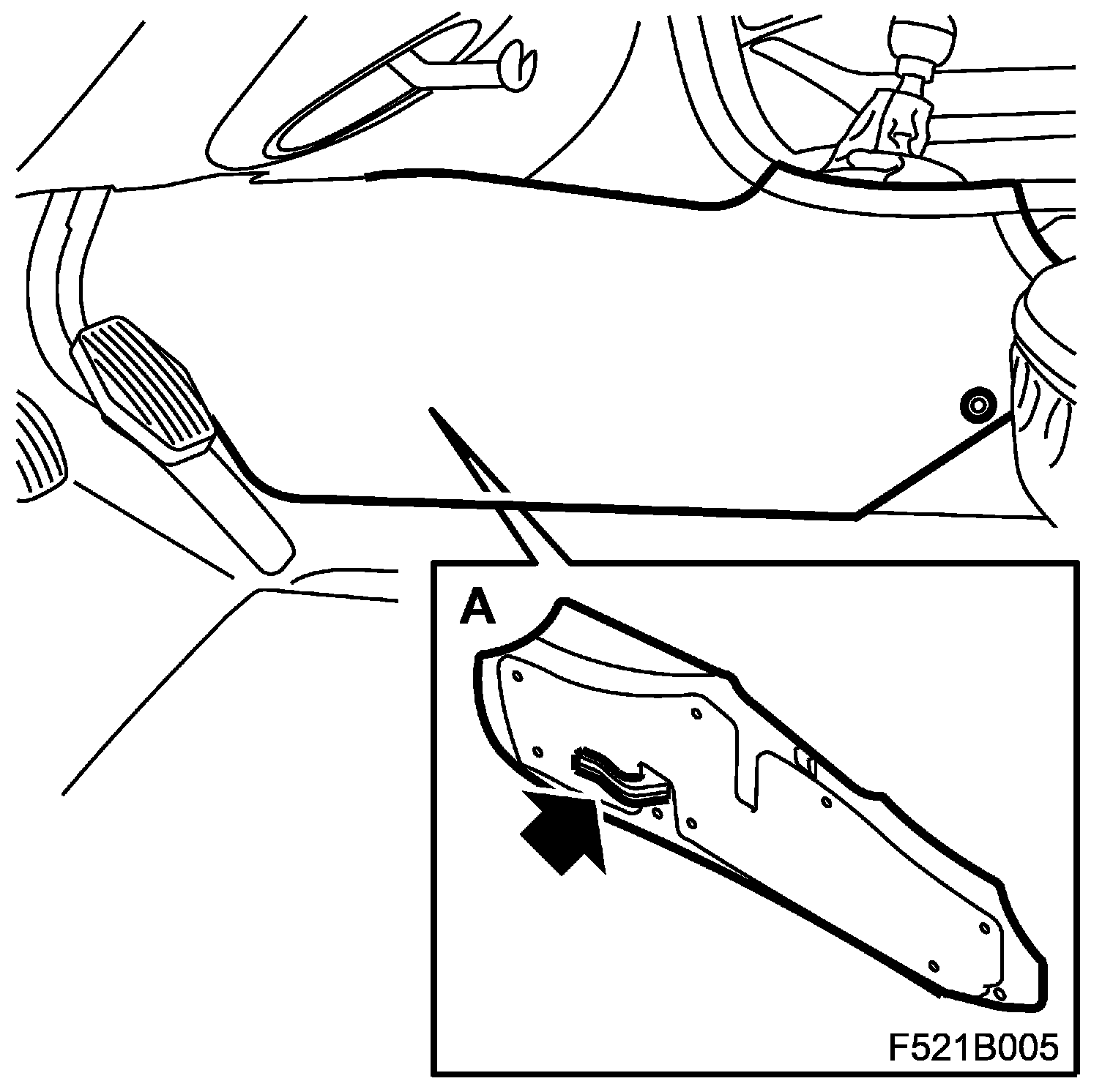

^ Remove the forward side panels (A).







^ Move the front seats to their front position.

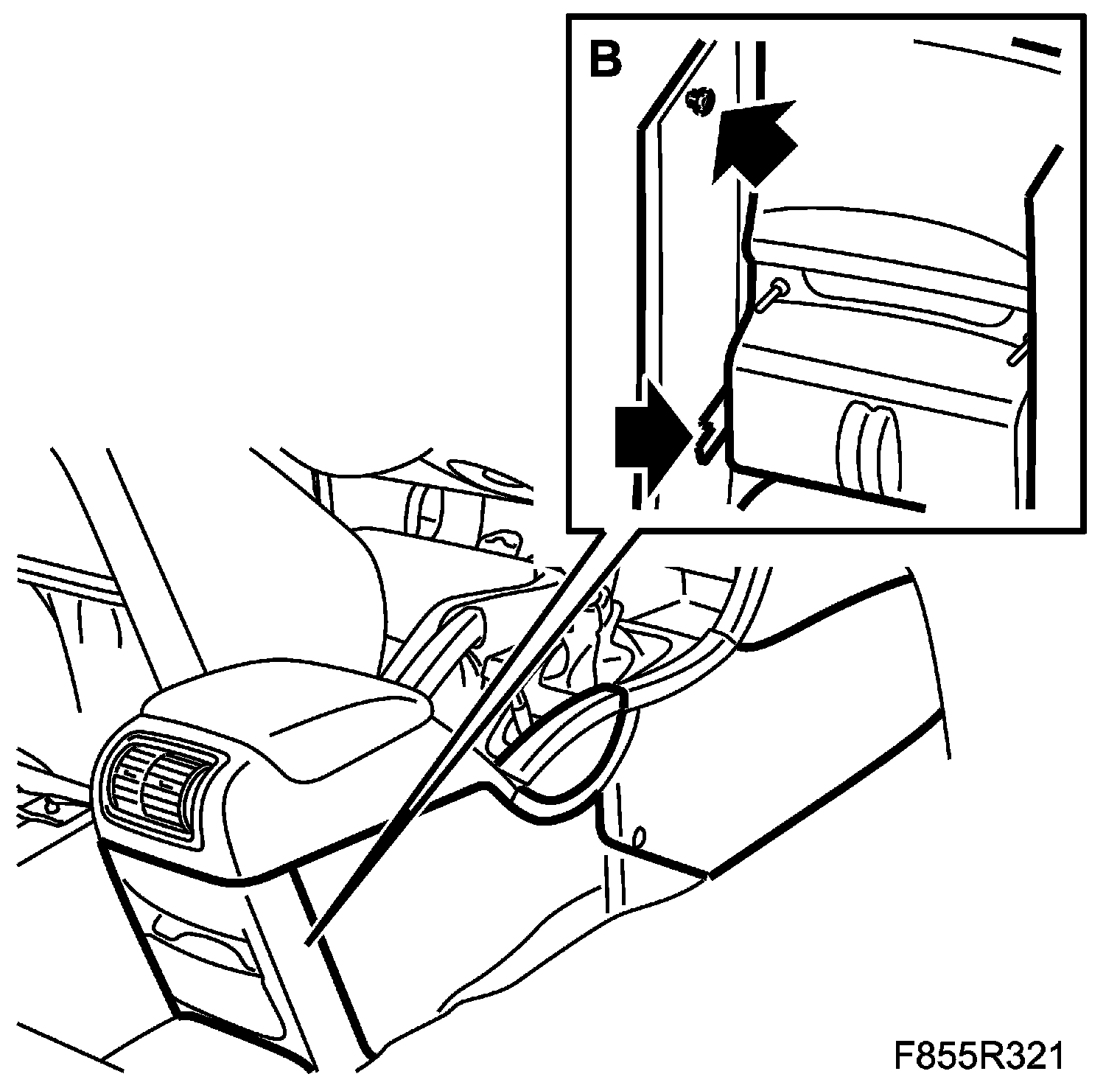

^ Remove the rear cover panel (B) by pulling it out and back.

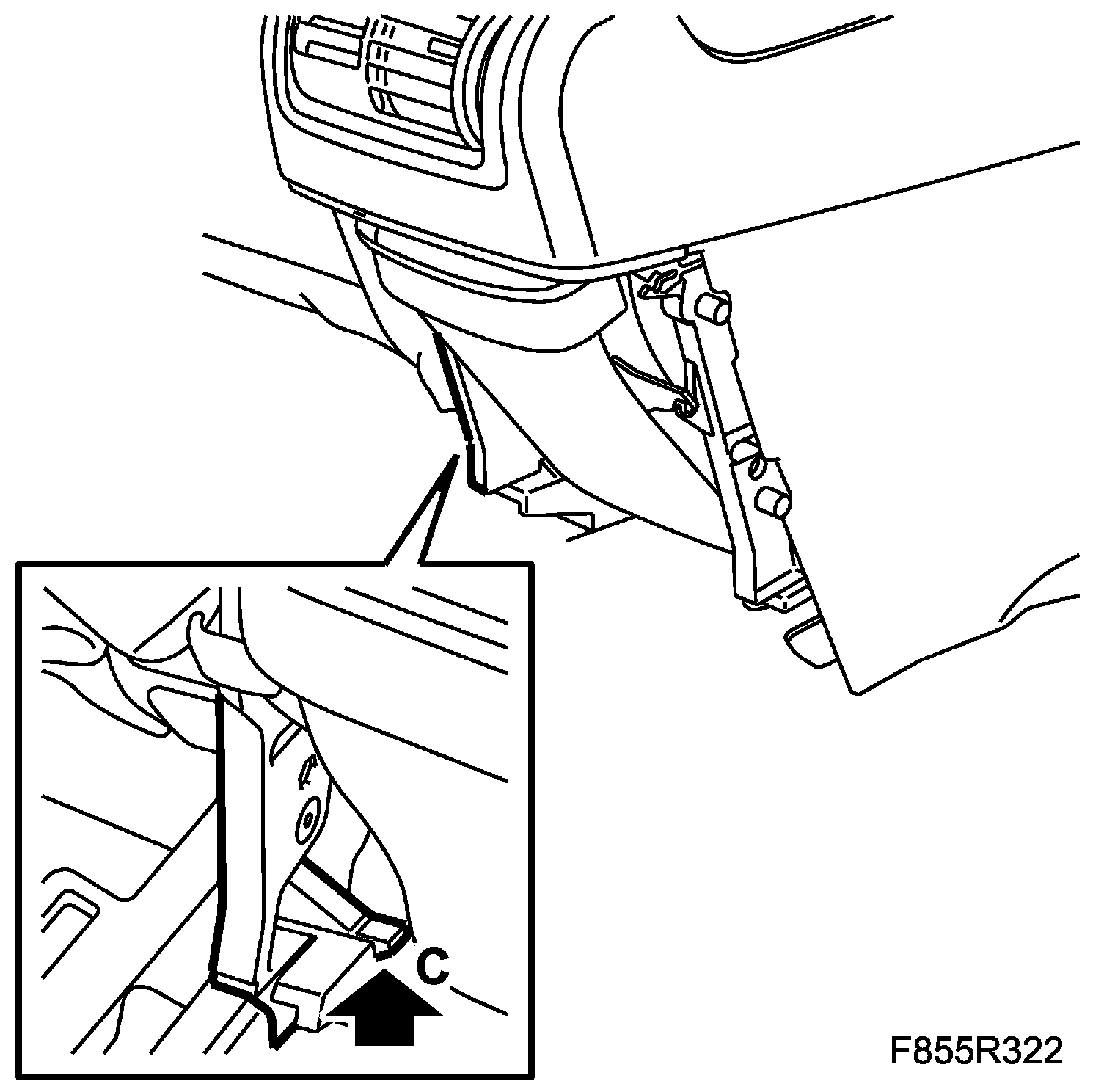

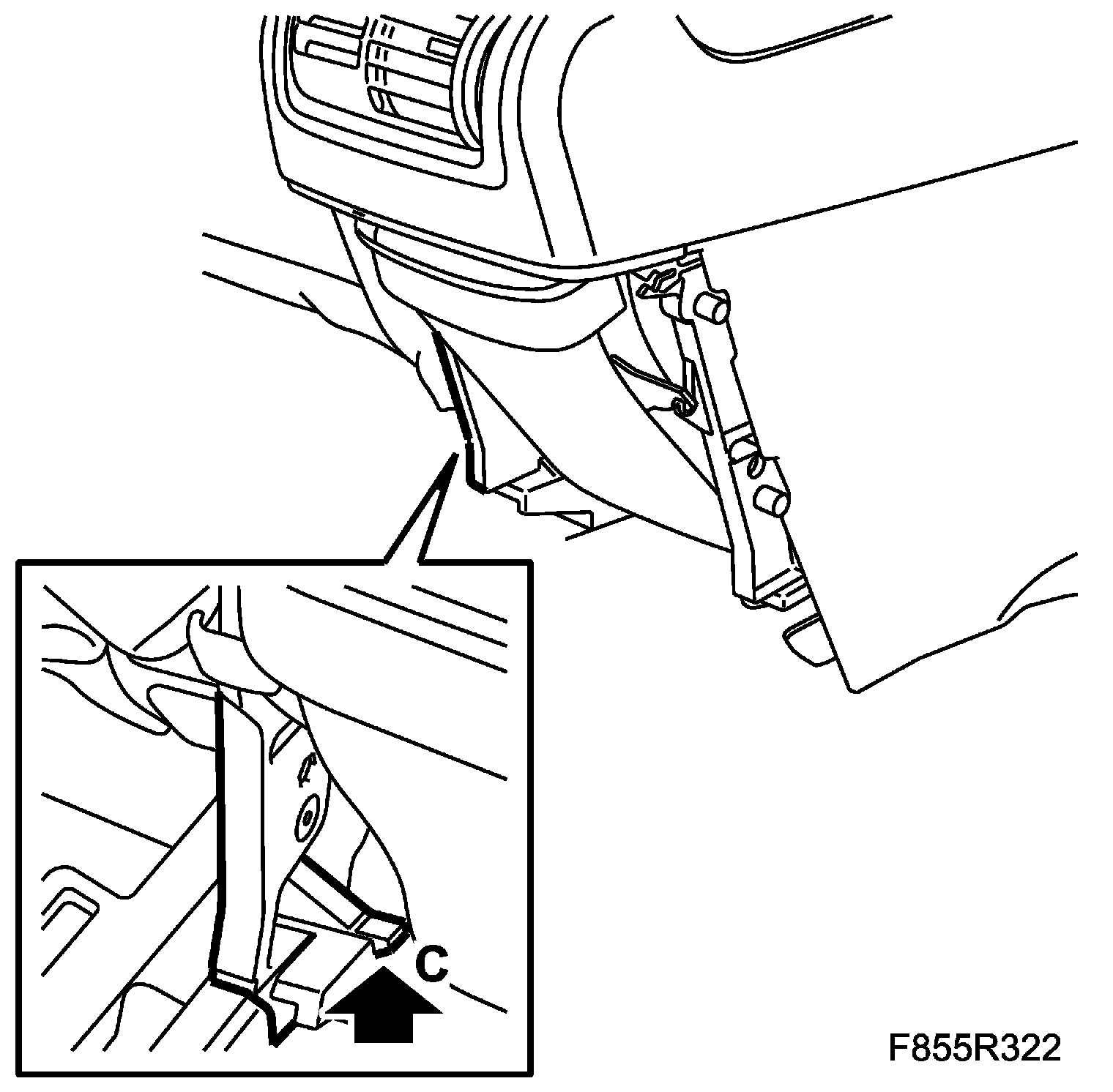

^ Lift the hook (C) and remove the rear side panels by pulling them out and back.







^ Move the front seats to their rear position.

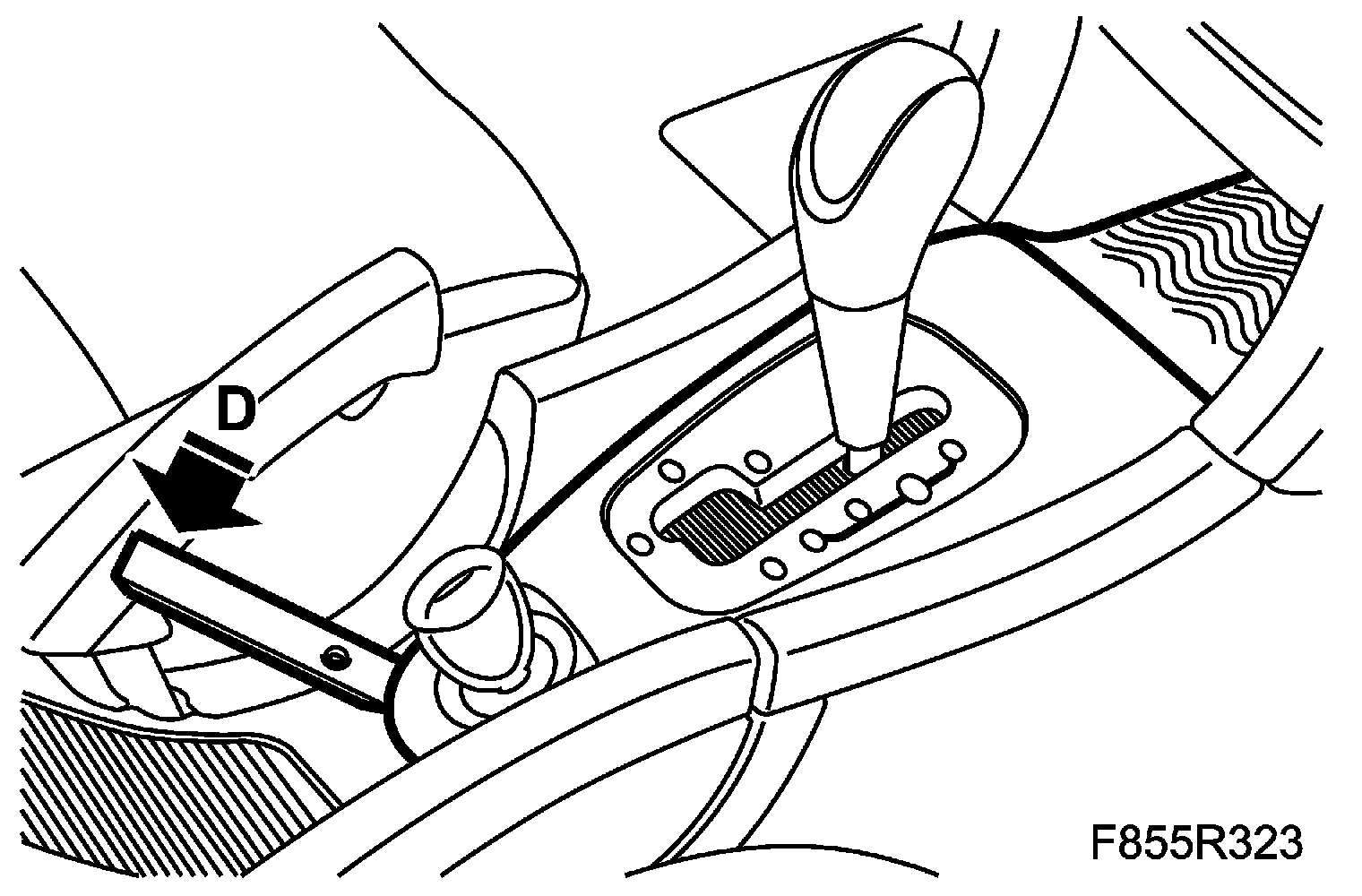

^ Remove the cover (D), use 82 93 474 Removal tool in the rear edge of the cover and pull back.







^ Man: Remove the gear lever gaiter from the cover.

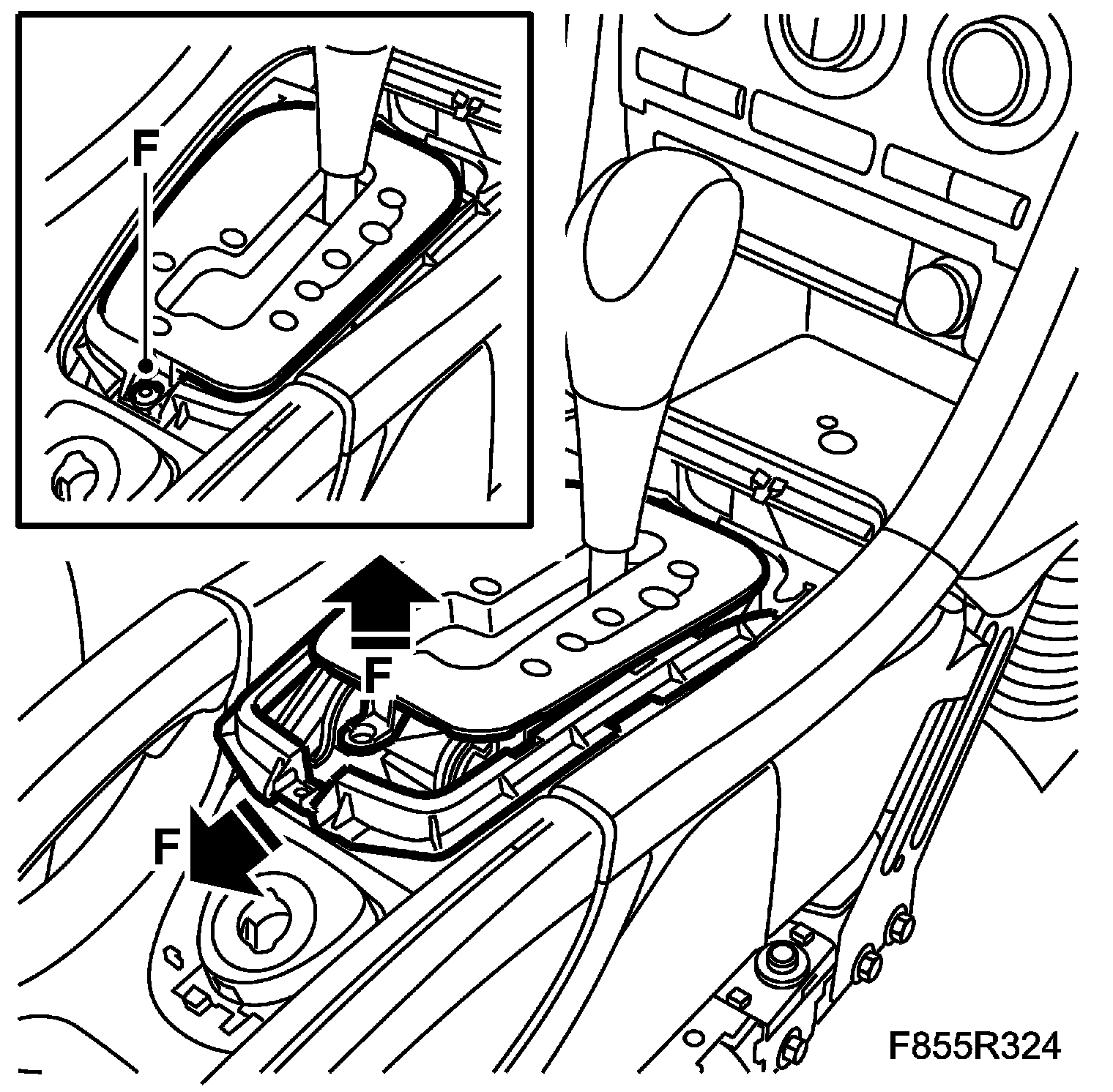

^ Aut: Remove the cradle (F).

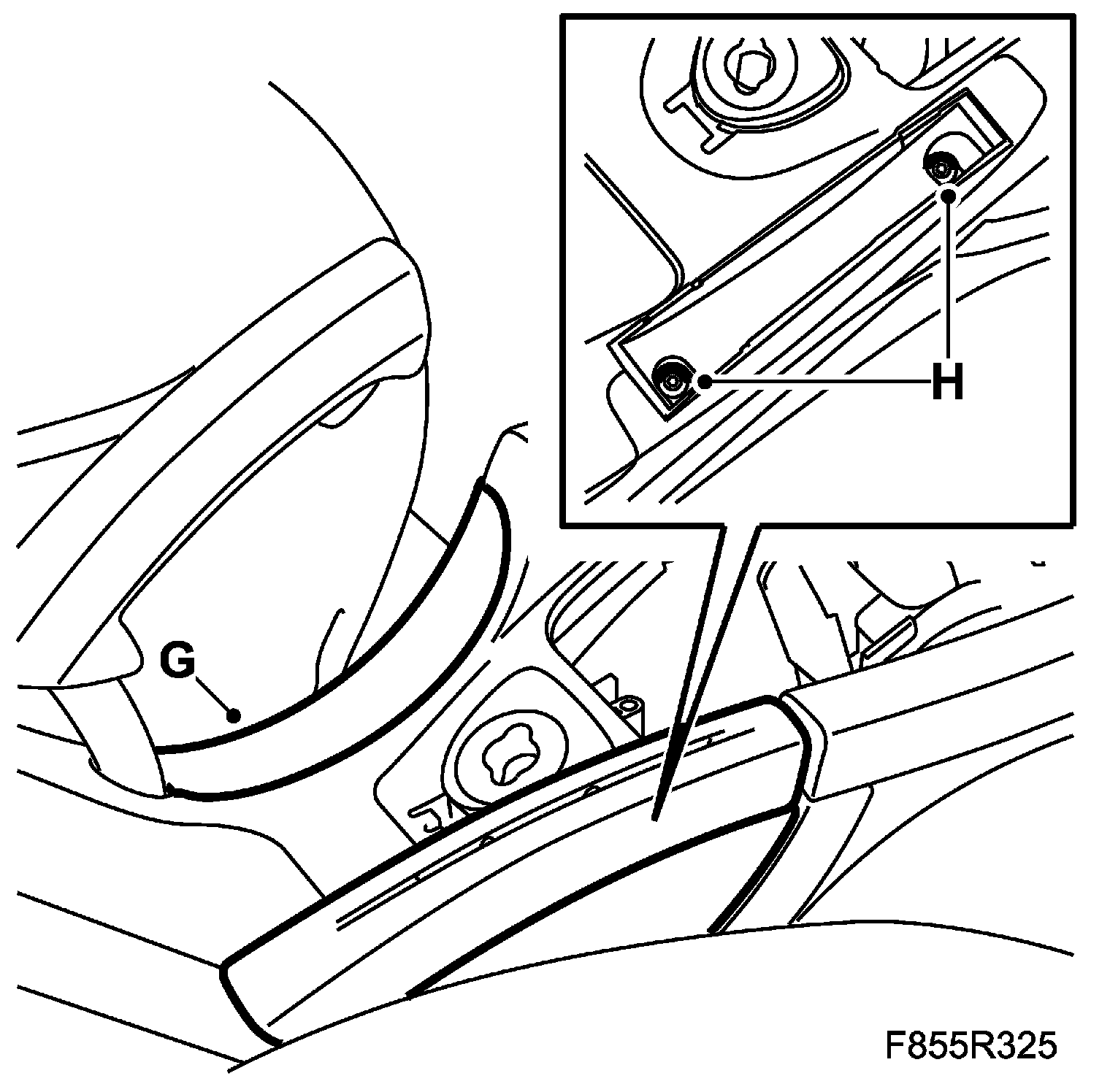

^ Apply the handbrake and remove the cover (G) under the handbrake by pulling the cover straight out.







^ Remove the cover on the passenger side by clamping the cover together and lifting up.
^ Remove the box under the passenger side's cover (H).
^ Remove Phone cradle, UHP.

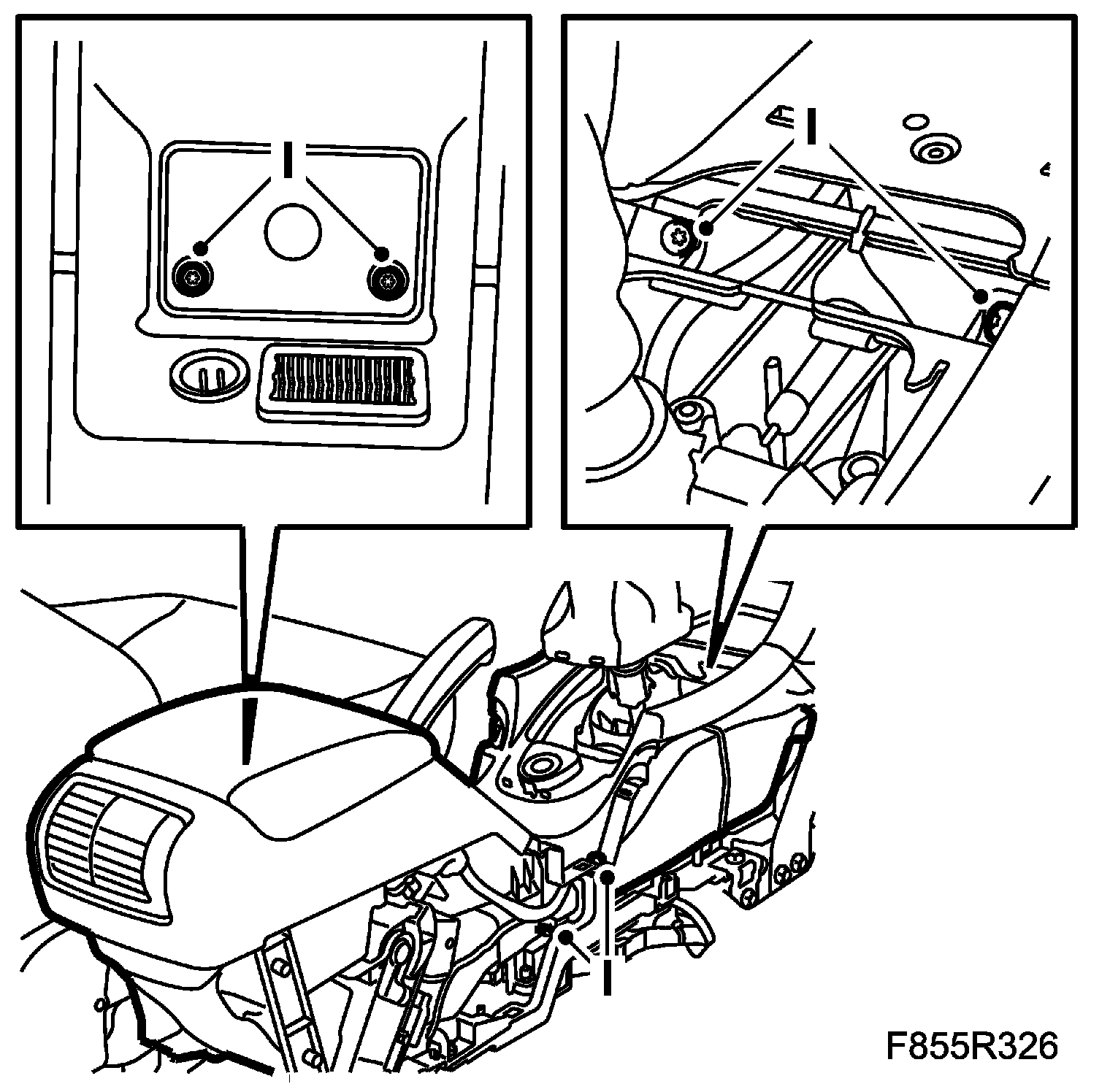

^ Remove the rubber mat in the floor console's storage box. Remove the floor console's screws (I),

NOTE: There are different screws for plastic and aluminium.







^ Aut: Place the selector lever in position N.

^ Unhook the air duct from the floor console's rear mounting.

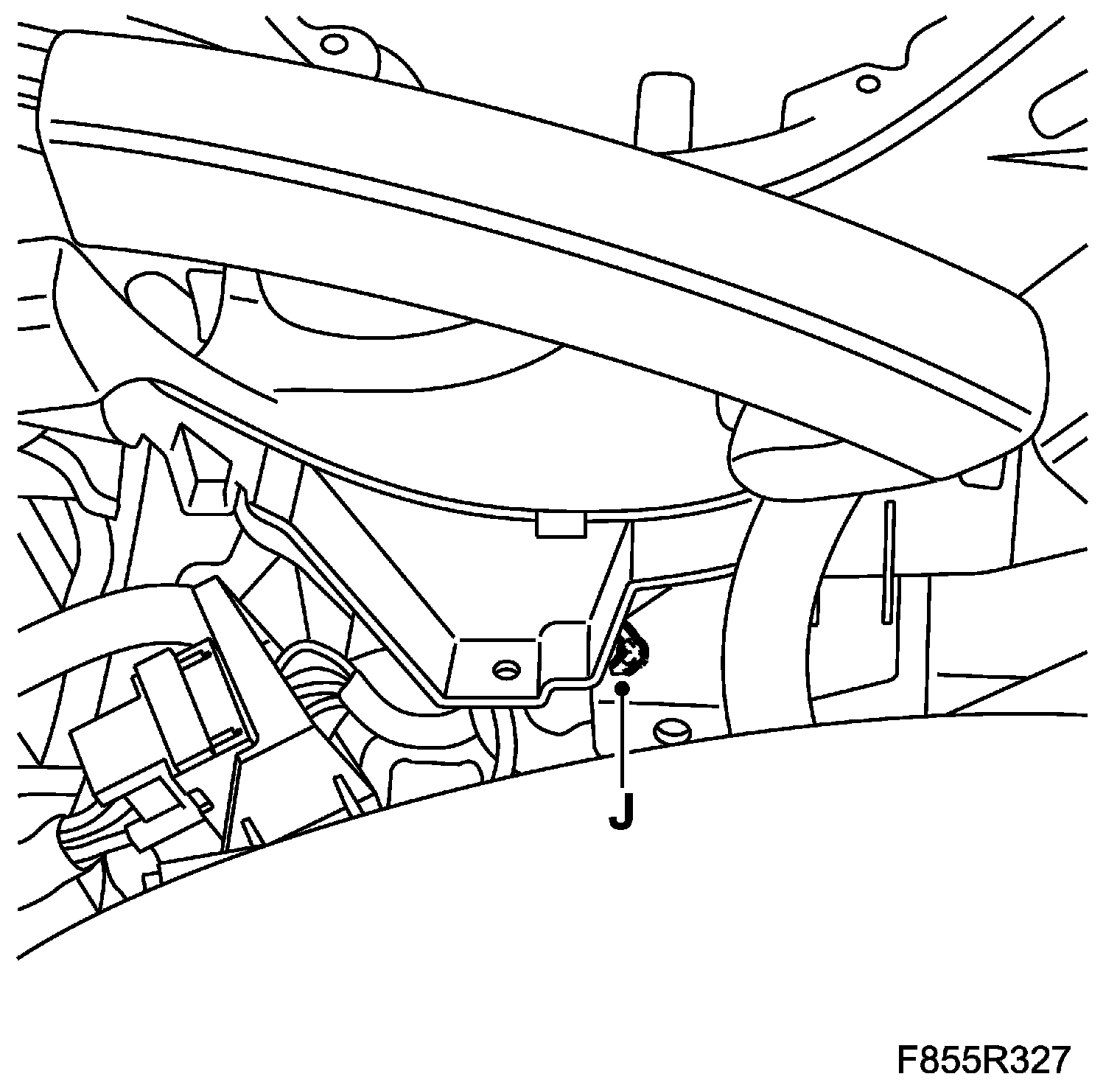

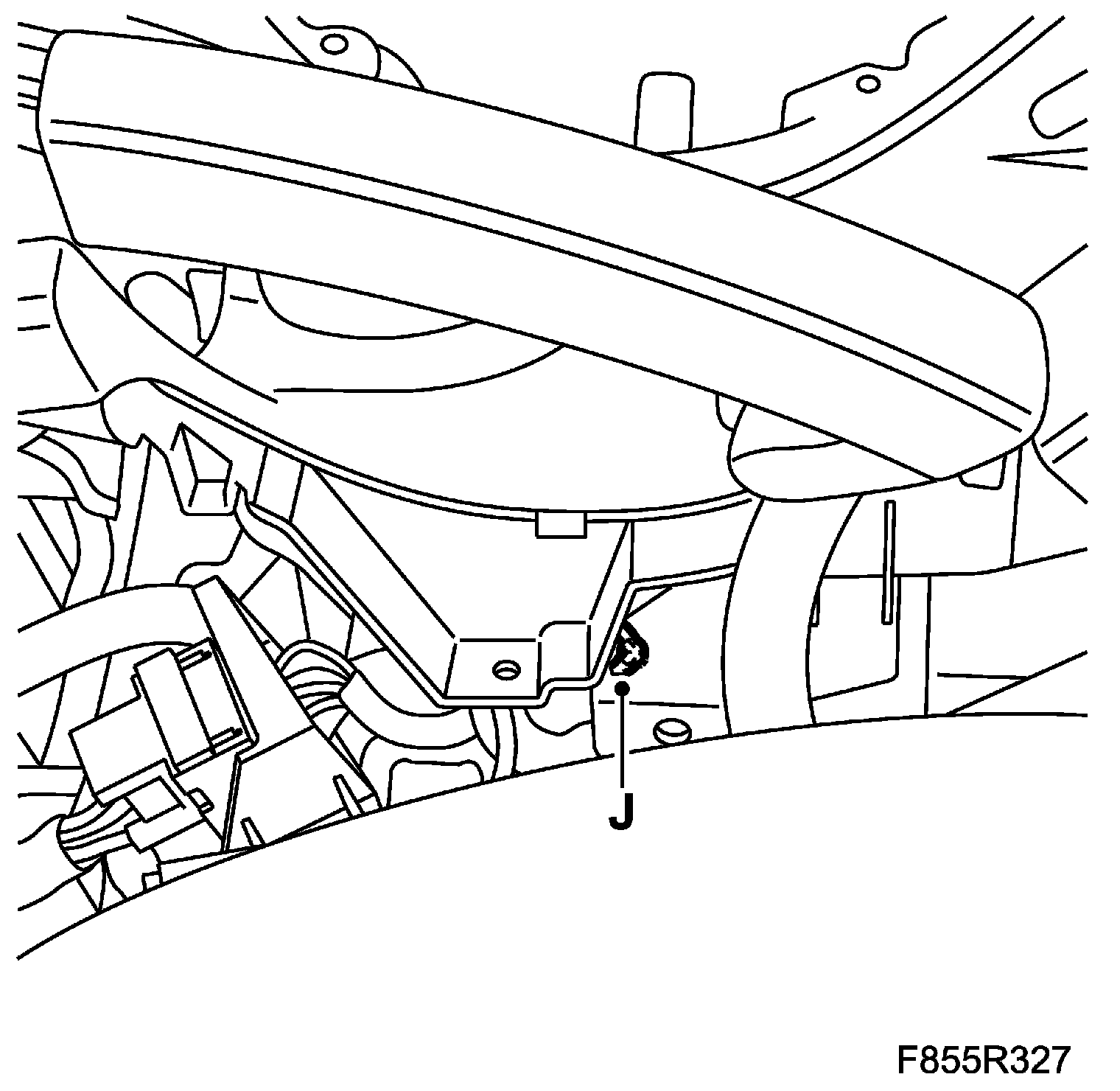

^ Remove the cable tie (J) from the floor console.

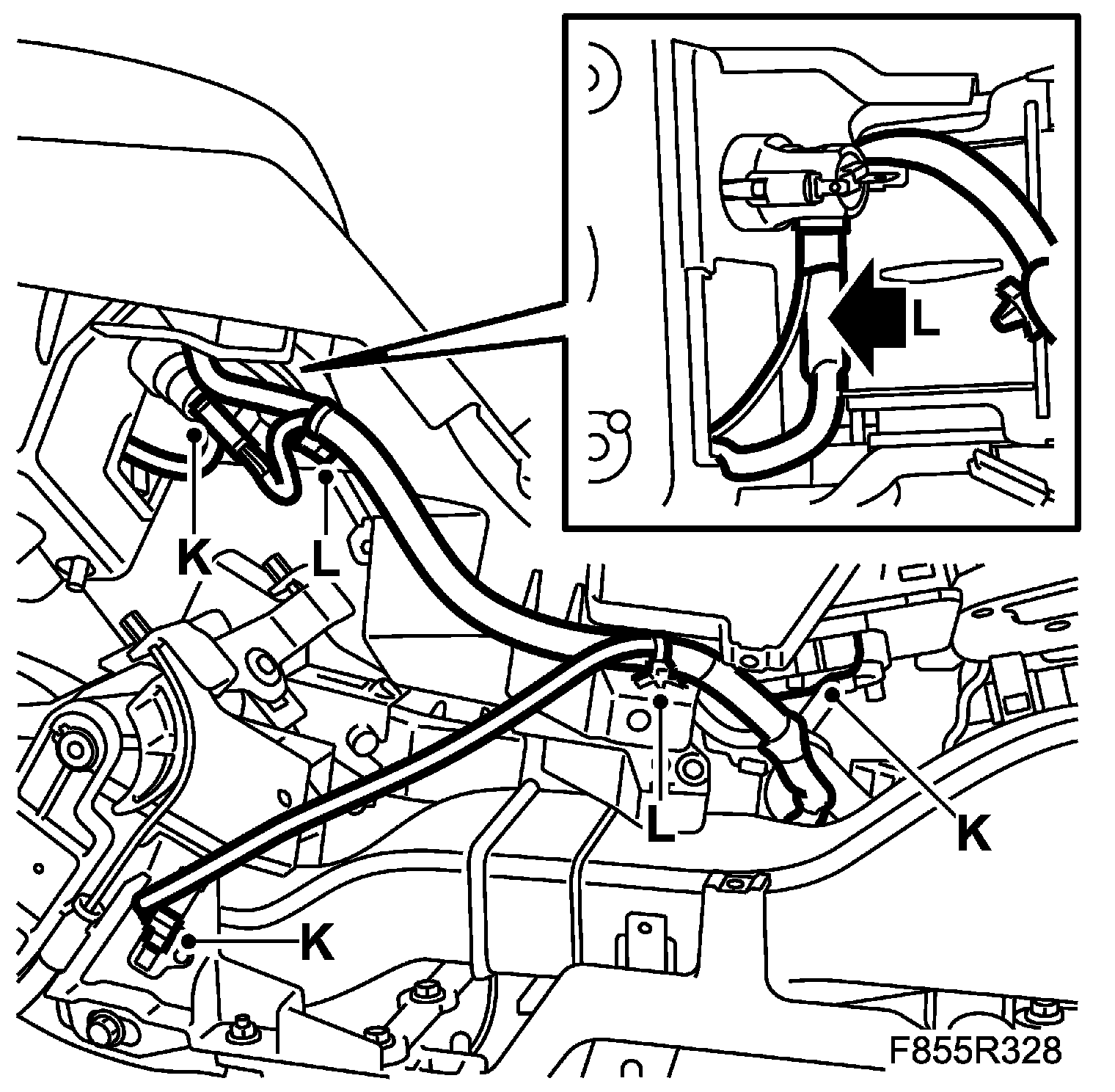

^ Unplug the connectors (K) from the ignition switch and the 12 V socket. Remove the cable ties (L).







^ Lift the console up and back.

To fit

1. Fit the floor console:
^ Position the floor console.
^ Plug in the connectors (K) for the ignition switch and the 12 V socket. Fit the cable ties (L).







^ Fit the cable tie (J) for the floor console.







^ Hook the air duct in the floor console's rear mounting.

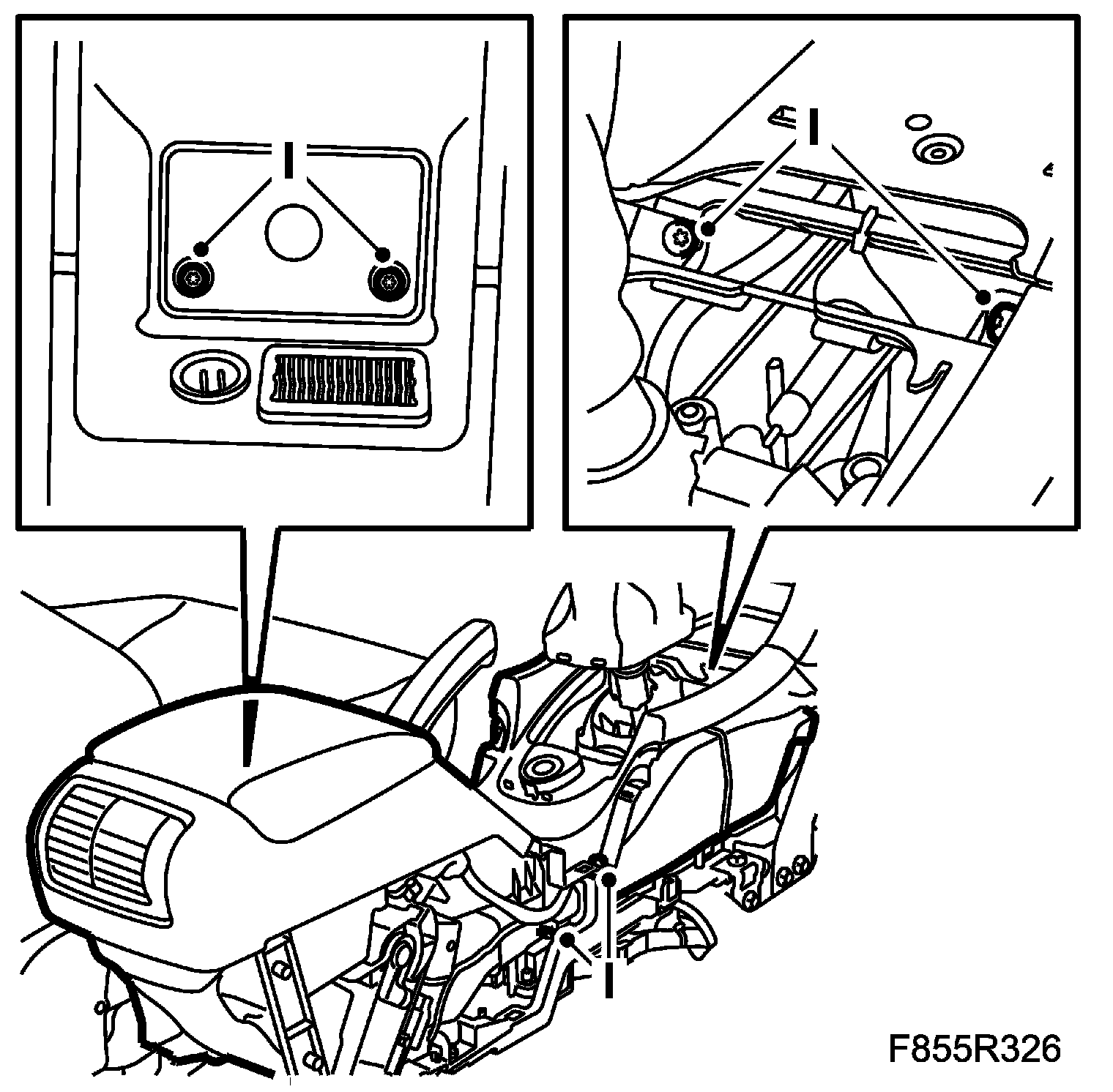

^ Fit the floor console's screws (I) and fit the rubber mat in the floor console's storage box.

NOTE: There are different screws for plastic and aluminium.







^ Fit Phone cradle, UHP (375c).
^ Fit the box under the passenger side's cover and fit the cover (H).







^ Fit the cover (G) under the handbrake.

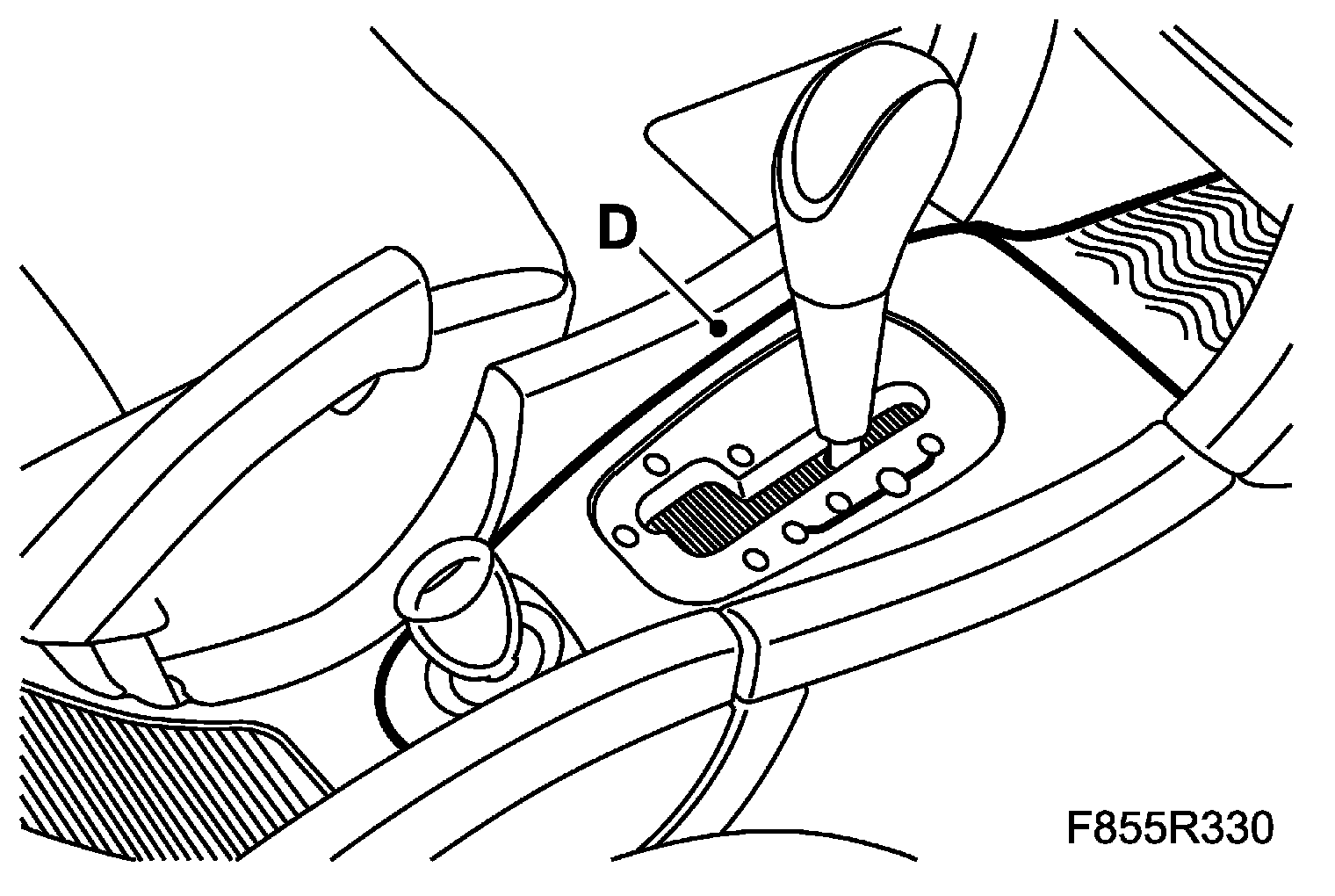

^ Aut: Fit the cradle (F) and the cover (D).










^ Man: Fit the gear lever gaiter and the cover.

^ Fit the rear side panels (C).







^ Fit the rear cover (B).







^ Fit the forward side panels (A).
