Tailgate, Gas Cartridge, 5D

Tailgate, Gas Cartridge, 5D

To remove

1. Remove Headlining, 5D.

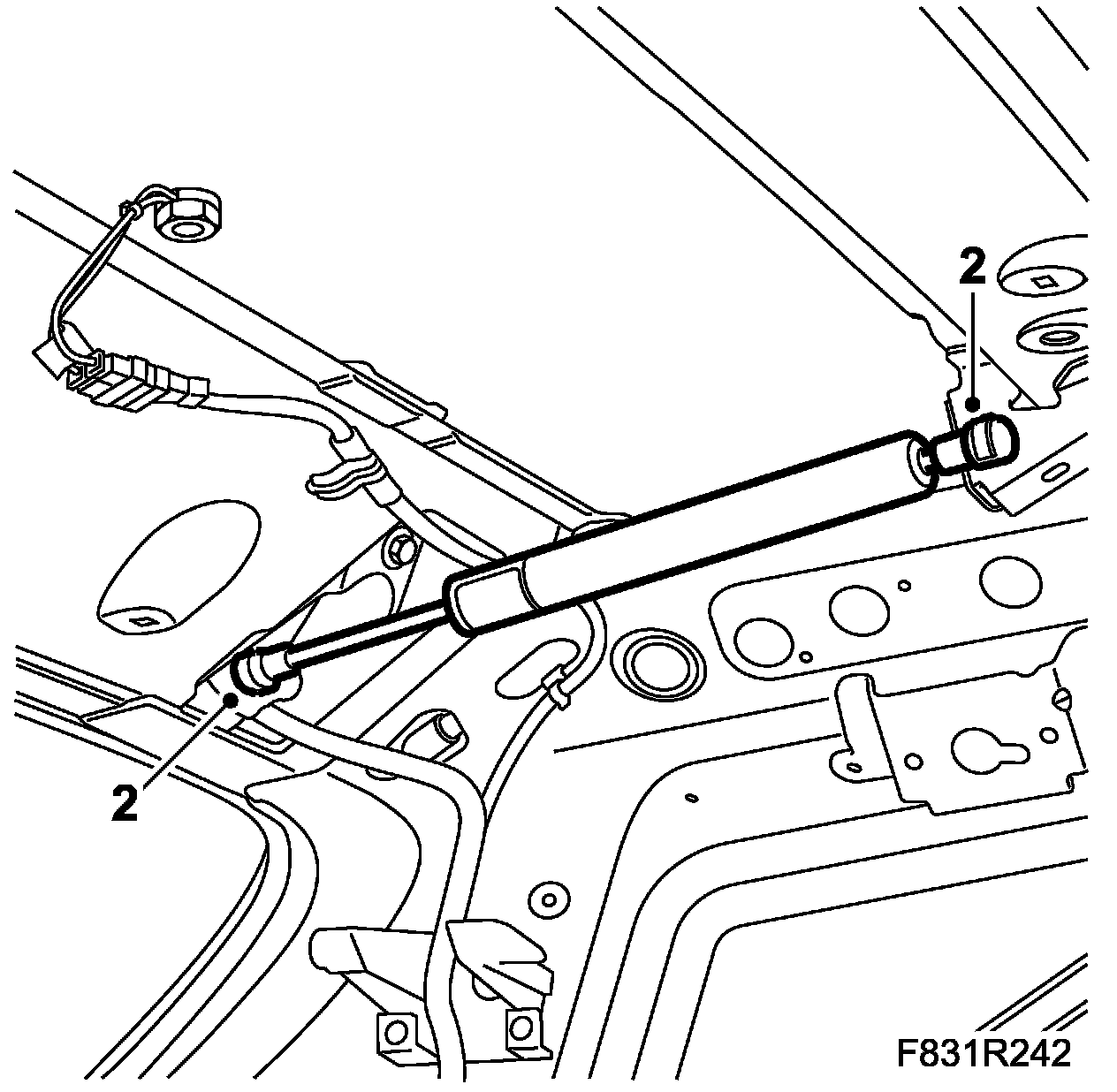

2. Have an assistant hold the tailgate or support it using a suitable shaft. Remove the gas cartridge clips. Lift out the gas cartridge.





To fit

1. Put in place the gas cartridge. Fit the gas cartridge clips.





2. Fit Headlining, 5D.
