Tailgate Lock

Tailgate Lock

To remove

1. Remove Tailgate trim.

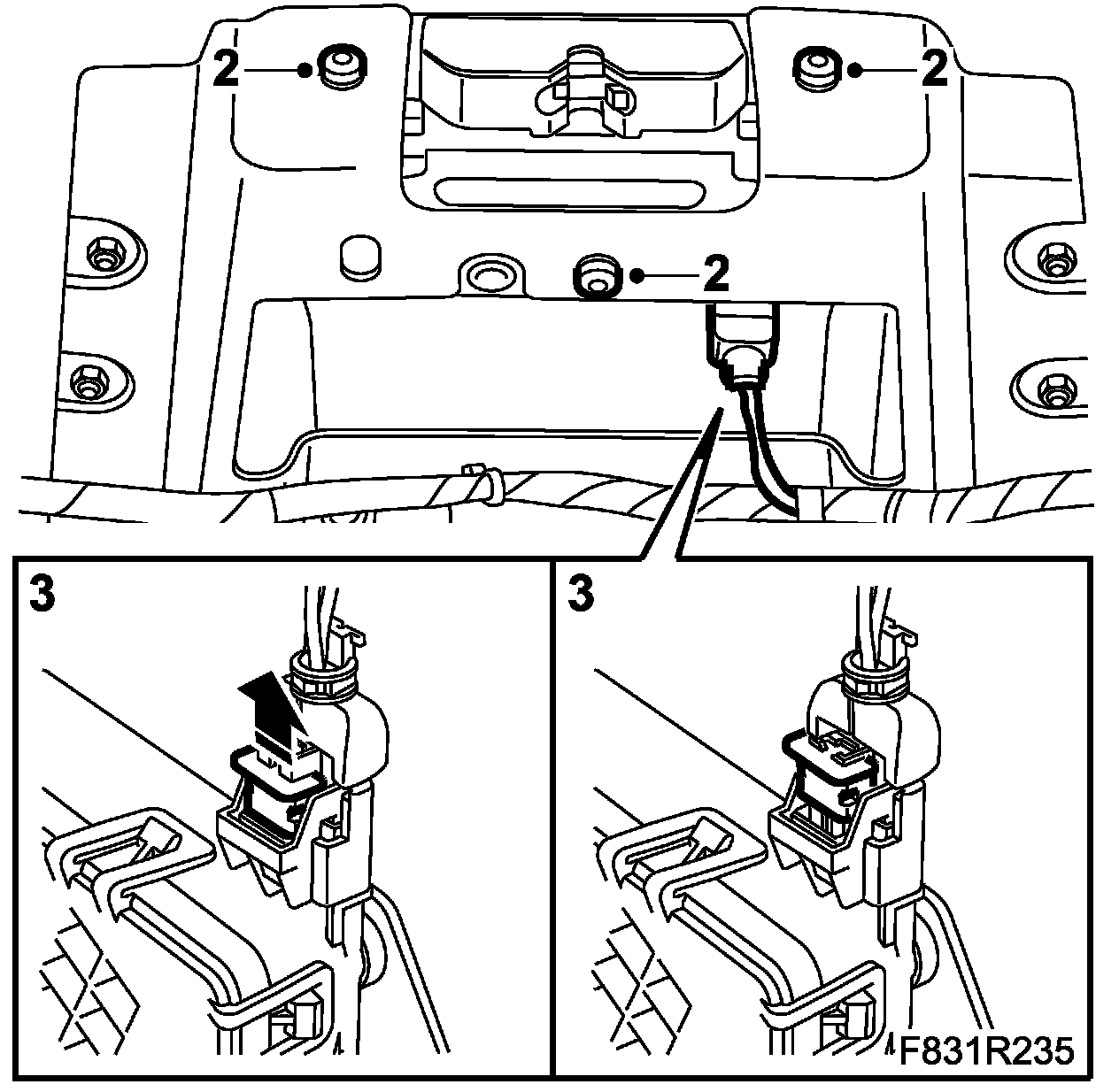

2. Remove the lock bolts.





3. Unplug the connector.

To fit

1. Refit the lock and fit the lock bolts.





2. Plug in the connector.
3. Close the tailgate. Check the operation of the lock.
4. Fit Tailgate trim.
