Window Cover Plates, Tailgate, 5D
Window Cover Plates, Tailgate, 5D
Window Cover Plates,
Tailgate
, 5D
To remove
1.
Open the
tailgate
.
2.

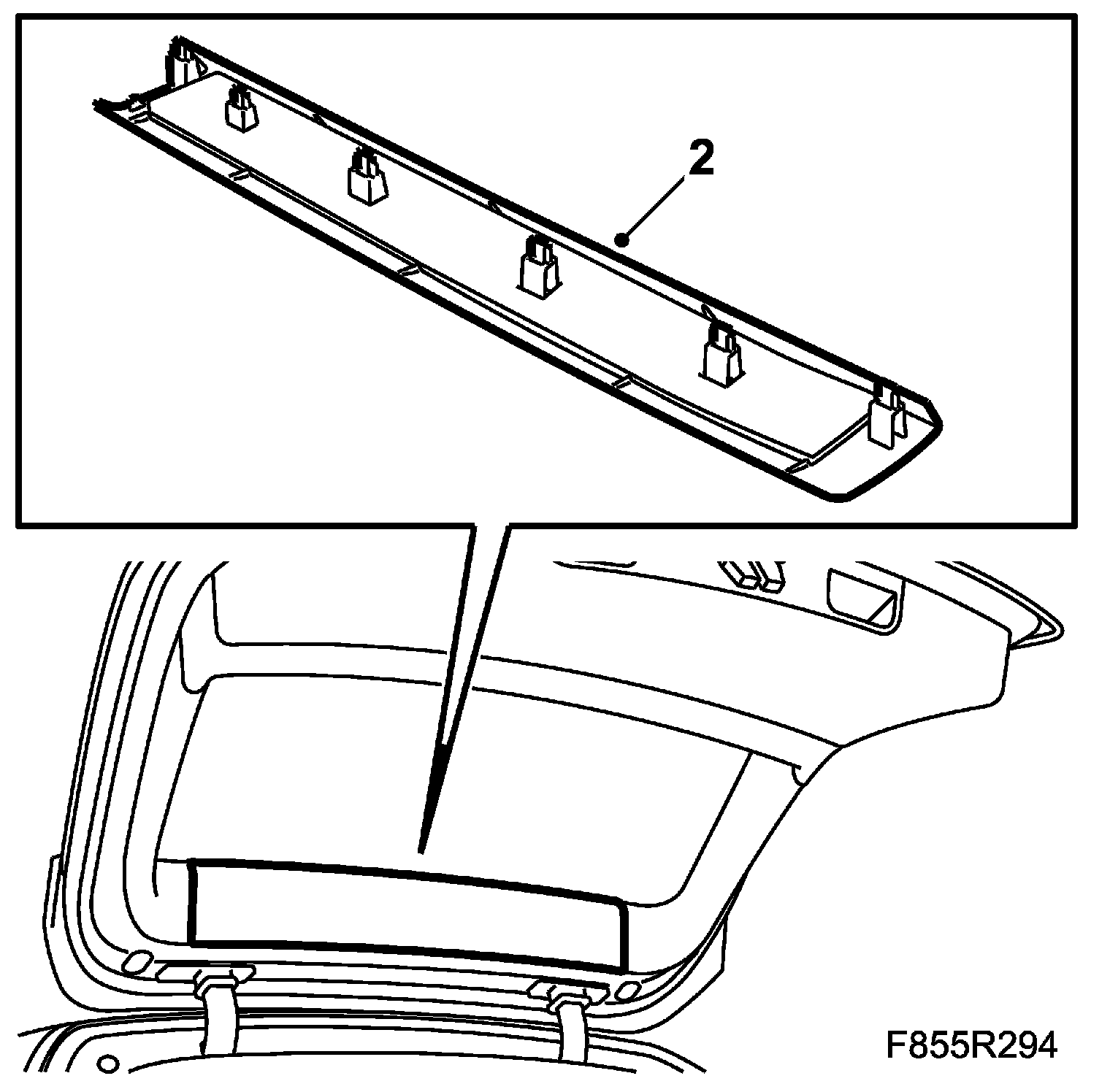

Remove the upper cover.
3.

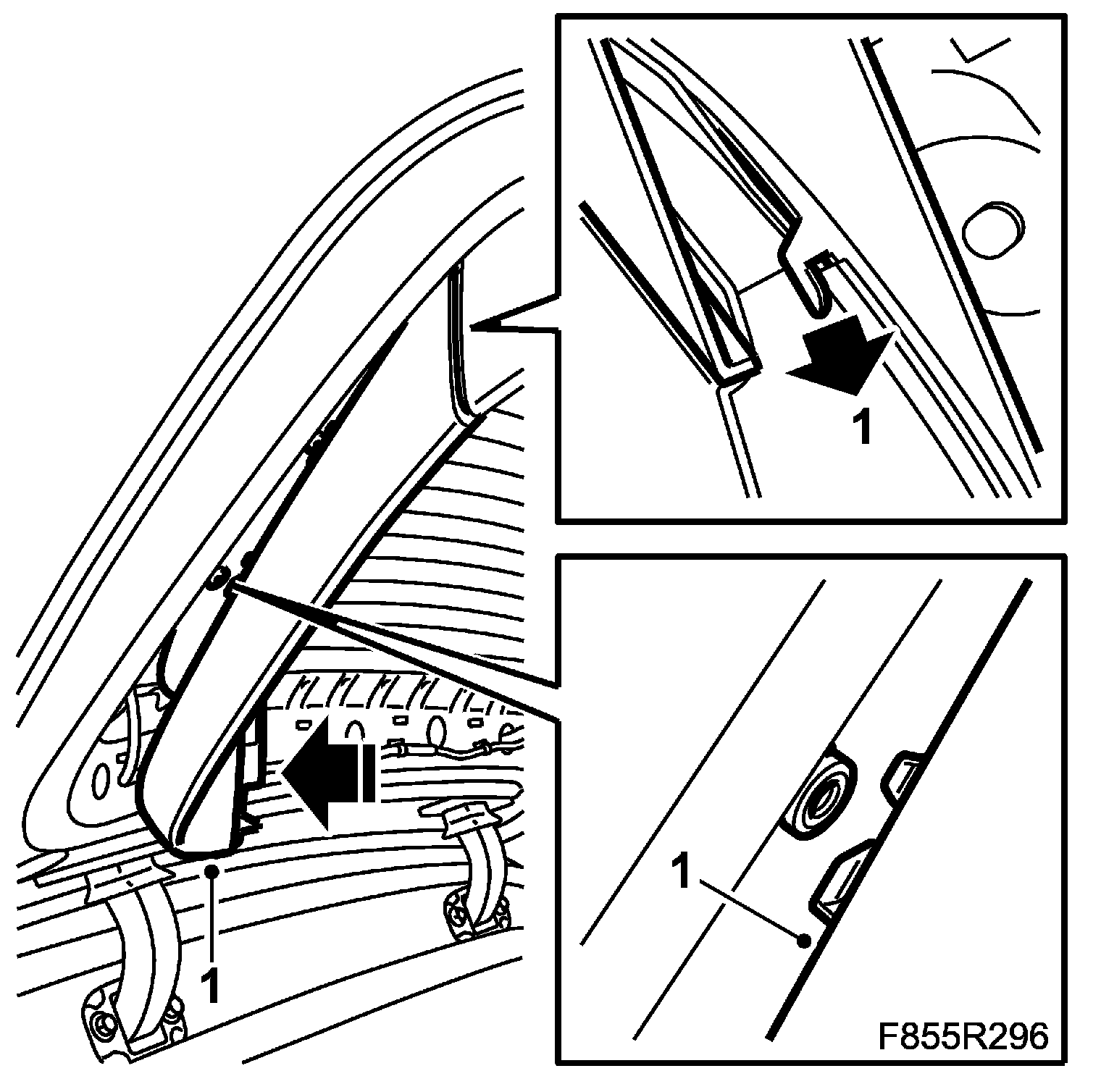

Remove the side cover plates.
To fit
1.

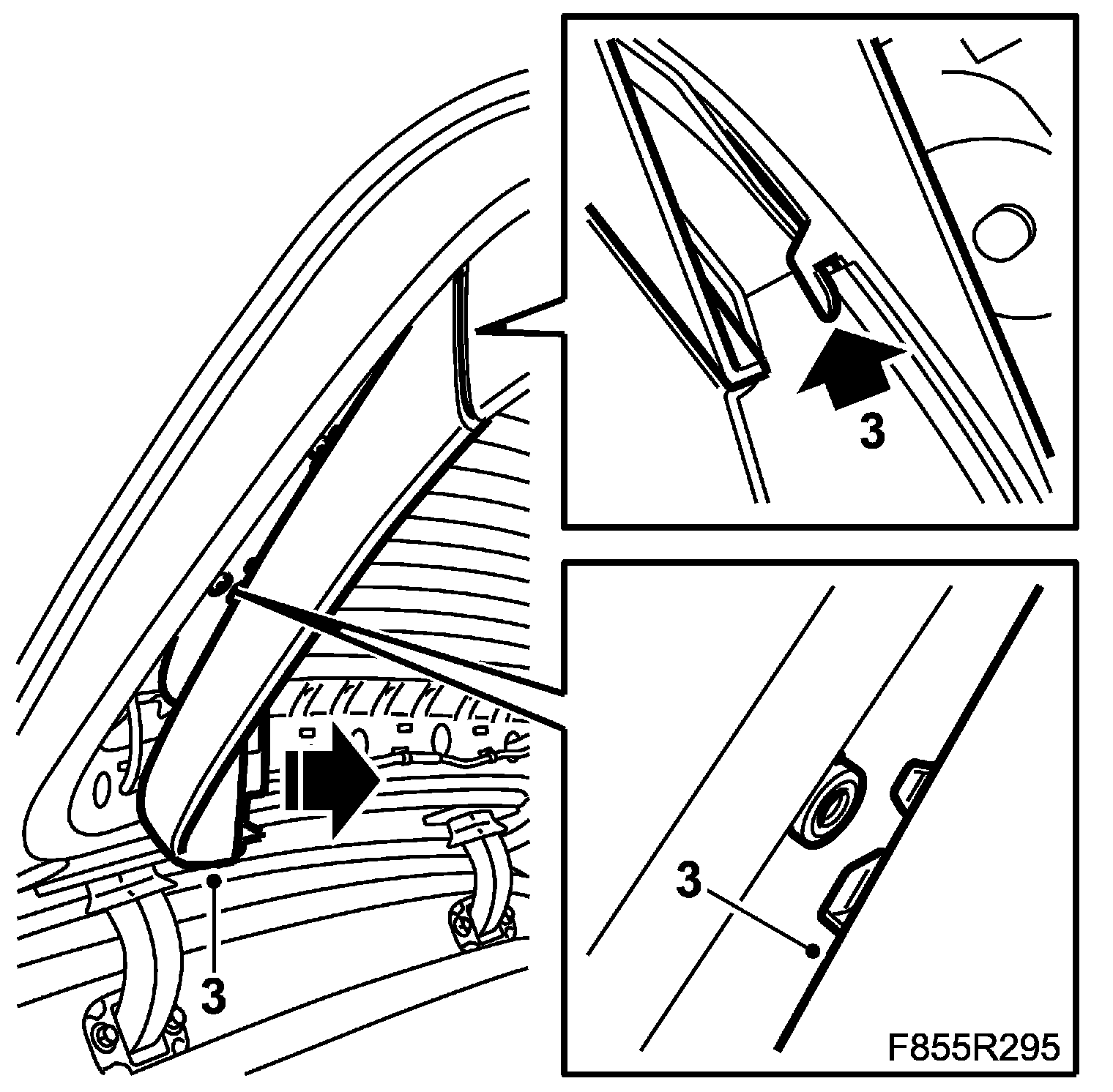

Fit the side cover plates.
2.
Fit the upper cover.
3.
Close the
tailgate
.
