Luggage Compartment Floor, 5D

Luggage Compartment Floor, 5D

To remove

1. Lower the rear seat's backrest cushions.
2. Remove the luggage compartment floor.

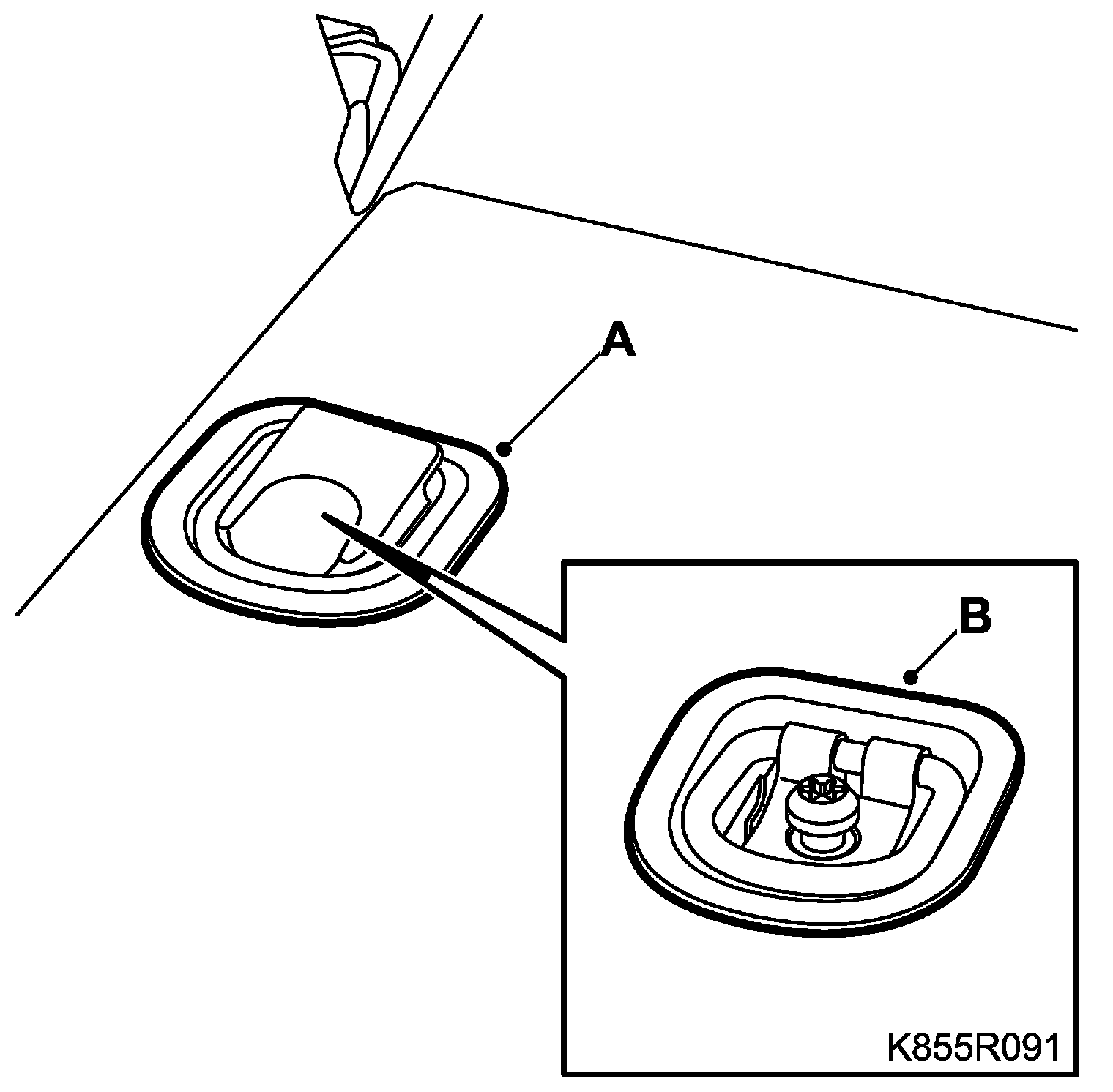

^ Remove the cover (A) using 82 93 474 Removal tool.





^ Remove the screws (B) holding the anchorage eyes.

3. Lift out the floor panel.

To fit

1. Lift the floor panel into place.
2. Fit the luggage compartment floor.
^ Fit the screws (B) holding the anchorage eyes.
^ Fit the cover (A).

3. Raise the rear seat's backrest cushions.
