Rear Cellular Block



Rear Cellular Block

To remove
1. Raise the car.
2. Remove the Rear bumper shell.

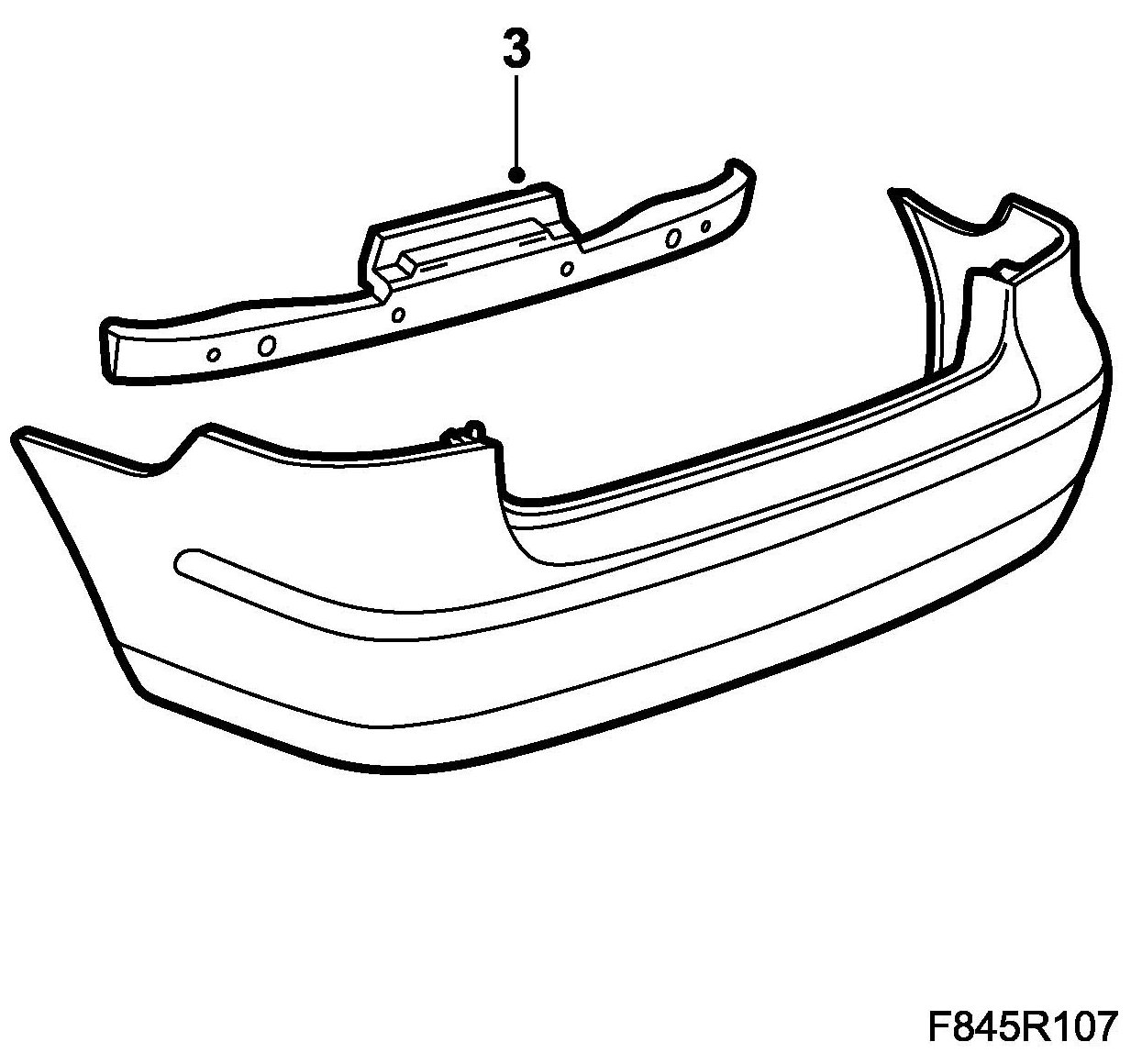

3. Pull the cellular block loose from the bumper shell tongues.







To fit

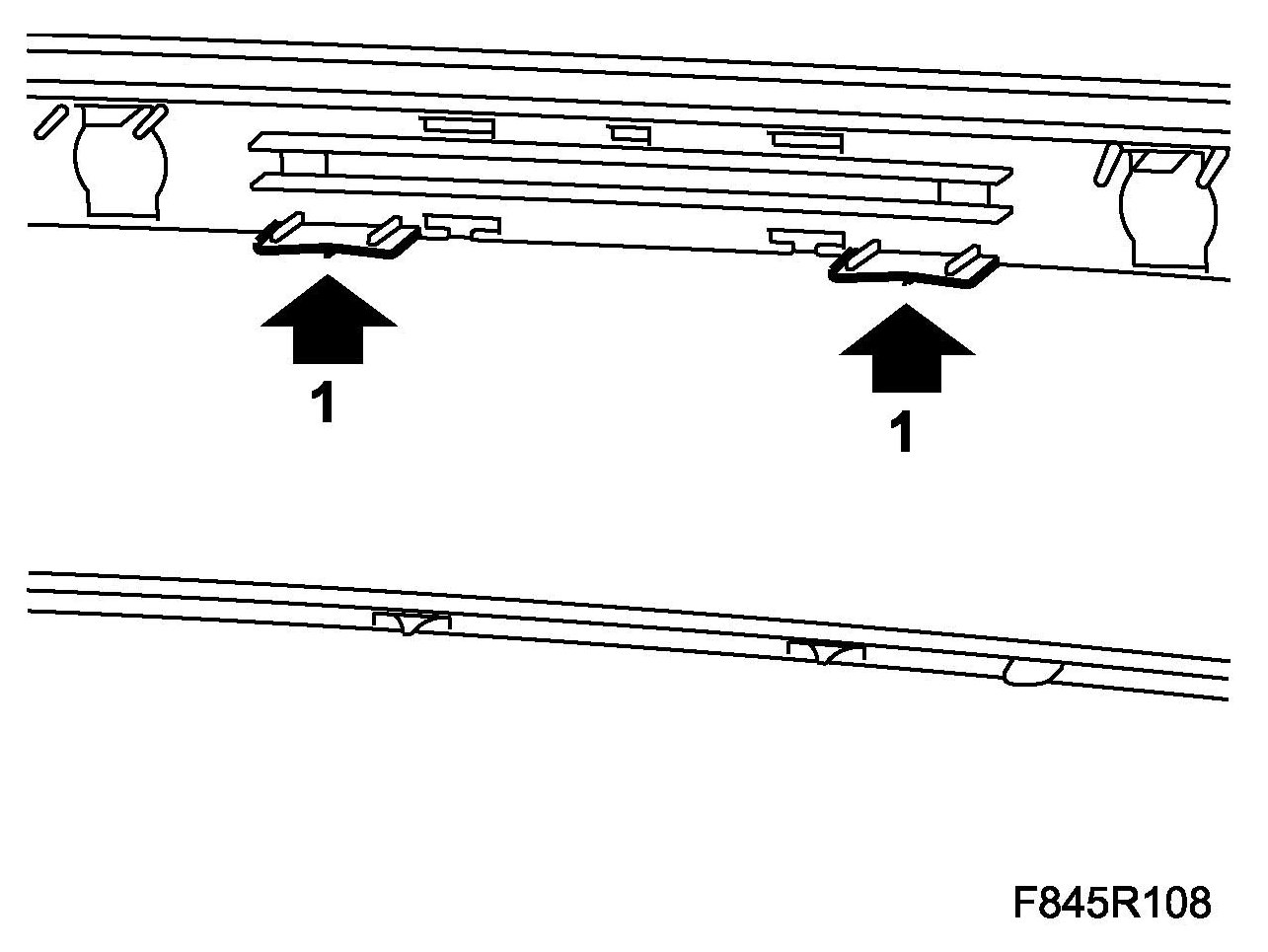

1. Fit the cellular block by guiding it onto the bumper shell tongues. Press the block into place.







2. Fit the Rear bumper shell.
3. Lower the car.
