Rear Cell Block, CV

Rear Cell Block, CV

Removing

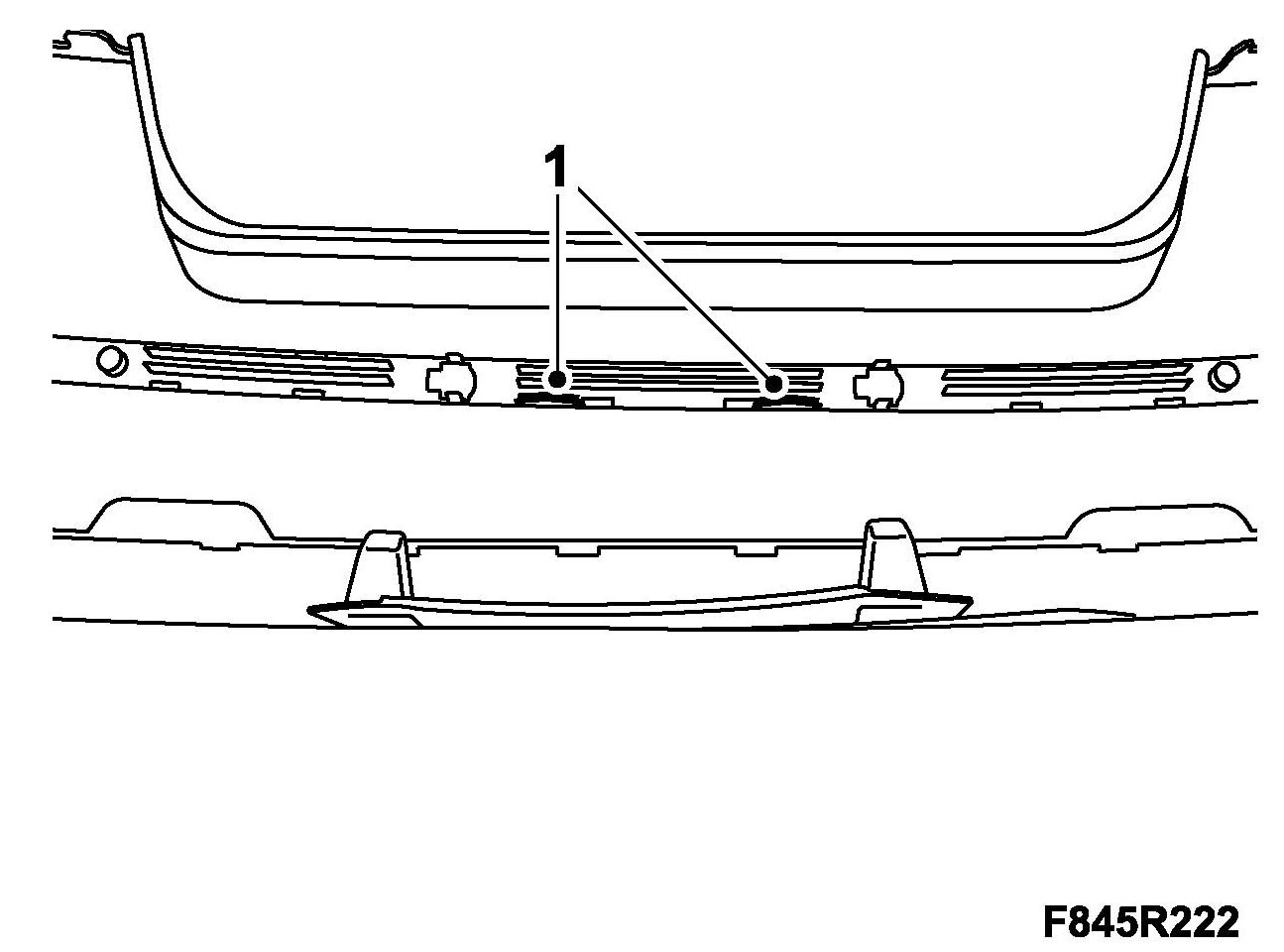

1. Remove the Rear bumper shell, CV.
2. Pull the cell block loose from the bumper shell tongues.







Fitting
1. Fit the cell block by inserting the bumper shell tongues. Press into place.







2. Fit the Rear bumper shell, CV.
