Rear Bumper Shell Holder, 5D

Rear Bumper Shell Holder, 5D

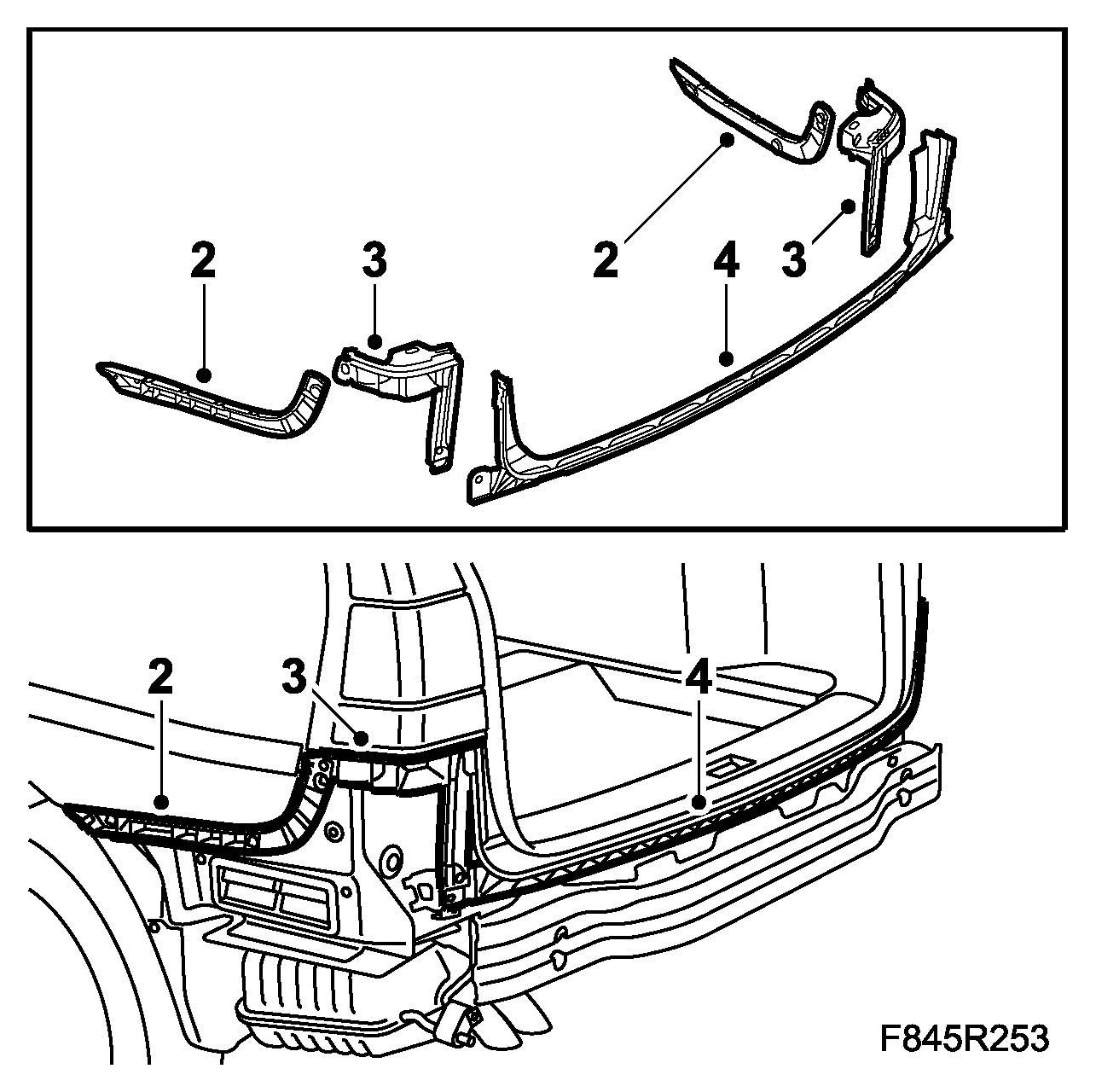

To remove
1. Remove Bumper shell, rear, 5D.
2. Remove the holder towards the rear wing.







3. Bend away the clip and remove the holder under the tail light.
4. Remove the holder under the boot lid opening.

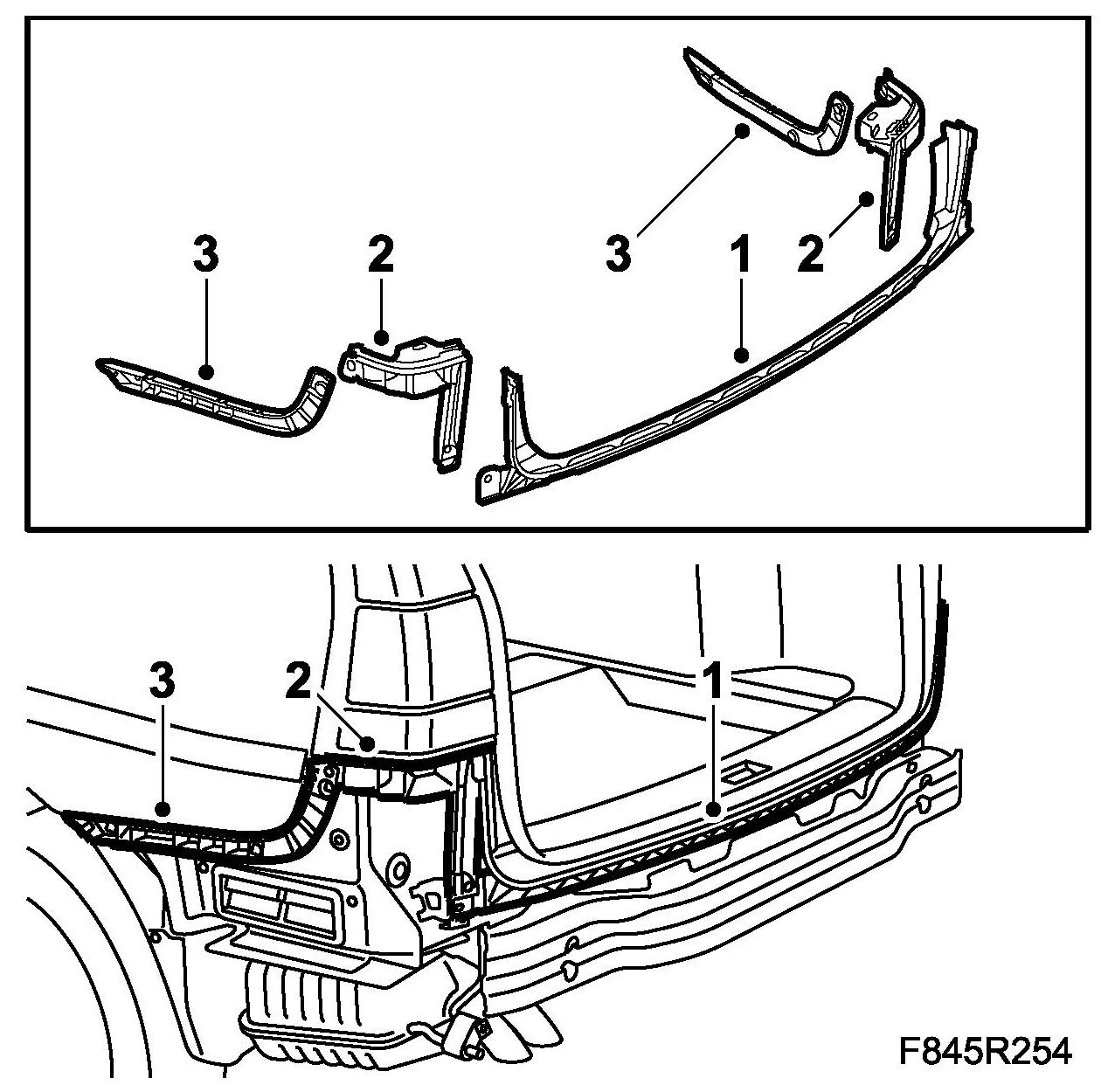

To fit
1. Fit the holder under the boot lid.







2. Place the holder under the tail light and bend over the clip.
3. Fit the holder at the rear wing.
4. Fit Bumper shell, rear, 5D.
