Rear Bumper Shell Holder

Rear Bumper Shell Holder

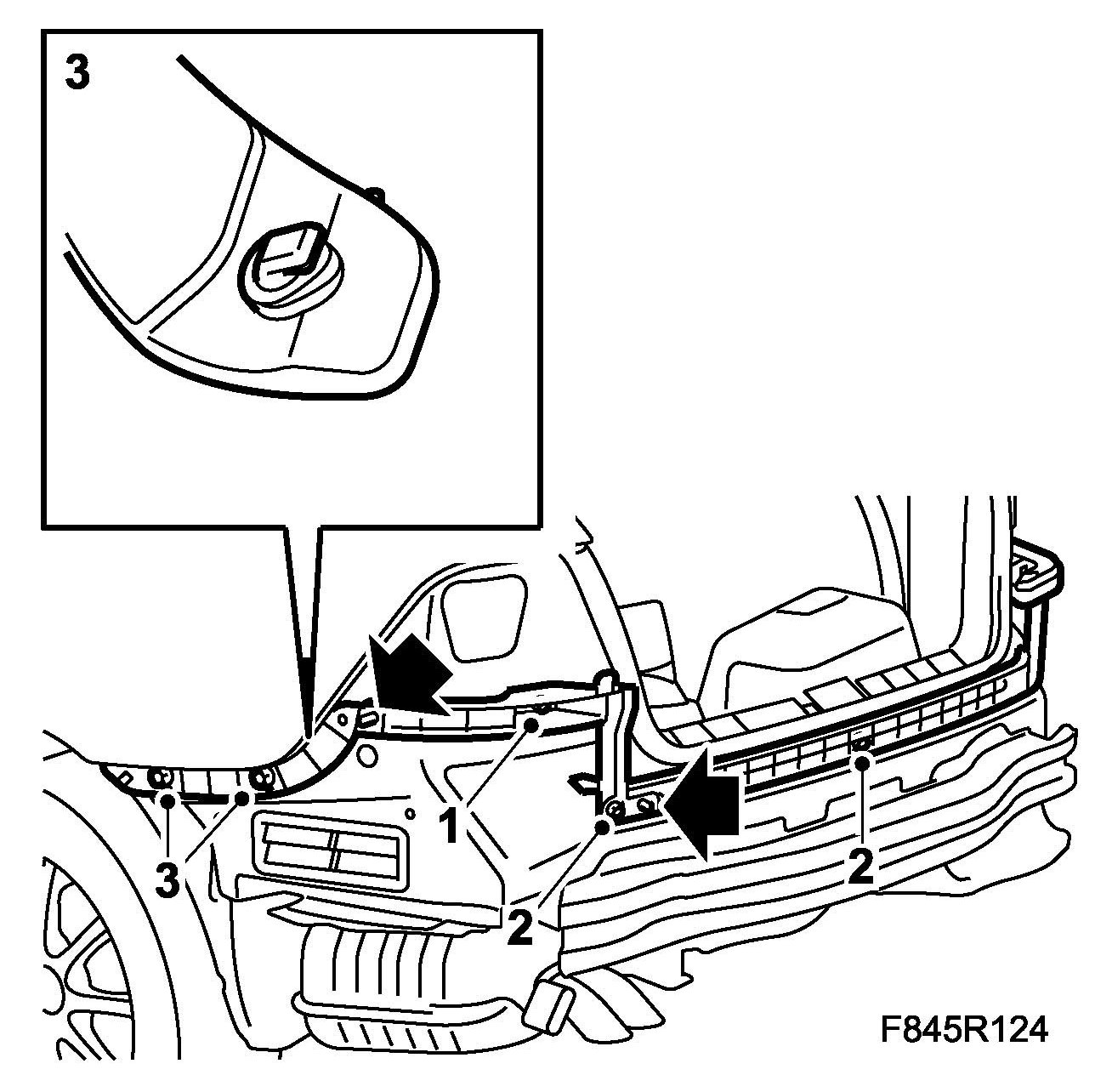

To remove
1. Remove the Rear bumper shell.
2. Remove the holder at the rear wing.







3. Remove the holder under the boot lid opening.
4. Remove the holder under the tail lamp.

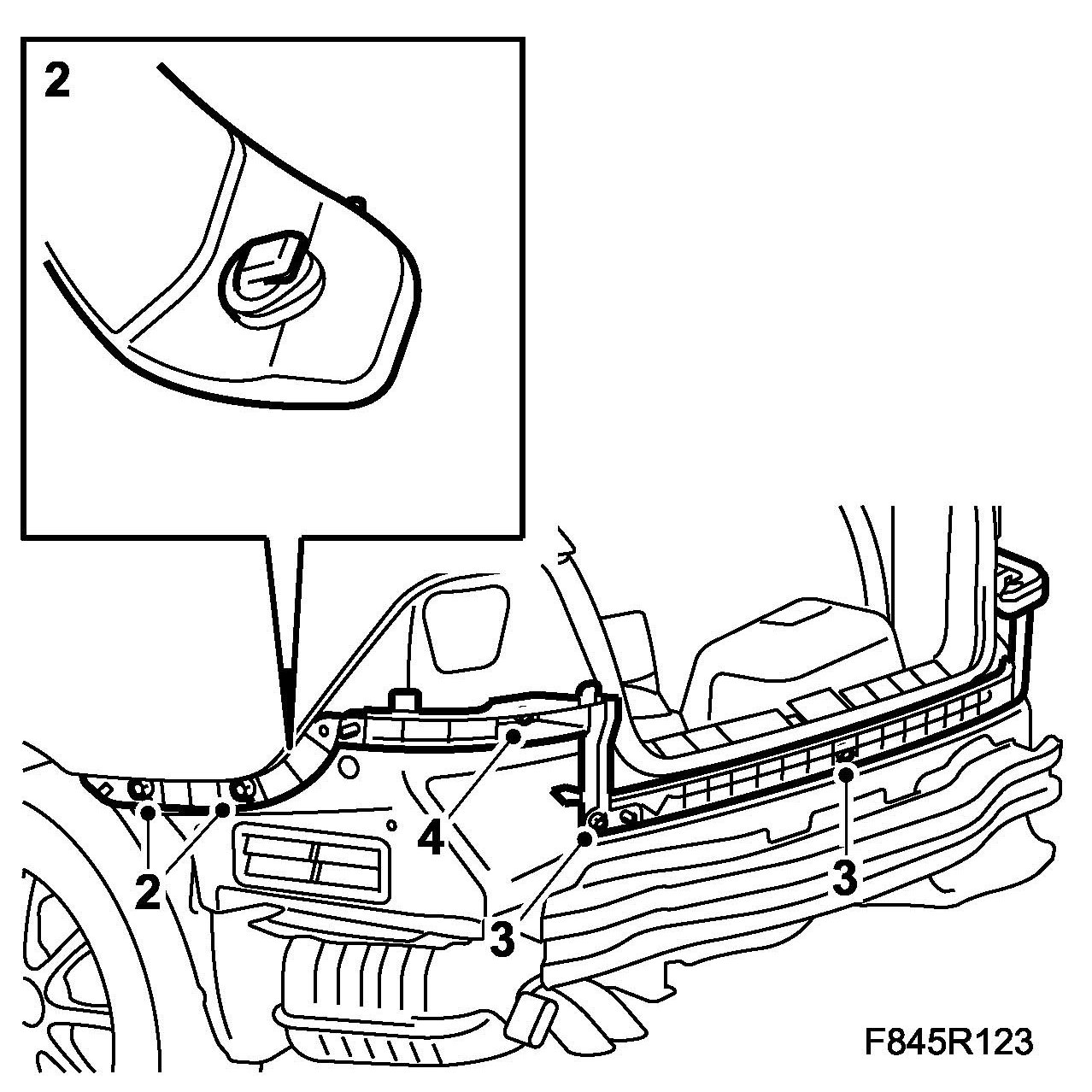

To fit
1. Put the holder in place under the tail lamp.







2. Fit the holder under the boot lid.
3. Fit the holder at the rear wing.
4. Fit the Rear bumper shell.
