Front Cellular Block

Front Cellular Block

To remove
1. Remove the front bumper shell.

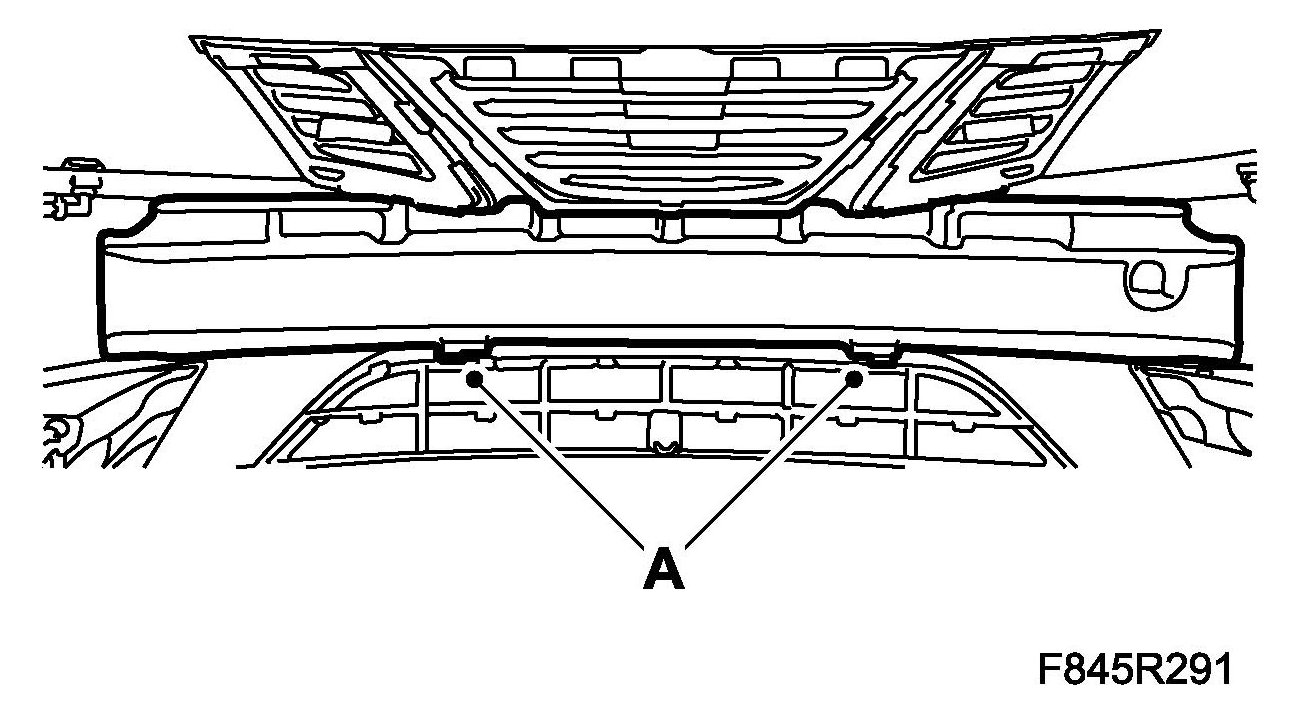

2. Detach the cellular block from the bumper shell by lifting up the cellular block over the locking tabs (A).







To fit
1. Guide the tab in on the cover for the towing eye.
2. Position the cellular block using the two centre guide tabs.

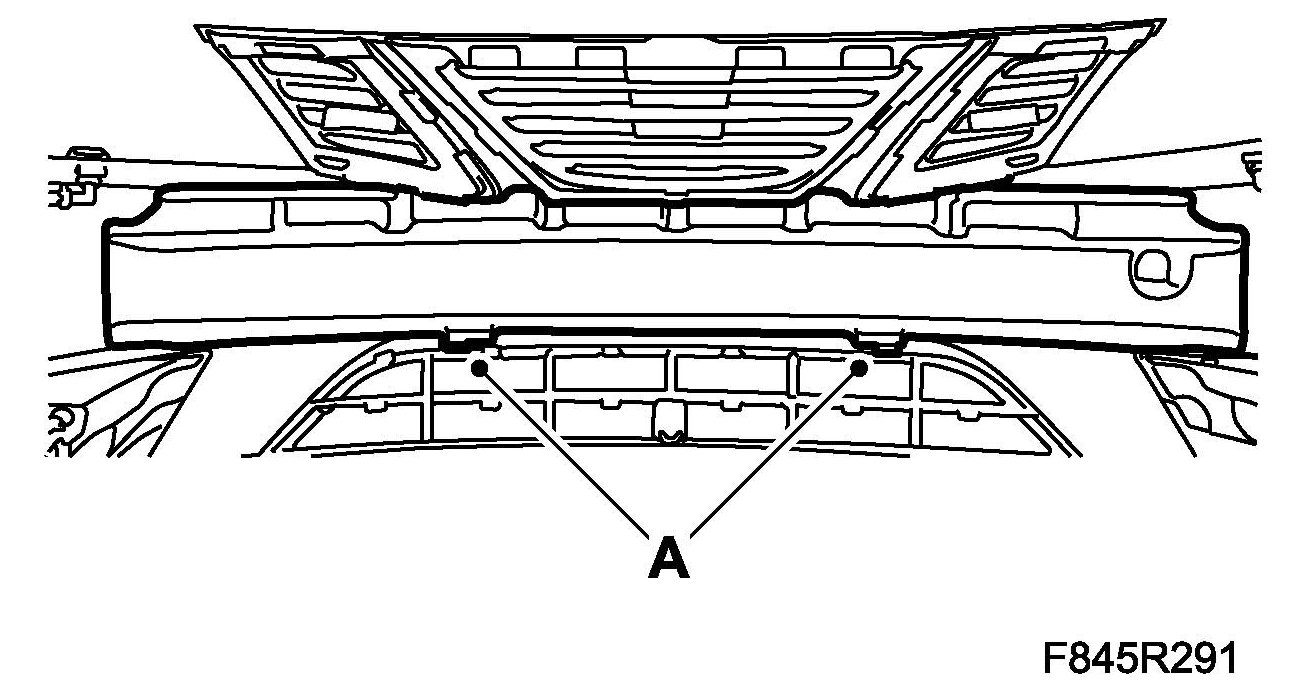

3. Make sure that the cellular block attaches behind the locking tabs (A).







4. Fit the front bumper shell.
