Treble Speaker, Rear (266)

Treble Speaker, Rear (266)

To remove
1. Remove the Parcel shelf trim.
2. Remove the speaker using a screwdriver. Use the screwdriver to carefully prise in the 3 clips for the speaker.







3. Remove the treble speaker using 82 93 474 Removal tool.
4. Unplug the connector.

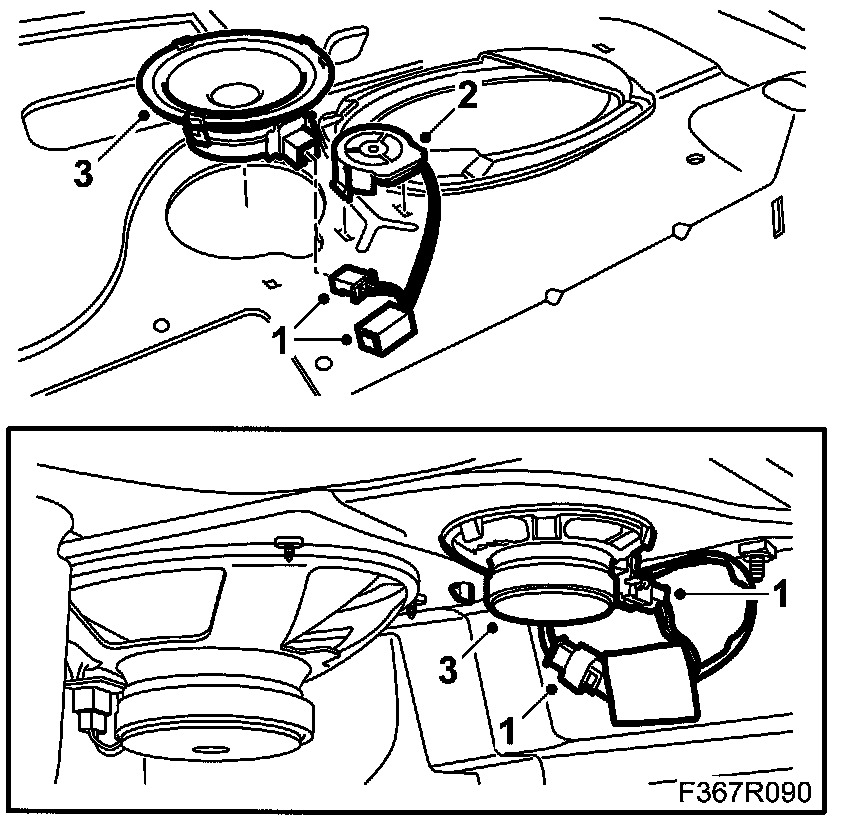

To fit
1. Plug in the speaker's connector.







2. Press the speaker in.
3. Fit the speaker.

IMPORTANT: Make sure no cables or connectors are pinched.

4. Fit the Parcel shelf trim.
