Speaker, Front Door (266)

Speaker, Front Door (266)

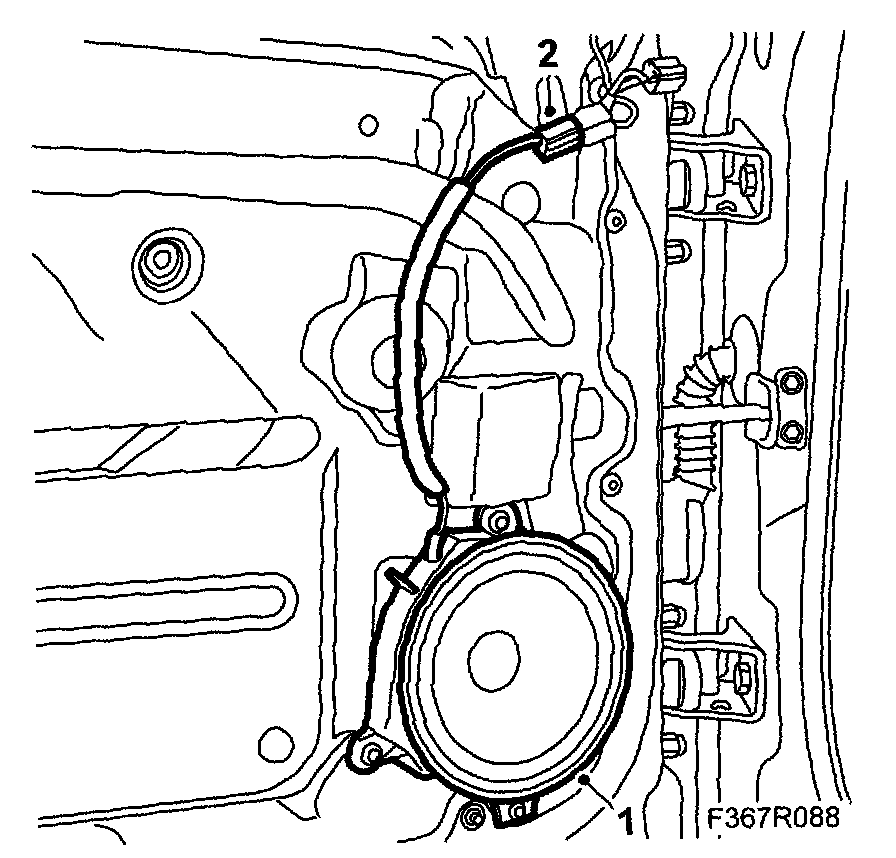

To remove
1. Remove the Door trim, front, 4D.
2. Carefully fold the water barrier down.
3. Unplug the speaker's connector.







4. Remove the speaker's screws and lift away the speaker.

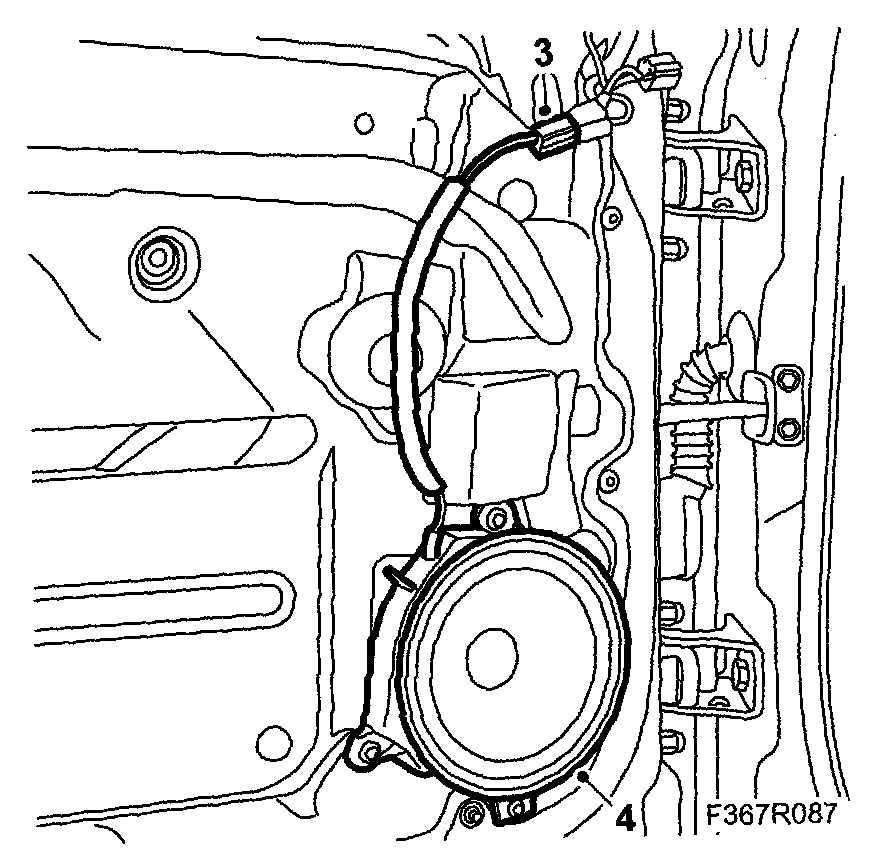

To fit
1. Position the speaker and fit the speaker's screws.







2. Plug in the speaker's connector.
3. Fit the water barrier
4. Fit the Door trim, front, 4D
5. Cars with pinch protection: Carry out Programming the pinch protection.
