Speaker, Dashboard, Left, Right (266)



Speaker, Dashboard, Left, Right (266)

To remove

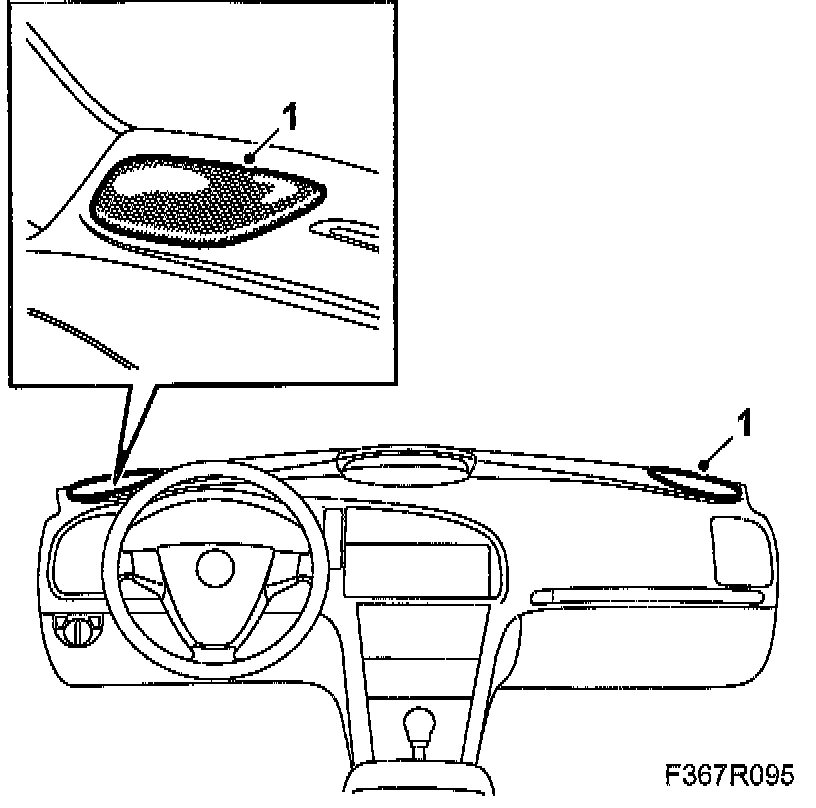

1. Remove the speaker grille using 82 93 474 Removal tool

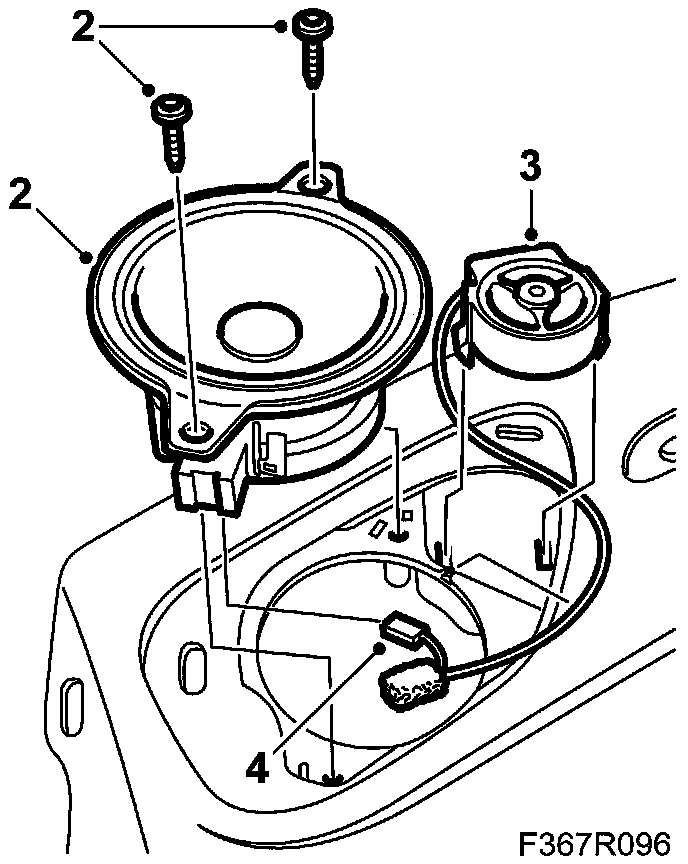

2. Remove the speaker screws. Lift up the speaker.







3. Remove the treble speaker using 82 93 474 Removal tool.
4. Unplug the speakers' connector.

To fit

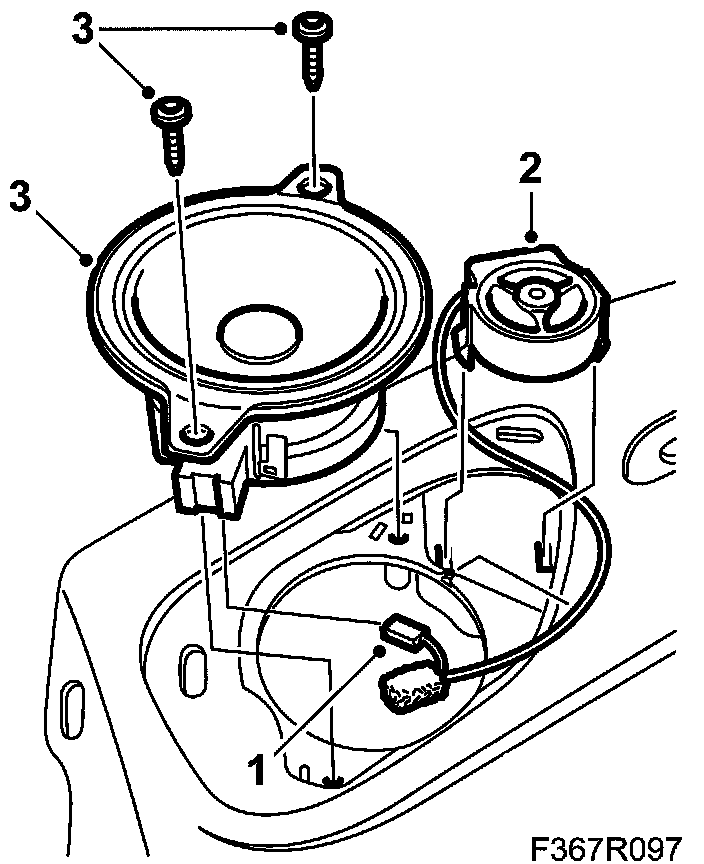

1. Plug in the speakers' connector.







2. Fit the treble speaker. Make sure that the wiring harness fits correctly in the groove.
3. Fit the speaker.

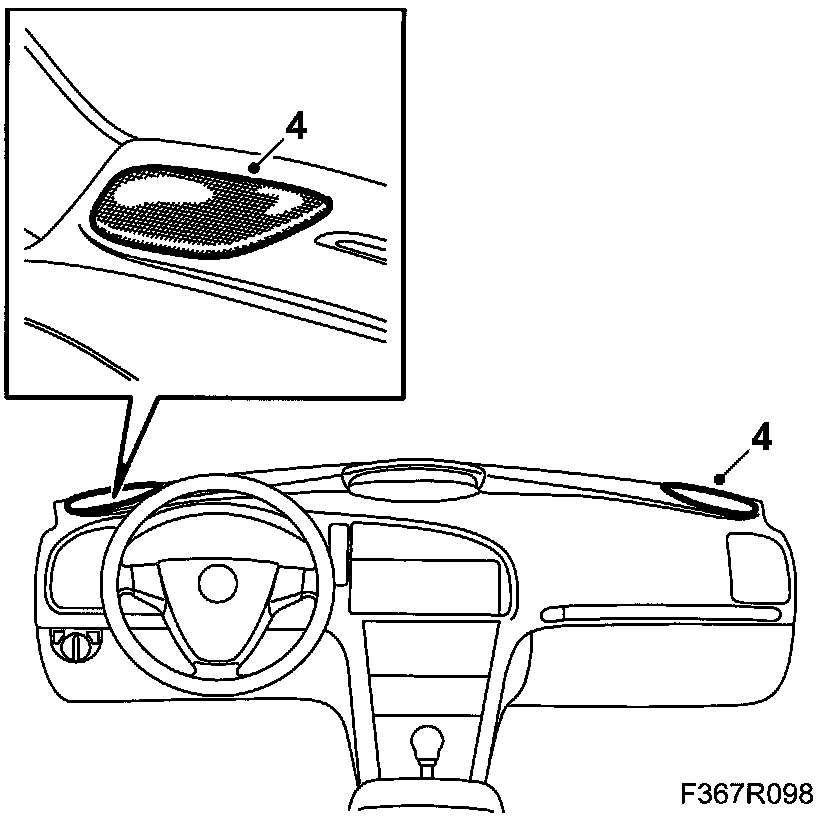

4. Fit the speaker grille.
