Remote Control: Service and Repair

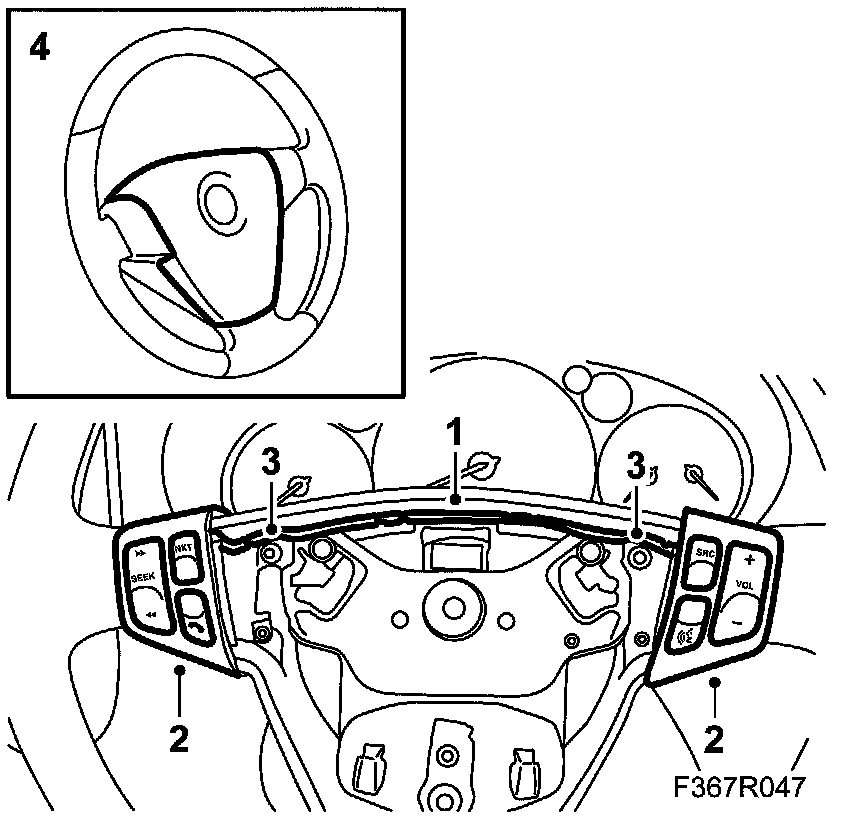

Steering Wheel Controls

To remove
1. Remove the driver airbag.







2. Remove the screws securing the steering wheel controls.
3. Remove the controls using 82 93 474 Removal tool.
4. Remove the cable from the cable bracket.

To fit
1. Fit the cable to the cable bracket.







2. Fit the steering wheel controls.
3. Fit the screws securing the steering wheel controls.
4. Fit the driver airbag.
