Radio/Stereo: Service and Repair

Main Unit, Radio (353)

IMPORTANT:
The optic cables should be handled carefully so as not to distort the signal.
- It is extremely important that the two leads in the connector are not confused.
- The cables cannot be spliced.
- The lead must not be bent to form a curve with a radius of less than 25 mm.
- The lead must not be subjected to temperatures greater than 85 degree C.
- The lead ends should be kept free from dirt.
- The lead must not be subjected to blows that could cause the transparent plastic to whiten, thereby damping light strength. This could cause disruptions in communication.
- The lead should not be stretched across a sharp edge, which would cause increased damping of the signal.

WARNING: The red visible light is of laser class 1. Do not look directly into the optic fibre or the control module connector at close range. At a distance of less than 20 mm from your eyes to the light source, your eyes could be damaged.

To remove

Carry out actions before removing control module.

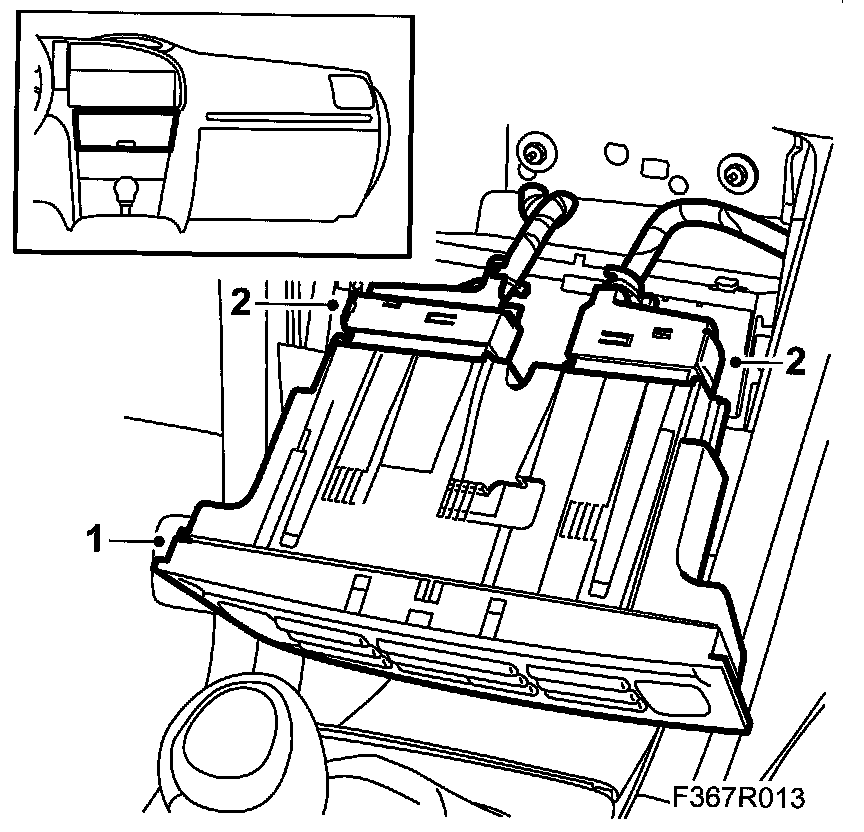

1. Remove the ACC/MCC unit with 82 93 474 Removal tool.

IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to Connectors, handling and inspection.

2. Unplug the connector to the ACC/MCC unit.

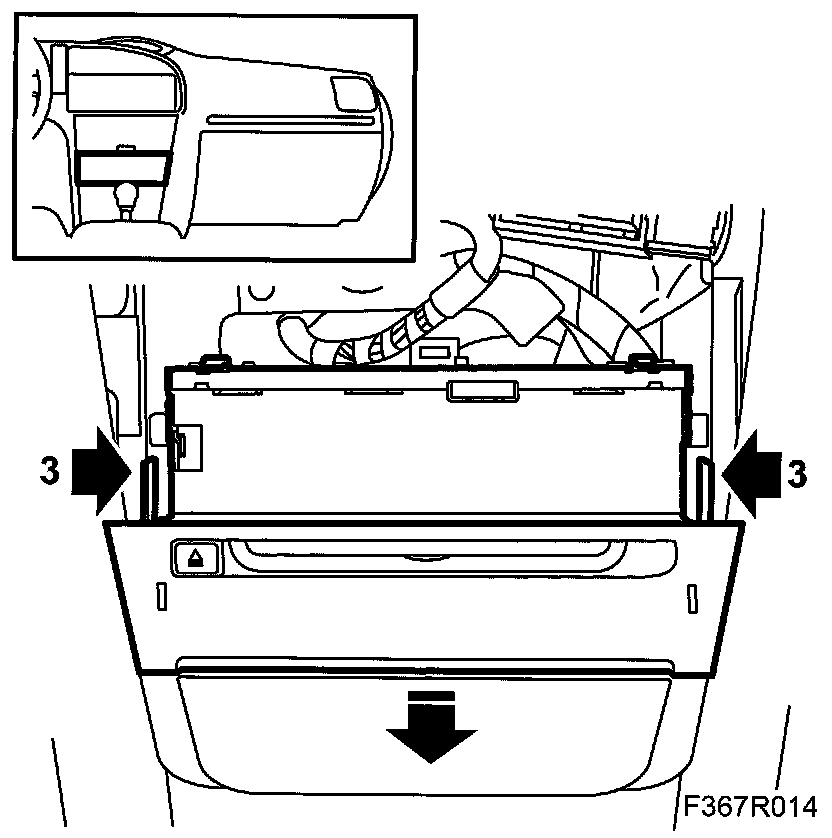

3. Remove the EHU by pressing in the 2 catches.

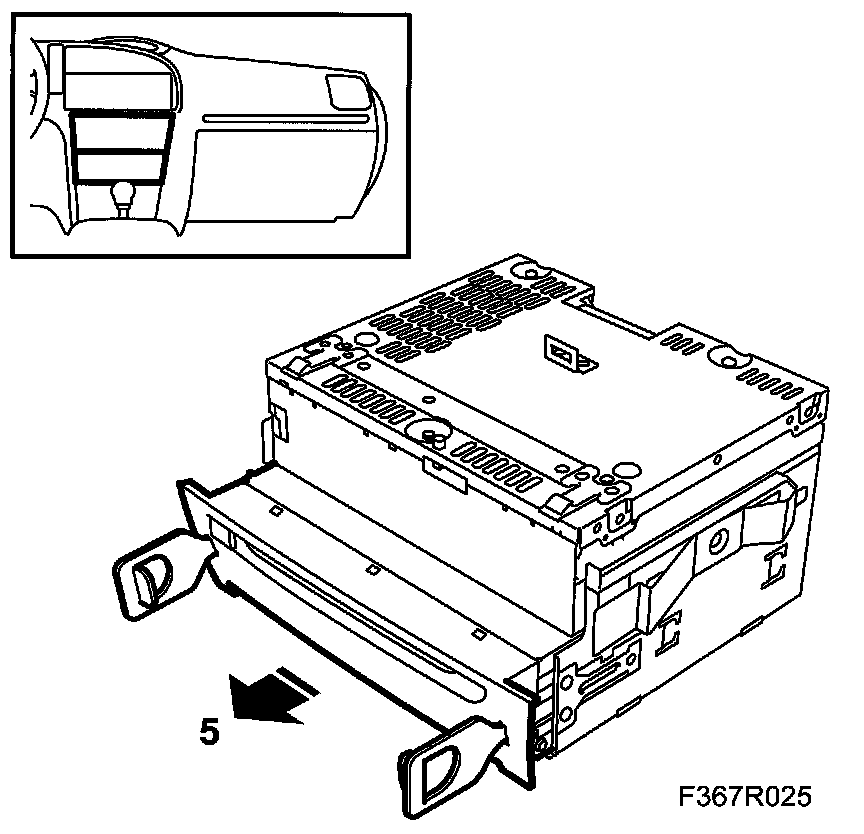

5. Remove the CD player using 84 71 203 Removal tool.

To fit

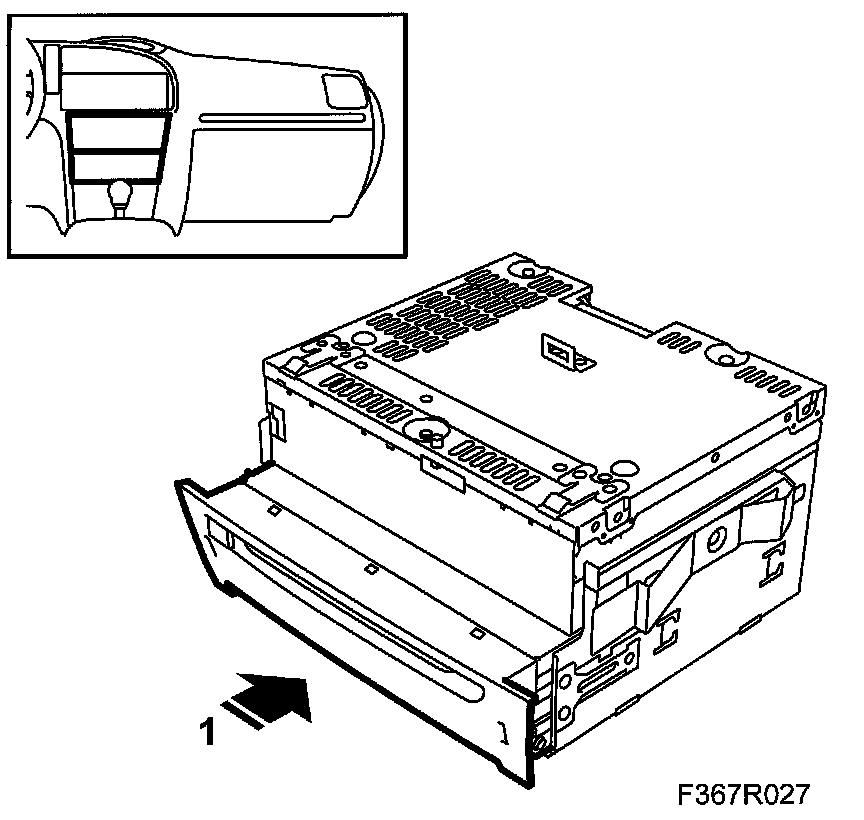

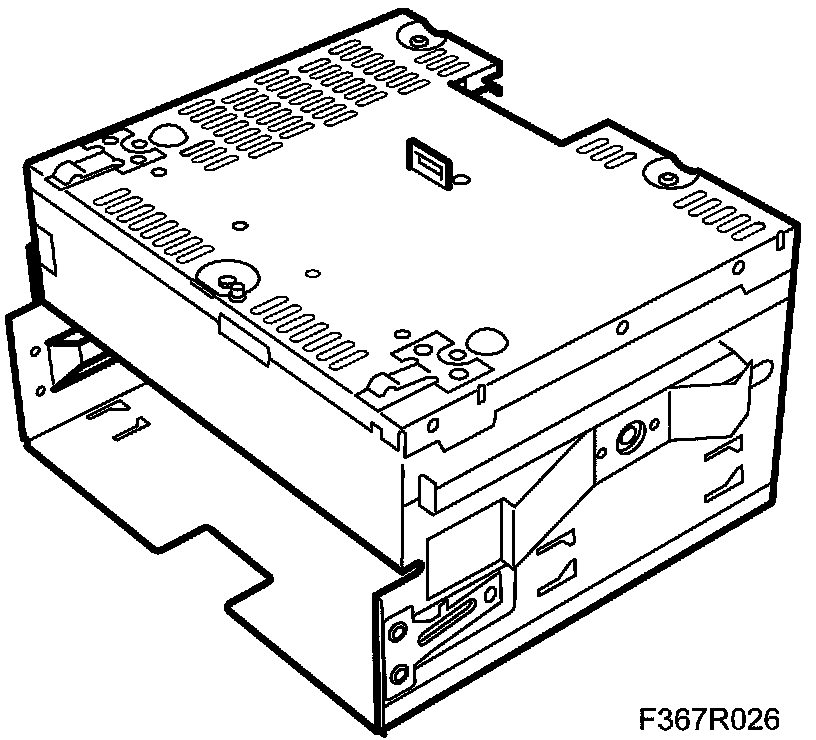

1. Fit the CD player.

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to Connectors, handling and inspection.

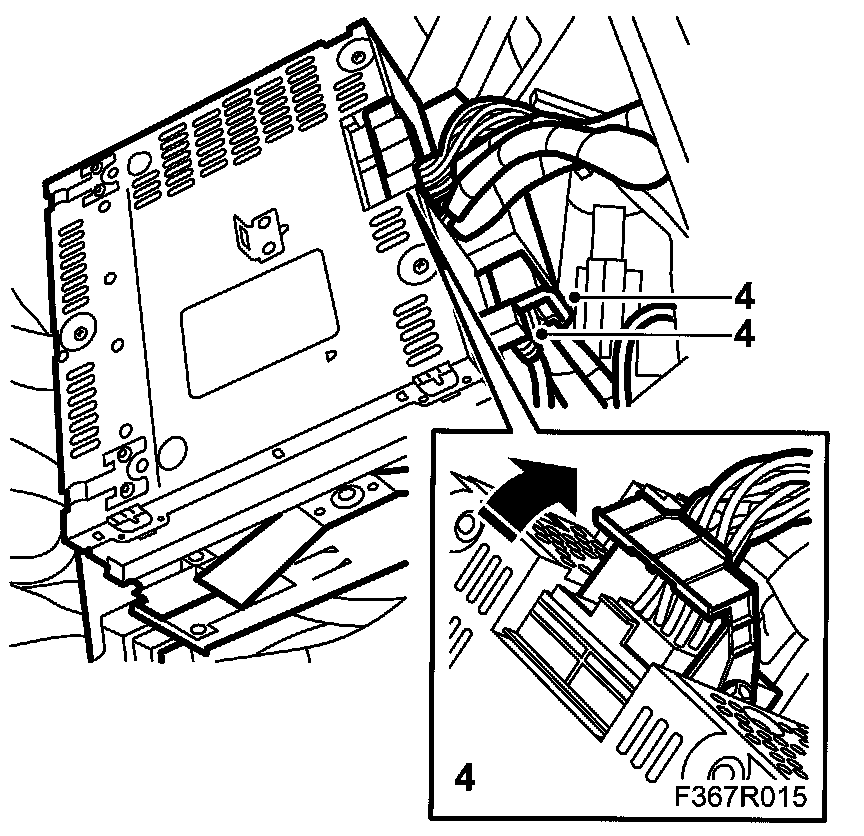

2. Plug in the connectors to the CD player and the main entertainment unit.

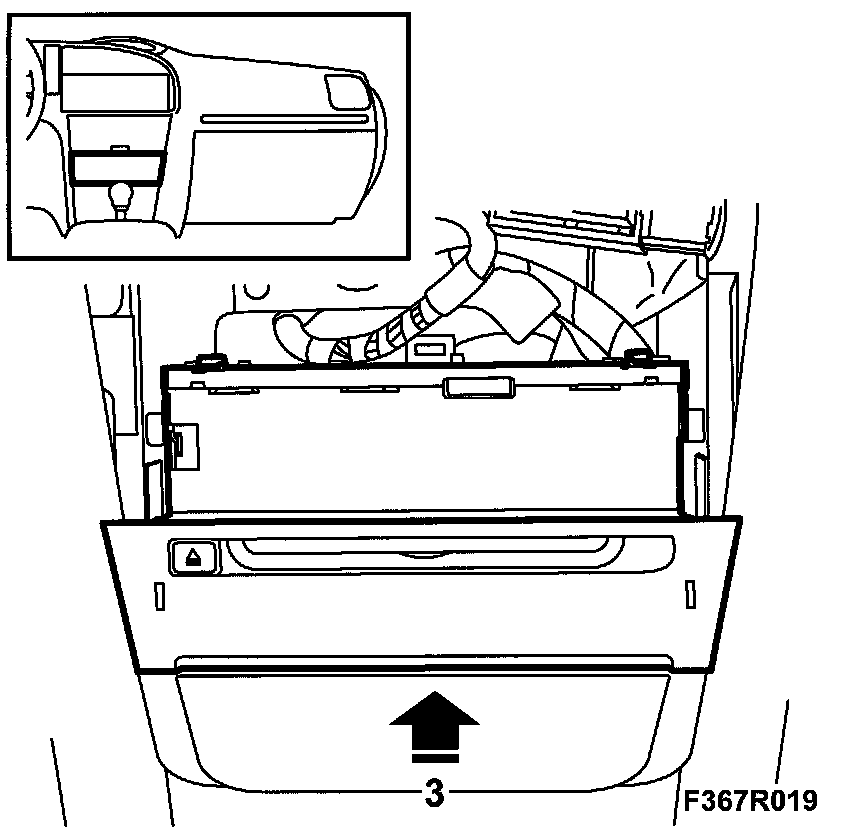

3. Fit the EHU. You should hear a click.

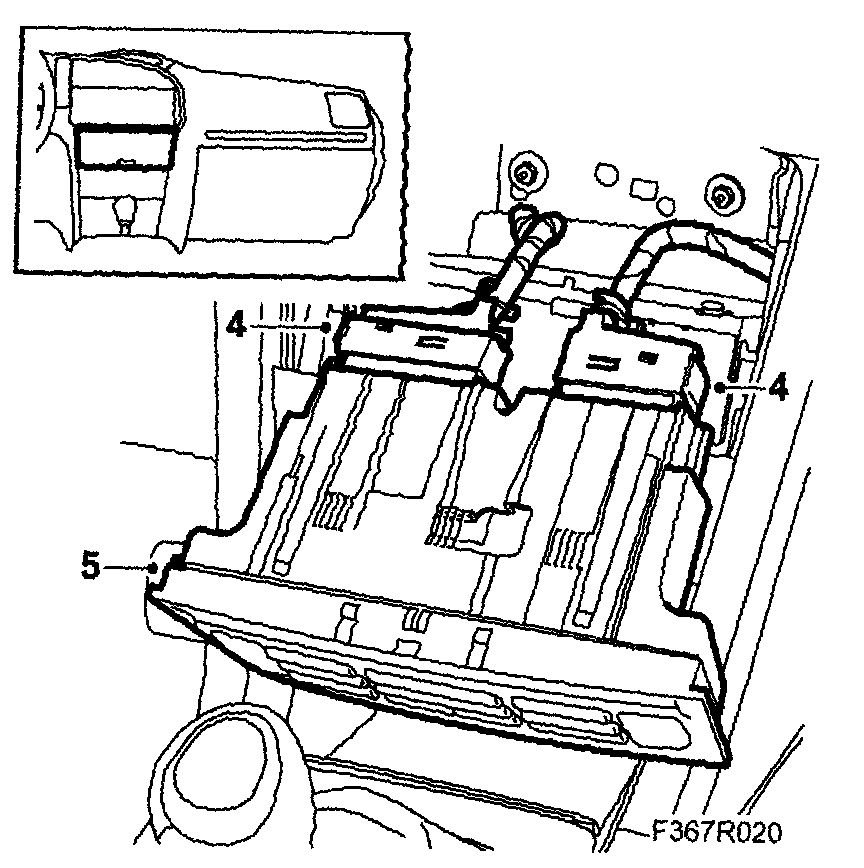

5. Fit the ACC/MCC unit so that it locks into position.
6. Carry out actions after replacement of control module.
7. Check the function.
