Convertible

Main Components

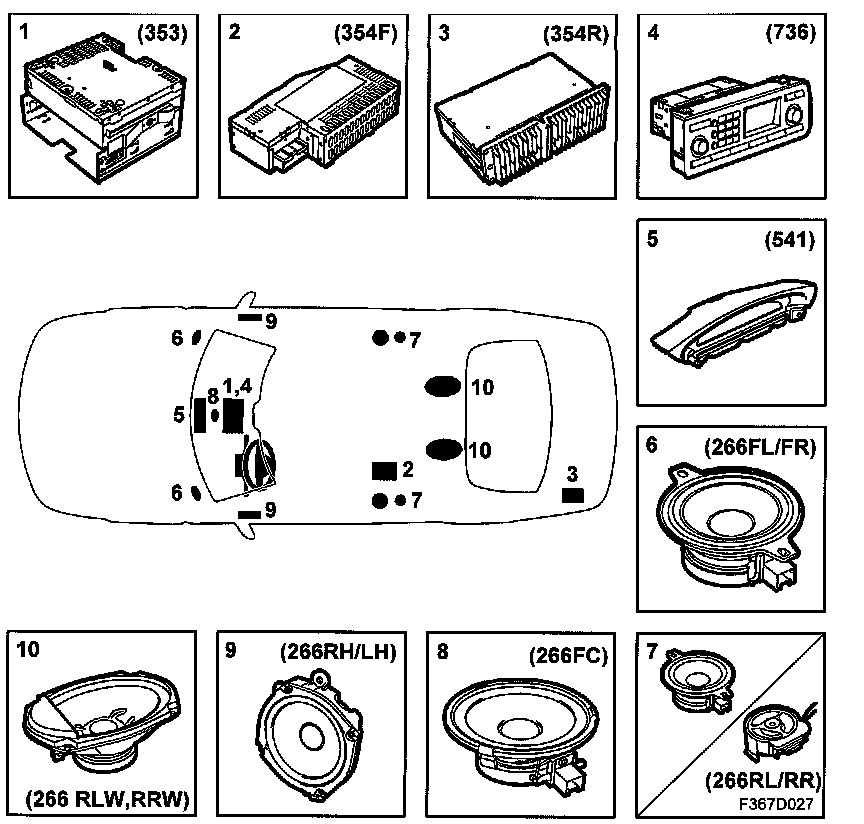

1. Entertainment Head Unit, EHU (353)
2. Audio System Amplifier, front speakers, AMP1 (354F)
3. Audio System Amplifier, rear speakers, AMP2 (354R)
4. Control panel, infotainment, ICM (736)
5. SID (541)
6. Speakers, dashboard, left/right (266 FL/FR)
7. Speakers, rear, left/right (266 RL/RR)
8. Speaker, dashboard, centre (266 FC)
9. Speakers, front door, left/right (266 LH/RH)
10. Speakers, woofer, rear, left/right (266 RLW/RRW)

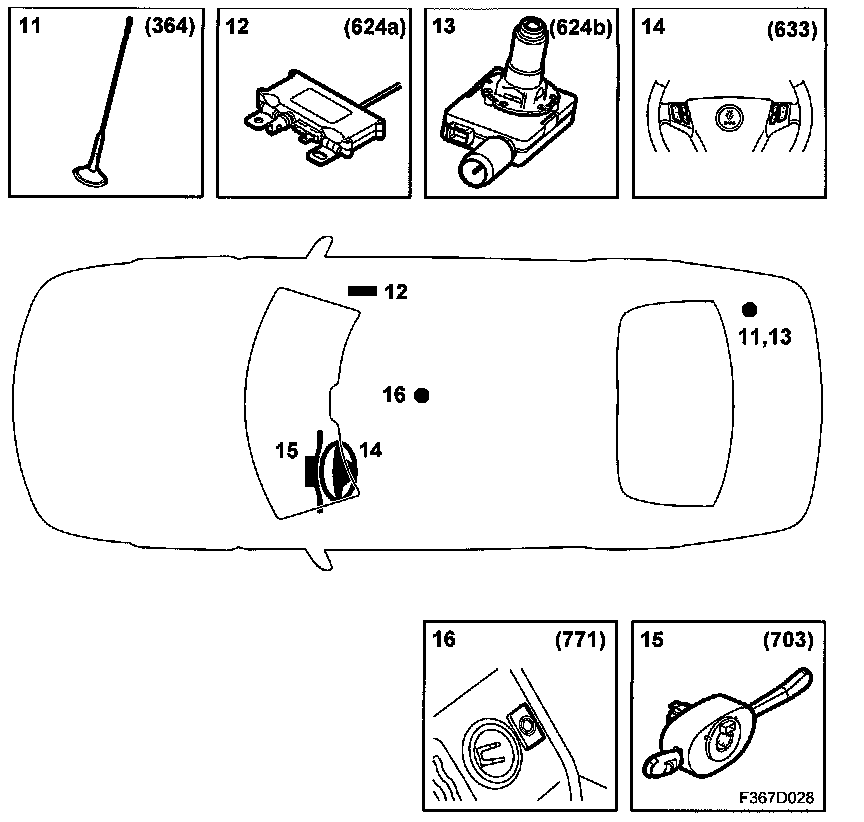

11. Radio antenna (364)
12. Bypass unit, antenna amplifier (624a)
13. Antenna amplifier, radio (624b), (integrated in antenna base)
14. Steering wheel controls (633)
15. Column Integration Module (703)
16. Connection, AUX (771)
