Speaker (266)

Speaker (266)

Main task
To convert electric impulses to sound from the audio system in the car.

Type

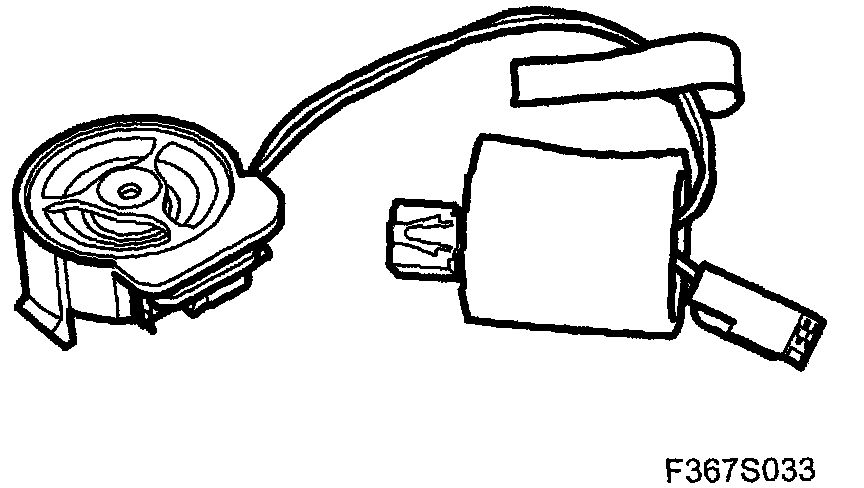

Tweeter

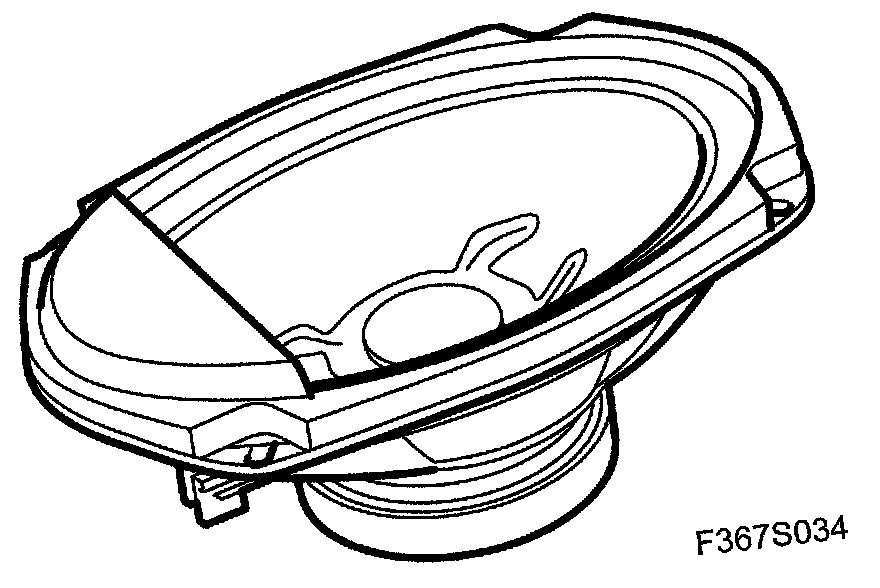

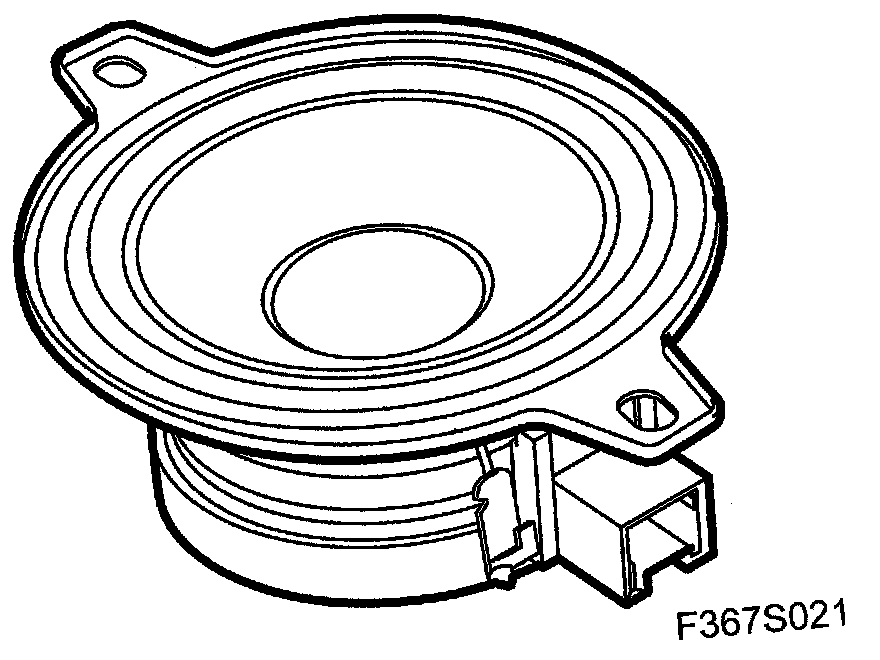

Mid-range speaker










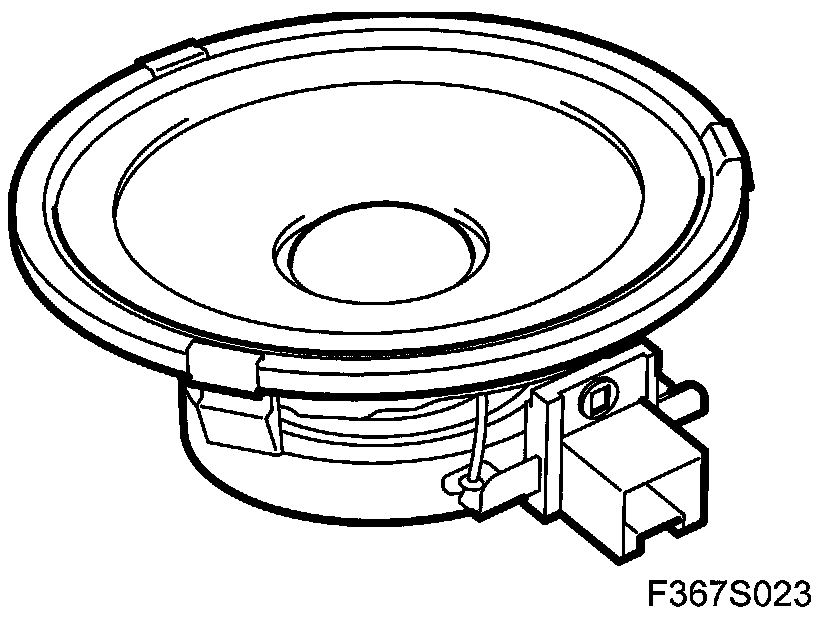

Bass speaker







Subwoofer







Connection
All speakers' connection:
+ to pin 2
- to pin 1

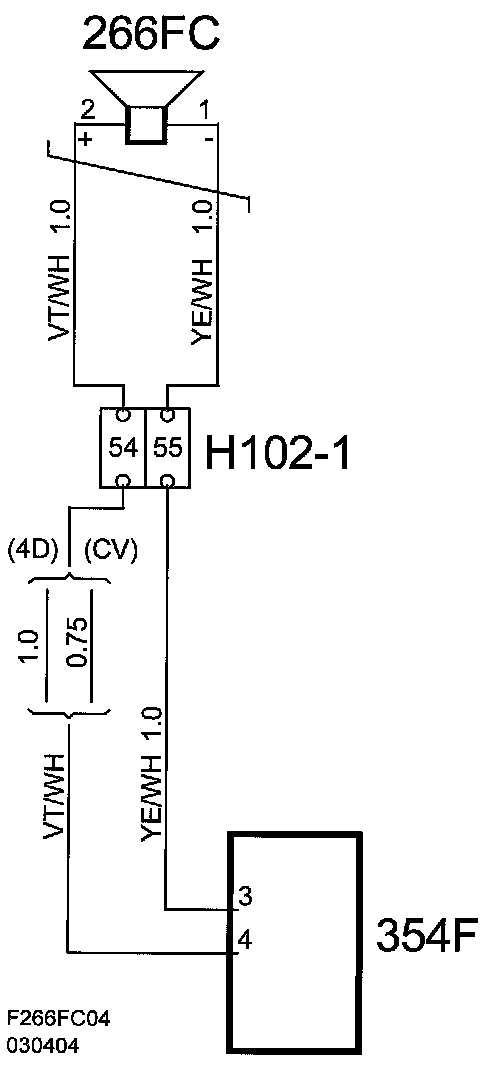

Wiring diagram, power supply, 266FC:

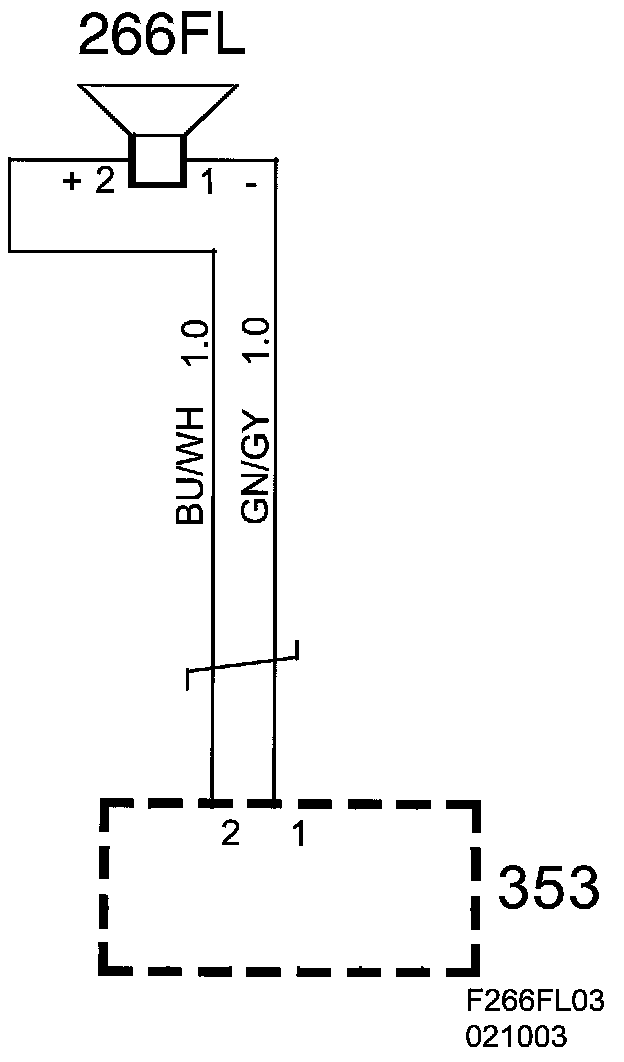

Wiring diagram, power supply, 266FL:

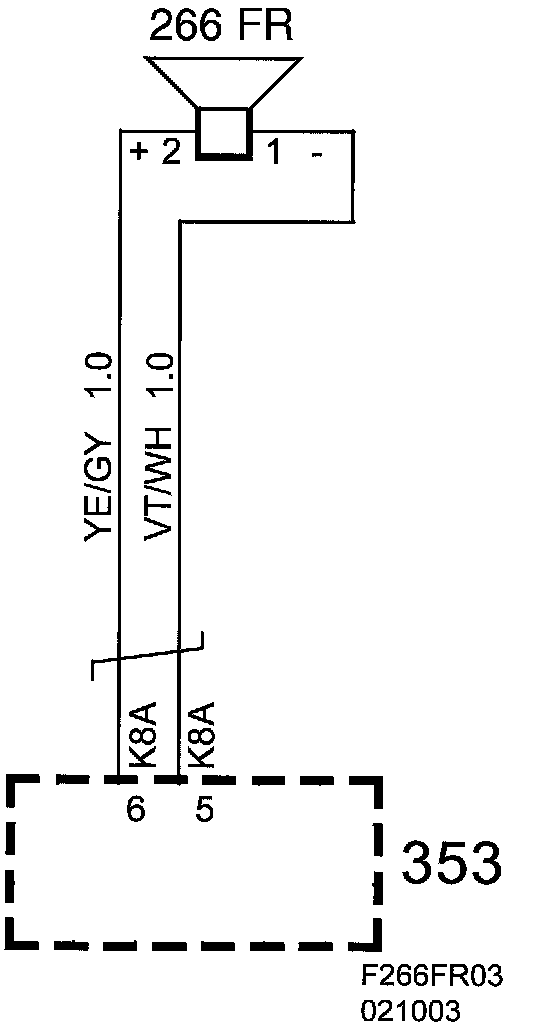

Wiring diagram, power supply, 266FR:

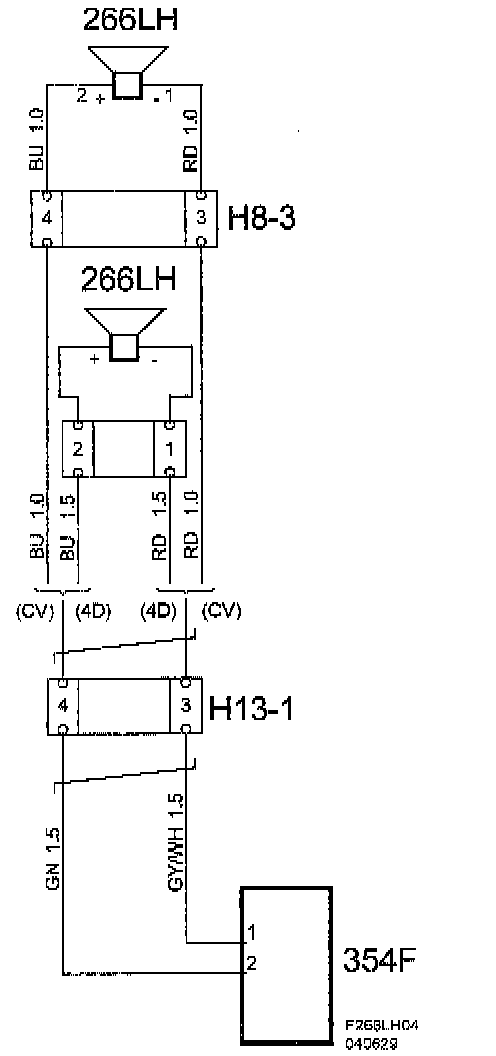

Wiring diagram, power supply, 266LH:

Wiring diagram, power supply, 266RH:

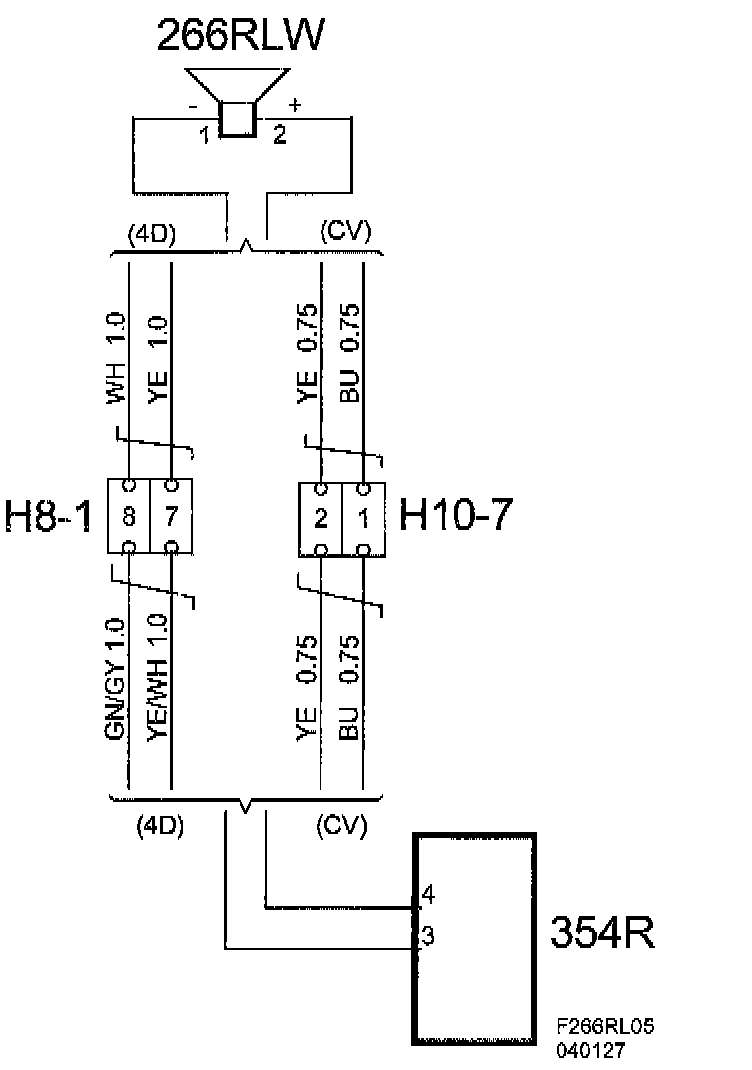

Wiring diagram, power supply, 266RLW:

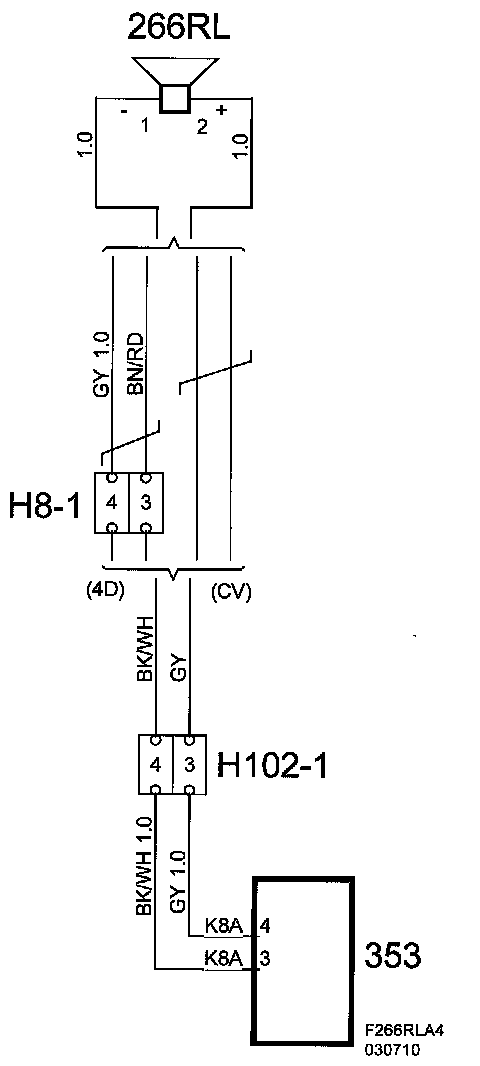

Wiring diagram, power supply, 266RL:

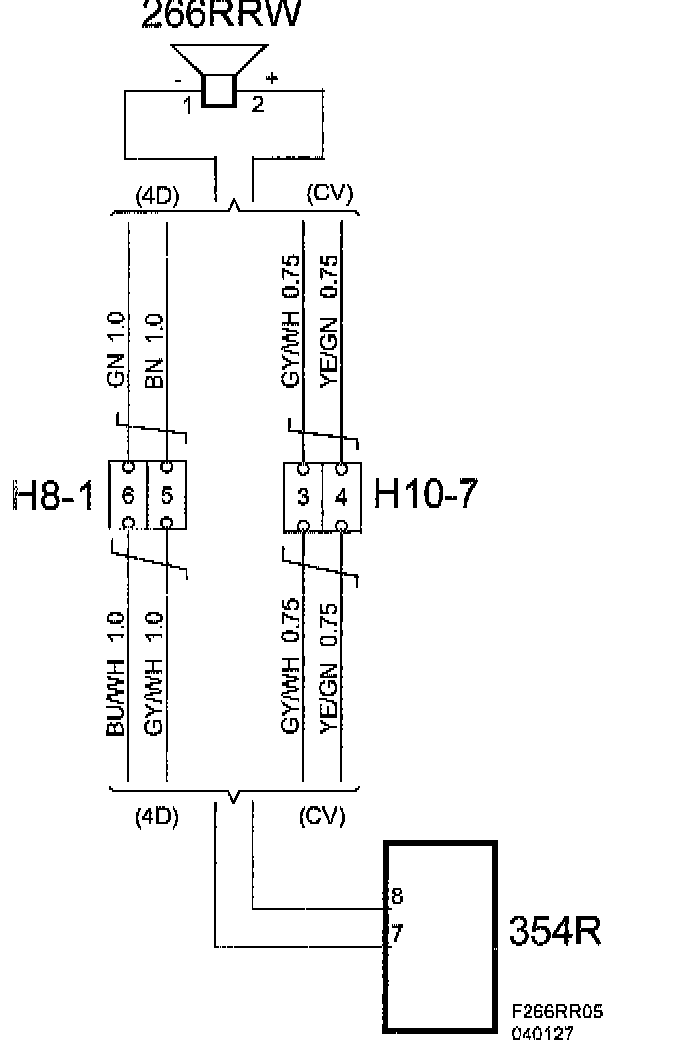

Wiring diagram, power supply, 266RRW:

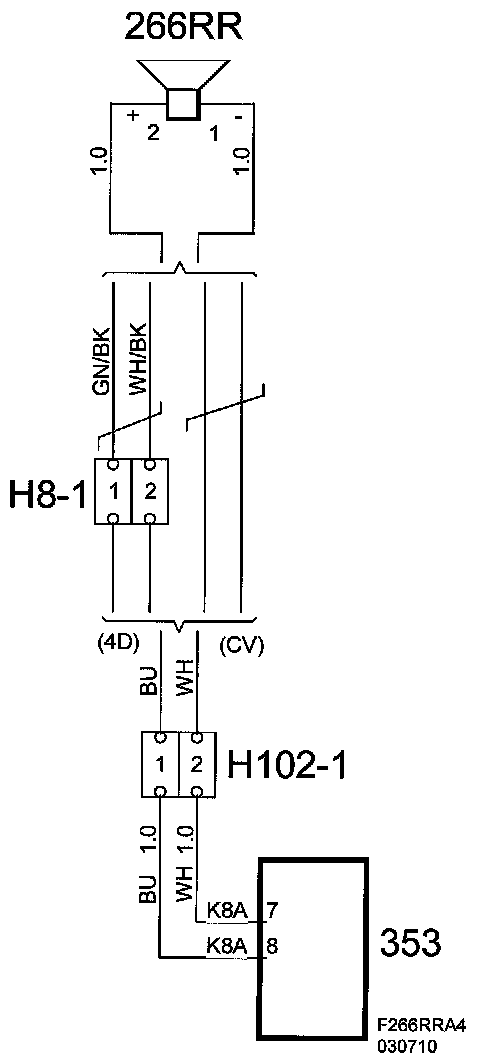

Wiring diagram, power supply, 266RR:
