Rear Speaker Amplifier (354R)



Rear Speaker Amplifier (354R)

Main tasks
Amplify and distribute sound to the base speaker in the parcel shelf.

Type
Control module to supply output to the speaker.

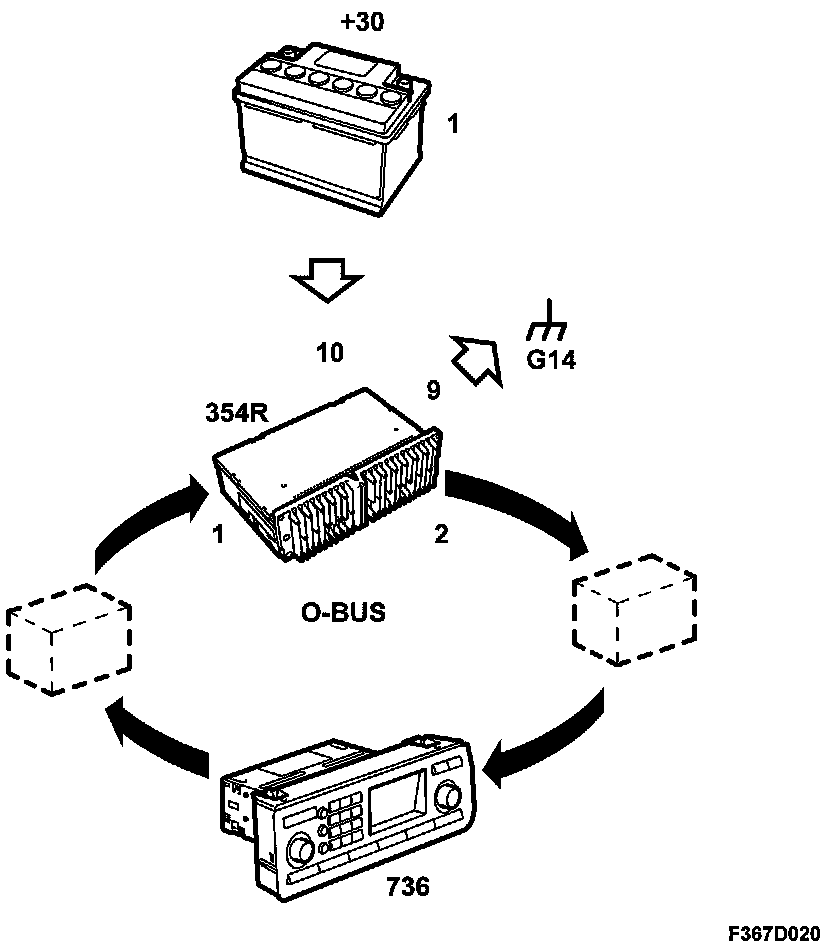

Connection

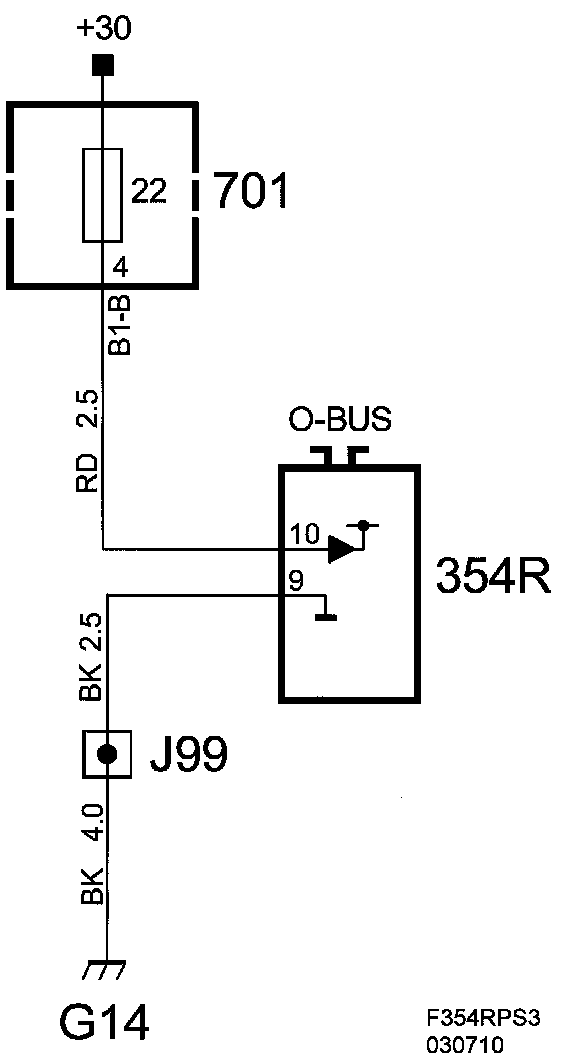

Wiring diagram, power supply

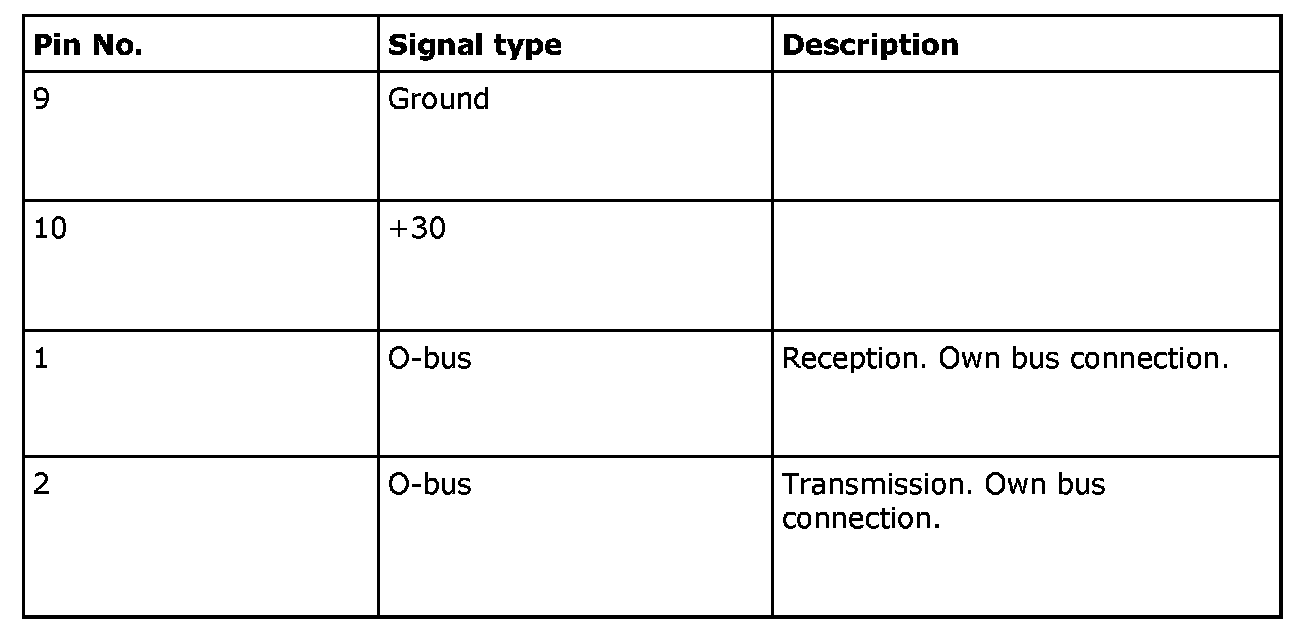

Diagram:
