Entertainment Head Unit (353)



Entertainment Head Unit (353)

Main task
- Main unit of the Infotainment system.
- Radio receiver
- Amplifier to Premium 50 audio system.
- Receiver of signals from media, acoustic warning and telephone as well as playback media for such.

Type
Radio unit with AM/FM and amplifier. Infotainment head units are SPS reprogrammable.

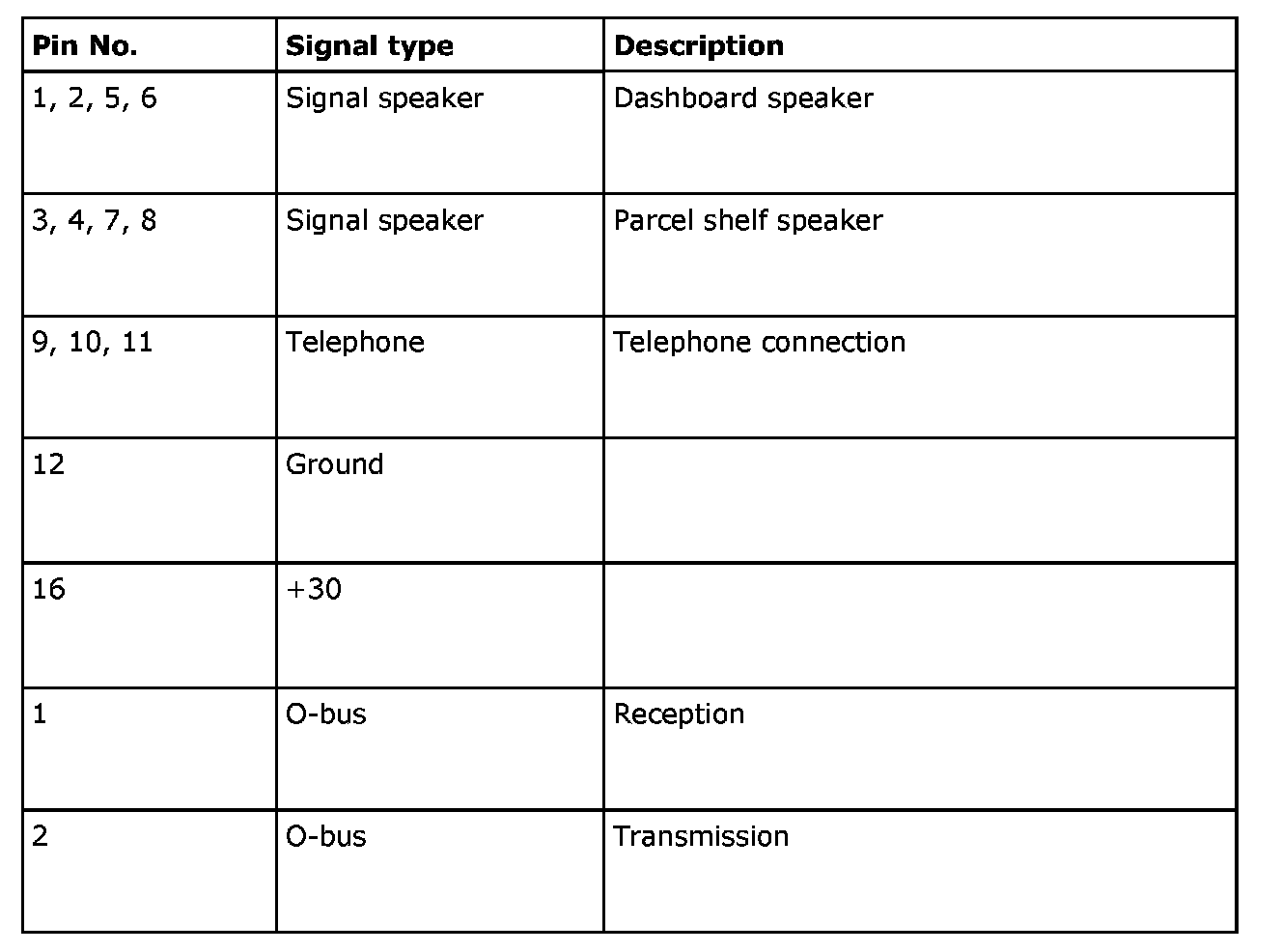

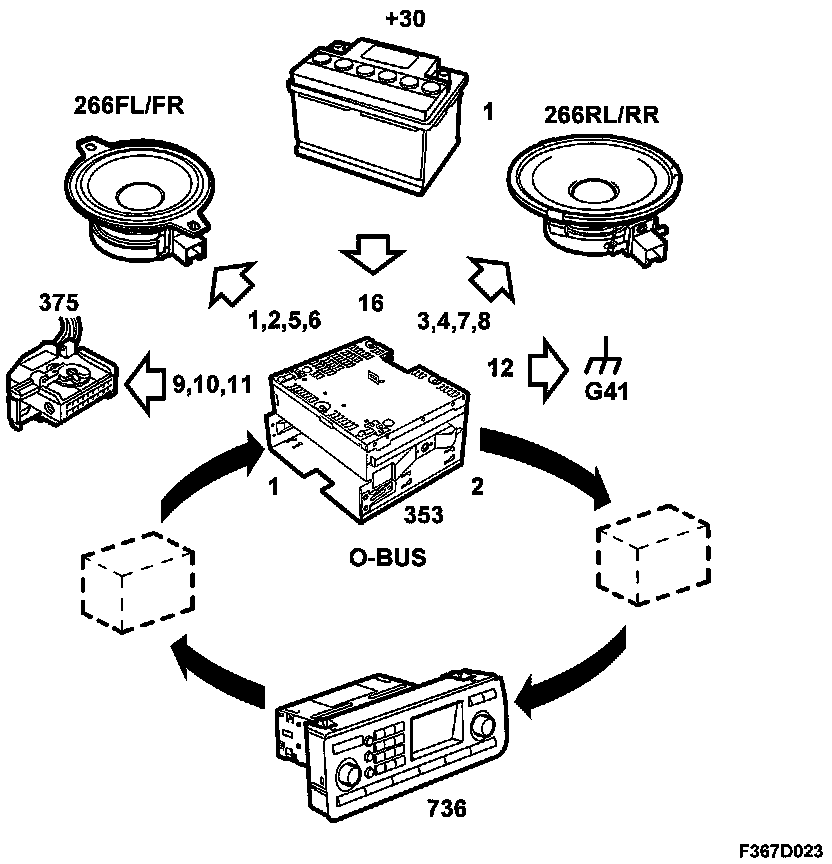

Connection

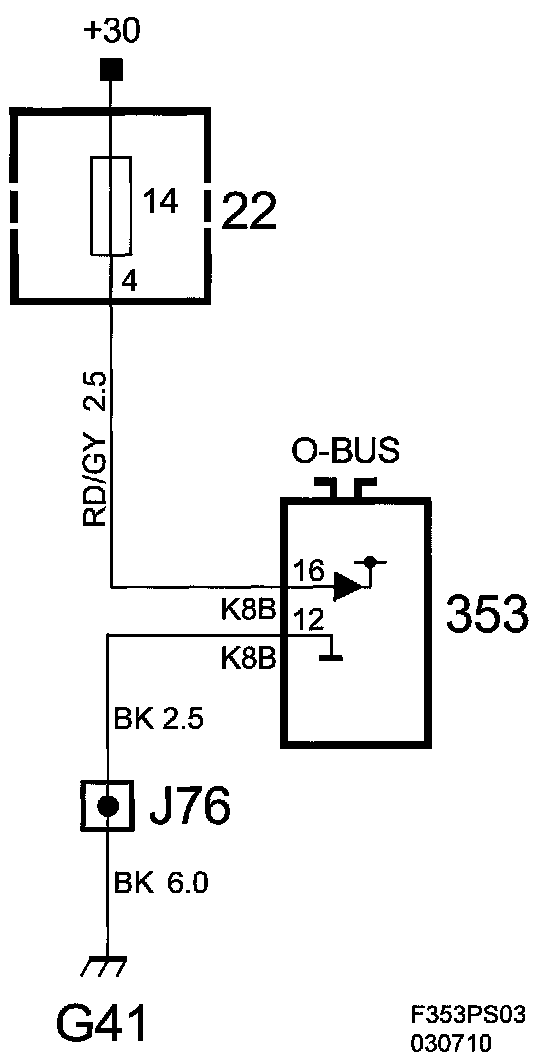

Wiring diagram, power supply


Diagram:
