Onstar Panel

OnStar Panel

To remove

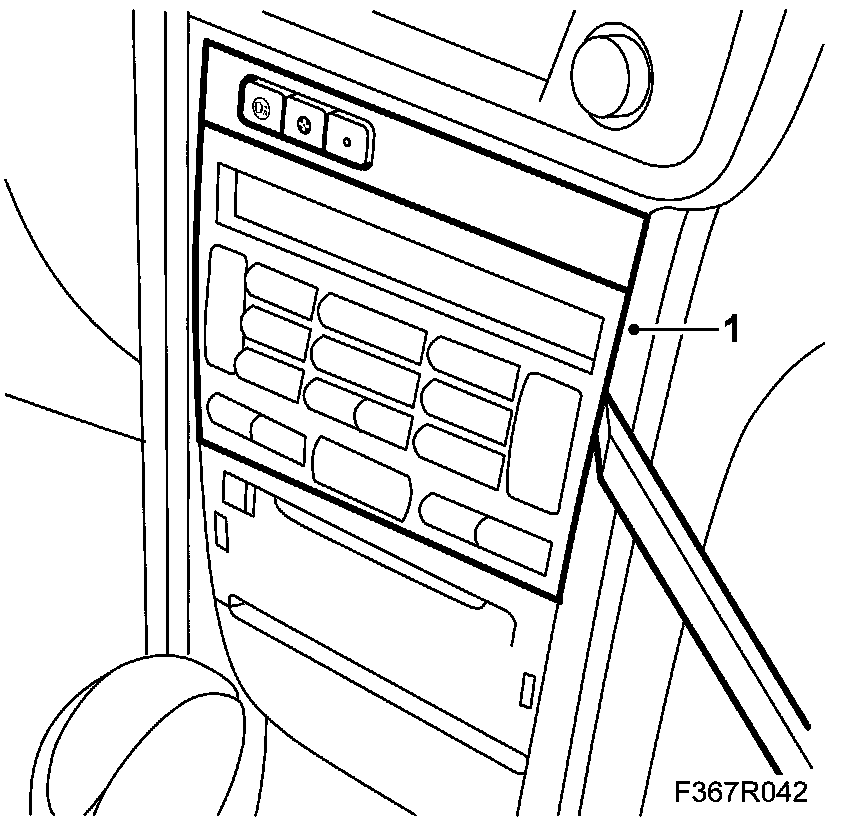

1. Remove the ACC/MCC unit with 82 93 474 Removal tool.

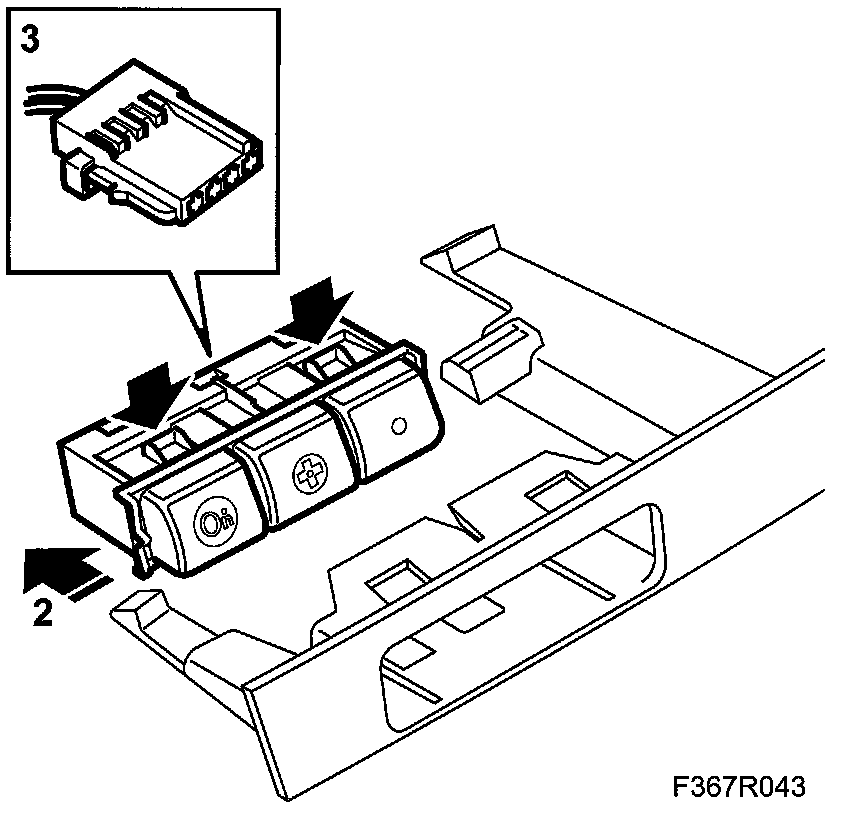

2. Remove the OnStar panel by releasing the catches on the rear edge of the panel.







3. Unplug the OnStar-panel connector.

To fit

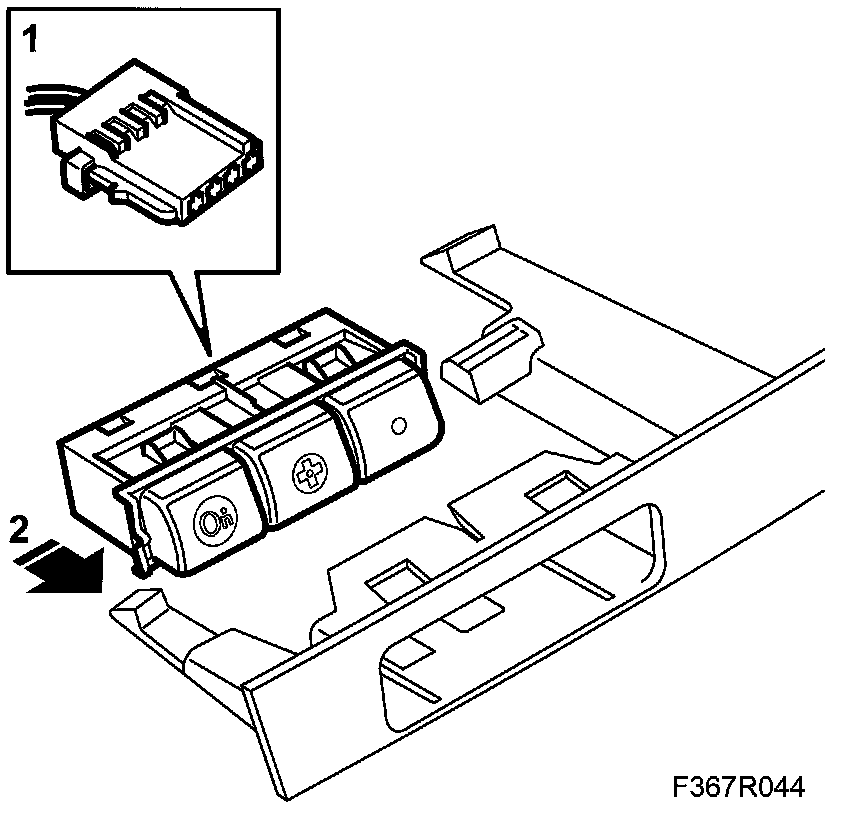

1. Plug in the OnStar-panel connector







2. Fit the OnStar panel into place in the instrument panel. Check that all catches and guides are correctly positioned.

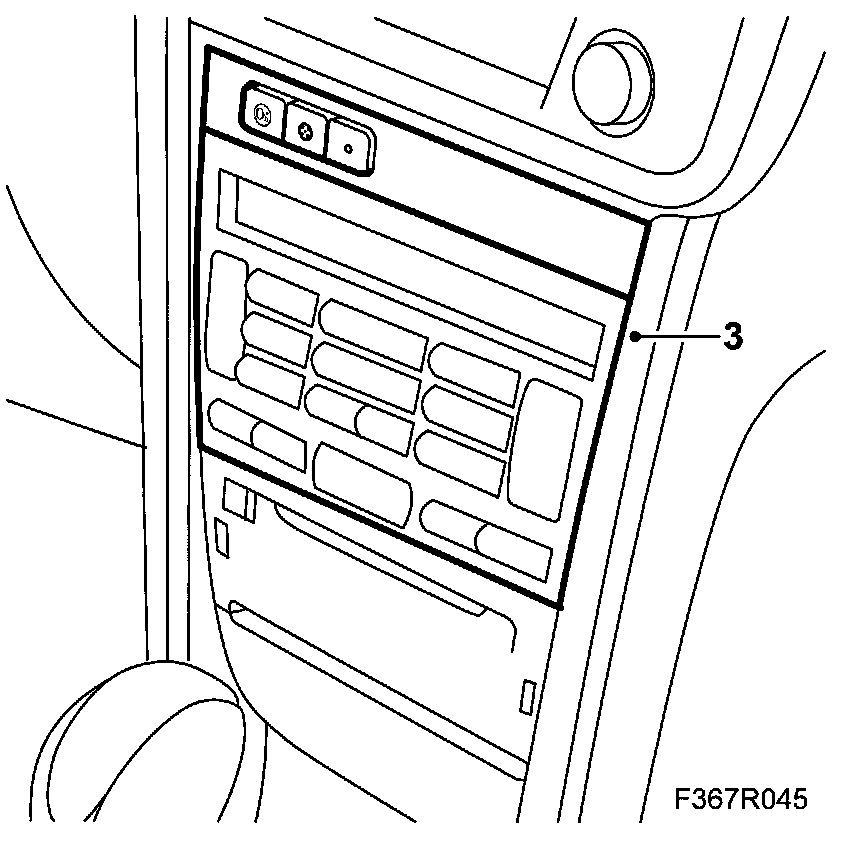

3. Fit the ACC/MCC unit.
