Sedan

Microphone, 4D

To remove

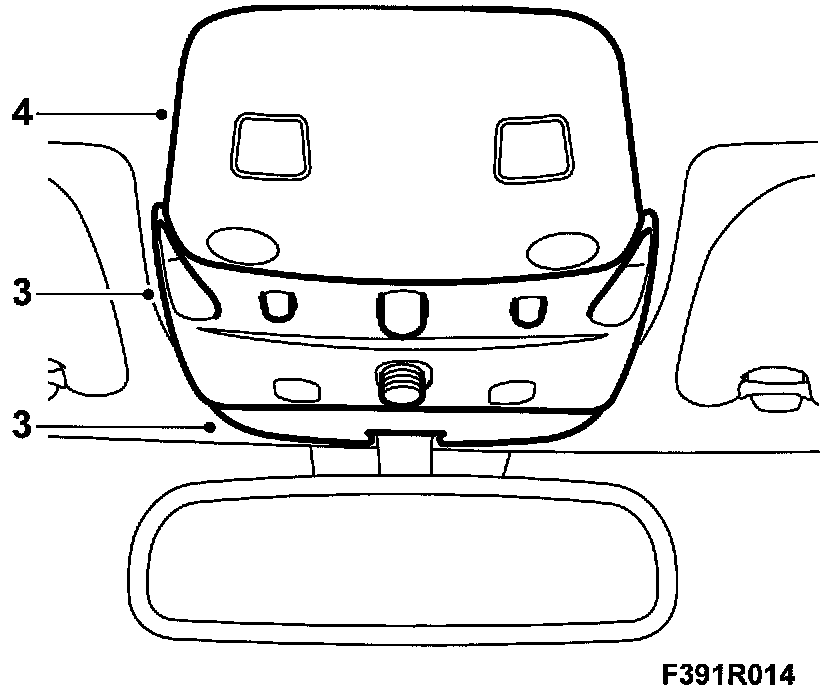

1. Remove the lens cover from the roof lamp.







2. Remove the switch panel cover.

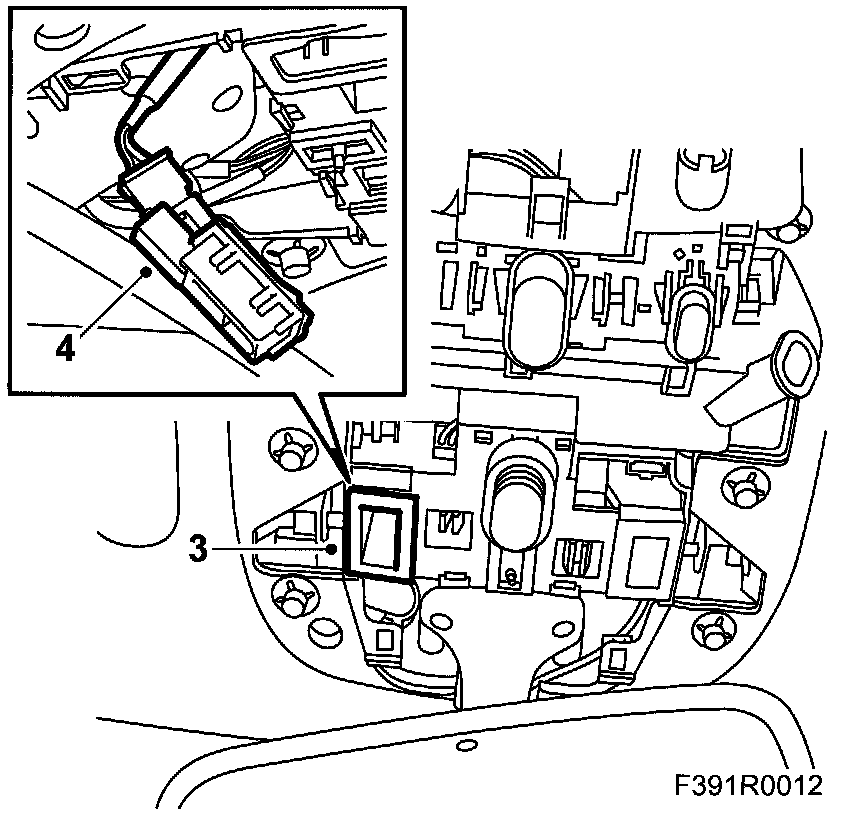

3. Remove the microphone by releasing the clip with a screwdriver.







4. Unplug the connector.

To fit

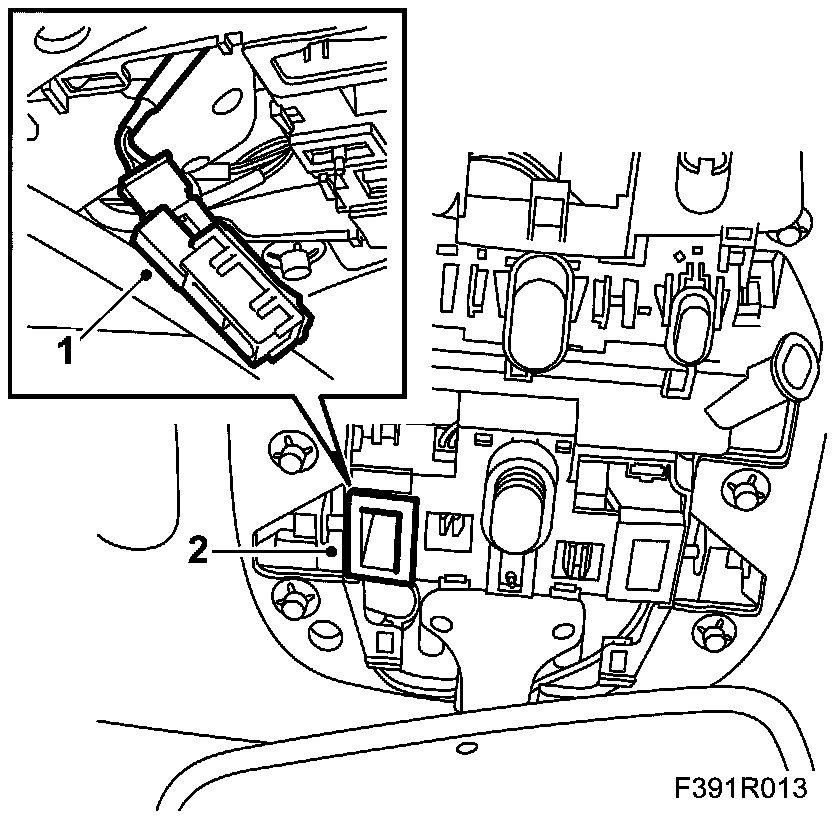

1. Plug in the connector.







2. Fit the microphone by pressing it into place.

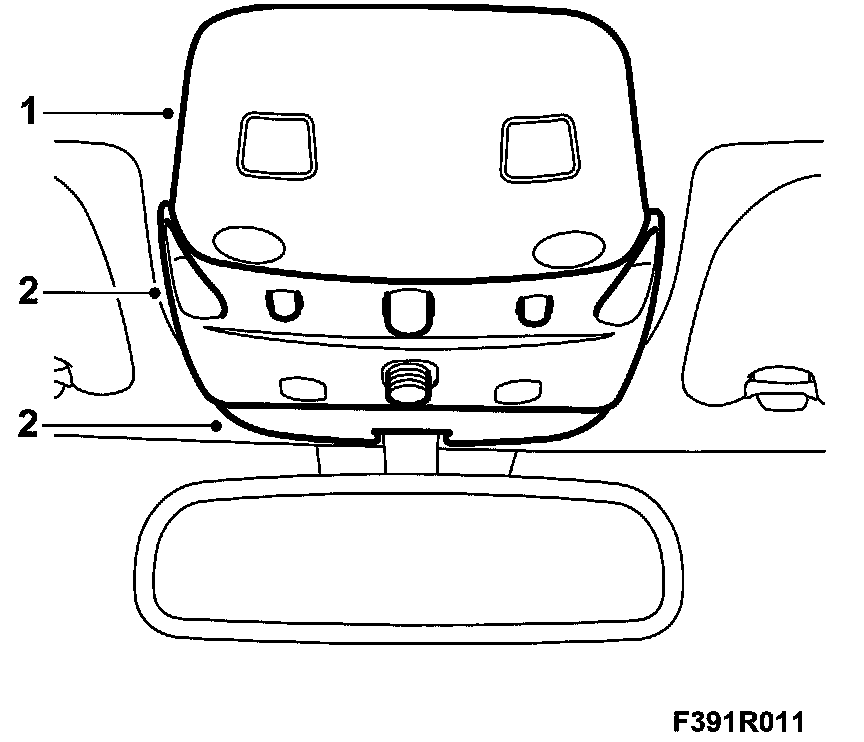

3. Fit the switch panel cover.







4. Fit the lens cover to the roof lamp.
