Sedan

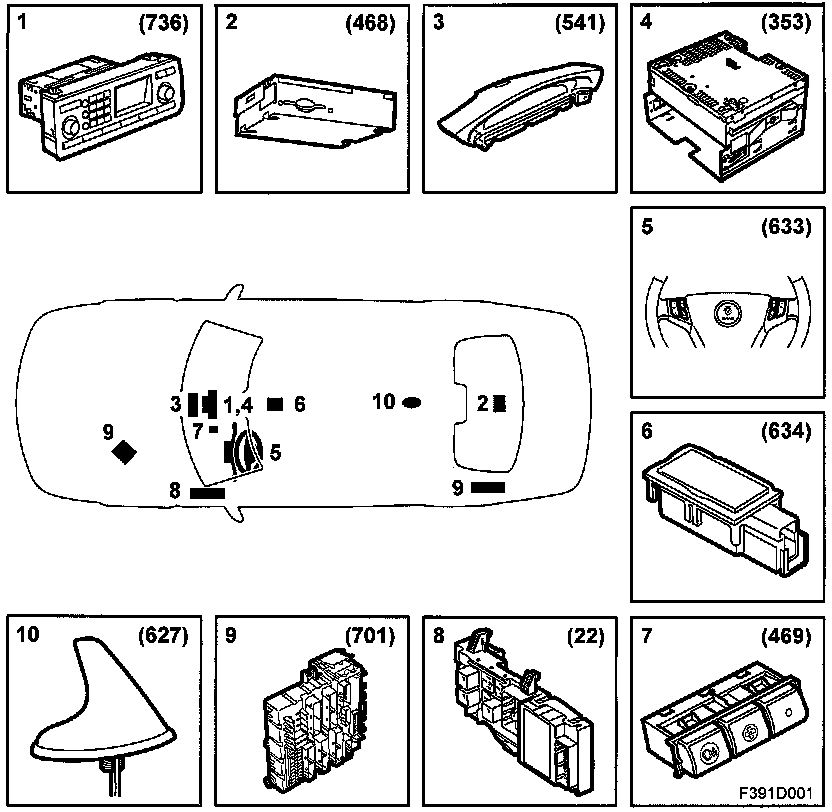

Main Components, Telematics

4D







1. Infotainment control panel 2-3 (736b, c)
2. Telematics unit (468)
3. SID (541c)
4. Entertainment head unit (353)
5. Steering wheel controls (633)
6. Microphone (634)
7. OnStar control panel (469)
8. Column integration module (703)
9. Rear electrical centre (701)
10. Antenna, mobile phone (627)
