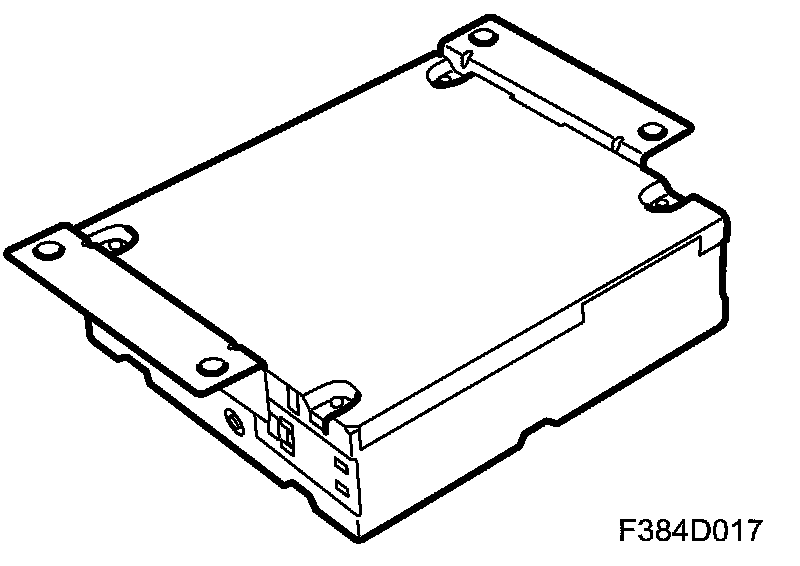

Navigation Unit (635)

Navigation Unit (635)

Main purpose
Determines the position of the car using GPS. Converts verbal pulses from the microphone to digital pulses. Both signals are converted to light pulses and sent over the O-bus.

Type
The navigation unit contains a GPS receiver and a converter for converting verbal pulses to digital pulses. These in turn are converted into light pulses and sent over the O-bus. The navigation unit is SPS programmable.

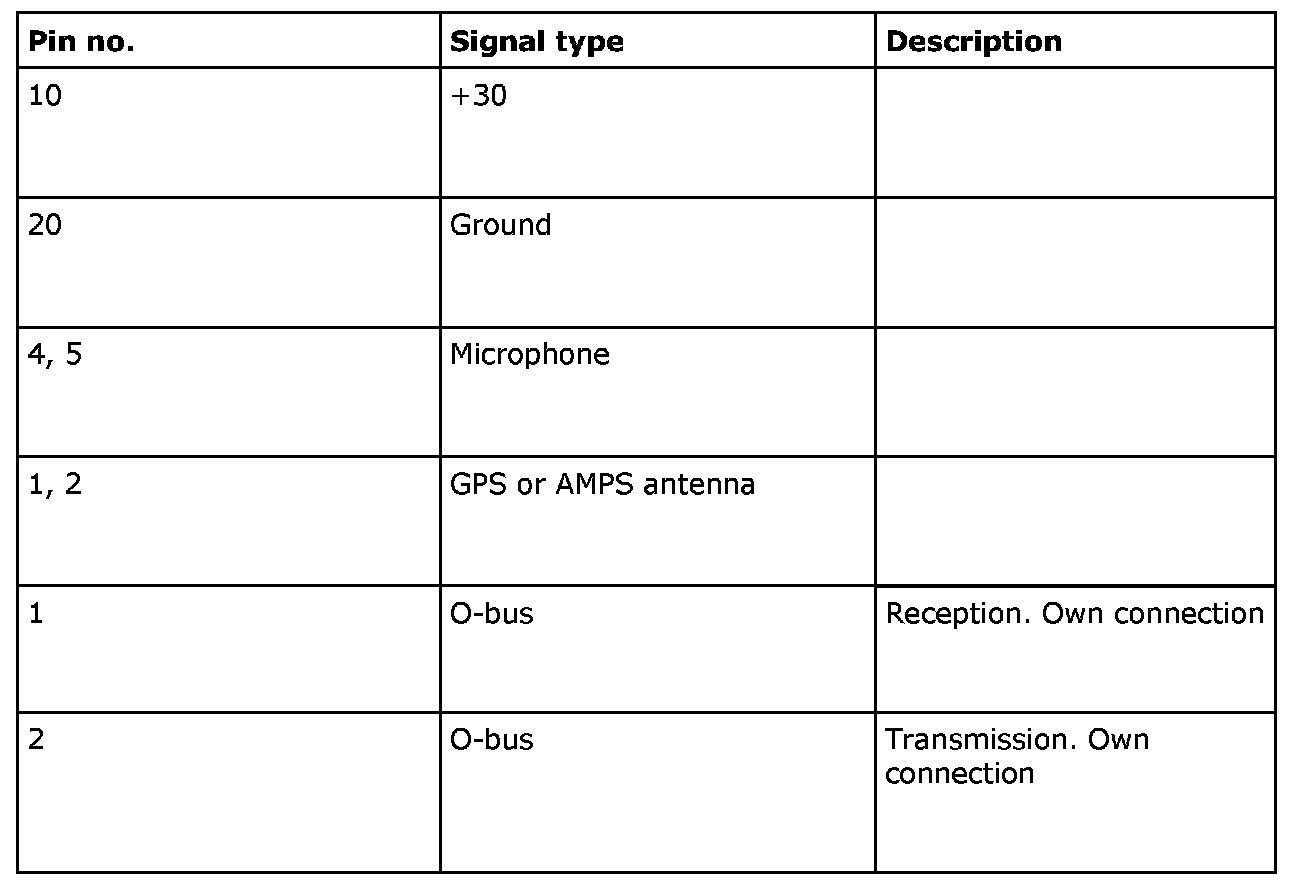

Connection

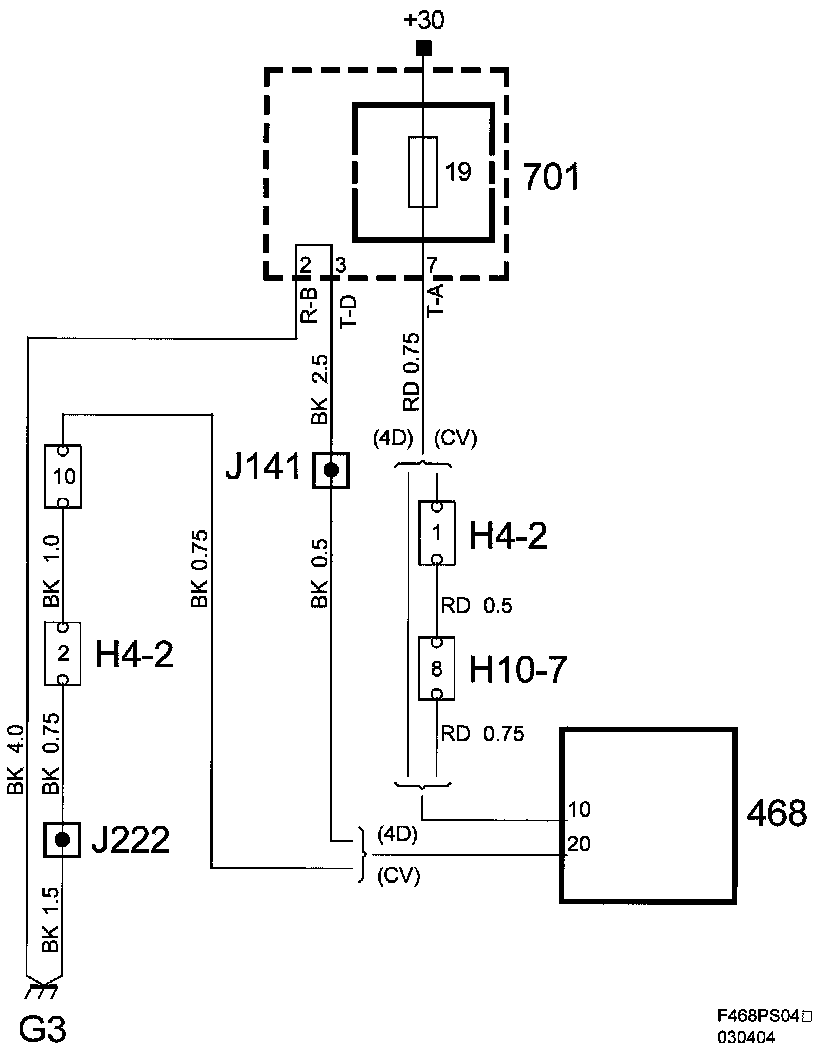

Wiring diagram

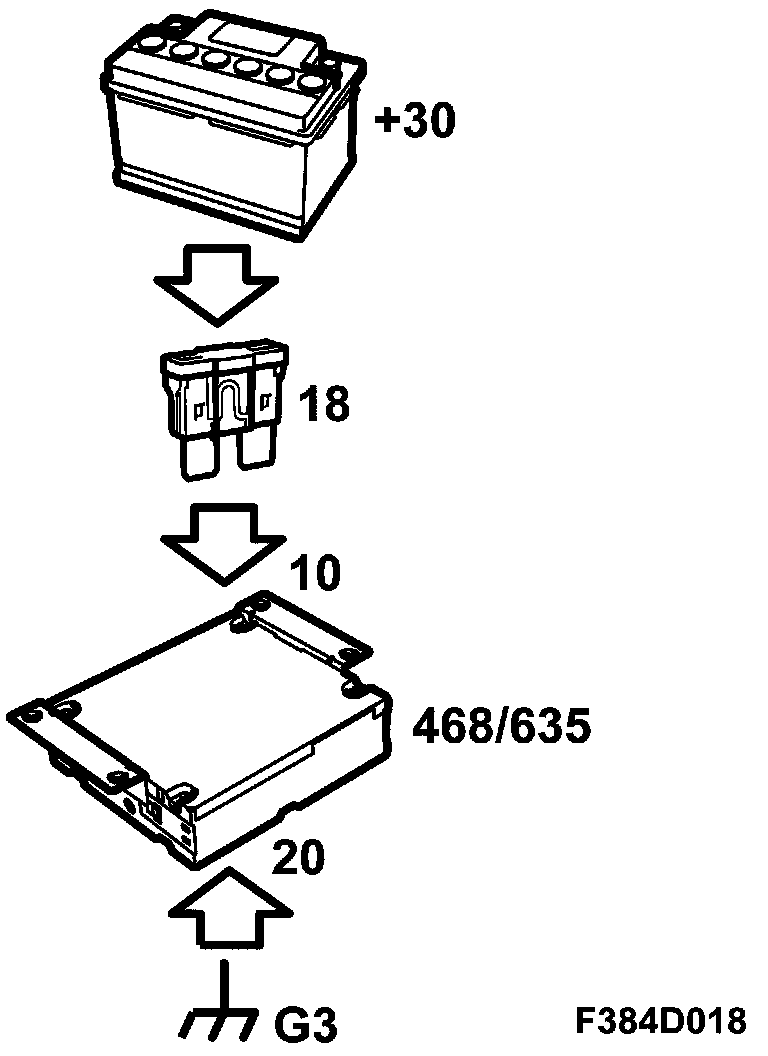

Diagram:
