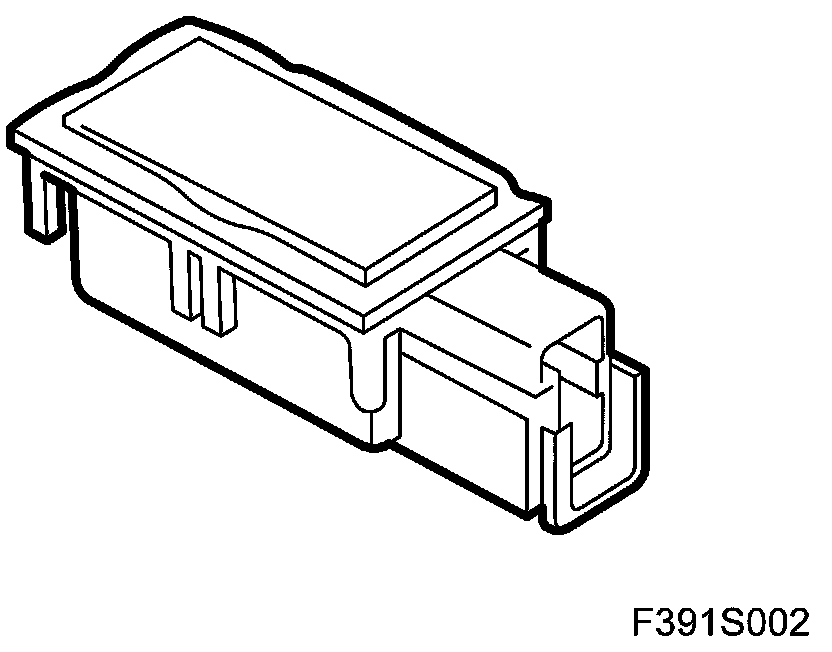

Microphone, Mobile Phone (634)

Microphone, Mobile Phone (634)

Main purpose
The microphone converts speech into electrical impulses that are sent to the Tel 2 or 3 communication unit or Tel 1 phone unit, depending on the level of phone equipment.

Type
Microphone with amplifier.

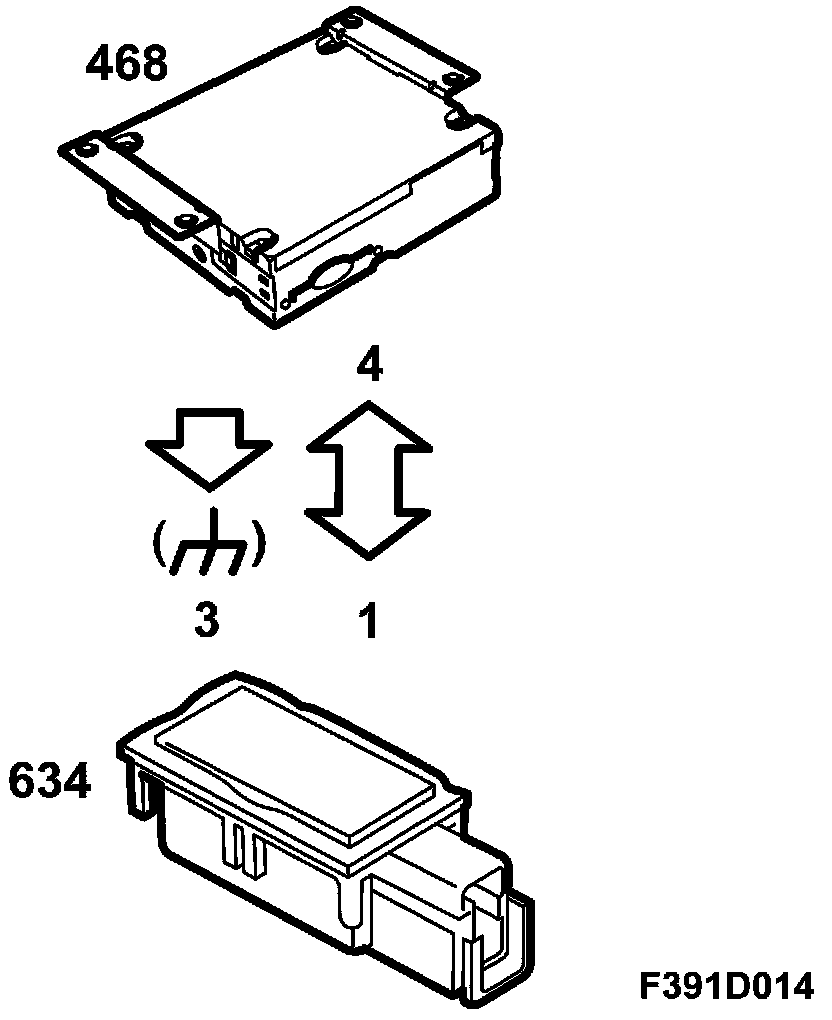

Connection
The microphone is supplied with power on pin 1 and sends an amplified signal on the same pin. Ground is provided on pin 3.

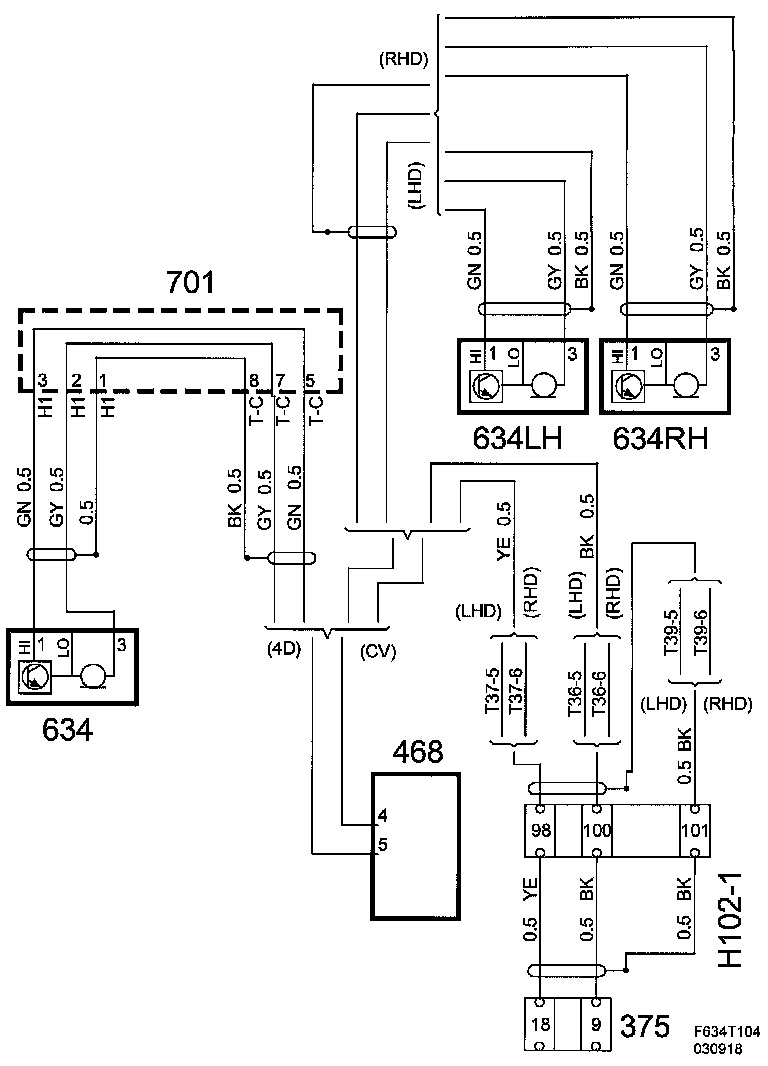

Wiring Diagram, Mobile Phone

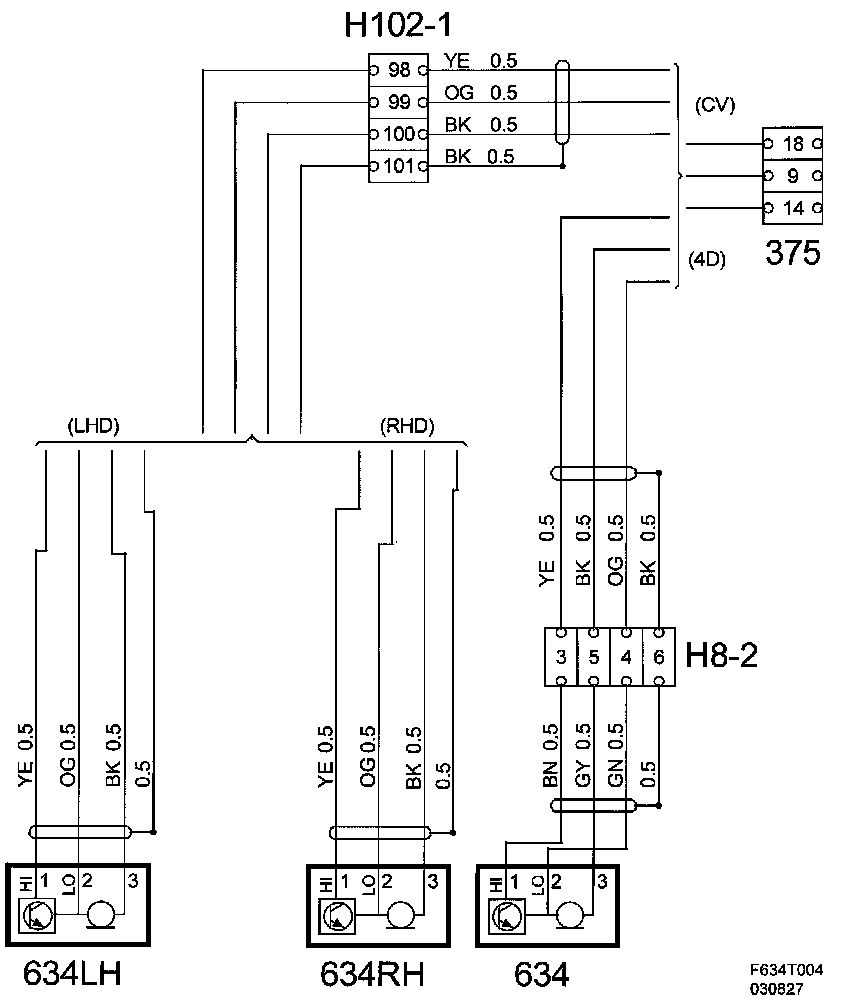

Wiring Diagram, Communication
