DVD Unit (729)

DVD Unit (729)

Main purpose
Provides data for navigation.

Type

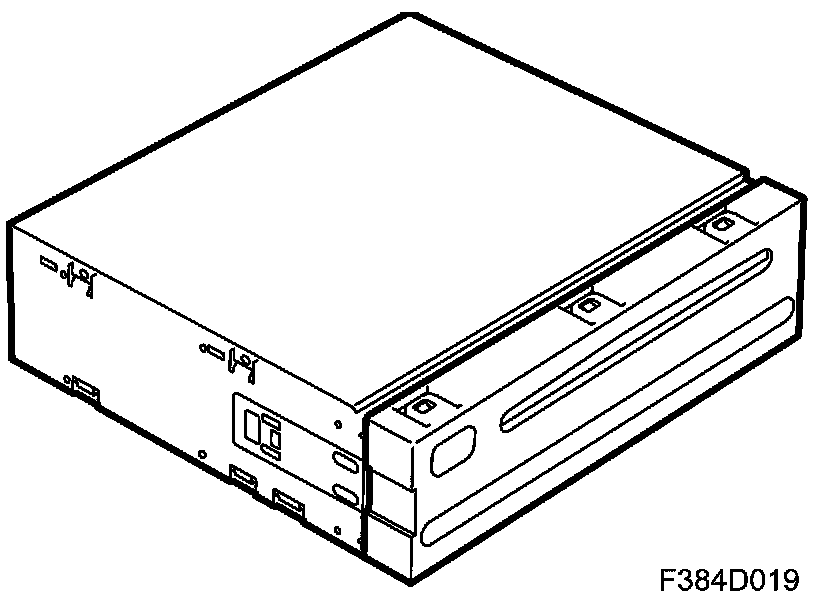

DVD player with gyro. DVD's contain address data, map data, navigation data and verbal navigation instructions. The gyro keeps track of the direction of travel of the car.







Connection

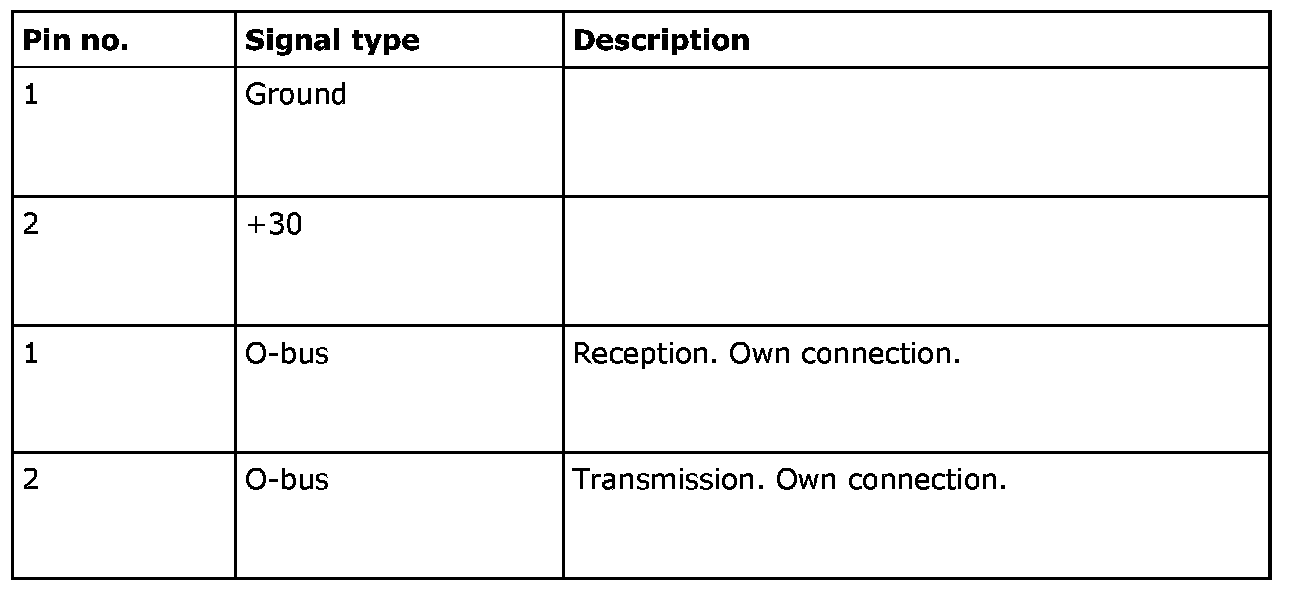

The DVD unit is supplied with +30 on pin 2 and grounded on pin 1. The O-bus has its own connection where pin 1 receives the signal and 2 transmits the signal.

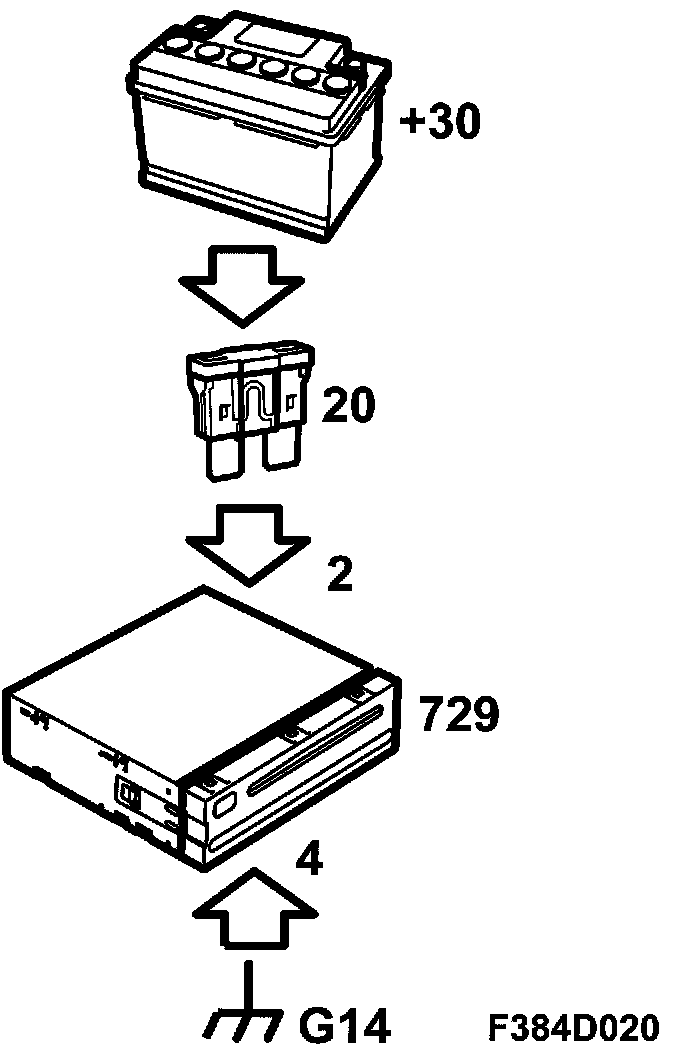

Wiring diagram
