Sedan

Anti-Theft Alarm Siren (275), 4D

To Remove

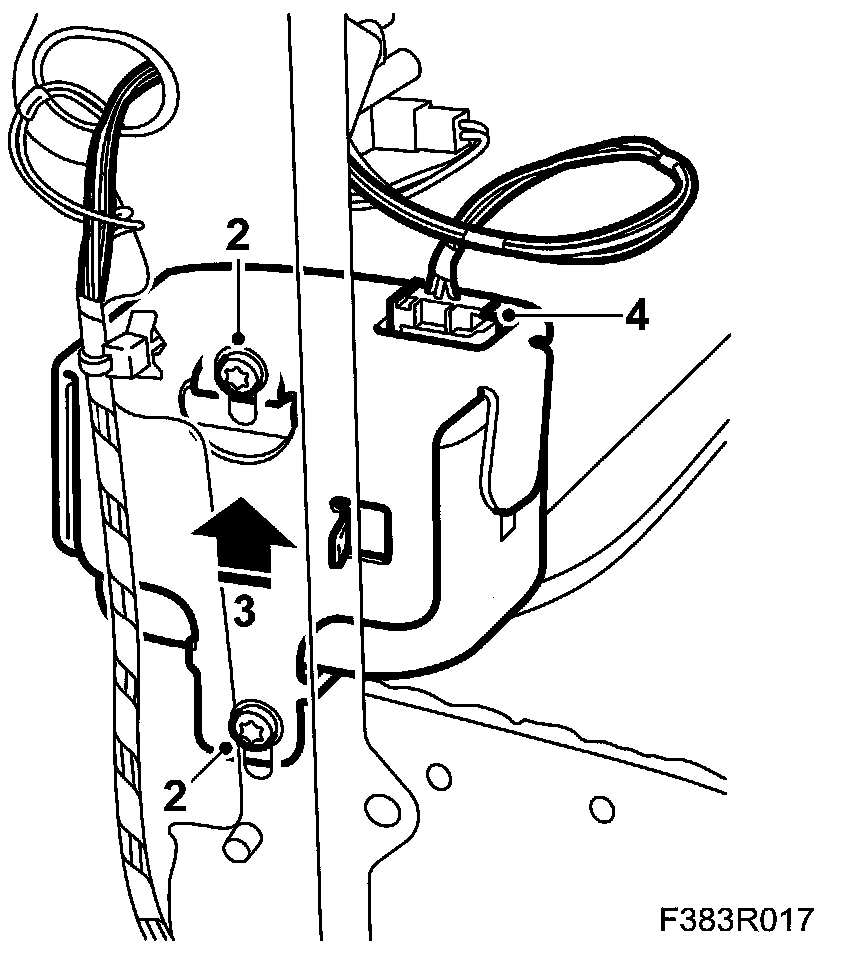

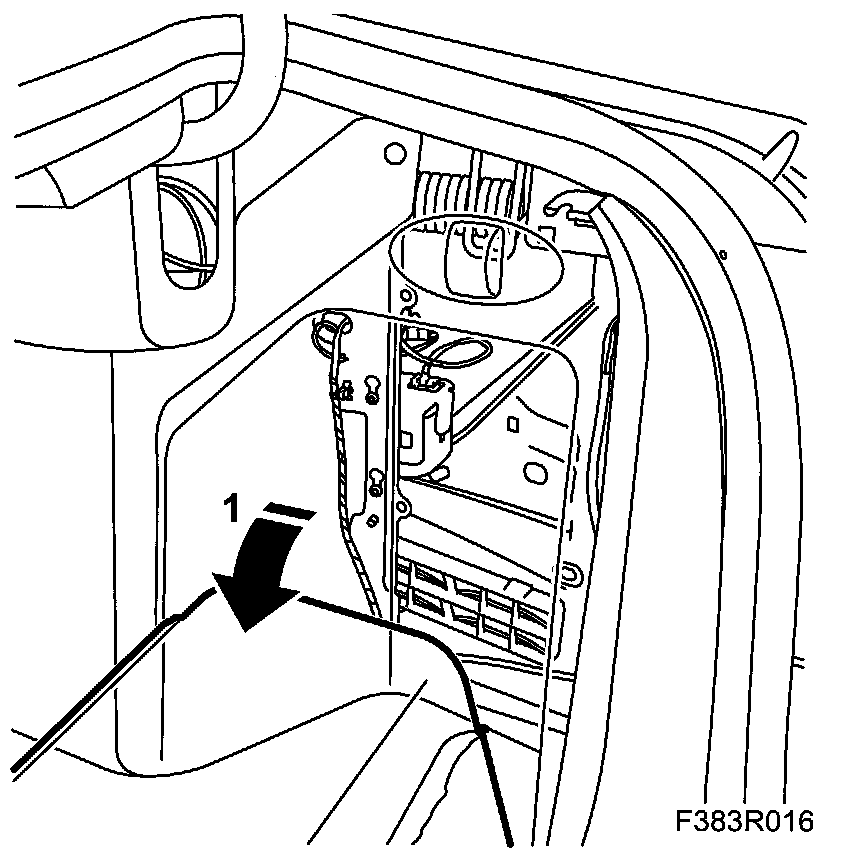

1. Open the right-hand hatch in the luggage compartment.







2. Remove the 2 bolts securing the siren.







3. Remove the siren.
4. Unplug the connector.

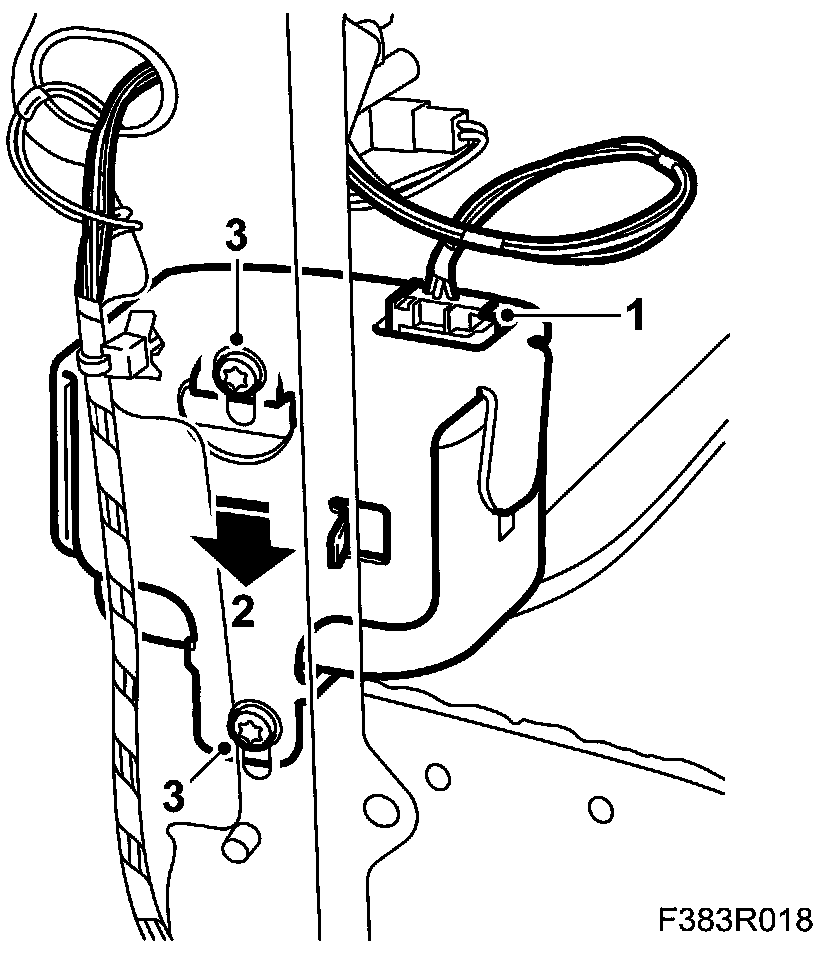

To fit
1. Plug in the connector.







2. Fit the siren.
3. Tighten the 2 bolts securing the siren.
Tightening torque 4.0 +/- 1.2 Nm

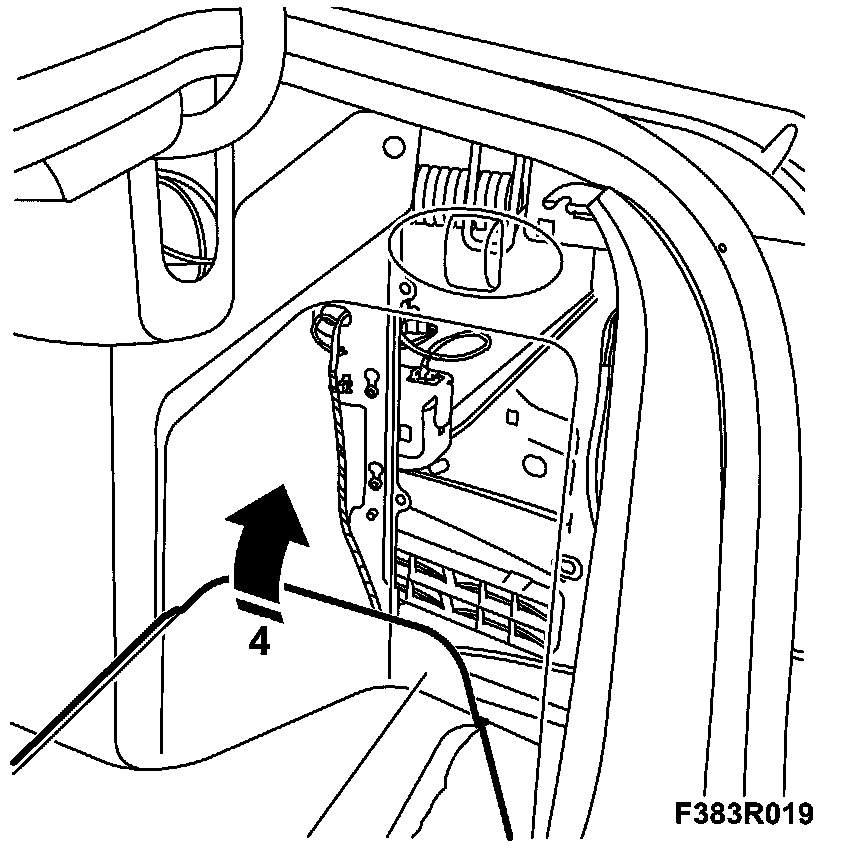

4. Close the side hatch.
