Sedan

Anti-Theft Alarm Sensor (690), 4D

To remove

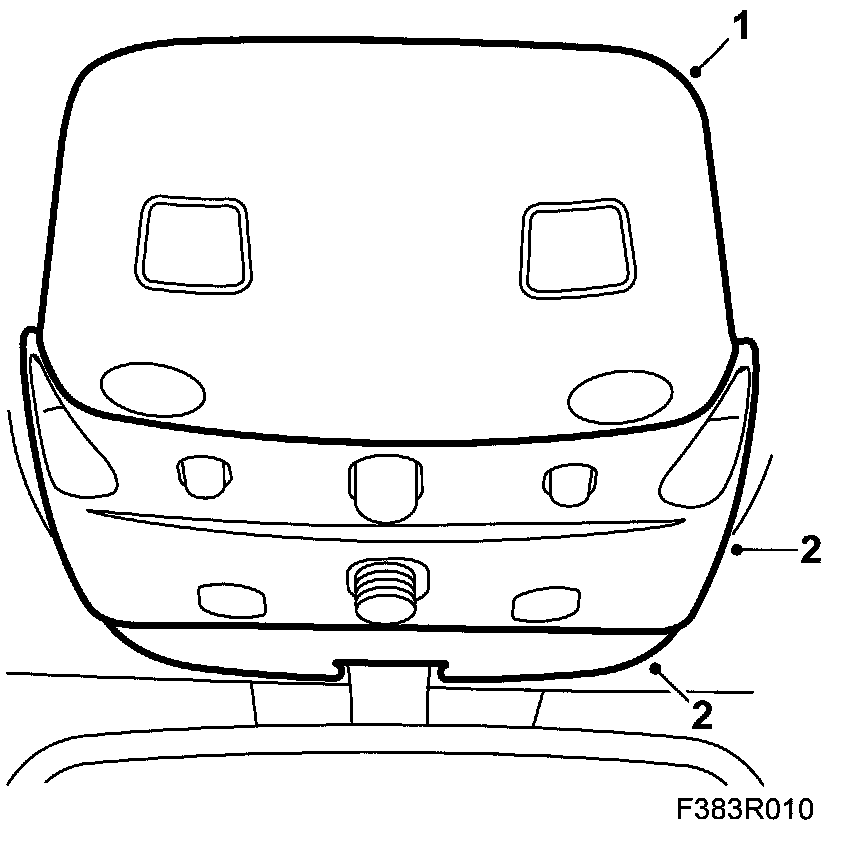

1. Remove the lens protector from the dome light.







2. Remove the switch panel cover.

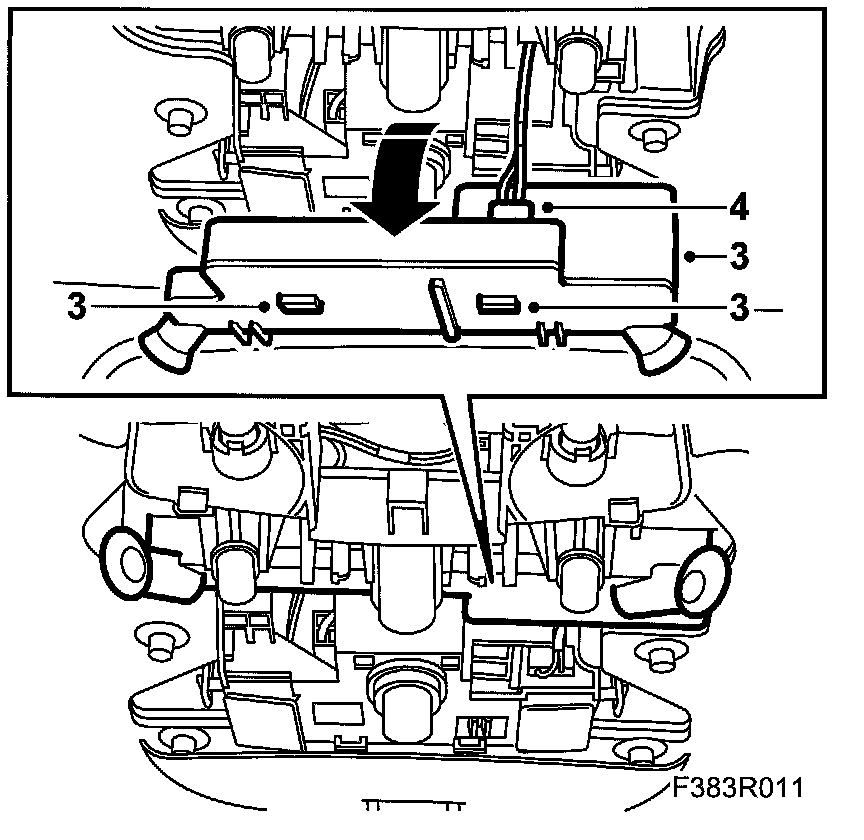

3. Remove the theft alarm sensor by pressing a screwdriver against the clips.







4. Unplug the connector.

To fit

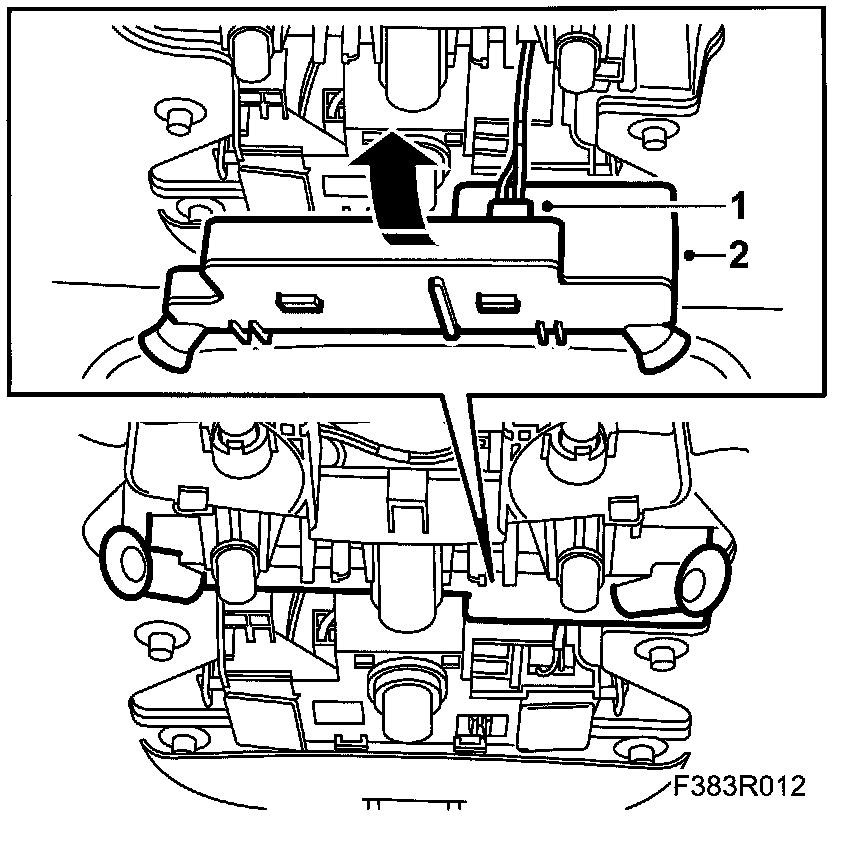

1. Plug in the connector.







2. Fit the theft alarm sensor. A click should be heard.

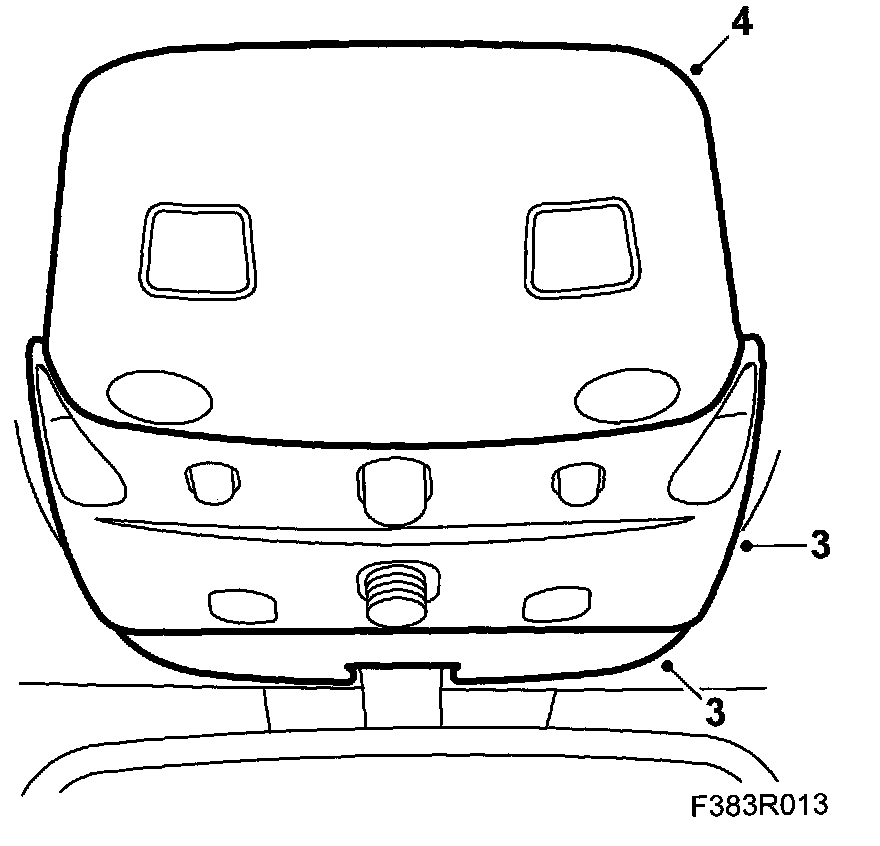

3. Fit the switch panel cover.







4. Fit the lens protector.
