Convertible

Anti-Theft Alarm Sensor (690), CV

To remove

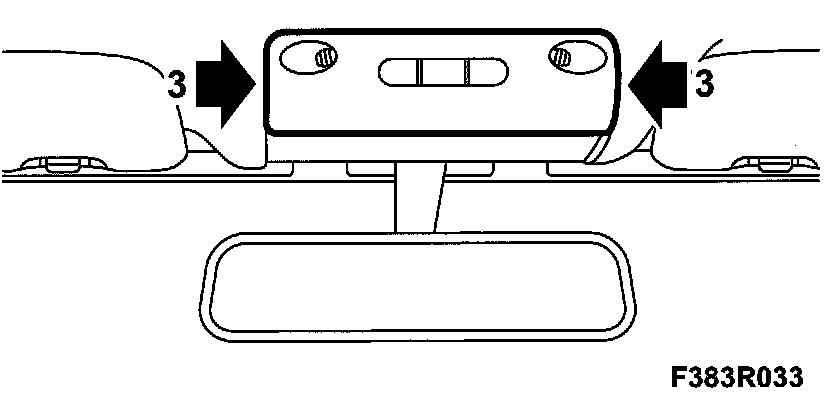

1. Remove the roof lamp from the window frame trim.







2. Remove the anti-theft alarm sensor by pressing a screwdriver against the clip.

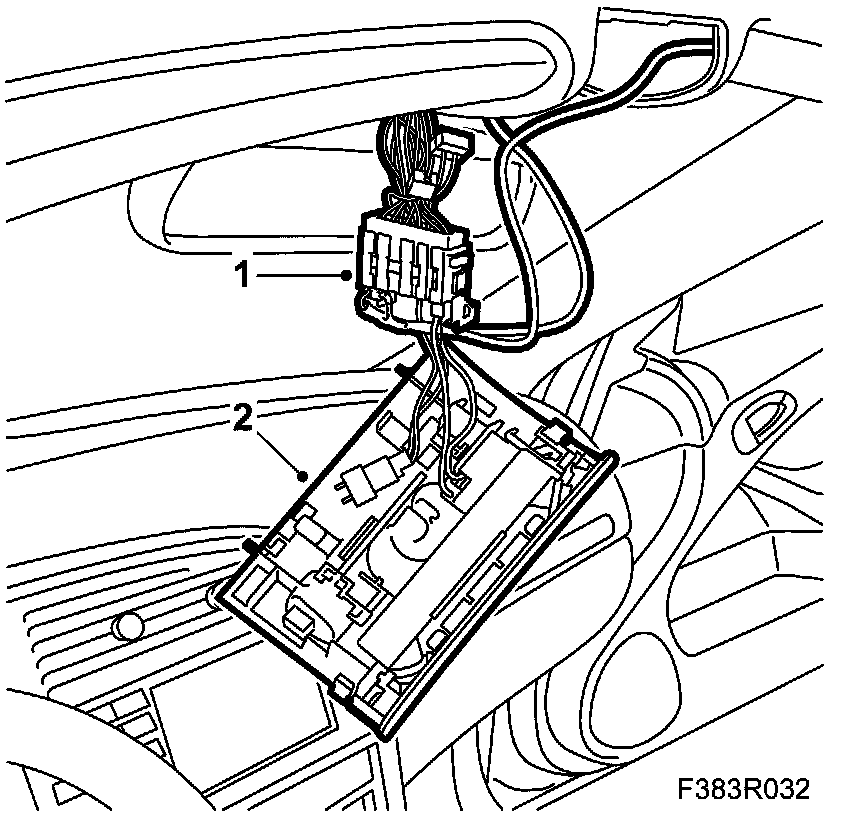

3. Unplug the connector.

To fit
1. Plug in the connector.







2. Fit the anti-theft alarm sensor. There should be an audible click.

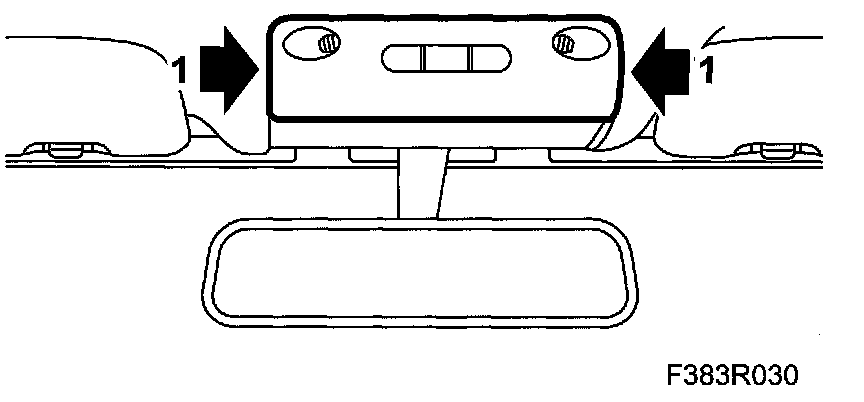

3. Refit the roof lamp.
