Steering Column Lock

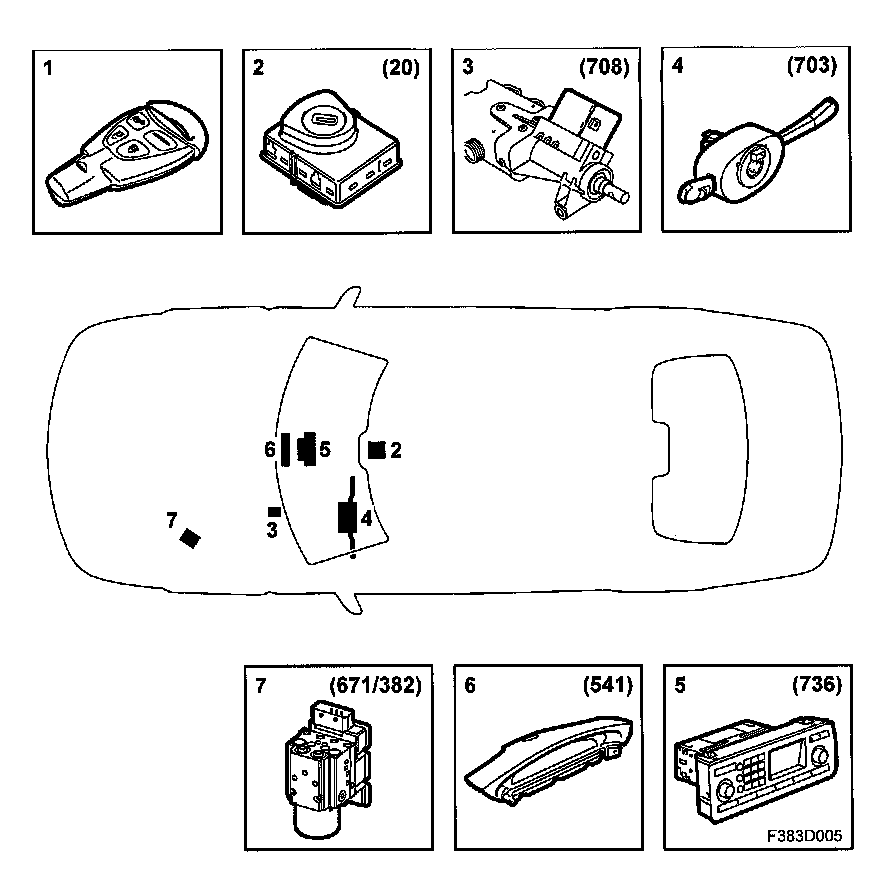

Steering Column Lock, Main Components







1. Key/Remote control
2. Ignition switch, ISM (20)
3. Steering column lock, SCL (708)
4. Column integration module, CIM (703)
5. Infotainment system control panel, ICM (736)
6. SID (541c)
7. TCS control module/ESP control module, rear wheel sensor (382/671)
