Bootlid Lock Microswitch (622)

Bootlid Lock Microswitch (622)

Main task
Used to open the bootlid from the outside.

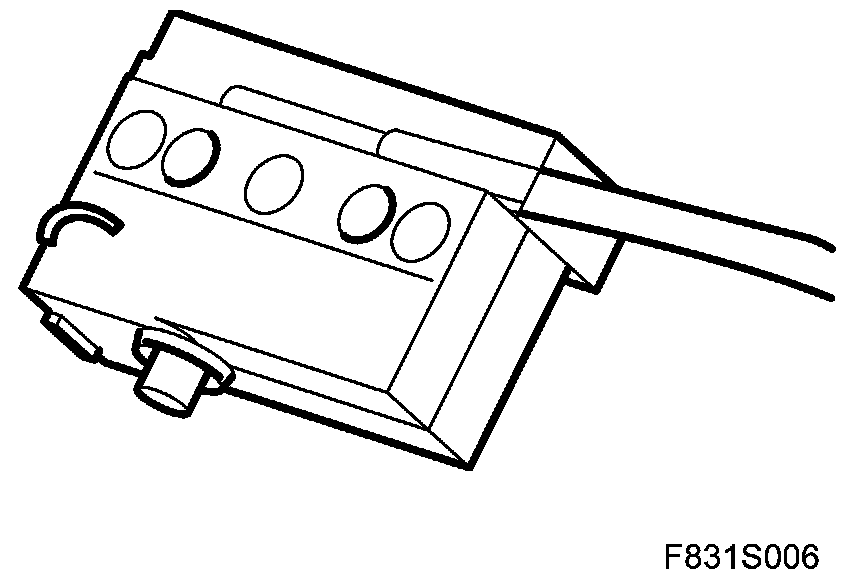

Type







The switch contains a single pole breaker. When the handle is not touched the breaker is open. When the handle is pushed in the switch makes.

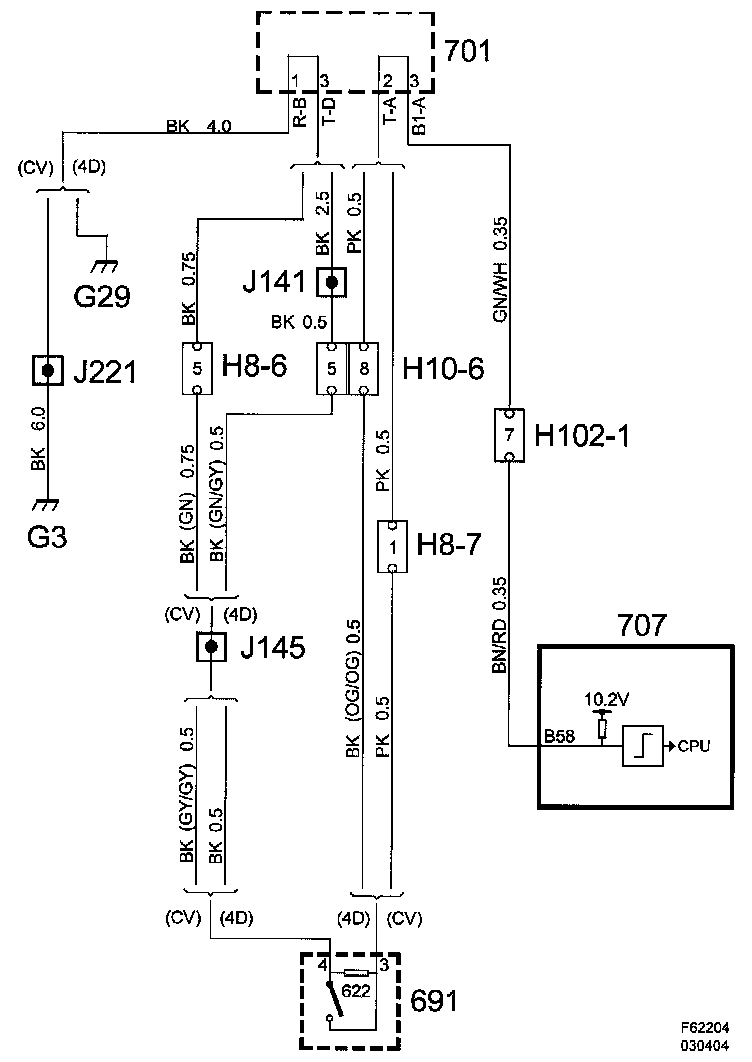

Connect

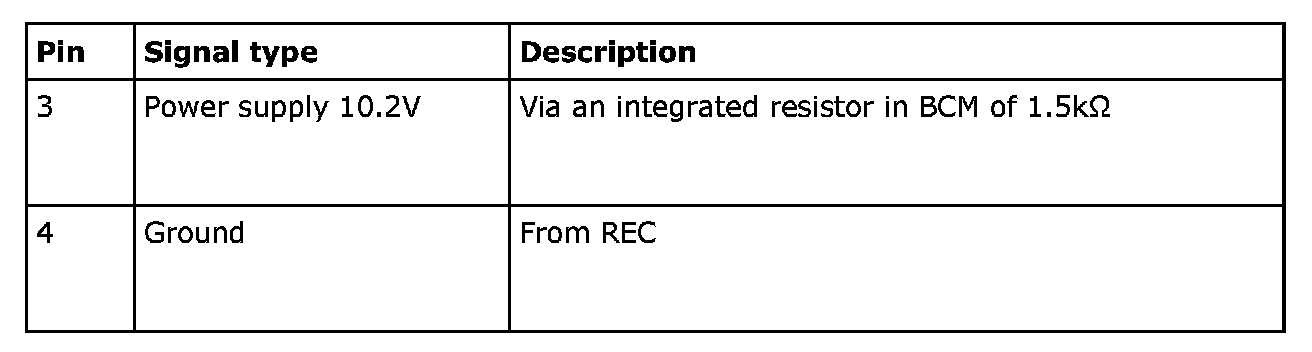

Pin No. 3 - 4:

The control module input is digital. A voltage above 2 V is interpreted as an open circuit while lower than 2 V is interpreted as closed.
