Bonnet Switch, Anti-theft Alarm (276)

Bonnet Switch, Anti-theft Alarm (276)







Main task
Used to indicate whether the bonnet is open or closed. The value is used for the anti-theft alarm function and to inform the driver that the bonnet is not closed. BCM sends the status of the switch on the bus.

Type

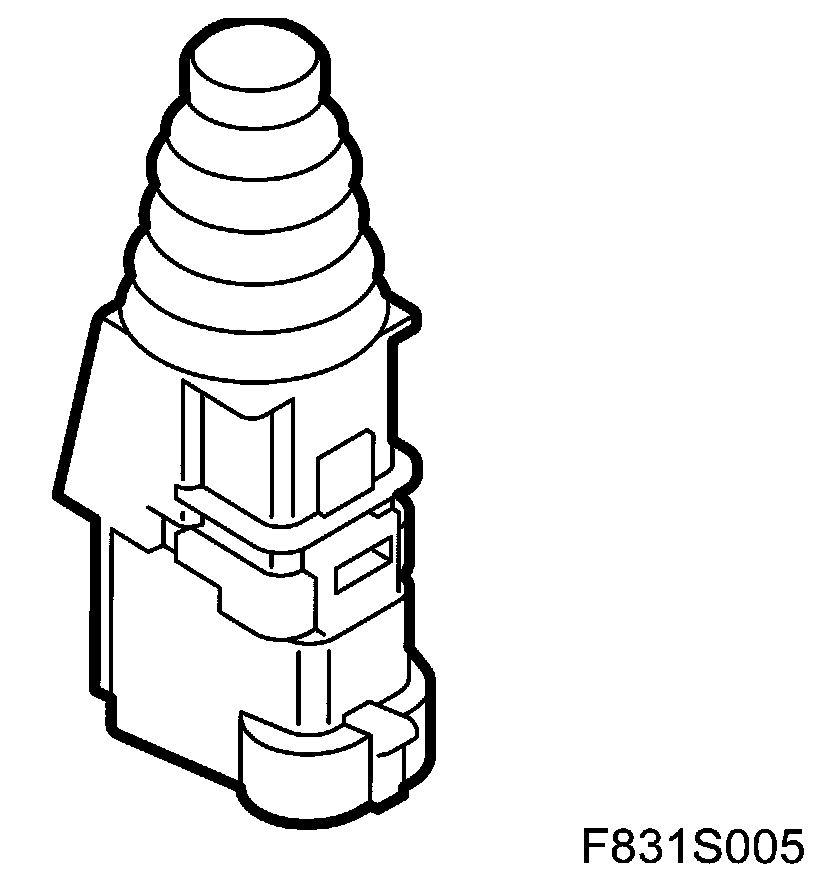

The switch contains a single pole breaker. When the bonnet is closed the breaker is open. When the bonnet opens the breaker makes.

Connect

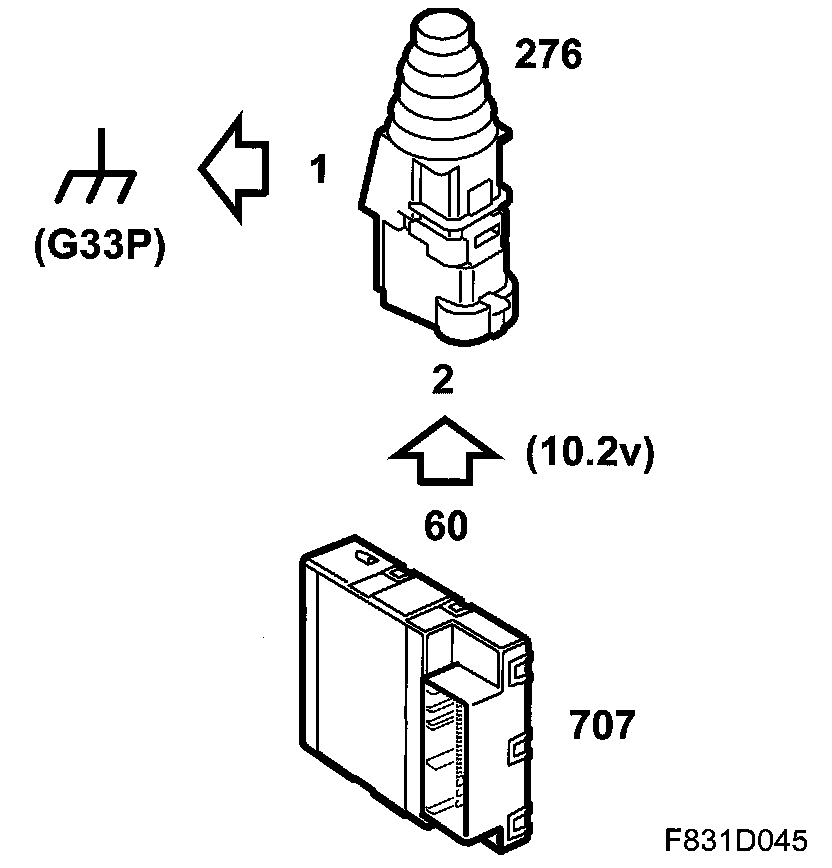

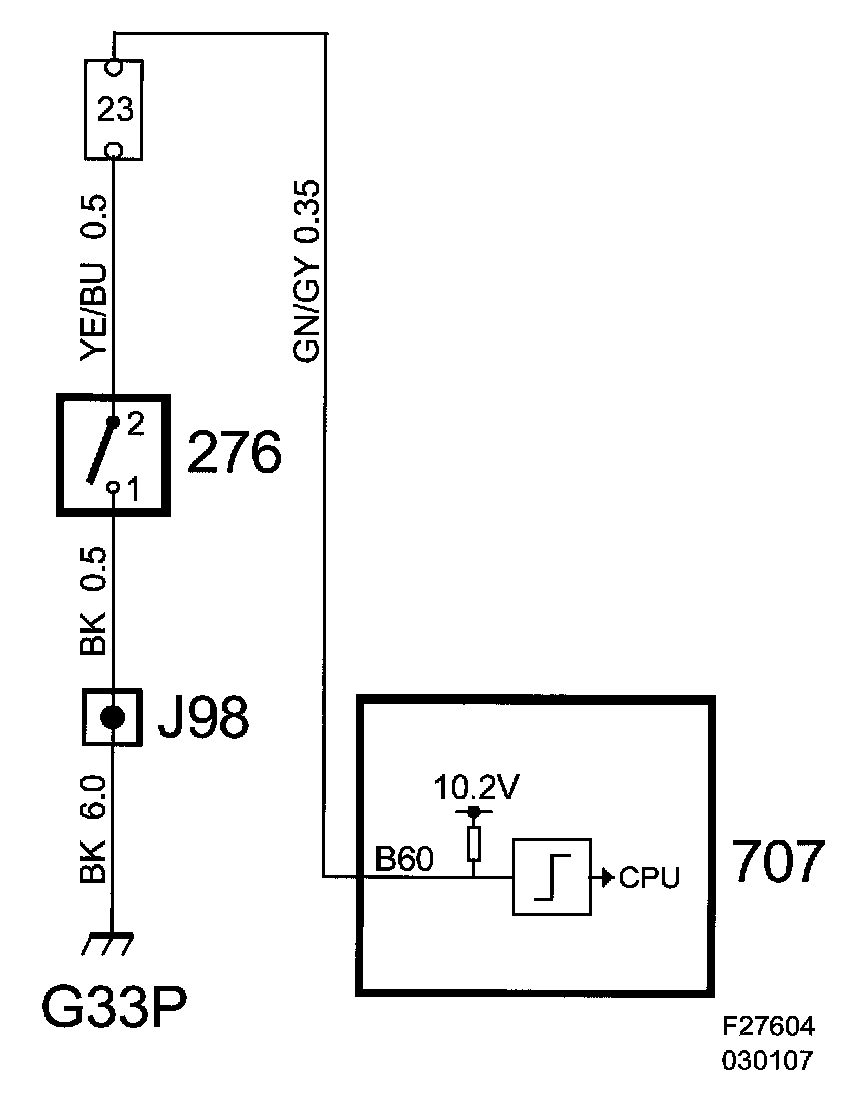

Pin 2 has direct chassis grounding and pin 1 feeds with 10.2 V via a resistor of 1.5 kohm integrated in BCM. The control module input is digital. A voltage above 2 V is interpreted as an open circuit while lower than 2 V is interpreted as closed.
