U2139 00 Parking Assist

U2139 00

CIM Missing on Bus







Fault symptom
- Message "Parking assistance out of order" shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.
- Battery voltage greater than 9 V.

Fault criteria:
- No signal from CIM.
- CIM control module not on the bus.

System reaction to a fault:
- Parking assistance is switched off.
- Control module receives no vehicle speed signal from CIM or no park/neutral position obtained.

Diagnostic help

Diagnosis regards:

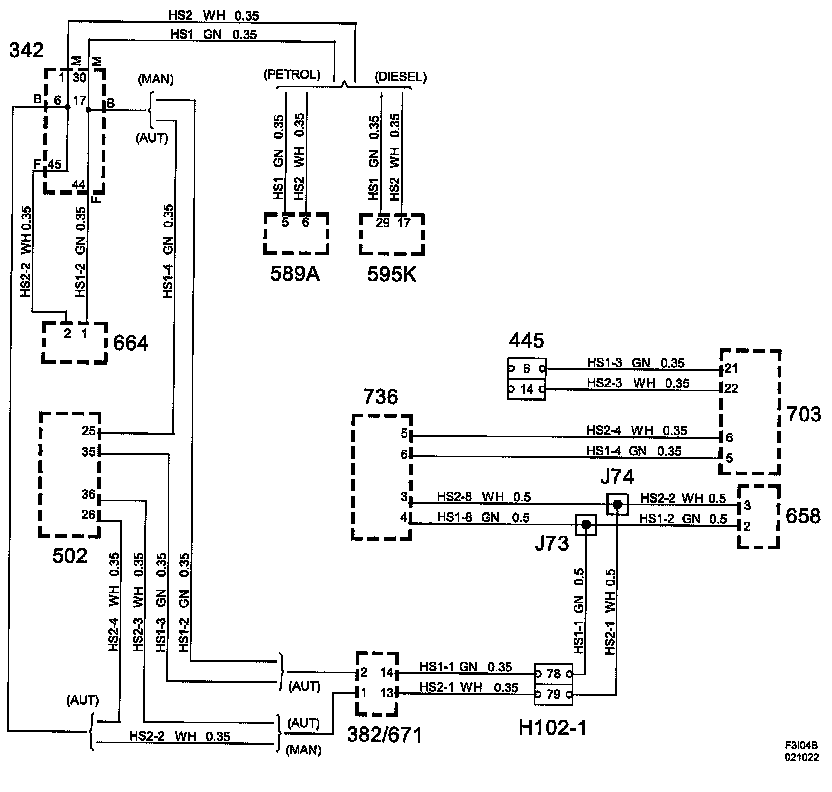

- Electrical fault on bus leads or in the component.

Functions in the diagnostic tool related to the fault:

Test value:
Bus Off Counter, I-Bus
(See also description of readings/activations in diagnostic tool)
